Supermicro H12DSi-N6 Dual AMD EPYC 7003/7002 Server Motherboard | EATX DDR4 PCIe 4.0

Supermicro H12DSi-N6 Dual AMD EPYC 7003/7002 Server Motherboard | EATX DDR4 PCIe 4.0

Key Features

• Dual AMD EPYC™ 7003/7002 Series Processors
  (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
• 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
• Expansion slots:
  3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
  M.2 Interface: 1 PCI-E 4.0 x4
  M.2 Form Factor: 2280, 22110
  M.2 Key: M-key
• 10 SATA3, 2 SATADOM, 4 NVMe
• Dual Gigabit LAN ports,
  1 dedicated IPMI LAN Port
• ASPEED AST2600 BMC graphics
• 2 USB 2.0 ports (rear),
  4 USB 3.0 ports (2 rear, 2 headers)
• 8x 4-pin PWM Fans & Speed control

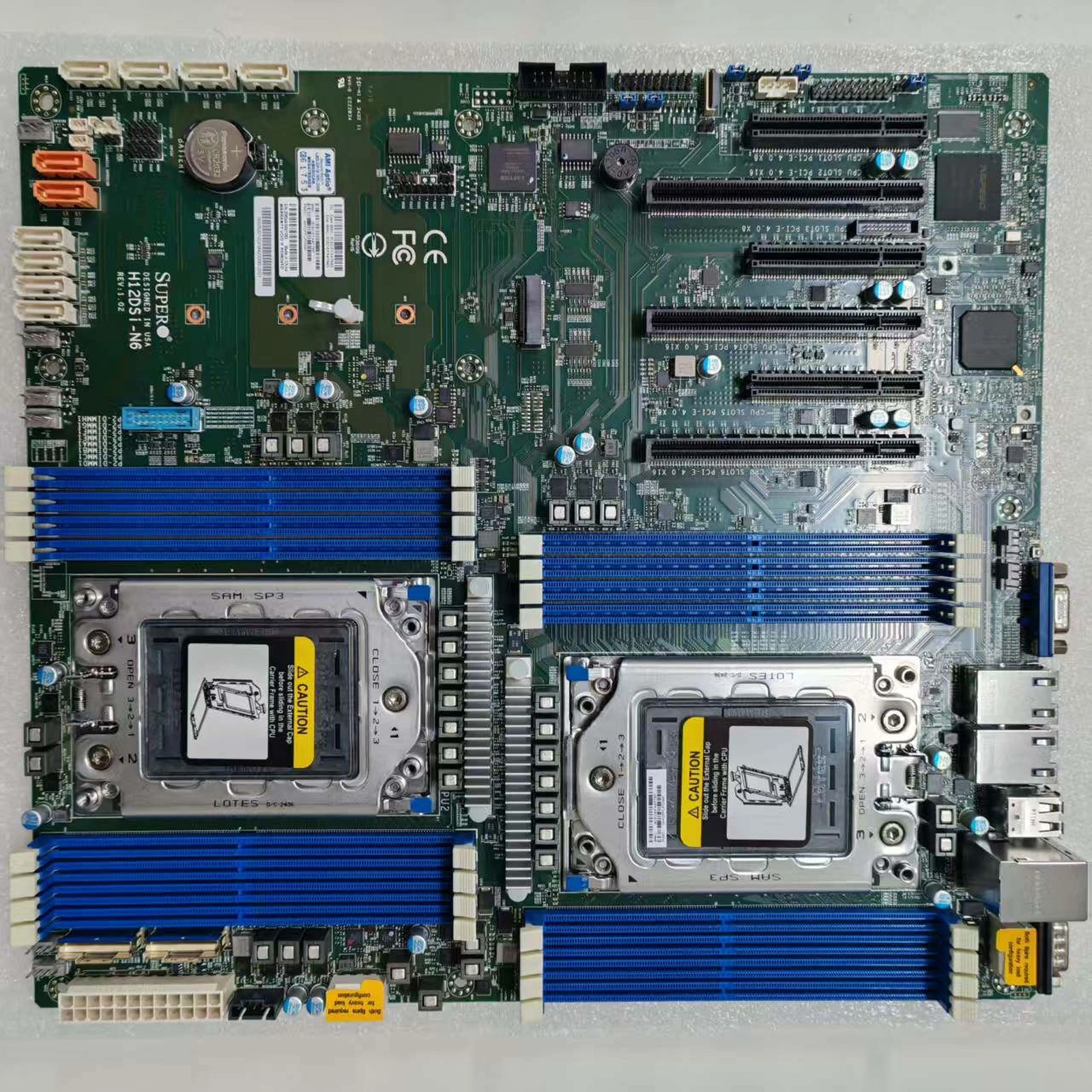

Introduction to Supermicro H12DSi-N6 Server Motherboard

The Supermicro H12DSi-N6 is a robust, high‑end EATX form‑factor server motherboard engineered to deliver exceptional performance, scalability, and reliability for modern data centers, cloud infrastructure, virtualization environments, high‑performance computing (HPC), and dedicated storage servers. Built around dual AMD EPYC 7003 (Milan) and 7002 (Rome) series processors with SoC architecture, this board combines leading computing power, enterprise‑grade stability, rich I/O capabilities, and comprehensive remote management to support mission‑critical applications running 24/7. Whether deployed in 2U or 3U rackmount chassis, the H12DSi‑N6 provides a balanced, future‑proof foundation for compute‑intensive workloads, virtual machine density, database hosting, content delivery, software‑defined storage, and AI inference tasks. With support for AMD 3D V‑Cache technology (requires BIOS v2.3 or newer), the platform further boosts cache‑sensitive performance for computational fluid dynamics, financial modeling, video rendering, and big data analytics.

Powerful Dual AMD EPYC 7003/7002 Processing Platform

At the core of the H12DSi‑N6 is dual AMD SP3 socket support for AMD EPYC 7003 and 7002 series processors, delivering exceptional multi‑threaded performance and high core counts up to 64 cores per CPU. This makes the board ideal for heavy virtualization, where high VM density requires strong per‑thread and multi‑core performance. The SoC (System on Chip) design eliminates the need for a traditional discrete chipset, improving power efficiency, reducing latency, and enhancing signal integrity for critical server operations. Compatibility with the latest AMD EPYC 7003 processors with 3D V‑Cache technology extends the board’s value by accelerating cache‑bound workloads without compromising power draw or thermal design. Combined with Supermicro’s robust power delivery and server‑grade PCB layout, the platform maintains stable voltage and clock speeds even under sustained full utilization, ensuring consistent performance in enterprise environments.

Massive, Reliable ECC Memory Subsystem

Memory capacity and stability are critical for servers, and the H12DSi‑N6 excels with 16 DDR4 DIMM slots supporting up to 4TB of Registered ECC DDR4‑3200MHz SDRAM in an 8‑channel configuration. This high memory bandwidth benefits memory‑intensive applications such as in‑memory databases, big data processing, virtual desktop infrastructure (VDI), and caching systems. The board uses 288‑pin gold‑plated DIMMs operating at 1.2V for energy efficiency, while ECC (Error Correcting Code) functionality corrects single‑bit errors and detects double‑bit errors, minimizing system crashes and data corruption in long‑duration operation. For dual‑CPU configurations, Supermicro recommends balanced memory population across adjacent memory banks to maximize bandwidth and stability. Supported DIMM capacities range from 8GB up to 256GB, allowing flexible configuration from small entry servers to large‑scale enterprise nodes.

Rich Storage & High‑Speed NVMe Capabilities

Storage flexibility is a highlight of the H12DSi‑N6, designed to handle mixed workloads and high‑capacity storage scenarios. The board features 10 native SATA3 (6Gbps) ports, 2 SATADOM connectors, and 4 internal PCIe 4.0 NVMe x4 ports for ultra‑fast solid‑state storage. A dedicated M.2 slot (PCIe 4.0 x4, M‑Key) supports both 2280 and 22110 form factors, enabling fast boot drives, high‑speed cache volumes, or ultra‑low‑latency storage for operating systems and hypervisors. This combination of SATA and NVMe allows administrators to build hybrid storage pools combining high‑capacity HDDs and low‑latency SSDs, ideal for software‑defined storage, NAS, SAN, or hyper‑converged infrastructure (HCI). The native PCIe 4.0 design doubles bandwidth compared to PCIe 3.0, reducing I/O bottlenecks and improving storage throughput for demanding applications.

Extensive PCIe 4.0 Expansion for Workload Optimization

Expansion capability ensures the H12DSi‑N6 can adapt to diverse server roles. It provides 3 PCIe 4.0 x16 slots and 3 PCIe 4.0 x8 slots, delivering abundant bandwidth for add‑in cards such as GPUs, FP‑GPUs, high‑speed network cards, NVMe HBAs, RAID adapters, and PCIe switch cards. This makes the board suitable for HPC clusters, AI inference servers, video transcoding nodes, and high‑speed networking environments. The PCIe 4.0 infrastructure maintains full performance for dual‑CPU configurations, ensuring balanced resource allocation and efficient communication between peripherals and processors. Whether adding 10G/25G/100G Ethernet cards, GPU accelerators, or extra storage controllers, the H12DSi‑N6 offers the expansion headroom to scale with evolving business needs.

Enterprise Networking & IPMI 2.0 Remote Management

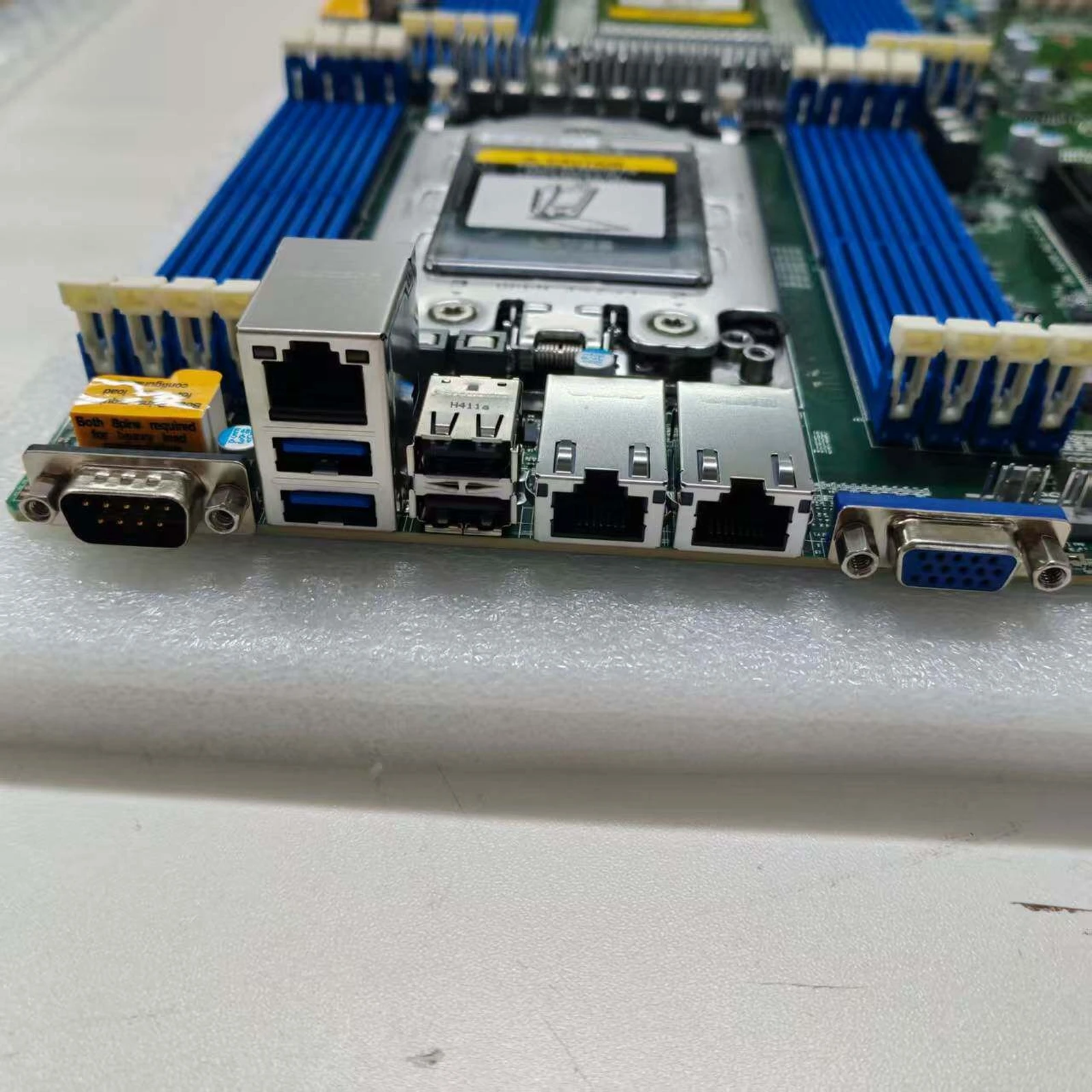

Networking and systems management are essential for server deployment, and the H12DSi‑N6 includes dual Broadcom BCM5720L Gigabit Ethernet ports for reliable, high‑throughput network connectivity, supporting link aggregation, failover, and virtualized networking stacks. A dedicated IPMI 2.0 LAN port paired with the ASPEED AST2600 BMC enables full out‑of‑band management, including KVM‑over‑LAN, virtual media, sensor monitoring, and remote power control—independent of the host OS or CPU state. This allows IT teams to monitor, troubleshoot, recover, and update servers remotely, reducing on‑site maintenance and improving uptime. The AST2600 also provides integrated graphics for console output, eliminating the need for a discrete GPU in standard server roles. Rear I/O includes 2x USB 2.0, 2x USB 3.0, 1x VGA, and 1x COM port, while internal headers provide 2x USB 3.0, TPM 2.0 support, and chassis intrusion detection for enhanced security.

Robust Hardware Monitoring & Thermal Design

For continuous 24/7 operation, the H12DSi‑N6 includes comprehensive server‑grade hardware monitoring and flexible thermal control. The board supports 8× 4‑pin PWM fan headers with tachometer monitoring and automatic speed control, allowing precise fan adjustment based on CPU and system temperatures. Thermal protection includes CPU thermal trip, I²C temperature sensing, and overheat LED indicators for immediate visual alerts. Voltage monitoring covers core voltages, +1.5V, +1.8V, +12V, +5V, +5V standby, and VBAT, ensuring early detection of power irregularities. Chassis intrusion detection adds physical security, while ACPI power management and power‑loss recovery modes improve operational resilience. These features make the board well‑suited for enclosed rack environments and ensure longevity under continuous load.

Form Factor, Chassis Compatibility & Deployment

The H12DSi‑N6 uses the EATX form factor (12 × 13.05 inches / 30.5 × 33.1 cm), compatible with standard 2U and 3U rackmount server chassis optimized by Supermicro. Recommended chassis include 2U models such as SCLA25TQC‑R609LP and SCLA26AC12‑R920LP1, and the 3U SC835TQC‑R1K03B, allowing flexible deployment in data centers with limited space. The board is validated for use in Supermicro AS‑2024S‑TR servers, ensuring seamless integration and enterprise support. With an operating temperature range of 10°C to 35°C and non‑operating range of ‑40°C to 70°C, the board withstands challenging environmental conditions often found in data centers and edge installations.

Ideal Use Cases

The H12DSi‑N6 is designed for a broad spectrum of enterprise applications:
– Virtualization & Hyper‑Converged Infrastructure (VMware, Hyper‑V, Proxmox, Citrix Hypervisor)
– Cloud Computing & Container Orchestration Nodes
– High‑Performance Computing (HPC) & Scientific Computing
– Database Servers & In‑Memory Computing Platforms
– Software‑Defined Storage & NAS/SAN Controllers
– AI Inference & Edge Computing Servers
– Video Streaming, Transcoding & Media Servers
– Enterprise Networking & Security Appliances

Conclusion

The Supermicro H12DSi‑N6 stands out as a premium dual AMD EPYC server motherboard that unites strong computing performance, massive memory capacity, flexible storage, high‑speed PCIe 4.0 expansion, and comprehensive IPMI remote management in a reliable EATX design. Built for stability, scalability, and long‑term enterprise usage, it addresses the demands of modern data centers while supporting future upgrades. Whether you are building virtualization clusters, storage servers, HPC systems, or dedicated application nodes, the H12DSi‑N6 delivers a trusted, high‑performance foundation that maximizes uptime and ROI for mission‑critical IT infrastructure.
