Supermicro H12SSL‑NT AMD EPYC DDR4 PCIe 4.0 Server Motherboard | Dual 10GbE BMC

Key Features

• Single AMD EPYC™ 7003/7002 Series Processor
  (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
• 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
• Expansion slots:
  5 PCI-E 4.0 x16
  2 PCI-E 4.0 x8
  M.2 Interface: 2 PCI-E 4.0 x4
  M.2 Form Factor: 2280, 22110
  M.2 Key: M-key
• 2 M.2,
  2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
• Dual 10GBase-T LAN via Broadcom BCM57416
• ASPEED AST2500 BMC graphics
• Up to 6 USB 3.0 ports
  (4 rear + 2 via header)
• 7 PWM 4-pin Fans with tachometer status monitoring

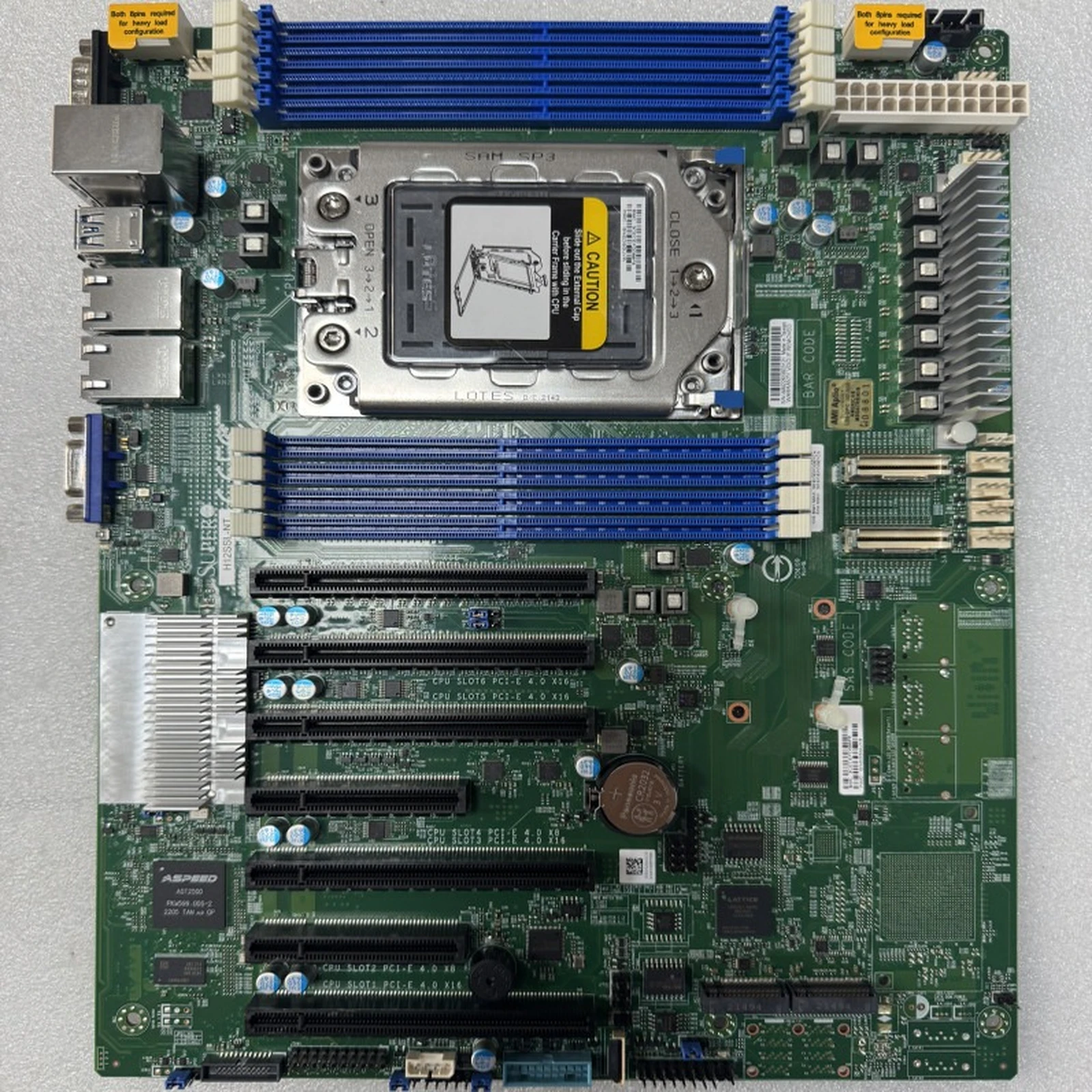

Supermicro H12SSL‑NT: Enterprise‑Grade Server Motherboard for AMD EPYC Platforms

Introduction

The Supermicro H12SSL‑NT stands as a robust, single‑socket ATX server motherboard purpose‑built for modern data centers, virtualization environments, storage servers, cloud computing nodes, and high‑performance computing clusters. Engineered around AMD’s EPYC 7003 and 7002 series processors—including models with AMD 3D V‑Cache technology—it delivers exceptional compute density, memory bandwidth, I/O throughput, and remote management capabilities in a standard ATX form factor. This platform balances performance, scalability, and reliability to meet the rigorous demands of 24/7 enterprise operations.

Processor Compatibility & Core Performance

At its core, the H12SSL‑NT supports a single AMD EPYC 7003 (Milan) or 7002 (Rome) series processor in the SP3 (LGA 4094) socket. This includes high‑core‑count models with up to 64 cores and 128 threads, making the board ideal for multi‑threaded workloads such as virtual machines, database servers, content delivery networks, big data analytics, and rendering farms. Processors equipped with AMD 3D V‑Cache technology require BIOS version 2.3 or newer, unlocking enhanced L3 cache capacity for latency‑sensitive applications like in‑memory databases and HPC clusters. The SoC‑integrated architecture eliminates traditional chipset bottlenecks, improving power efficiency and data path efficiency compared to legacy platform designs.

Memory Architecture & Bandwidth

Memory capacity and speed are critical for server‑class workloads, and the H12SSL‑NT excels with 8×DDR4 DIMM slots supporting up to 2TB of registered ECC DDR4‑3200MHz SDRAM. The board implements a full eight‑channel memory bus, maximizing bandwidth for memory‑intensive tasks such as virtualization, in‑memory computing, large database caching, and real‑time data processing. ECC (Error‑Correcting Code) technology detects and fixes single‑bit errors and detects double‑bit errors, preventing silent data corruption and improving system stability in long‑duration deployments. Support for RDIMM, LRDIMM, and 3DS‑RDIMM modules ensures compatibility with a wide range of enterprise‑grade memory configurations.

PCIe 4.0 Expansion & Flexibility

The H12SSL‑NT provides extensive I/O expansion via a full complement of PCIe 4.0 slots, future‑proofing the system for high‑speed adapters: 5×PCIe 4.0 x16 slots and 2×PCIe 4.0 x8 slots. This layout supports multiple high‑bandwidth devices including NVMe SSD RAID cards, 10/25/100GbE network adapters, GPU accelerators, NVMe over Fabrics controllers, SAS/SATA HBA cards, and FPGA accelerators. PCIe 4.0 doubles the bandwidth of PCIe 3.0, reducing latency and increasing throughput for I/O‑bound workloads. The flexible slot design supports standard and low‑profile cards, adapting to various chassis types from rack‑mount to tower servers.

High‑Speed Storage Connectivity

Storage flexibility is a highlight of the H12SSL‑NT, with multiple interfaces for mixed SSD and HDD deployments: 2×M.2 slots (PCIe 4.0 x4, M‑Key) supporting 2280 and 22110 form factors for ultra‑fast boot drives or cache storage; 2×SlimSAS x8 ports, each configurable to 8×SATA3 (6Gbps) or 2×NVMe drives. This hybrid configuration supports traditional SATA HDDs for cost‑effective bulk storage and NVMe SSDs for low‑latency high‑IOPS workloads. Combined, the board supports extensive internal storage arrays suitable for software‑defined storage, NAS, SAN, and hyper‑converged infrastructure.

Dual 10GBase‑T Networking & BMC

Network performance and remote management are enterprise essentials. The H12SSL‑NT features dual 10GBase‑T LAN ports powered by the Broadcom BCM57416 controller, delivering 10Gbps throughput over standard CAT6A/CAT7 cabling. These ports support enterprise features such as VLAN tagging, jumbo frames, RSS, and hardware‑accelerated virtual switching. Dedicated ASPEED AST2500 BMC with IPMI 2.0 enables full remote management including KVM‑over‑LAN, virtual media, sensor monitoring, and remote power control—even when the main OS is offline. A dedicated management LAN port ensures out‑of‑band access is always available.

I/O, Monitoring & Thermal Design

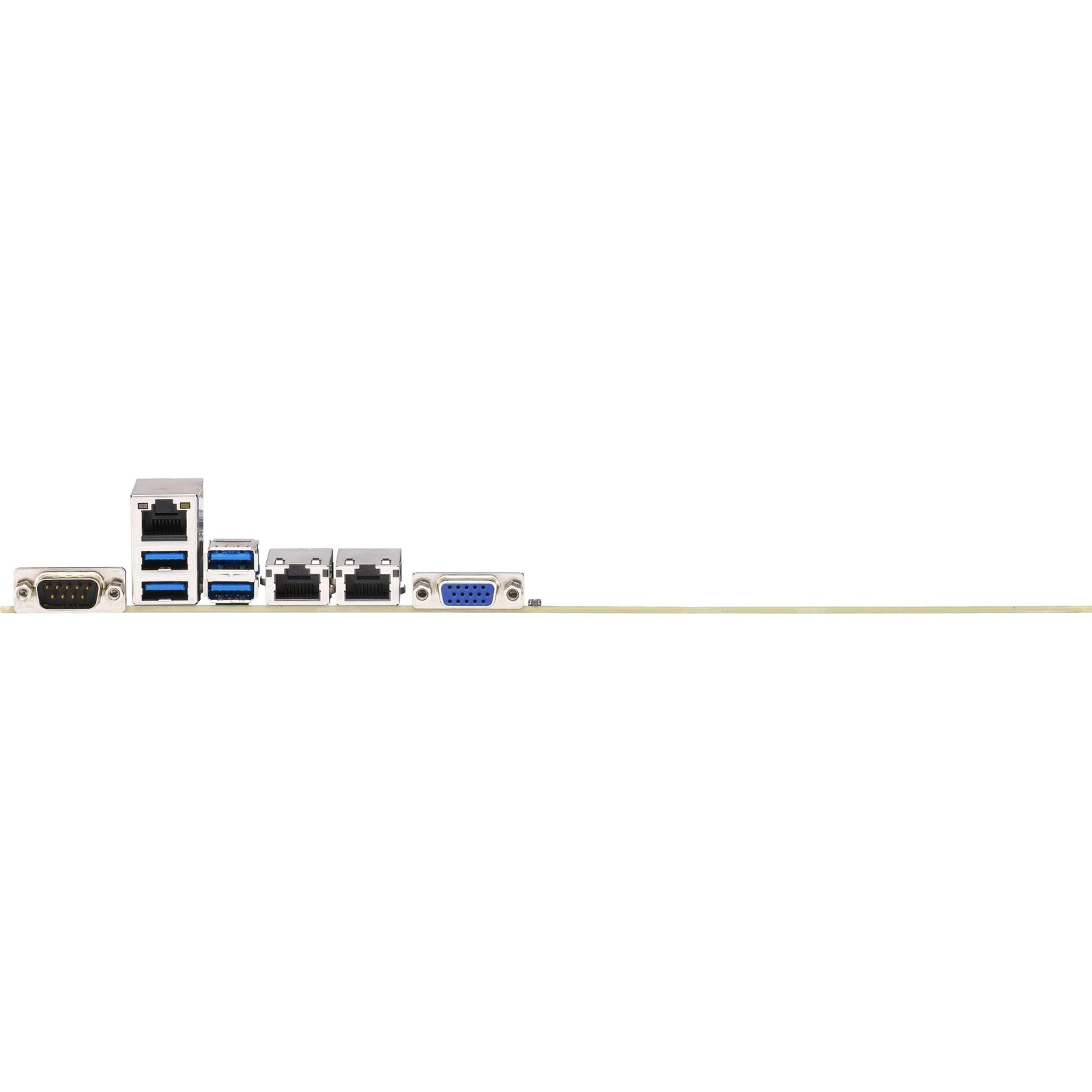

The board includes comprehensive external and internal connectivity: up to 6×USB 3.0 ports (4 rear, 2 via internal header); 1×VGA port for local console access; 1×COM port for legacy device support; TPM 2.0 header for hardware‑based security. Supermicro’s robust hardware monitoring tracks voltage, temperature, and fan speed. 7×4‑pin PWM fan headers with tachometer monitoring enable smart, quiet thermal control across dual cooling zones. Overheat LEDs and chassis intrusion detection add physical security and operational safety. The board supports ACPI power management, watchdog timers, and Super Doctor 5 for seamless system health integration.

Use Cases & Deployment Scenarios

The H12SSL‑NT is versatile across enterprise environments: virtualization hosts (VMware, Hyper‑V, KVM, Xen); cloud computing nodes & container platforms; storage servers & software‑defined storage; database & ERP application servers; HPC, AI inference, & rendering clusters; edge computing & ruggedized deployments. Its ATX form factor fits standard server chassis, simplifying integration into existing infrastructure.

Reliability & Enterprise Features

Built for continuous operation, the H12SSL‑NT uses industrial‑grade components, stable power delivery, and Supermicro’s legendary firmware quality. Features like ECC memory, PCIe 4.0 resilience, IPMI 2.0, watchdog timers, and chassis monitoring ensure high availability. AMI BIOS with ACPI 5.1, SMBIOS 3.1.1, and PnP simplifies deployment and OS compatibility across Windows Server, Linux distributions, VMware ESXi, and other server operating systems.

Conclusion

The Supermicro H12SSL‑NT is a high‑value, high‑performance server motherboard that brings AMD EPYC power, PCIe 4.0 speed, massive memory, flexible storage, dual 10GbE, and enterprise remote management to standard ATX systems. It is an excellent choice for businesses building scalable, reliable, and future‑proof server infrastructure for virtualization, storage, cloud, and HPC workloads.
