Supermicro H12SSL-i ATX Server Motherboard – AMD EPYC 7003/7002, PCIe 4.0, IPMI, 2TB DDR4

Supermicro H12SSL-i ATX Server Motherboard – AMD EPYC 7003/7002, PCIe 4.0, IPMI, 2TB DDR4

Key Features

• 1.Single AMD EPYC™ 7003/7002 Series Processor
  (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
• 2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
• 3.Expansion slots:
  5 PCI-E 4.0 x16
  2 PCI-E 4.0 x8
  M.2 Interface: 2 PCI-E 4.0 x4
  M.2 Form Factor: 2280, 22110
  M.2 Key: M-key
• 4.8 SATA3, 2 M.2,
  8 SATA3 or 2 NVMe via single SlimSAS x8
• 5.2 Gigabit Ethernet LAN Ports
• 6.ASPEED AST2500 BMC graphics
• 7.Up to 6 USB 3.0 ports
  (4 rear + 2 via header)
• 8.7 PWM 4-pin Fans with tachometer status monitoring

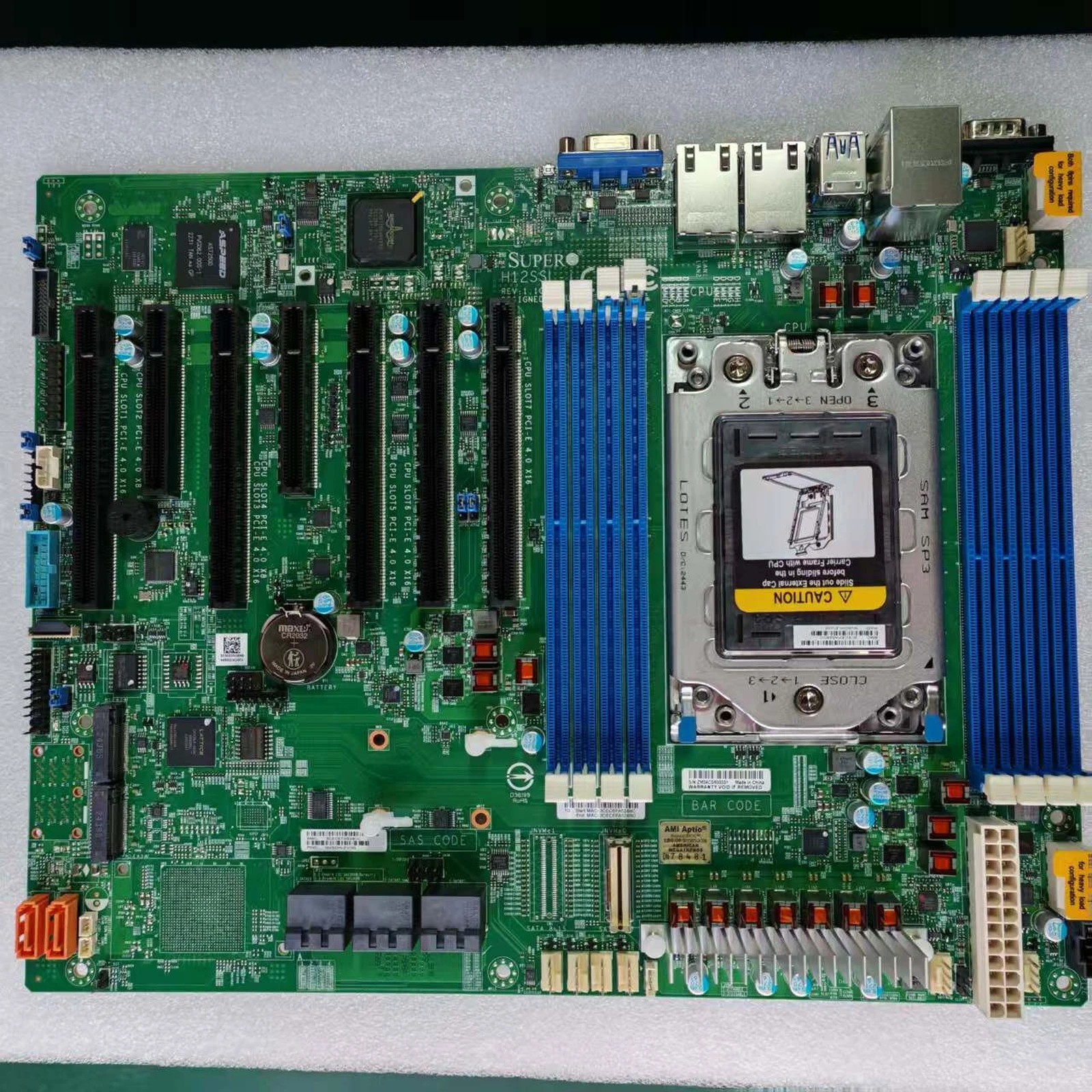

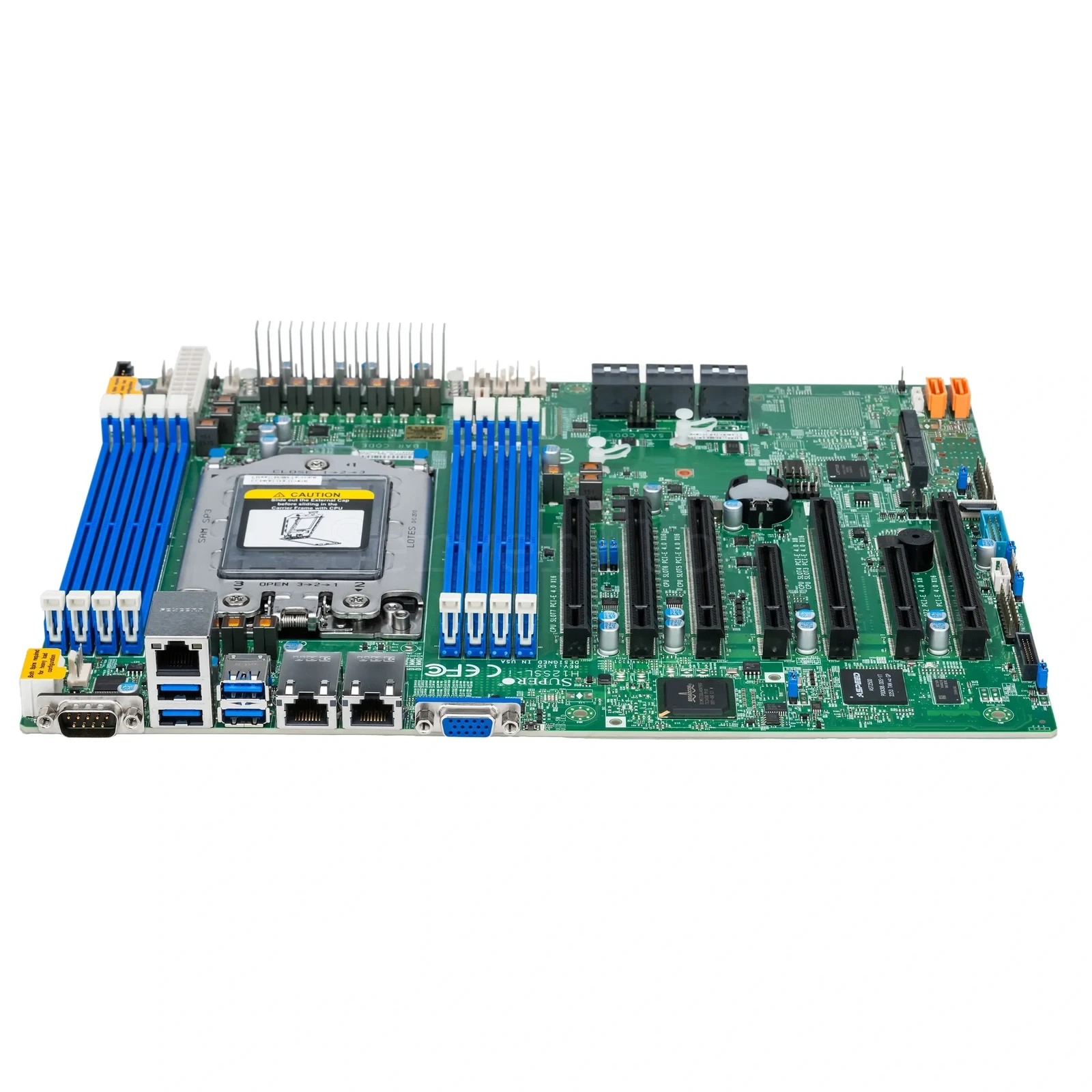

Introduction to Supermicro H12SSL-i Server Motherboard

The Supermicro H12SSL-i stands as a professional, single‑socket ATX server motherboard engineered to power modern data centers, cloud deployments, virtualization hosts, storage servers, and high‑performance computing (HPC) environments. Built around AMD’s EPYC 7003 (Milan) and 7002 (Rome) processor families with the SP3 socket, this board merges exceptional compute density, vast I/O expandability, rock‑solid stability, and comprehensive remote management—all hallmarks of Supermicro’s enterprise‑grade server engineering. Whether deployed in a 1U/2U rackmount chassis, a tower server, or a custom storage appliance, the H12SSL‑i provides a cost‑effective yet high‑performance foundation for business‑critical applications that demand continuous uptime, strong security, and flexible scalability.

Processor Support & Performance Architecture

At the core of the H12SSL‑i is its support for a single AMD EPYC 7003 or 7002 series processor, featuring up to 64 powerful Zen 2/Zen 3 cores per CPU. This makes the board ideal for heavy multithreaded workloads including virtualization, database hosting, big data analytics, AI inference, rendering farms, and software‑defined storage. The latest AMD EPYC 7003 processors with 3D V‑Cache technology are fully supported when the motherboard is updated to BIOS version 2.3 or newer, unlocking enhanced cache performance and compute efficiency for latency‑sensitive enterprise tasks.

By leveraging a System on Chip (SoC) architecture instead of a traditional discrete chipset, the H12SSL‑i reduces latency, improves power efficiency, and streamlines communication between the processor, memory, and expansion devices. The SP3 socket ensures strong power delivery and thermal compatibility with high‑TDP EPYC models, supporting sustained full‑load operation over long periods—critical for 24×7 server reliability.

Memory Subsystem: Capacity, Speed, and Reliability

Memory performance and capacity are vital for server platforms, and the H12SSL‑i does not compromise. It features eight DDR4 DIMM slots supporting registered ECC DDR4‑3200 memory, with a maximum capacity of up to 2TB. This eight‑channel memory architecture delivers exceptional bandwidth to feed the many CPU cores, eliminating bottlenecks in virtualization, in‑memory databases, and high‑throughput storage applications.

ECC (Error‑Correcting Code) support is fully implemented to detect and fix single‑bit errors automatically and detect double‑bit errors, preventing silent data corruption and unexpected system crashes. The board accepts DIMMs ranging from 8GB up to 256GB, allowing flexible configuration for budget‑conscious deployments or maximum‑density setups. Operating at a safe 1.2V, the memory subsystem balances performance and energy efficiency, supporting green computing initiatives in modern data centers.

Expansion & Connectivity: PCIe 4.0, M.2, and Storage Flexibility

One of the greatest strengths of the H12SSL‑i is its industry‑leading expansion capability, built around the high‑bandwidth PCIe 4.0 interface. The board includes five PCIe 4.0 x16 slots and two PCIe 4.0 x8 slots, providing abundant room for high‑speed network adapters, NVMe storage controllers, RAID cards, GPUs, FPGAs, and other accelerator cards. This makes the motherboard highly versatile for workloads requiring I/O expansion, such as software‑defined networking, distributed storage, edge computing, and multimedia processing.

For ultra‑fast boot and cache storage, the H12SSL‑i includes two M.2 slots supporting PCIe 4.0 x4 NVMe SSDs in both 2280 and 22110 form factors with M‑key connectivity. These slots deliver direct CPU‑attached speeds with low latency, ideal for high‑speed virtual machine files, operating system drives, or caching layers.

Onboard storage options are equally generous: eight native SATA3 6Gbps ports support traditional HDDs and SSDs for bulk storage, while a SlimSAS x8 port offers a hybrid mode that can switch between eight additional SATA3 devices or two high‑speed NVMe drives. This hybrid flexibility lets administrators adapt storage configurations to evolving business needs without replacing hardware.

Networking, IPMI, and Remote Management

Enterprise server management demands strong networking and robust remote administration, and the H12SSL‑i integrates dedicated hardware to satisfy these requirements. It features dual Gigabit Ethernet ports powered by Broadcom BCM57201 controllers, delivering reliable, high‑throughput network connectivity for standard LAN traffic, virtual switches, and storage communication.

A dedicated RJ45 IPMI LAN port operates independently of the main system, enabling full out‑of‑band management via IPMI 2.0. This includes remote KVM, virtual media, power control, sensor monitoring, and firmware updates—even when the main OS is offline or unresponsive. The ASPEED AST2500 BMC handles these management functions alongside providing basic VGA video output for local console access. Together, these features drastically reduce on‑site maintenance needs, lower operational costs, and improve uptime for distributed or remote server deployments.

Rear & Internal I/O, Monitoring, and Security

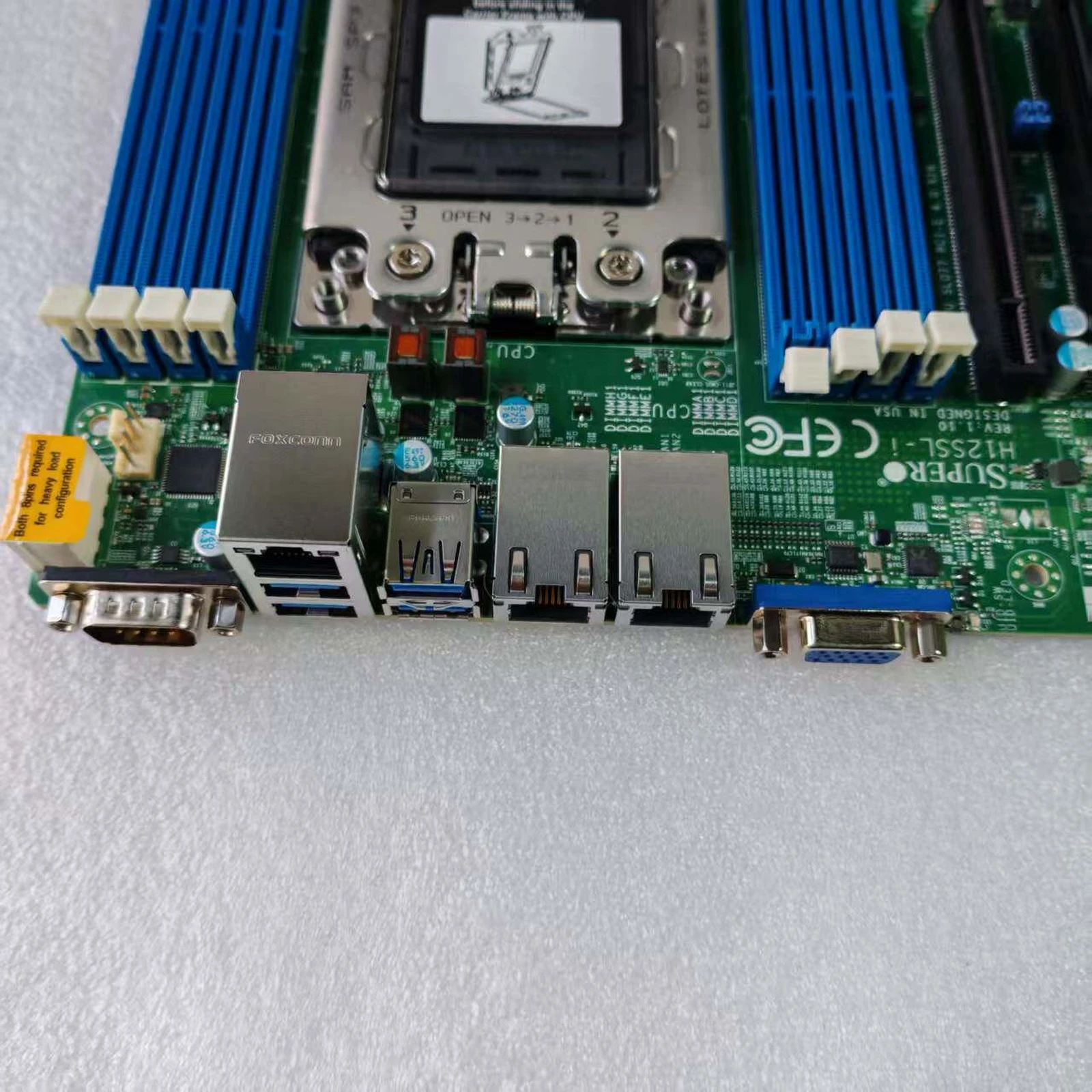

The H12SSL‑i provides a complete I/O array to satisfy server and embedded use cases. Rear ports include six USB 3.0 ports (four rear, two via internal headers), one VGA port, one COM port, dedicated IPMI LAN, and dual Gigabit LAN. Internal connectors consist of SATA DOM power connectors, a TPM 2.0 header for hardware‑based security, and multiple fan headers for scalable cooling.

Comprehensive hardware health monitoring comes standard: the board tracks CPU voltages, fan speeds, system temperatures, and chassis intrusion. Seven PWM 4‑pin fan headers with tachometer monitoring support multi‑zone cooling, balancing thermal performance and acoustics. CPU and system overheat LEDs provide quick visual diagnostics, while thermal trip protection safeguards components during cooling failures.

TPM 2.0 support enables secure boot, encrypted storage, and hardware‑rooted trust—essential for compliance with regulatory standards in finance, healthcare, and government sectors. These security features protect sensitive data and prevent unauthorized system access at the firmware level.

Form Factor, Chassis Compatibility, and Deployment Use Cases

Built in the standard ATX form factor (12 × 9.6 inches / 30.5 × 24.4 cm), the H12SSL‑i fits easily into commodity ATX cases as well as Supermicro’s purpose‑built server chassis. It is optimized for 1U, 2U, 3U, mid‑tower, and 4U rackmount/tower enclosures, making it suitable for data centers, server rooms, edge locations, and office environments.

Use cases include virtualization hosts, NAS/SAN controllers, cloud computing nodes, database servers, edge computing gateways, HPC clusters, and surveillance servers.

Build Quality, Software Support, and Long-Term Reliability

Supermicro is globally recognized for industrial‑grade component selection, rigorous validation, and long product lifecycles—critical for enterprise users seeking multi‑year deployment stability. The H12SSL‑i uses premium capacitors, reinforced power paths, and optimized PCB layout to withstand continuous operation under heavy loads.

The board uses AMI BIOS with a 256Mb SPI flash ROM supporting PnP, DMI 2.3, ACPI 5.1, SMBIOS 3.1.1, and USB keyboard input. Supermicro provides regular BIOS and IPMI firmware updates to improve compatibility, performance, and security across Windows Server, Linux, VMware ESXi, and other platforms.

Supported management tools include Supermicro Doctor 5, NMIs, SUM, and IPMI 2.0, unifying monitoring, alerting, and maintenance across server fleets.

Conclusion

The Supermicro H12SSL‑i is a complete, future‑ready server motherboard that brings together AMD EPYC performance, PCIe 4.0 expandability, massive memory capacity, enterprise storage options, and robust IPMI remote management. Its ATX form factor, wide chassis compatibility, and enterprise‑class reliability make it a top choice for system integrators, data center operators, and IT administrators building stable, scalable server infrastructure. Whether used for virtualization, storage, cloud, or general enterprise computing, the H12SSL‑i delivers consistent performance, strong security, and low total cost of ownership (TCO) for mission‑critical deployments.
