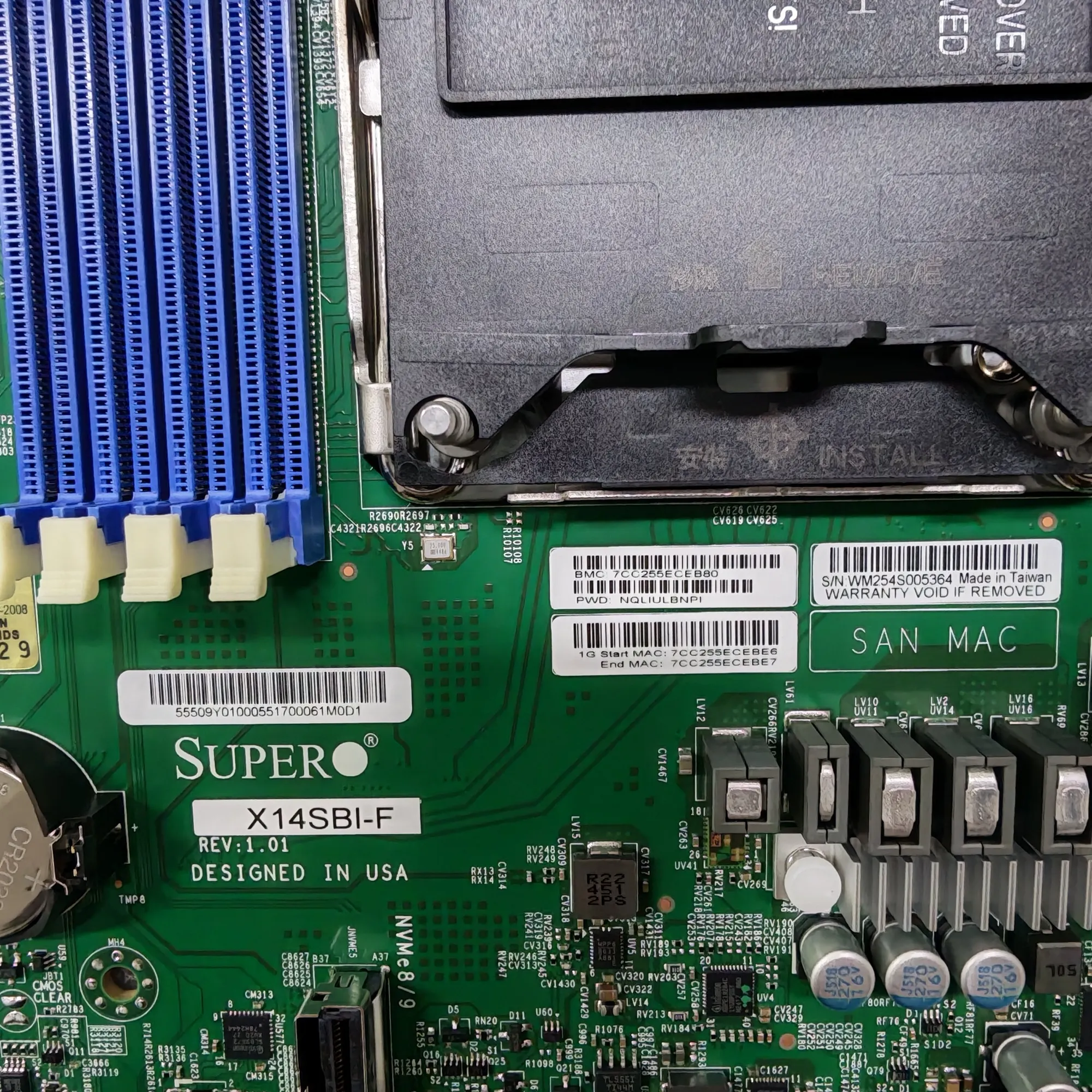

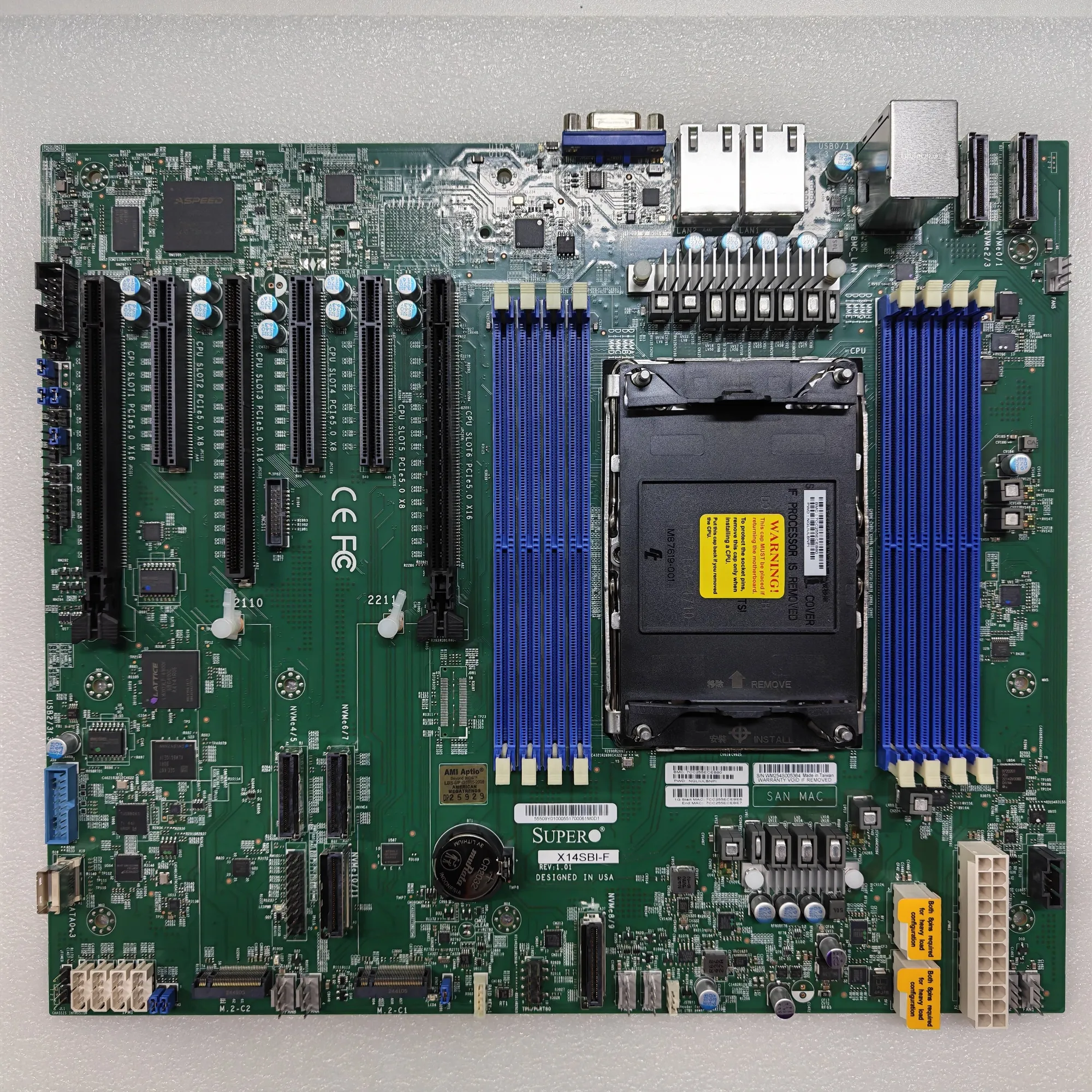

Supermicro X14SBI-F | LGA-4710 Socket E2 Xeon 6700/6500 Series ATX Enterprise Server Motherboard

• Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP up to 350W
• Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots
• 6 PCIe 5.0 x8 via MCIO connectors (JNVME3–6 are enabled with the specific CPU** installed)
• 3 PCIe 5.0 x16 (SLOT6 is enabled with the specific CPU** installed), 3 PCIe 5.0 x8,M.2 Interface: 2 PCIe 5.0 x2 (Form Factor: 22110, M-Key)
• Dual LAN with 1GbE with Intel®I210
• 4 USB 3.2 Gen1 (2 rear, 2 via header), 4 SATA3 (via SlimSAS x4)
• Onboard TPM9672: TCG2.0, FIPs 140-2 Level 2, Intel TXT and Microsoft Windows certification
• **Specific CPUs: Intel® Xeon® 6781P, 6761P, 6741P, 6731P, 6521P

Supermicro X14SBI-F: Enterprise-Grade Single-Socket ATX Server Motherboard for Next-Gen Workloads

In the rapidly evolving landscape of enterprise computing, edge data centers, and business-critical infrastructure, the need for a high-performance, scalable, and reliable server motherboard has never been more critical. The Supermicro X14SBI-F, part of Supermicro’s industry-leading X14 UP Mainstream Server Board lineup, delivers a perfect balance of processing power, memory bandwidth, expansion flexibility, and enterprise-grade management capabilities for single-socket server deployments. Designed around Intel’s latest Xeon 6700 and 6500 series processors, this ATX-compatible extended motherboard redefines what single-socket server hardware can achieve, catering to the most demanding workloads from virtualization and cloud computing to high-performance computing (HPC), storage arrays, and edge computing deployments.

Unmatched Processing Power for Single-Socket Enterprise Workloads

At the heart of the Supermicro X14SBI-F lies a single LGA-4710 (Socket E2) CPU socket, purpose-built to support Intel’s cutting-edge Xeon 6700 and 6500 series processors, including both P-core (Performance-core) variants across 6700/6500 series and E-core (Efficiency-core) models within the 6700 series. This broad CPU compatibility ensures that organizations can tailor their server performance to their specific workload needs, whether prioritizing high single-threaded performance for latency-sensitive applications or maximum core density for multi-threaded, parallel processing tasks.

The motherboard supports CPU thermal design power (TDP) of up to 350W, eliminating compromises when running the highest-performance Xeon 6 series SKUs, and delivers support for up to 144 processing cores in a single socket – a game-changing capability for single-socket server deployments that previously required dual-socket hardware to achieve comparable core counts. For seamless compatibility with the latest P-core Xeon 6700/6500 series processors, the X14SBI-F requires BIOS version 1.2 or above, ensuring out-of-the-box support for the latest Intel CPU architectures and feature sets.

Validated for use with key Intel Xeon 6 series processor models including the Xeon 6781P, 6761P, 6741P, 6731P, and 6521P, the X14SBI-F undergoes rigorous Supermicro testing to guarantee stable, reliable operation even under 24/7 continuous workloads – a non-negotiable requirement for enterprise and data center environments. Whether you’re building a virtualization host, a dedicated database server, or a high-density edge computing node, the processing capabilities of the X14SBI-F deliver the performance headroom to scale with your business needs.

Industry-Leading DDR5 Memory Performance & Reliability

Memory bandwidth and capacity are critical bottlenecks in modern server workloads, and the Supermicro X14SBI-F addresses this with a state-of-the-art 8-slot DDR5 memory subsystem designed to deliver industry-leading speed, capacity, and error correction for mission-critical applications. The motherboard’s 8 DIMM slots support two high-performance DDR5 memory architectures, catering to both maximum capacity and maximum speed requirements.

For organizations prioritizing maximum memory capacity, the X14SBI-F supports up to 2TB of ECC RDIMM DDR5 memory at speeds of up to 6400MT/s, with support for a wide range of DIMM sizes including 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB standard RDIMMs, and 256GB 3DS RDIMMs. For workloads that demand the highest possible memory bandwidth, the motherboard supports up to 512GB of MRDIMM DDR5 memory at blistering speeds of up to 8000MT/s, available exclusively with P-core Intel Xeon 6 series processors, with support for 32GB and 64GB MRDIMM modules.

All supported memory configurations include Error-Correcting Code (ECC) functionality, which corrects single-bit memory errors and detects double-bit errors in real time. This capability is critical for enterprise environments, as it prevents data corruption, system crashes, and downtime caused by memory errors – a common source of unplanned outages in non-ECC consumer-grade hardware. The memory subsystem operates at a standard 1.1V, balancing power efficiency with peak performance, making it ideal for both data center deployments and edge installations where power consumption is a key consideration.

Extensive PCIe 5.0 Expansion for Next-Gen Storage & Accelerators

Modern server workloads, from AI/ML inferencing to high-performance storage arrays and GPU-accelerated computing, demand flexible, high-bandwidth expansion capabilities, and the Supermicro X14SBI-F delivers an unparalleled PCIe 5.0 expansion ecosystem for next-gen peripherals, storage, and accelerators. The motherboard’s PCIe 5.0 infrastructure delivers twice the bandwidth of PCIe 4.0, with per-lane transfer speeds of up to 32GT/s, ensuring that even the most bandwidth-hungry devices operate at their full potential without bottlenecks.

The X14SBI-F features a comprehensive set of PCIe 5.0 expansion slots and connectors, including 3 full-size PCIe 5.0 x16 slots, 3 PCIe 5.0 x8 slots, and 6 additional PCIe 5.0 x8 lanes via MCIO connectors (JNVME3–6). It’s important to note that PCIe 5.0 Slot 6 and JNVME3-6 connectors are enabled when paired with specific compatible Intel Xeon 6 series processors, ensuring full utilization of the CPU’s PCIe lane capabilities with the right hardware configuration.

For high-speed, compact storage deployments, the motherboard includes 2 M.2 slots with PCIe 5.0 x2 interfaces, supporting 22110 form factor M-Key NVMe SSDs. These slots deliver high-speed direct-attached storage for boot drives, caching, or low-latency workloads, eliminating the need for additional storage controllers for primary system storage. For bulk storage needs, the X14SBI-F provides 4 SATA 3.0 6Gbps ports via an ASMedia ASM1164 controller, connected through a SlimSAS interface, supporting high-capacity HDDs and SSDs for archival storage, database repositories, and network-attached storage (NAS) deployments.

This extensive expansion ecosystem makes the X14SBI-F incredibly versatile, supporting everything from multiple GPU accelerators for AI/ML workloads to high-density NVMe storage arrays, 10/25/100GbE network adapters, and specialized hardware accelerators for edge computing and industrial applications.

Comprehensive I/O & Integrated Server Management

Enterprise server hardware requires robust, out-of-band management capabilities and flexible I/O to support diverse deployment scenarios, and the Supermicro X14SBI-F excels in both areas, with a full suite of onboard I/O and industry-leading remote management features.

For network connectivity, the motherboard integrates dual 1GbE LAN ports powered by Intel I210 network controllers, delivering reliable, high-performance wired connectivity for primary server networking, with support for Wake-on-LAN (WOL) for remote power management. In addition to the primary LAN ports, the X14SBI-F includes a dedicated 1GbE RJ45 LAN port for out-of-band IPMI management, powered by an ASPEED AST2600 BMC (Baseboard Management Controller). This dedicated management port enables full remote control of the server, even when the main operating system is unresponsive or powered off, including remote power cycling, KVM over IP, virtual media mounting, hardware monitoring, and firmware updates – critical capabilities for reducing on-site maintenance and maximizing uptime in remote data center and edge deployments.

The motherboard’s I/O portfolio includes 4 USB 3.2 Gen1 ports (2 rear-panel ports and 2 via internal header), providing flexible connectivity for peripherals, installation media, and local management devices. For local display and debug capabilities, it includes a VGA D-Sub connector, alongside a 1-pin COM port header for serial console access, a staple for enterprise server debug and management.

To streamline server deployment and management, the X14SBI-F is fully compatible with Supermicro’s comprehensive suite of server management software, including SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), and the new SuperServer Automation Assistant (SAA). It also includes plug-ins for leading third-party management software, ensuring seamless integration with existing data center management and orchestration workflows.

Enterprise-Grade Security & System Reliability

In an era of increasing cyber threats and strict regulatory compliance requirements, enterprise server hardware must include robust security features at every level, and the Supermicro X14SBI-F is built with a multi-layered security architecture to protect sensitive data and ensure system integrity.

At the core of its security features is an onboard TPM9672 Trusted Platform Module (TPM) 2.0, certified to TCG 2.0 standards and FIPS 140-2 Level 2, with additional support for Intel TXT (Trusted Execution Technology) and Microsoft Windows security certifications. The TPM 2.0 module provides hardware-based encryption, secure key storage, and secure boot capabilities, protecting the system from unauthorized firmware modifications, rootkits, and other low-level cyber threats. It also enables compliance with strict regulatory standards, including HIPAA, GDPR, and PCI-DSS, which mandate hardware-based security for sensitive data processing.

The motherboard’s AMI 64MB UEFI BIOS includes advanced security features, with support for ACPI 6.5, SMBIOS 3.7 or later, and UEFI 2.9 standards, ensuring secure boot, firmware integrity verification, and secure firmware updates. This prevents unauthorized modifications to the system BIOS, a common target for advanced persistent threats (APTs) targeting enterprise infrastructure.

Advanced Hardware Monitoring & System Health Management

Maximizing server uptime requires continuous, real-time monitoring of system health, and the Supermicro X14SBI-F includes a comprehensive PC health monitoring system to track critical system parameters and prevent unplanned downtime. The motherboard monitors all key system voltages, including +12V, +3.3V, +5V, +5V standby, CPU and memory voltages, ensuring stable power delivery and alerting administrators to any power supply anomalies.

For thermal management, the X14SBI-F includes 7 4-pin fan headers with full fan speed control, alongside real-time temperature monitoring for the CPU and chassis environment, CPU thermal trip support, and Thermal Monitor 2 (TM2) compatibility. The system includes CPU and system overheat LED indicators, as well as UID/remote UID LEDs for easy server identification in high-density data center rack deployments. Additional features include chassis intrusion detection headers, which alert administrators to unauthorized physical access to the server chassis, and ACPI power management for optimized power efficiency and remote power control.

Optimized Form Factor & Wide Compatibility

The Supermicro X14SBI-F features an ATX-compatible extended form factor, with dimensions of 12.3″ x 10.5″ (31.24cm x 26.67cm), making it compatible with most standard ATX server chassis and tower enclosures. This standard form factor ensures easy integration into existing server deployments, with flexible mounting options for both rackmount and tower configurations.

The motherboard undergoes rigorous Supermicro validation and testing, ensuring compatibility with a wide range of enterprise-grade hardware, including server chassis, power supplies, memory modules, storage devices, and expansion cards. This validation eliminates compatibility headaches, ensuring a smooth deployment process and reliable long-term operation.

Ideal Use Cases for the Supermicro X14SBI-F Motherboard

The versatility, performance, and enterprise-grade features of the X14SBI-F make it ideal for a wide range of server workloads and deployment scenarios, including:

• Virtualization & Cloud Computing: The high core count, large memory capacity, and PCIe 5.0 expansion make it perfect for hypervisor hosts running VMware, Hyper-V, or KVM, supporting high VM density and low-latency performance.
• Edge Computing: The compact ATX form factor, wide operating range, and remote IPMI management make it ideal for edge computing deployments in remote locations, with minimal on-site maintenance requirements.
• High-Performance Storage Arrays: The extensive PCIe 5.0 connectivity and SATA/NVMe storage support make it perfect for building high-density NAS, SAN, or all-flash storage arrays.
• Database & Business-Critical Applications: The ECC memory support, high single-threaded performance, and reliability features make it ideal for dedicated database servers, ERP systems, and other business-critical applications.
• AI/ML Inferencing & HPC: The support for high-core-count CPUs and multiple PCIe 5.0 GPU/accelerator slots makes it suitable for entry to mid-range HPC and AI/ML inferencing workloads.

Final Thoughts

The Supermicro X14SBI-F sets a new standard for single-socket enterprise server motherboards, delivering a rare combination of industry-leading performance, extensive expansion, enterprise-grade management, and robust security features in a standard ATX-compatible form factor. Whether you’re building a new data center server, upgrading an edge computing node, or deploying a high-performance storage array, the X14SBI-F delivers the reliability, scalability, and performance needed to support the most demanding workloads, backed by Supermicro’s decades of expertise in enterprise server hardware.
