Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

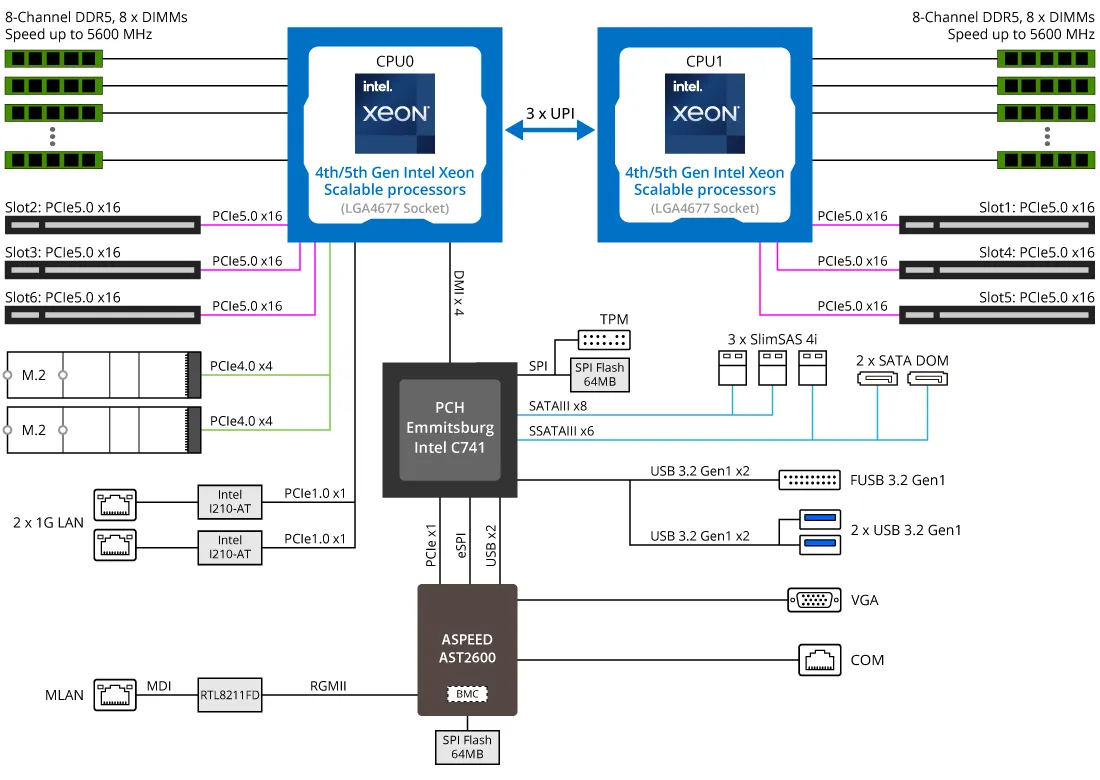

Overview of Gigabyte MS73-HB1 Server Motherboard

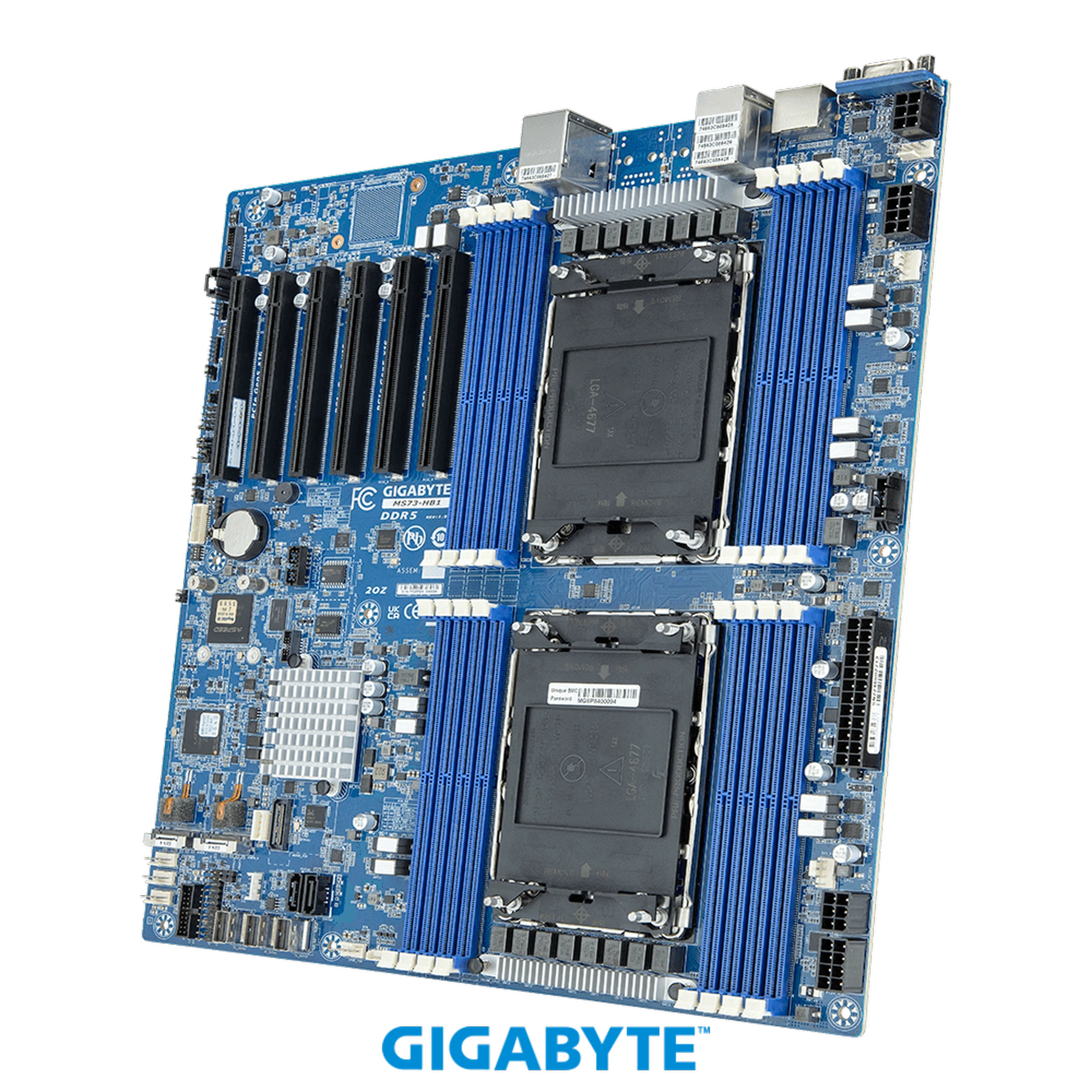

The Gigabyte Technology MS73-HB1 motherboard is a high-performance dual-socket server platform engineered to support the latest Intel Xeon Scalable processors from both 4th and 5th generations. Designed in an E-ATX form factor, this motherboard delivers enterprise-grade reliability, scalability, and flexibility for modern data centers, cloud environments, and high-performance computing (HPC) workloads.

Built on the Intel C741 chipset, the MS73-HB1 offers advanced memory architecture, extensive PCIe Gen5 expansion, and robust storage connectivity. It is tailored for applications such as virtualization, AI inference, database management, and large-scale enterprise deployments.

Dual Intel Xeon Scalable Processing Power

At the heart of the MS73-HB1 lies support for dual LGA 4677 sockets, enabling deployment of two Intel Xeon Scalable processors. These CPUs provide exceptional multi-core performance, high thread counts, and enterprise-class features such as hardware virtualization and advanced security.

With support for CPUs up to 350W TDP, the board is capable of handling demanding workloads such as:

• Artificial intelligence and machine learning
• Real-time data analytics
• Enterprise virtualization
• Scientific simulations

The dual-processor architecture significantly enhances computational throughput, making it ideal for organizations that require maximum processing density.

Advanced DDR5 Memory Architecture

The MS73-HB1 features a cutting-edge memory subsystem with 16 DIMM slots supporting DDR5 RDIMM modules. Each processor supports 8-channel memory, delivering superior bandwidth and low latency.

Key memory advantages include:

• Support for DDR5 speeds up to 5600 MT/s (5th Gen CPUs)
• Up to 1.5TB total memory capacity depending on module configuration
• Optimized multi-channel architecture for parallel workloads

This advanced memory design ensures optimal performance for memory-intensive applications such as virtualization clusters and in-memory databases.

PCIe Gen5 Expansion for Maximum Scalability

One of the standout features of the MS73-HB1 is its extensive PCIe expansion capability. The motherboard includes six PCIe Gen5 x16 slots, providing unmatched bandwidth for next-generation expansion devices.

Benefits include:

• Support for high-performance GPUs
• Compatibility with FPGA accelerators
• High-speed networking cards (100GbE/200GbE)
• NVMe storage expansion

PCIe Gen5 ensures double the bandwidth of Gen4, enabling faster data transfer and reduced bottlenecks for modern workloads.

Flexible Storage Configuration

Storage versatility is another key strength of this motherboard. It provides multiple interfaces to support both traditional and modern storage solutions.

Storage features include:

• 3 x SlimSAS 4i connectors supporting up to 12 SATA drives
• 2 x SATA 7-pin ports for additional drives
• 2 x M.2 slots (PCIe Gen4 x4) for high-speed NVMe SSDs

This flexible configuration allows businesses to tailor storage setups for performance, capacity, or redundancy.

Integrated Networking and Remote Management

The MS73-HB1 is equipped with reliable networking capabilities, including:

• 2 x 1GbE LAN ports (Intel I210-AT)
• Dedicated management LAN for remote access

For system administrators, the motherboard integrates the ASPEED AST2600 Baseboard Management Controller (BMC), enabling comprehensive remote management via the GIGABYTE Management Console.

Management features include:

• HTML5-based KVM remote control
• Hardware monitoring and alerts
• Power management and control
• Remote firmware updates
• Security integration with LDAP/AD

These tools ensure efficient system management, even in large-scale deployments.

Enterprise-Grade Reliability and Security

The MS73-HB1 is designed with enterprise reliability in mind. It includes:

• TPM 2.0 support for hardware-level security
• Advanced power connectors for stable operation
• Thermal monitoring and fan control
• Wide operating temperature range (10°C to 40°C)

These features ensure stable operation in demanding server environments while maintaining high security standards.

Optimized for Modern Data Centers

The E-ATX form factor (304.8 x 330.2 mm) makes the MS73-HB1 compatible with a wide range of server chassis. Its layout is optimized for airflow, cable management, and efficient component placement.

Typical deployment scenarios include:

• Cloud infrastructure
• Enterprise data centers
• Edge computing nodes
• AI training and inference clusters

The board’s flexibility allows it to adapt to various rackmount and tower server configurations.

Energy Efficiency and Power Optimization

With support for advanced power management features, the MS73-HB1 helps reduce operational costs in large deployments. The onboard management system provides:

• Real-time power consumption monitoring
• Power capping and optimization
• Efficient cooling management

These capabilities contribute to improved energy efficiency and reduced total cost of ownership (TCO).

Why Choose Gigabyte MS73-HB1?

The MS73-HB1 stands out as a powerful and versatile server motherboard because of its:

• Dual Intel Xeon Scalable processor support
• High-speed DDR5 memory architecture
• Extensive PCIe Gen5 expansion
• Flexible storage options
• Advanced remote management capabilities

It is an ideal solution for businesses seeking a reliable, scalable, and future-proof server platform.
