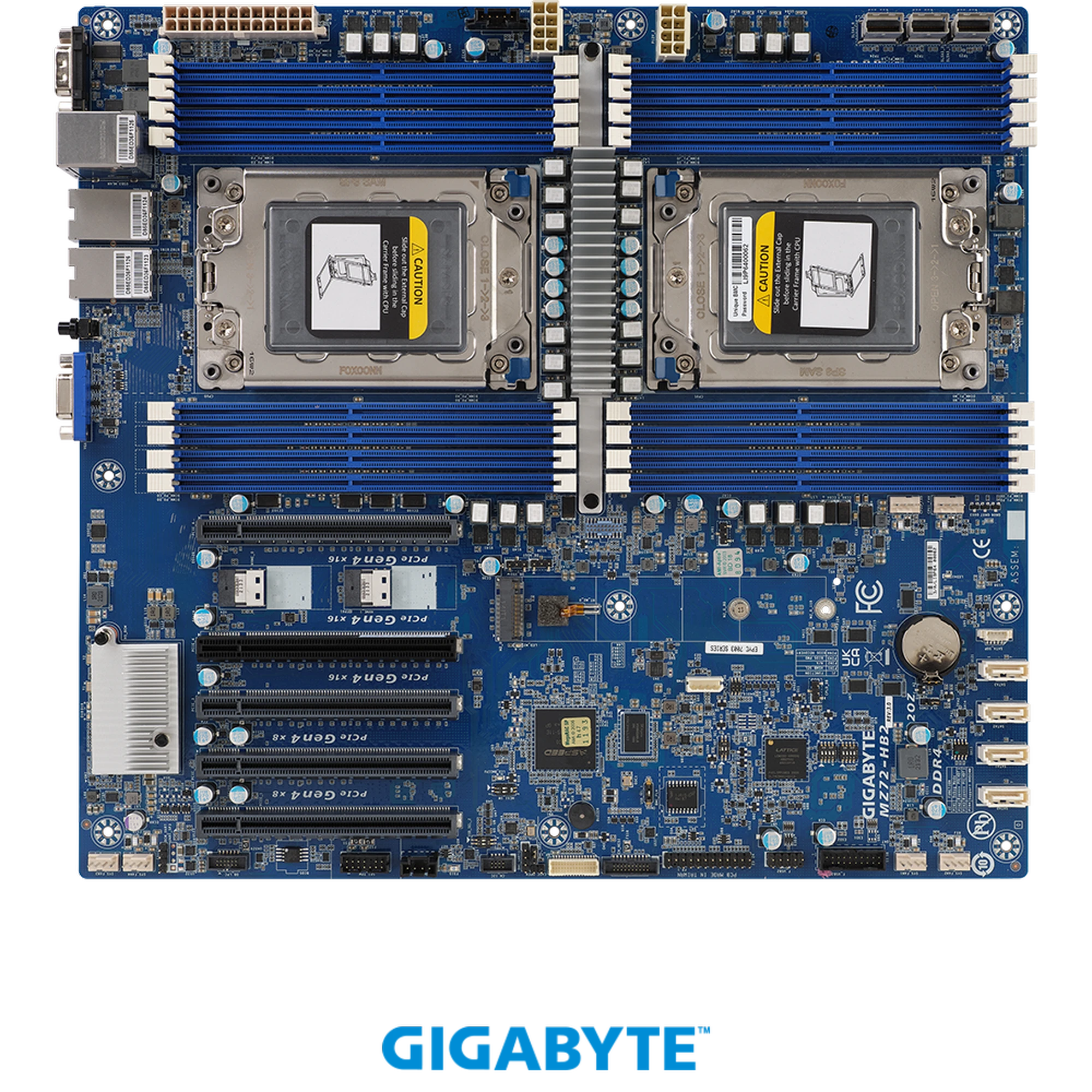

GIGABYTE MZ72-HB2 Server Motherboard – AMD EPYC 7003/7002 Dual Socket E-ATX

• Dual AMD EPYC^™ 7003/7002 Series Processors
• 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
• 2 x 10Gb/s LAN ports via Broadcom^® BCM57416
• 3 x SlimSAS 4i connectors with PCIe Gen4 x4 or SATA interface
• 2 x SlimSAS 4i connectors with PCIe Gen4 x4 interface
• 4 x SATA 7-pin ports
• 1 x M.2 slot with PCIe Gen4 x4 interface
• 5 x PCIe Gen4 x16 and x8 expansion slots

Overview of MZ72-HB2 Server Motherboard

The MZ72-HB2 server motherboard is engineered to meet the growing demands of modern data centers, cloud computing, and high-performance computing (HPC) environments. Built around dual AMD EPYC™ 7003 and 7002 processors, this motherboard provides exceptional scalability, performance, and efficiency for enterprise workloads.

Designed in an E-ATX form factor, the MZ72-HB2 integrates cutting-edge technologies such as PCIe Gen4, high-speed DDR4 memory, and advanced remote management. It is ideal for virtualization, AI training, big data analytics, and mission-critical enterprise applications.

Dual AMD EPYC™ Processor Support

At the heart of the MZ72-HB2 lies support for dual AMD EPYC™ 7003 and 7002 series processors. These CPUs deliver outstanding multi-core performance, with up to 64 cores per processor and support for high thread counts.

The dual-socket architecture allows organizations to scale compute resources efficiently, making it suitable for parallel workloads and virtualization platforms. With a thermal design power (TDP) of up to 280W per CPU, the motherboard is optimized for performance-intensive applications.

Advanced Memory Architecture

The motherboard features 16 DIMM slots, enabling support for DDR4 RDIMM and LRDIMM modules. Each processor supports 8-channel memory architecture, providing high bandwidth and low latency for demanding workloads.

With support for memory speeds up to 3200 MT/s, the MZ72-HB2 ensures efficient data processing and improved system responsiveness. High-capacity memory configurations, including 3DS RDIMM modules, allow enterprises to handle large datasets and memory-intensive applications seamlessly.

PCIe Gen4 Expansion for Maximum Flexibility

The MZ72-HB2 includes multiple PCIe Gen4 expansion slots, enabling high-speed connectivity for GPUs, storage controllers, and networking cards. The board offers five PCIe slots with configurations up to x16 bandwidth, ensuring maximum throughput for add-in cards.

PCIe Gen4 technology doubles the bandwidth compared to previous generations, making it ideal for modern workloads such as AI, machine learning, and NVMe storage acceleration.

High-Speed Storage Capabilities

Storage flexibility is a key strength of the MZ72-HB2. It supports multiple storage interfaces, including SlimSAS connectors, SATA ports, and an M.2 slot.

The SlimSAS connectors can be configured for NVMe or SATA devices, enabling high-performance storage arrays. Additionally, the onboard M.2 slot supports PCIe Gen4 x4 SSDs, providing ultra-fast boot and caching options.

This versatile storage configuration allows businesses to design systems optimized for speed, capacity, or a balance of both.

Integrated Networking with 10GbE Connectivity

Networking is handled by dual 10GbE LAN ports powered by a Broadcom controller, delivering high-speed data transfer and low latency. These ports are essential for data-intensive applications such as virtualization clusters and cloud services.

In addition, a dedicated management LAN port provides remote system monitoring and control, ensuring efficient IT operations and reduced downtime.

Enterprise-Grade Remote Management

The MZ72-HB2 is equipped with the ASPEED AST2600 Baseboard Management Controller (BMC), offering advanced remote management capabilities.

Through the GIGABYTE Management Console, administrators can monitor system health, manage power settings, update firmware, and perform remote troubleshooting. Features such as HTML5 KVM, sensor monitoring, and event logging enhance system reliability and simplify maintenance.

This robust management solution is particularly valuable for large-scale deployments and remote data center operations.

Reliable Design for Data Center Environments

Reliability is critical in enterprise environments, and the MZ72-HB2 is built to deliver consistent performance under demanding conditions.

The motherboard supports a wide operating temperature range and includes multiple fan headers for efficient cooling. Its durable design ensures stability for continuous operation in data centers and server rooms.

Additionally, support for TPM modules enhances system security, protecting sensitive data and ensuring compliance with enterprise standards.

Broad Operating System Compatibility

The MZ72-HB2 supports a wide range of operating systems, including:

• Windows Server 2016, 2019, 2022
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• Ubuntu LTS versions
• VMware ESXi and Citrix Hypervisor

This extensive compatibility allows businesses to deploy the motherboard across various IT infrastructures and virtualization platforms.

Optimized for Modern Workloads

Whether used for cloud computing, virtualization, or AI applications, the MZ72-HB2 provides the performance and scalability required by modern enterprises.

Its combination of dual EPYC processors, high-speed memory, and PCIe Gen4 expansion ensures that it can handle demanding workloads efficiently. The flexible storage and networking options further enhance its versatility.

Key Benefits

• Dual AMD EPYC processor support for scalable performance
• High memory capacity with 16 DIMM slots
• PCIe Gen4 for next-generation expansion
• Flexible storage with NVMe and SATA support
• Dual 10GbE LAN for fast networking
• Advanced remote management with AST2600 BMC
• Enterprise-grade reliability and security

Conclusion

The MZ72-HB2 server motherboard is a powerful and versatile solution for modern data centers and enterprise environments. With support for AMD EPYC 7003/7002 processors, high-speed memory, and PCIe Gen4 expansion, it delivers the performance required for today’s demanding workloads.

Its robust design, advanced management features, and flexible configuration options make it an excellent choice for businesses seeking a reliable and scalable server platform.

Specifications
