ASUS Pro WS W890-SAGE: Ultimate Workstation Motherboard for Intel Xeon 600 Series

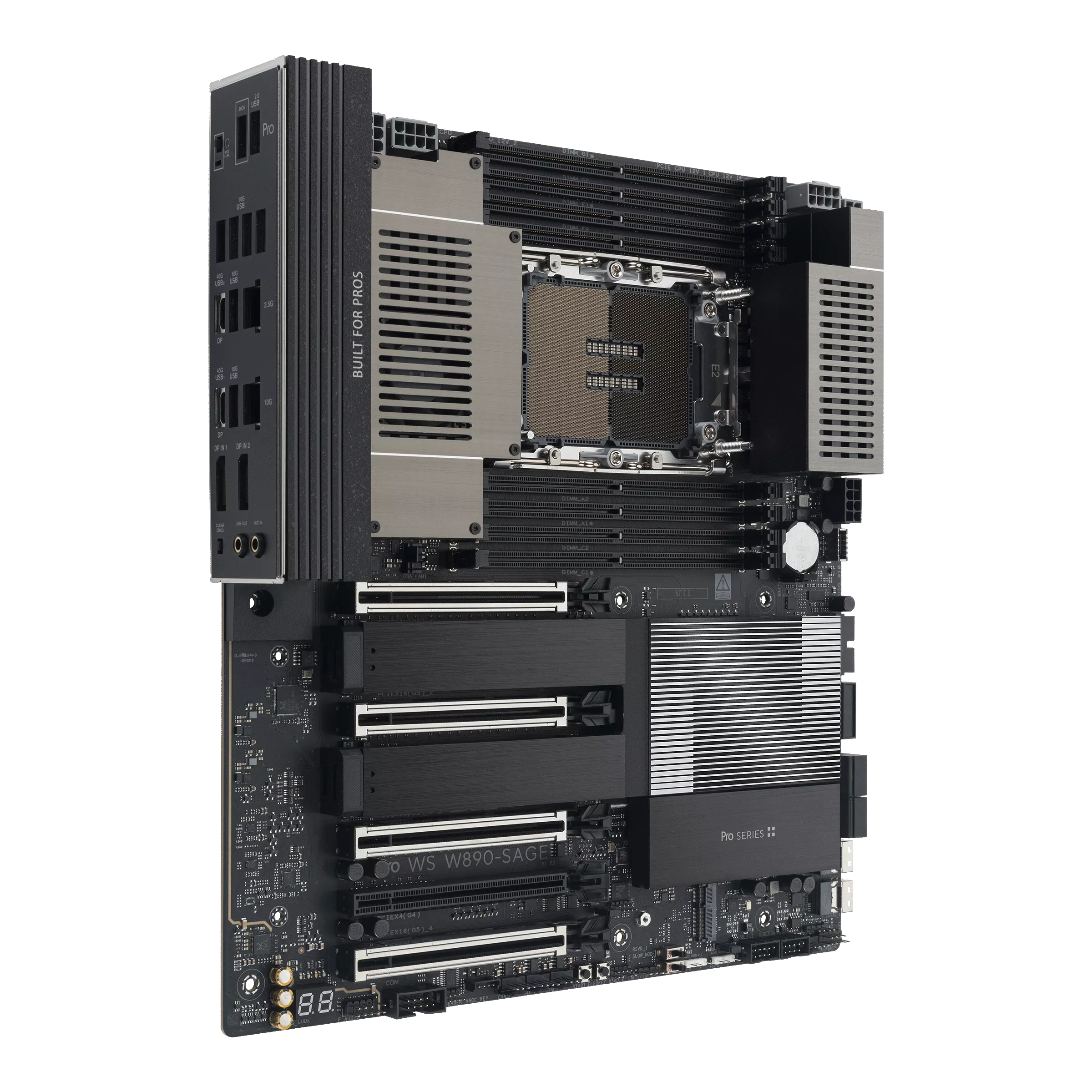

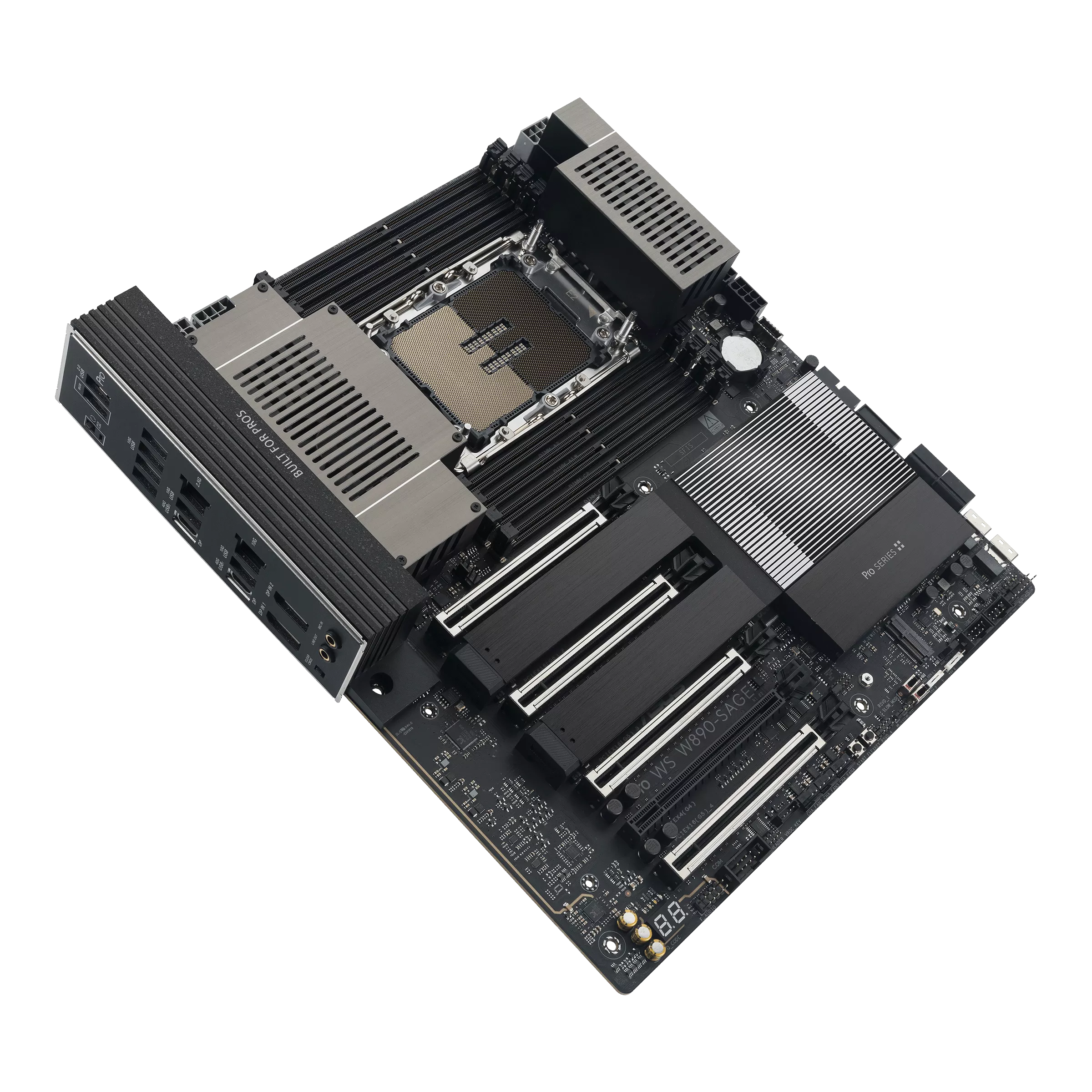

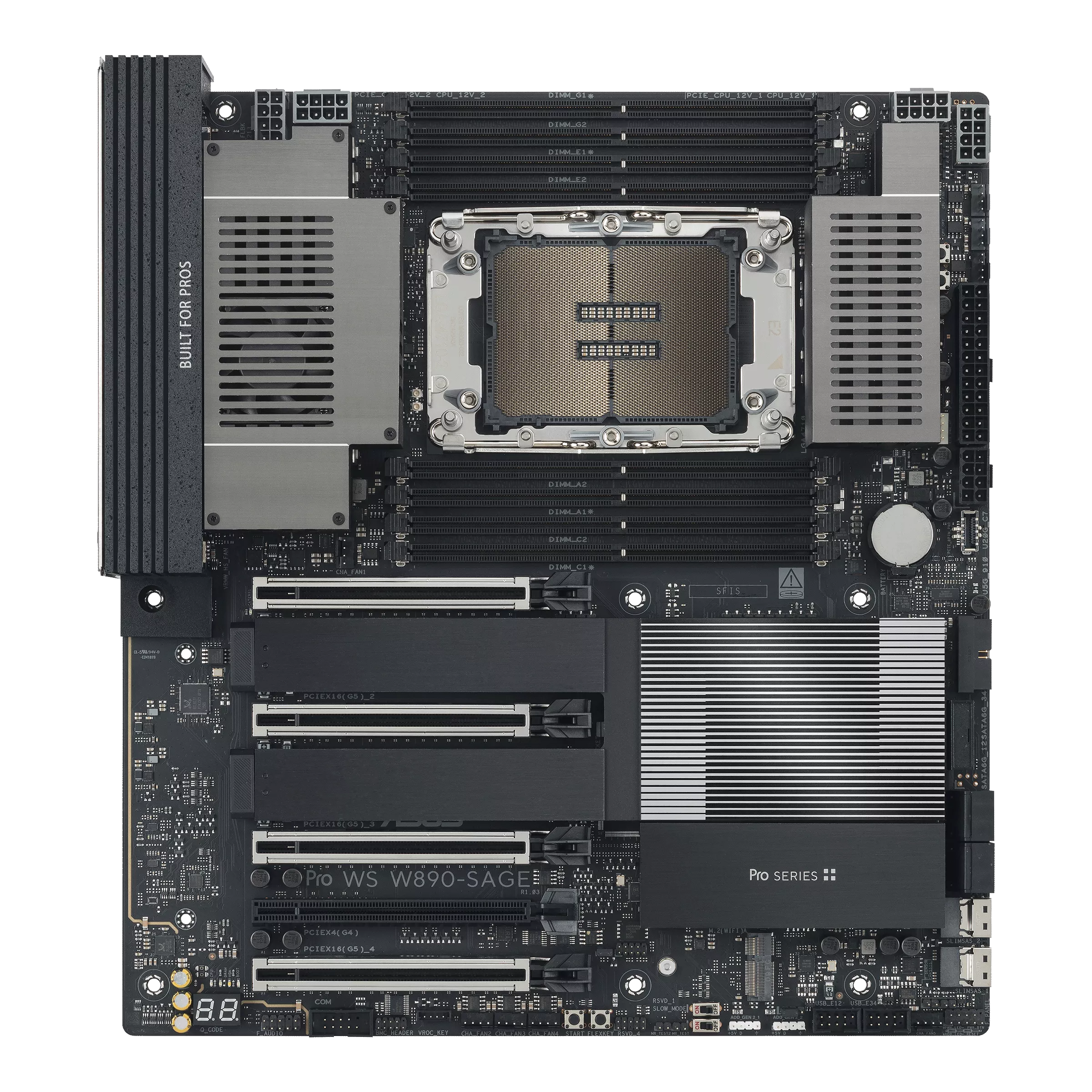

The ASUS Pro WS W890‑SAGE stands as a flagship CEB‑form‑factor workstation motherboard engineered to unlock the full potential of Intel Xeon 600 series workstation processors. Built around the Intel LGA4710‑2 socket and W890 chipset, this board is purpose‑built for creative professionals, software developers, engineers, data scientists, and AI researchers who demand uncompromising performance, rock‑solid stability, and enterprise‑grade expandability. Whether you are running complex 3D rendering, intensive simulation, high‑speed data processing, or multi‑GPU AI training, the Pro WS W890‑SAGE combines server‑level features with enthusiast‑grade tuning to deliver a workstation platform that excels in 24/7 production environments.

Built for Intel Xeon 600 Processors & LGA4710‑2 Platform

At the core of the Pro WS W890‑SAGE is full compatibility with Intel Xeon 600 series workstation processors, supporting high‑core‑count models up to 86 cores via the LGA4710‑2 socket. This platform brings enterprise‑level performance to professional workstations, delivering exceptional multi‑threaded performance for heavily threaded workloads such as video encoding, CAD/CAM design, finite element analysis, and neural network inference. The motherboard is validated for strict workstation‑grade stability, ensuring consistent performance even under continuous full‑load operation.

Robust 12+2+2+1+2 Power Stage Design

To sustain extreme processing loads and support overclocking, ASUS equips the Pro WS W890‑SAGE with a sophisticated 12+2+2+1+2 power‑stage VRM design. This robust power solution delivers clean, stable power to the CPU and critical components, supporting heavy workloads and extended overclocking sessions. The board supports dual‑PSU operation for additional power headroom when using multiple high‑power graphics cards or storage devices. Combined with ProCool II connectors and reinforced power input design, the motherboard maintains ultra‑low thermal output and exceptional electrical efficiency for long‑term durability.

Advanced Cooling System for 24/7 Operation

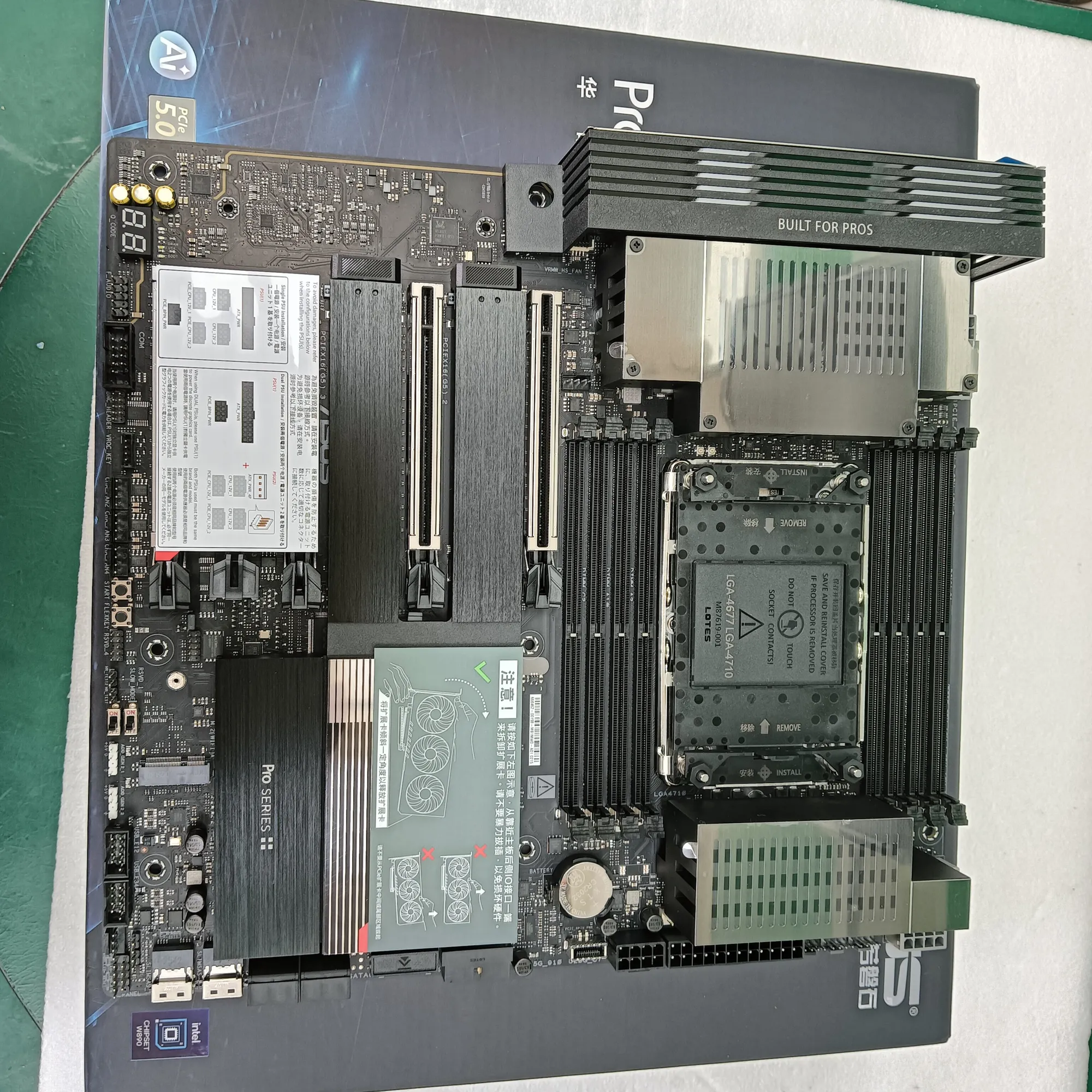

Stable thermal performance is essential for workstations running nonstop. The Pro WS W890‑SAGE features a multi‑layer thermal design to keep temperatures in check. The VRM area includes large extruded aluminum heatsinks, with an active cooling fan integrated into the left heatsink for enhanced MOSFET cooling. The chipset and all four M.2 slots are equipped with dedicated heatsinks, backed by thermal pads and M.2 backplates to maximize heat dissipation. Users can fine‑tune system cooling via Q‑Fan controls in UEFI BIOS or Fan Xpert 4 software, supporting multiple 4‑pin PWM/DC fan headers and AIO water‑cooling support. The motherboard is rigorously tested at 45°C and 80% humidity to guarantee reliable 24/7 operation.

PCIe 5.0 Expansion & Multi‑GPU Support

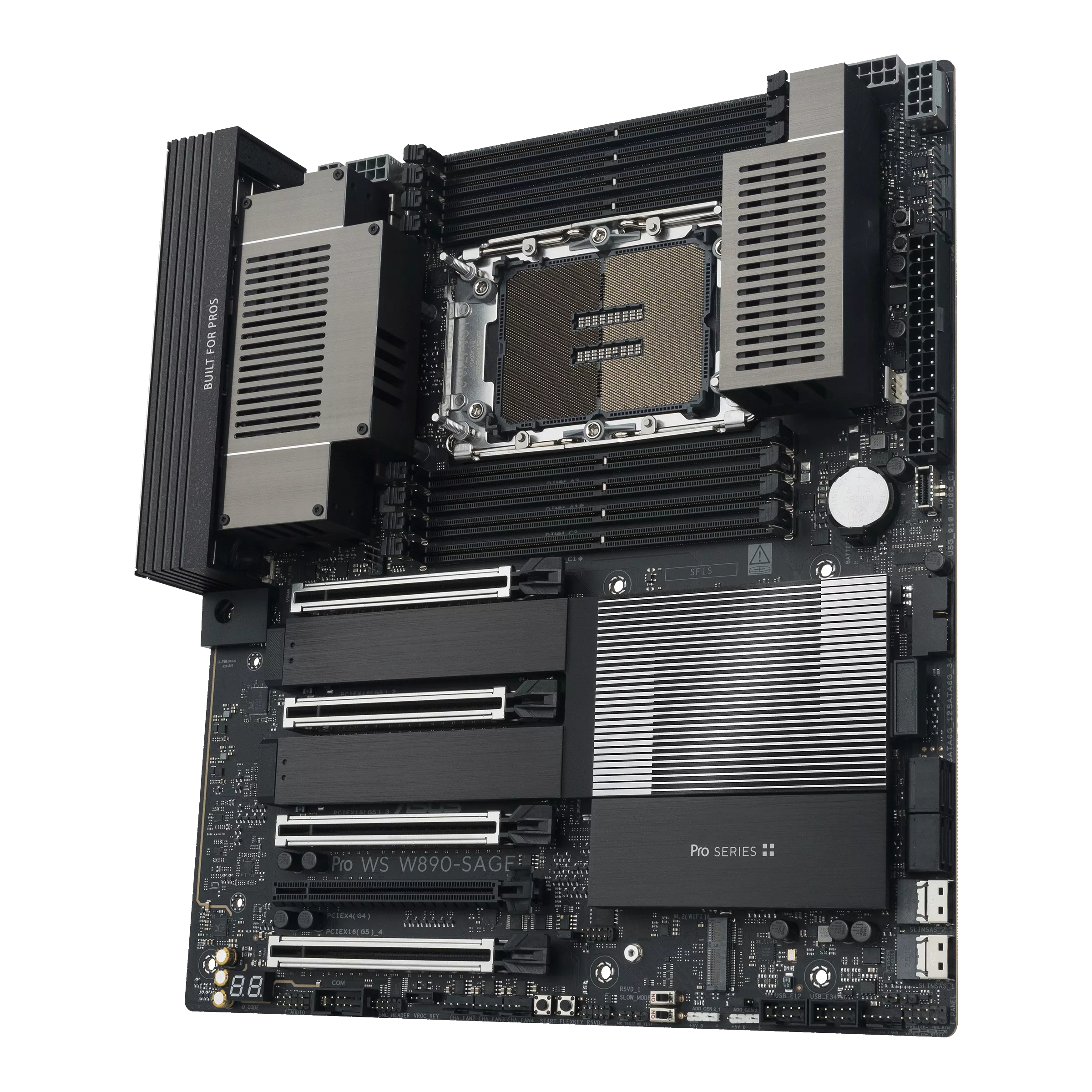

The Pro WS W890‑SAGE features four PCIe 5.0 x16 SafeSlots, delivering twice the bandwidth of PCIe 4.0 for next‑generation graphics cards, compute accelerators, and high‑speed expansion cards. This configuration enables flexible multi‑GPU setups ideal for GPU rendering, 3D modeling, scientific simulation, and AI model training. ASUS SafeSlot technology uses a reinforced metal sheath to strengthen PCIe slots, ensuring strong physical retention and signal integrity even with heavy, long cards. An additional onboard 8‑pin PCIe power connector ensures stable power delivery when multiple high‑power GPUs are installed.

Ultra‑Fast Storage: Quad PCIe 5.0 M.2 & SlimSAS

Storage bandwidth is critical for professionals handling large datasets, 8K video assets, and high‑resolution textures. The motherboard comes with four PCIe 5.0 x4 M.2 slots (2280), supporting ultra‑fast NVMe SSDs for massive sequential read/write speeds. Users can configure RAID arrays to aggregate bandwidth for even faster data access. For enterprise‑grade storage expansion, two SlimSAS ports allow connection to industrial SSDs, JBOD enclosures, and server‑grade storage equipment, making this board suitable for high‑capacity workstation and server hybrid environments.

DDR5 ECC R‑DIMM Support Up to 4TB

Memory capacity and stability define workstation productivity. The Pro WS W890‑SAGE provides eight DDR5 R‑DIMM slots with ECC support, accommodating up to 4TB of memory (2DPC). ECC (Error‑Correcting Code) technology detects and fixes memory errors in real time, preventing system crashes and data corruption during long‑running critical tasks. ASUS NitroPath DRAM technology optimizes memory traces and signal paths for improved overclocking headroom, stability, and data transfer efficiency. Memory speeds up to 8800 MT/s are supported via XMP profiles, letting you maximize memory performance for bandwidth‑hungry applications.

Dual High‑Speed LAN: 10G + 2.5G Ethernet

Fast and reliable networking is essential for collaborative workflows, NAS access, cloud integration, and high‑speed data transfers. The Pro WS W890‑SAGE integrates dual Ethernet ports: a 10GbE port for ultra‑fast local network and NAS connections, and a 2.5GbE port for daily networking, streaming, and uploads. This dual‑port design lets you separate high‑speed storage traffic from general network traffic, improving overall efficiency, security, and data organization.

Next‑Gen USB Connectivity

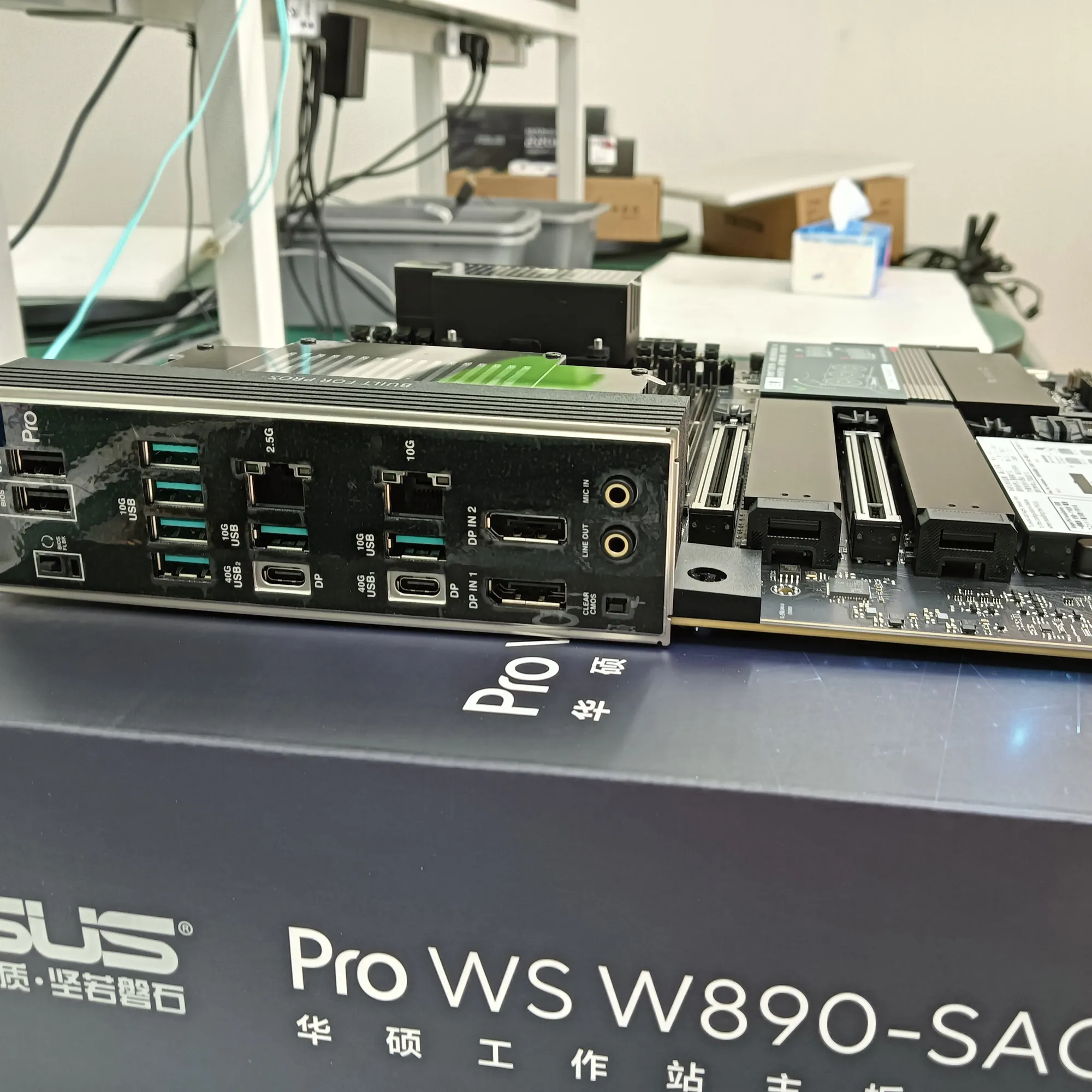

The motherboard offers a full suite of high‑speed USB ports for versatile peripheral connectivity. Rear ports include two USB4 40Gbps Type‑C ports with DisplayPort alt mode supporting up to 8K@60Hz output, ideal for high‑resolution USB‑C monitors. There are six USB 10Gbps Type‑A ports, two USB 2.0 Type‑A ports, and internal headers including a front USB 20Gbps Type‑C, USB 5Gbps, and USB 2.0 connectors. This extensive I/O supports fast external storage, high‑speed docks, video devices, and professional peripherals.

Server‑Grade IPMI Remote Management

For enterprise and workstation fleet management, the Pro WS W890‑SAGE supports ASUS IPMI expansion cards, providing server‑grade remote monitoring and control. IPMI lets administrators perform remote power cycles, resets, hardware status monitoring, and troubleshooting even when the OS is unresponsive. Combined with ASUS Control Center Express software, the board enables real‑time IT monitoring, security management, and unauthorized access prevention, supporting professional deployment in business and industrial environments.

Overclocking Capabilities

Designed for performance enthusiasts and professional tuners, the Pro WS W890‑SAGE supports CPU and memory overclocking. Optimized BIOS options, hardware switches, and dual‑PSU readiness give you the flexibility to push CPU and DDR5 performance beyond stock specifications. XMP support simplifies memory overclocking, while the robust power and cooling systems maintain stability during extended tuning sessions.

EZ DIY & Durability Features

ASUS includes several user‑friendly upgrades to simplify building and maintenance. SafeDIMM shielding protects memory slots, while Q‑Latch, M.2 Q‑Slide, and M.2 Q‑Release eliminate the need for small screws during M.2 installation. The board supports BIOS Flashback for easy UEFI updates without a CPU or memory. Extensive compatibility validation with coolers, chassis, PSUs, and memory modules ensures frustration‑free builds.

Built for Professional Industries & AI Workloads

The ASUS Pro WS W890‑SAGE is built to excel across industries: video production, 3D animation, architectural design, engineering simulation, AI development, data analysis, and server‑workstation hybrid deployments. With AI‑optimized connectivity, multi‑GPU support, and massive memory and storage bandwidth, it is fully ready for next‑generation AI PC and intensive computing workloads.

Conclusion

The ASUS Pro WS W890‑SAGE redefines professional workstation motherboards by merging server‑grade reliability, enthusiast‑level performance, and future‑proof expansion. From its LGA4710‑2 support for Intel Xeon 600 CPUs, robust power delivery, and advanced cooling to quad PCIe 5.0 M.2 slots, multi‑GPU capability, 10G+2.5G LAN, and IPMI remote management, every feature is engineered for professionals who demand the best. If you need a workstation motherboard that delivers 24/7 stability, extreme expandability, and top‑tier performance for AI, rendering, simulation, and enterprise workloads, the Pro WS W890‑SAGE is the ultimate choice.
