ASRock Rack SP2C621D32GM-2T Dual Xeon Server Motherboard | 32-DIMM PCIe 4.0

ASRock Rack SP2C621D32GM-2T Dual Xeon Server Motherboard | 32-DIMM PCIe 4.0

1. Proprietary (16.53″ x 13.79″)
2. Supports 3^rd Gen Intel^® Xeon^® Scalable processors
3. 16+16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel^® Optane™ Persistent Memory
4. 8 SlimSAS (PCIe4.0 x8), 8 low-profile SlimSAS (PCIe4.0 x8), 1 low-profile SlimSAS (2 PCIe3.0 x4 or 8 SATA 6Gb/s)
5. Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
6. Up to 10 SATA 6Gb/s
7. 2 RJ45 (10GbE) by Intel^® X710-AT2
8. Remote management (IPMI)

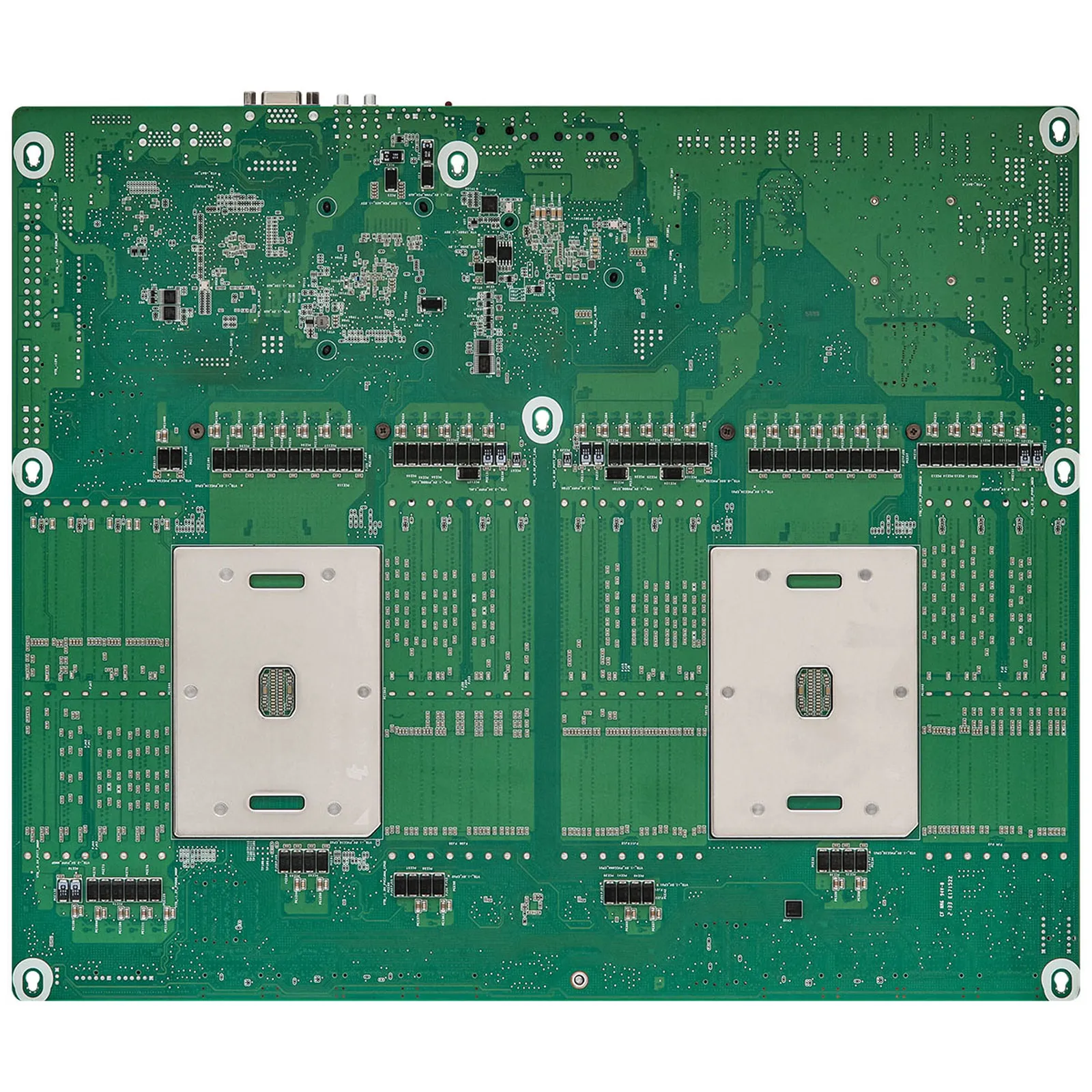

Introduction to ASRock Rack SP2C621D32GM-2T Server Motherboard

The ASRock Rack SP2C621D32GM-2T is a high‑end proprietary form‑factor server motherboard engineered to deliver exceptional computing power, expandability, and reliability for modern data centers, cloud platforms, virtualization clusters, high‑performance computing (HPC), and enterprise storage environments. Built around the Intel C621A chipset and dual Socket P+ (LGA 4189), this board supports 3rd Gen Intel Xeon Scalable processors, combining massive memory capacity, lightning‑fast PCIe 4.0 connectivity, robust storage options, and enterprise‑grade remote management. Designed for 24/7 operation under heavy workloads, the SP2C621D32GM-2T balances performance, scalability, and stability to meet the most demanding business and technical requirements.

Powerful Dual Processor Architecture

At the core of the SP2C621D32GM-2T is a dual‑CPU design supporting 3rd Gen Intel Xeon Scalable processors (Ice Lake). Featuring dual LGA 4189 sockets, the motherboard enables exceptional multi‑threaded performance, high core counts, and strong per‑core efficiency. Paired with the Intel C621A chipset, the platform provides extensive I/O capabilities, secure hardware‑enabled features, and optimized resource allocation for virtual machines, databases, big data analytics, and rendering workloads. This dual‑socket configuration allows users to scale computing performance linearly while maintaining backward compatibility and enterprise‑level stability.

Massive Memory Capacity and Flexibility

Memory bandwidth and capacity are critical for memory‑intensive applications, and the SP2C621D32GM-2T excels with 32x DIMM slots (16+16), supporting 2 DIMMs per channel (2DPC). The board is compatible with DDR4 288‑pin RDIMM, LRDIMM, LRDIMM‑3DS, and Intel Optane Persistent Memory 200 series, delivering high‑speed data access and persistent storage options. This extensive memory support lets administrators deploy large virtualization hosts, in‑memory databases, and big data processing nodes without bottlenecks. The memory subsystem is optimized for error correction (ECC) to enhance data integrity and system uptime in mission‑critical environments.

Extensive PCIe 4.0 and Storage Connectivity

The SP2C621D32GM-2T provides rich high‑speed expansion and storage capabilities through numerous SlimSAS ports and PCIe 4.0 lanes. It includes multiple SlimSAS connectors operating at PCIe 4.0 x8, delivering ultra‑fast bandwidth for NVMe SSDs, U.2 drives, and storage expanders. Additional SlimSAS ports support PCIe 3.0 x4 or SATA 6Gb/s, offering flexible legacy and hybrid storage configurations. The board also features dual M.2 slots (PCIe 3.0 x4 or SATA 6Gb/s) for fast boot drives, caching, or embedded operating systems, plus up to 10 SATA 6Gb/s ports for traditional HDDs and SSDs. This versatile I/O layout makes the motherboard suitable for software‑defined storage, hyper‑converged infrastructure, and high‑density storage servers.

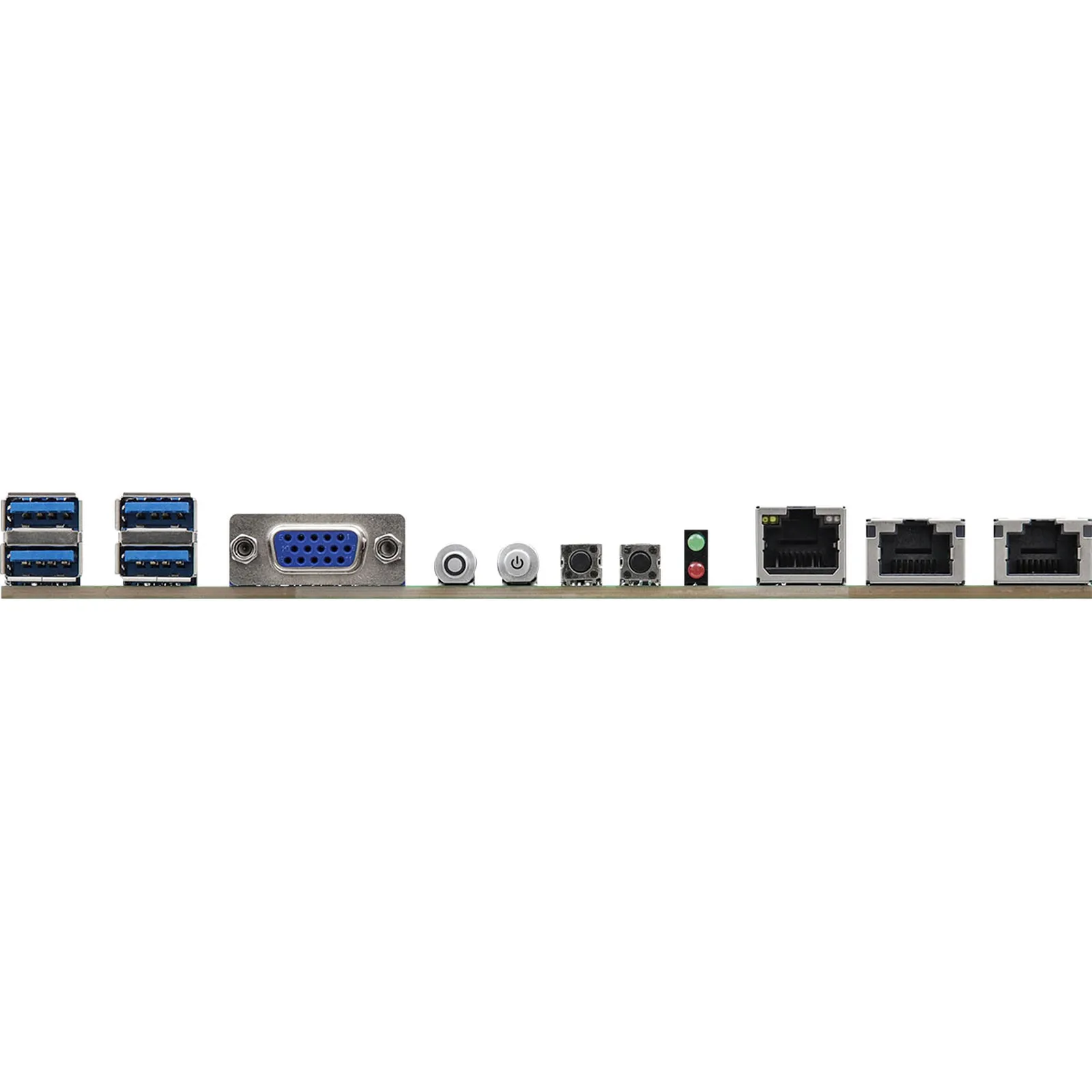

High‑Speed Networking and Remote Management

Network performance and out‑of‑band management are essential for modern servers. The SP2C621D32GM-2T comes equipped with dual 10GbE RJ45 ports powered by the Intel X710‑AT2 controller, delivering high throughput, low latency, and enterprise features like VLAN tagging, RSS, and hardware offloading. These ports support seamless integration into 10G switched environments and meet the demands of virtualization, cloud, and content delivery networks. For reliable server management, the board includes a dedicated IPMI controller, enabling remote monitoring, power control, KVM‑over‑LAN, and firmware updates regardless of the host OS status. This reduces on‑site maintenance and improves overall infrastructure availability.

Robust Build, Stability, and Enterprise Features

Built with server‑grade components, enhanced power delivery, and rigorous validation, the SP2C621D32GM-2T ensures long‑term durability under continuous load. Its proprietary form factor (16.53” × 13.79”) fits specialized server chassis while maintaining optimal airflow and thermal efficiency. The board supports enterprise‑class security features, stable clocking, and hardware‑assisted virtualization to streamline deployment in VMware, Hyper‑V, KVM, and Xen environments. With optimized power distribution and thermal design, it maintains performance even under extended full‑load operation.

Ideal Use Cases and Deployment Scenarios

The ASRock Rack SP2C621D32GM-2T is built for a wide range of professional applications: enterprise virtualization & hyper‑converged infrastructure; high‑performance computing (HPC) & cluster computing; cloud computing nodes & public/private cloud platforms; database servers, big data analytics & AI inference; high‑density storage servers & software‑defined storage; rendering farms, video processing & media servers. Its combination of dual Xeon performance, 32 DIMMs, PCIe 4.0, 10GbE, and IPMI makes it a versatile foundation for mission‑critical IT infrastructure.

Conclusion

The ASRock Rack SP2C621D32GM-2T stands out as a premium dual‑socket server motherboard that delivers exceptional performance, massive expandability, and rock‑solid reliability. With support for 3rd Gen Intel Xeon Scalable CPUs, 32 DDR4 DIMMs, PCIe 4.0 storage, dual 10GbE, and IPMI, it addresses the needs of modern data centers and enterprise workloads. Whether deployed for virtualization, HPC, cloud, or storage, the SP2C621D32GM-2T provides a future‑ready, scalable, and secure platform that ensures high efficiency and uptime. For organizations seeking a high‑end server motherboard that combines power, flexibility, and manageability, the ASRock Rack SP2C621D32GM-2T is a top‑tier choice.
