ASRock Rack SP2C621D16-2T Dual Xeon Server Motherboard | PCIe 4.0 EEB IPMI

Introduction to ASRock Rack SP2C621D16-2T Server Motherboard

The ASRock Rack SP2C621D16-2T is a robust, enterprise‑grade EEB form‑factor server motherboard engineered to power mission‑critical computing environments including data centers, virtualization platforms, cloud infrastructure, high‑performance computing (HPC), database servers, and storage servers. Built around dual Intel Xeon Scalable processors and the Intel C621A chipset, this board delivers exceptional compute density, expandability, stability, and remote management capabilities. Designed for 24/7 continuous operation, it combines high‑speed I/O, large memory capacity, flexible storage options, and enterprise‑class reliability to meet the demands of modern IT infrastructure.

Dual Intel Xeon Scalable Processor Architecture

At its core, the SP2C621D16-2T supports dual 3rd Gen Intel Xeon Scalable processors in the LGA 4189 (Socket P+) package. This dual‑CPU configuration enables exceptional multi‑threaded performance, ideal for heavy virtualization workloads, database transactions, big data analytics, and containerized applications. The platform supports high‑TDP CPUs up to 270W, ensuring compatibility with top‑tier Xeon Scalable SKUs for maximum throughput. Paired with the Intel C621A chipset, the board provides enterprise‑level features including advanced RAID, high‑speed SATA ports, PCIe bifurcation, and stable I/O virtualization. This processing architecture ensures strong backward compatibility and forward‑looking performance for server deployments.

High‑Capacity DDR4 Memory Subsystem

Memory bandwidth and capacity are critical for server performance, and the SP2C621D16-2T comes equipped with 16 DDR4 DIMM slots (8 per CPU). It supports RDIMM, LRDIMM, RDIMM‑3DS, LRDIMM‑3DS, and Intel Optane Persistent Memory 200 Series modules. Running at speeds up to 3200 MHz, the memory subsystem maximizes data throughput for virtual machines, in‑memory databases, and cache‑intensive applications. With support for ultra‑high‑capacity DIMMs, the board scales to massive memory configurations, essential for virtualization hosts and in‑memory computing. Error‑correcting code (ECC) support guarantees data integrity and system stability under extended workloads.

PCIe 4.0 Expansion & Flexible I/O

The motherboard features a full‑speed PCIe 4.0 expansion layout designed for compute, GPU, NVMe, and networking cards. It includes five PCIe 4.0 x16 slots and one PCIe 4.0 x8 slot, enabling multi‑GPU configurations, NVMe storage arrays, high‑speed network adapters, RAID controllers, and PCIe‑based accelerators. Bifurcation support allows flexible lane assignment for storage and networking cards, optimizing I/O utilization. This high‑bandwidth expansion makes the board suitable for HPC clusters, AI inference servers, media transcoding, and software‑defined storage platforms.

Enterprise Storage Configuration

Storage flexibility is a highlight of the SP2C621D16-2T. It integrates 14 SATA 6Gb/s ports supporting RAID 0, 1, 5, 10 for traditional HDD/SSD arrays. Two SlimSAS connectors deliver PCIe 4.0 speed for high‑speed JBOD or RAID expansion. A dedicated M.2 M‑Key slot (PCIe 4.0 x4) supports 2280 and 22110 form factors for ultra‑low‑latency boot drives or caching. This mixed‑storage design lets administrators balance capacity, performance, and cost, supporting hybrid flash‑disk setups, scale‑out storage, and virtualization repositories.

High‑Speed Networking & Remote Management

Network performance and server control are streamlined via integrated Intel 10GbE and dedicated IPMI. The board includes dual Intel X710 10GbE RJ45 ports delivering line‑rate throughput for virtualization, file serving, and inter‑server communication. A dedicated Realtek management LAN port enables independent IPMI control, allowing remote KVM, power control, sensor monitoring, and firmware updates even when the main OS is offline. The ASPEED AST2500 BMC controller provides stable, secure out‑of‑band management, reducing on‑site maintenance and improving uptime.

Physical Design, I/O, and Environmental Durability

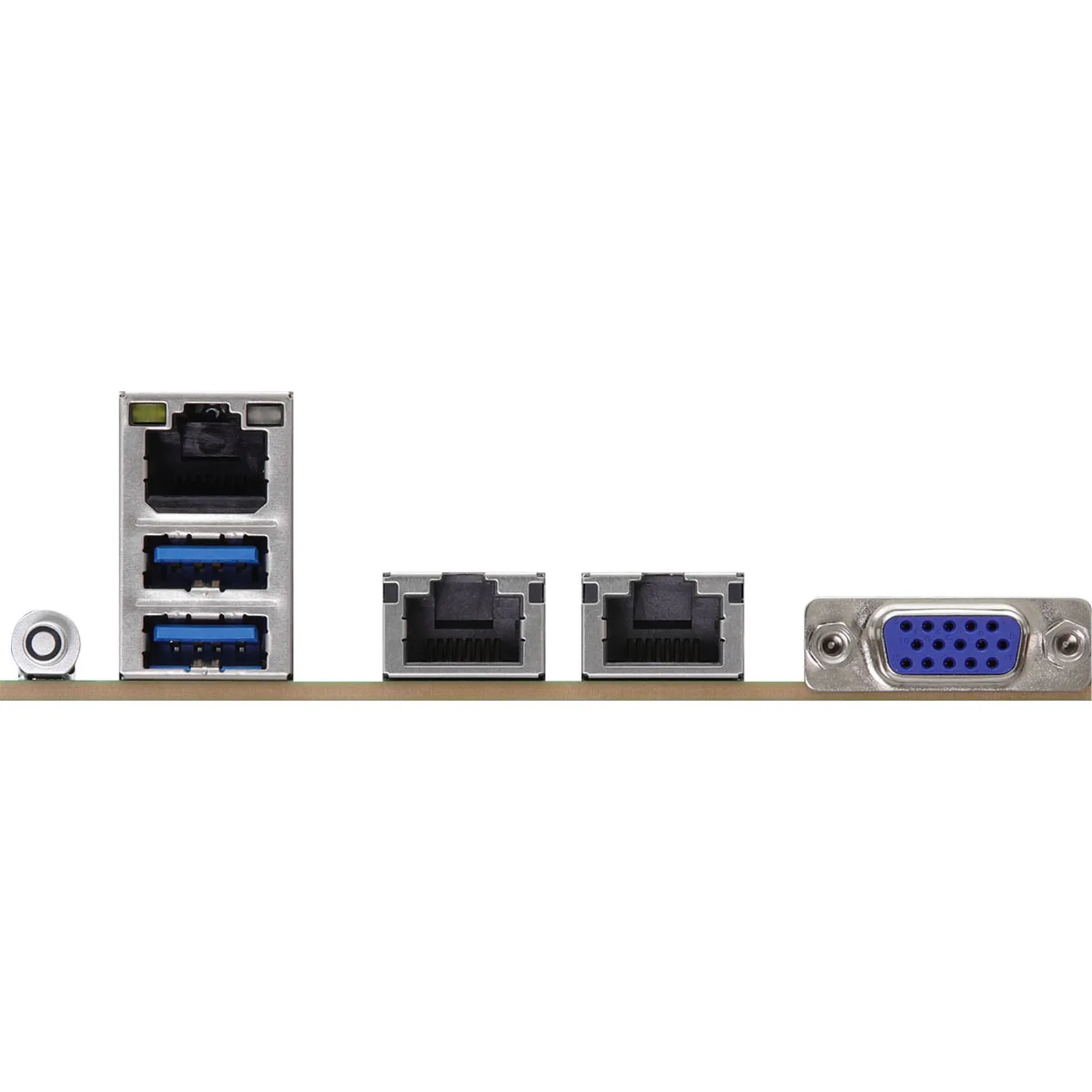

Built in the EEB form factor (12″ × 13″), the SP2C621D16-2T fits standard server chassis while offering ample component space and cooling. Rear I/O includes VGA, USB 3.2 Gen1 ports, and network jacks. Internal connectors support server‑grade power delivery and high‑efficiency cooling. The board is built for long‑term use in data‑center environments with stable power regulation, thermal protection, and industrial‑grade components. It supports enterprise‑level operating systems including Windows Server and Linux distributions.

Ideal Use Cases

This motherboard serves virtualization hosts, cloud computing nodes, HPC clusters, database servers, AI inference systems, media servers, and storage controllers. Its dual CPU, large memory, PCIe 4.0 expansion, 10GbE, and IPMI make it versatile for enterprise IT, hosting providers, research institutions, and large‑scale storage deployments.

Conclusion

The ASRock Rack SP2C621D16-2T combines performance, expandability, and reliability for modern servers. With dual Xeon support, massive memory, PCIe 4.0, fast storage, 10GbE, and IPMI, it provides a future‑proof foundation for critical workloads. Whether for virtualization, cloud, HPC, or storage, it delivers enterprise‑class quality and stability.
