ASRock Rack GNR2D32G-2L+ Dual-Socket Server Motherboard | DDR5 PCIe 5.0

Introduction to ASRock Rack GNR2D32G-2L+ Server Motherboard

The ASRock Rack GNR2D32G-2L+ is an enterprise‑class proprietary server motherboard engineered to deliver exceptional performance, scalability, and reliability for modern data center and compute‑intensive deployments. Designed to support dual Intel Xeon 6700E‑series processors, this platform combines cutting‑edge memory, I/O, and management technologies to address the demands of virtualization, cloud infrastructure, software‑defined storage, high‑performance computing (HPC), database servers, and multi‑tenant hosting environments. With a robust feature set including DDR5 memory, PCIe 5.0/CXL2.0 expansion, high‑speed storage, and comprehensive remote management, the GNR2D32G-2L+ serves as a mission‑critical foundation for businesses requiring stable, future‑proof server hardware.

Processor Support & Core Architecture

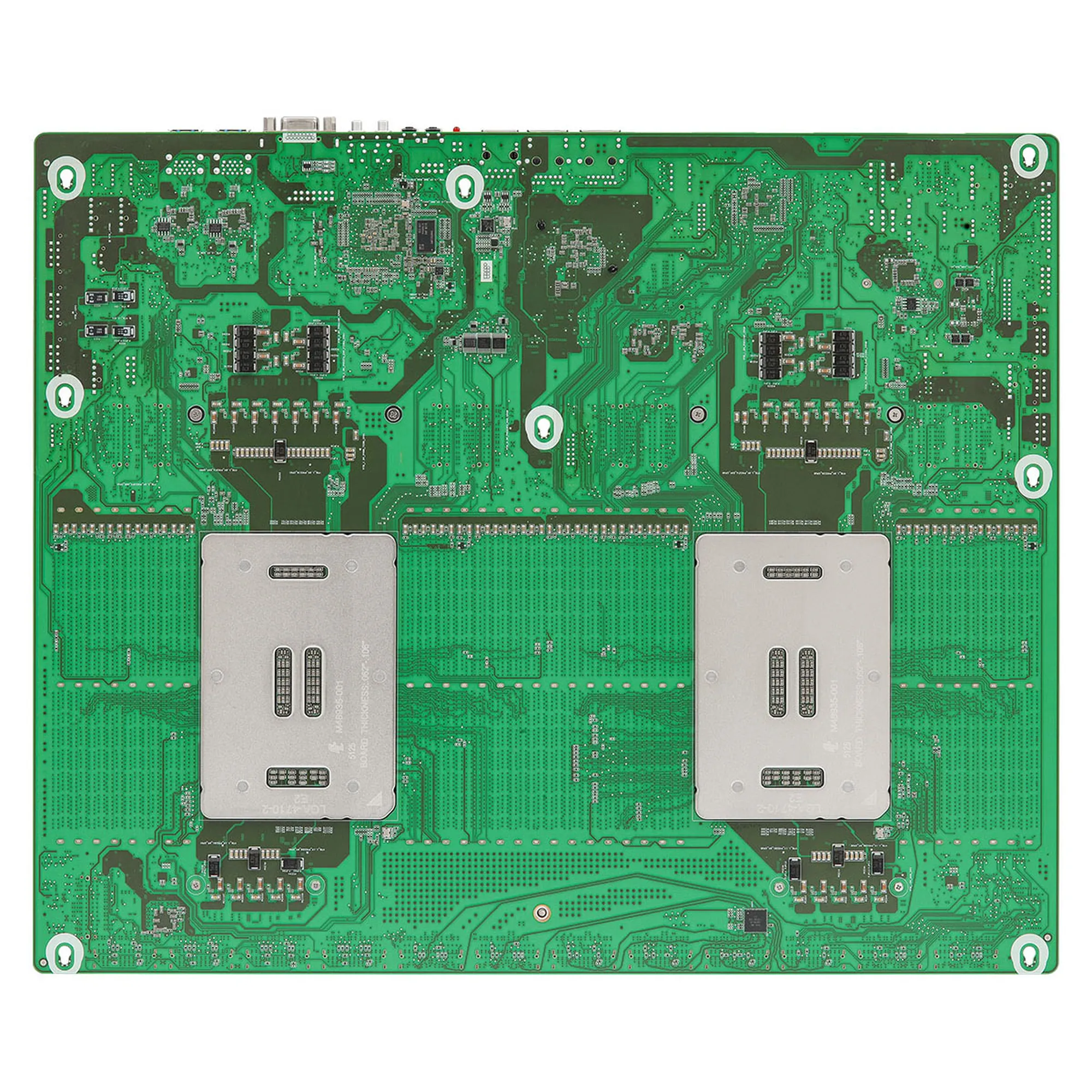

At the heart of the ASRock Rack GNR2D32G-2L+ lies dual CPU sockets optimized for the Intel Xeon 6700E‑series processors, utilizing the LGA 4710 socket layout. This dual‑socket configuration enables exceptional multi‑threaded performance, supporting heavy workloads such as virtual machine density, containerized applications, real‑time data analytics, and transactional database processing. The SoC (System on Chip) architecture eliminates the need for a traditional discrete chipset, streamlining communication paths, reducing latency, and improving power efficiency. By leveraging the latest Intel Xeon 6 compute core design, the motherboard delivers improved instructions‑per‑cycle (IPC), higher clock speeds, and enhanced security features built into the silicon. This processor support ensures the platform is capable of scaling from entry‑level enterprise deployments to performance‑starving HPC clusters without compromising stability or uptime.

DDR5 Memory Subsystem: Capacity & Bandwidth

Memory performance and capacity are critical in enterprise server environments, and the GNR2D32G-2L+ addresses this with an impressive 32 DDR5 DIMM slots arranged as 16+16 across two CPUs, supporting 2DPC (2 DIMMs per channel) operation. The board supports multiple DDR5 memory types including standard RDIMM, high‑density RDIMM‑3DS, and performance‑optimized MRDIMM. Individual DIMM capacities reach up to 128GB for RDIMM and up to 256GB for RDIMM‑3DS modules, allowing a maximum theoretical memory capacity of up to 8TB using high‑density modules. Memory speeds scale up to 6400MT/s in 1DPC configurations and 5200MT/s in 2DPC configurations, while MRDIMM support enables speeds up to 8000MT/s in 1DPC mode for extreme bandwidth requirements. Operating at a standard 1.1V memory voltage, the platform balances performance and power efficiency, making it suitable for 24/7 continuous operation. This high‑capacity, high‑bandwidth memory subsystem ensures smooth performance when handling large in‑memory databases, virtual machine farms, big data processing, and in‑memory analytics workloads.

PCIe 5.0 & CXL 2.0 Expansion Capabilities

Expansion flexibility is a hallmark of the ASRock Rack GNR2D32G-2L+, which provides extensive high‑speed I/O through PCIe 5.0 and Compute Express Link (CXL) 2.0 technology. The board includes multiple MCIO expansion slots, with 10×PCIe 5.0/CXL2.0 x8 slots from CPU0, 10×PCIe 5.0/CXL2.0 x8 slots from CPU1, and an additional 1×PCIe 5.0 x8 MCIO slot from CPU1, totaling 21 high‑bandwidth expansion lanes. CXL 2.0 support enables coherent memory pooling, improved resource sharing, and reduced latency between accelerators, storage, and CPUs—essential for next‑gen workloads like AI inferencing, GPU‑accelerated computing, and composable infrastructure. These expansion capabilities allow system builders to deploy high‑speed networking cards, GPU accelerators, NVMe storage controllers, RAID adapters, and FPGA accelerators to customize the server for specific workloads. The PCIe 5.0 infrastructure doubles the bandwidth of PCIe 4.0, ensuring fast data transfers and future compatibility with upcoming enterprise hardware.

High‑Speed Storage & Internal Connectivity

Fast, reliable storage is essential for modern servers, and the GNR2D32G-2L+ integrates dedicated high‑speed storage options to eliminate bottlenecks. The motherboard includes one M.2 slot supporting PCIe 5.0 x4, compatible with 2280 and 22110 form‑factor NVMe SSDs. This direct CPU‑connected storage delivers ultra‑low latency and exceptional read/write speeds, ideal for boot drives, hypervisor installations, high‑speed cache, or database logs. Additional internal connectors support SATA and other storage standards, providing flexibility for traditional HDD or SATA SSD deployments. Combined with PCIe‑based NVMe HBAs, the platform can scale to support massive internal or external storage arrays suitable for software‑defined storage, object storage, or backup‑and‑archive applications. The storage architecture prioritizes both speed and reliability, supporting enterprise‑class endurance and data integrity features.

Network, I/O, and Remote Management Features

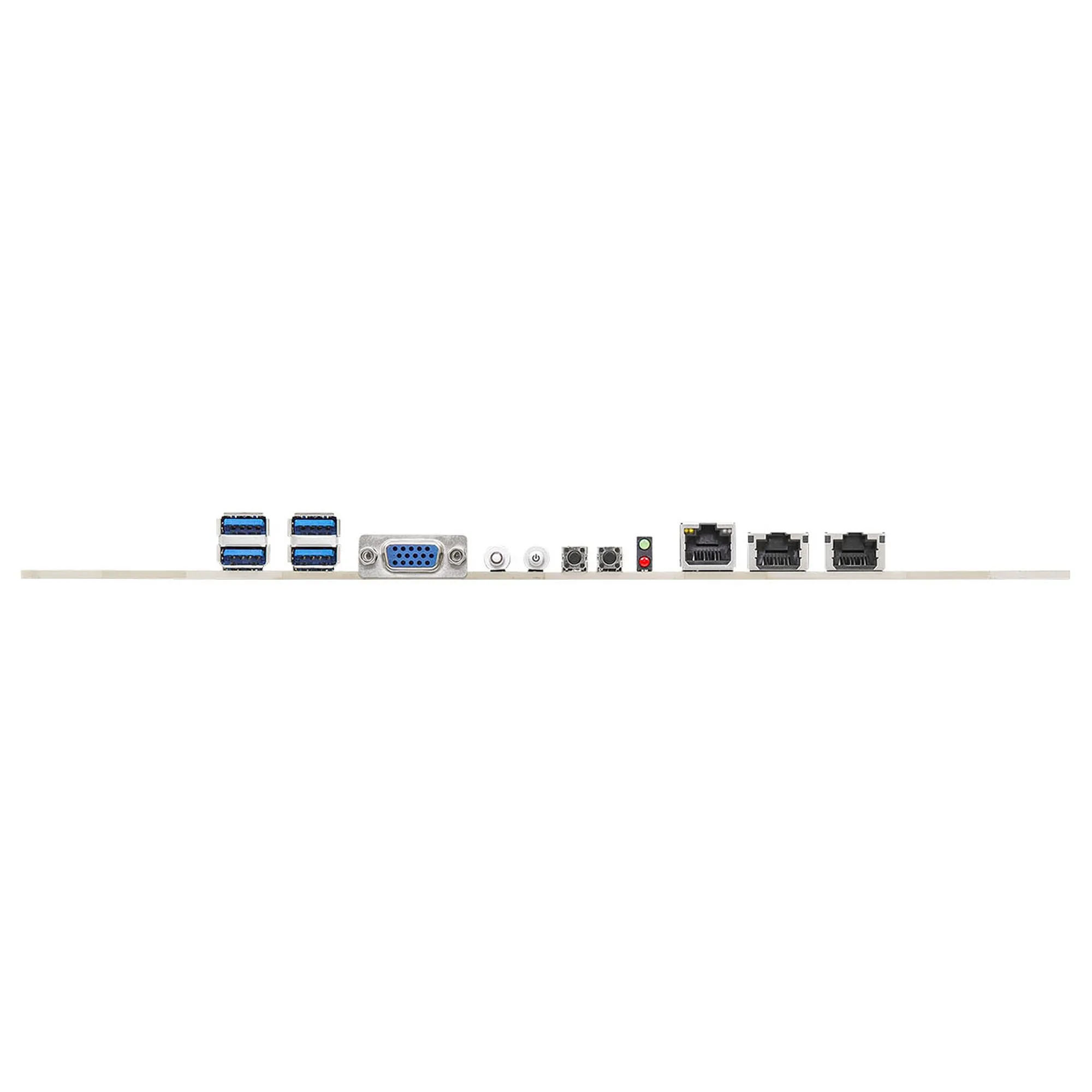

Networking and systems management are central to enterprise server functionality. The GNR2D32G-2L+ includes dual Intel i350 1GbE RJ45 LAN ports for reliable, stable network connectivity, supporting standard TCP/IP, VLAN tagging, and enterprise networking protocols. For mission‑critical remote management, the board implements a dedicated IPMI (Intelligent Platform Management Interface) subsystem, enabling full out‑of‑band management regardless of host OS status. Administrators can monitor hardware health, control power states, access remote console, update firmware, and diagnose failures remotely—reducing on‑site maintenance and improving uptime. Rear I/O includes USB 3.2 Gen1 ports, a DB15 VGA port for local video output, and dedicated UID, power, and reset buttons. Internal headers provide support for COM ports, TPM (13‑pin SPI), chassis intrusion detection, system status LEDs, and front panel controls. These features ensure the board is manageable, secure, and easy to deploy in rackmount environments.

Security, Reliability & Server‑Grade Design

Enterprise servers demand strong security and exceptional reliability, and the GNR2D32G-2L+ incorporates multiple layers of protection. It supports hardware TPM modules for secure encryption, secure boot, and system integrity measurement, protecting against unauthorized access, firmware tampering, and rootkit attacks. The board includes chassis intrusion detection to alert administrators of physical security breaches. Power delivery is robust and server‑grade, supporting high‑efficiency power supply units with dedicated power connectors and monitoring. The proprietary printed circuit board (PCB) design uses high‑quality components, including durable capacitors and reinforced power stages, to maintain stability under heavy thermal and electrical loads. The board’s physical dimensions are 16.93” × 13.79”, designed to fit standard rackmount server chassis while maintaining optimal cooling and airflow. Combined with ASRock Rack’s strict validation and testing processes, this motherboard delivers consistent 24/7 operation in temperature‑variable data center environments.

Ideal Use Cases & Deployment Scenarios

The ASRock Rack GNR2D32G-2L+ is engineered for a broad spectrum of enterprise and high‑performance scenarios. It excels as a virtualization host running VMware, Hyper‑V, KVM, or Xen, supporting high VM consolidation ratios thanks to abundant CPU cores and memory capacity. It serves as a robust foundation for private cloud, public cloud nodes, and hybrid cloud infrastructure. In HPC environments, the platform supports compute clusters, scientific modeling, financial simulation, and AI model training/inferencing with expansion for accelerators. It performs reliably as a database server, file server, backup server, or SDN (Software‑Defined Networking) controller. The board is equally suitable for content delivery networks, video transcoding farms, and real‑time data processing appliances. Whether deployed in small business IT rooms or large‑scale colocation data centers, the GNR2D32G-2L+ provides performance, scalability, and reliability required for mission‑critical services.

Conclusion

The ASRock Rack GNR2D32G-2L+ represents a top‑tier server motherboard solution that unites powerful processing, bleeding‑edge I/O, massive memory capacity, and robust management into a stable, enterprise‑grade platform. With dual Intel Xeon 6700E support, 32×DDR5 slots, PCIe 5.0/CXL2.0 expansion, ultra‑fast NVMe storage, and comprehensive IPMI, it addresses current data center needs while remaining ready for future workloads. Designed for continuous operation, strong security, and flexible customization, this motherboard is an excellent choice for IT professionals, system integrators, and data center operators seeking a durable, high‑performance foundation for virtualization, cloud, HPC, and enterprise applications.
