• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

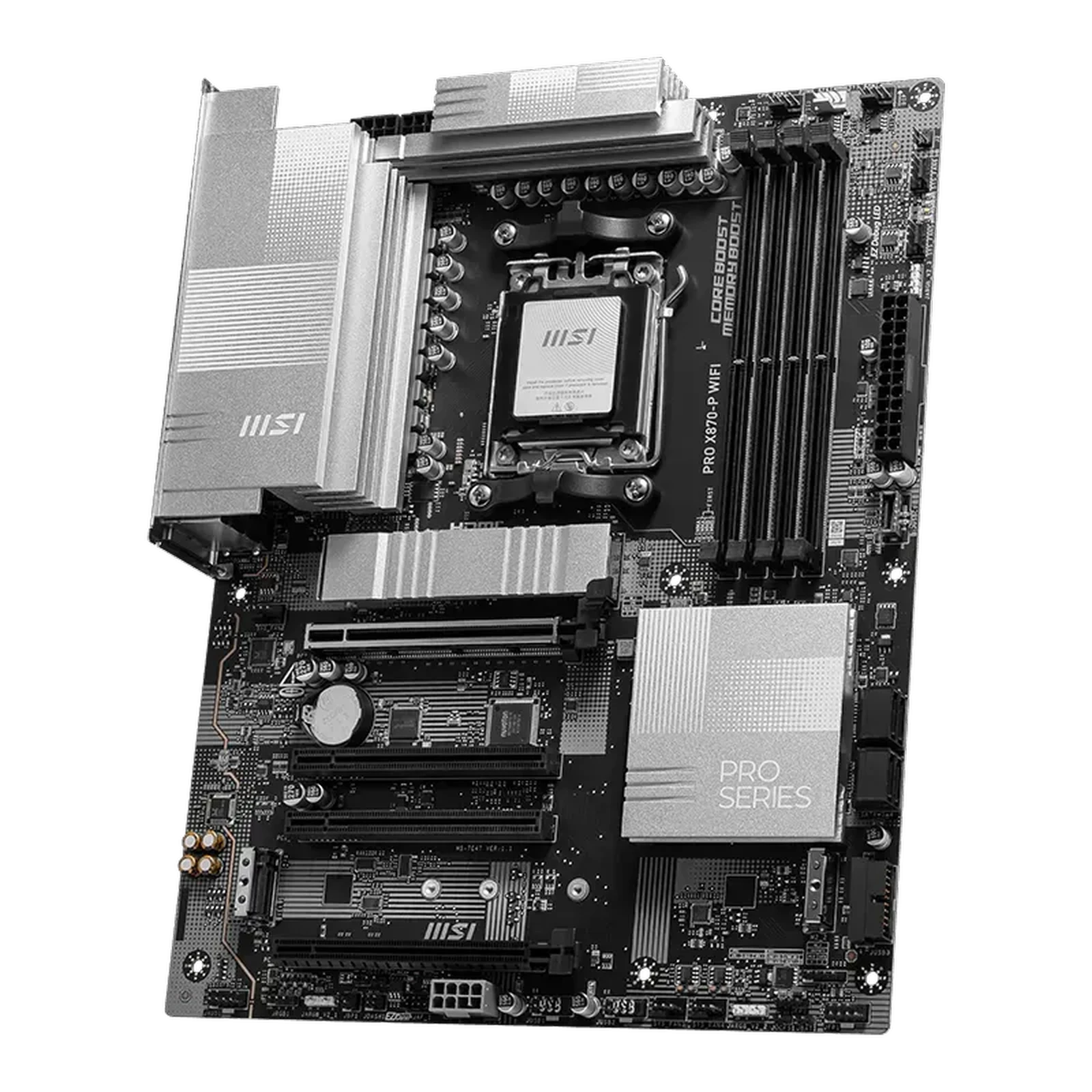

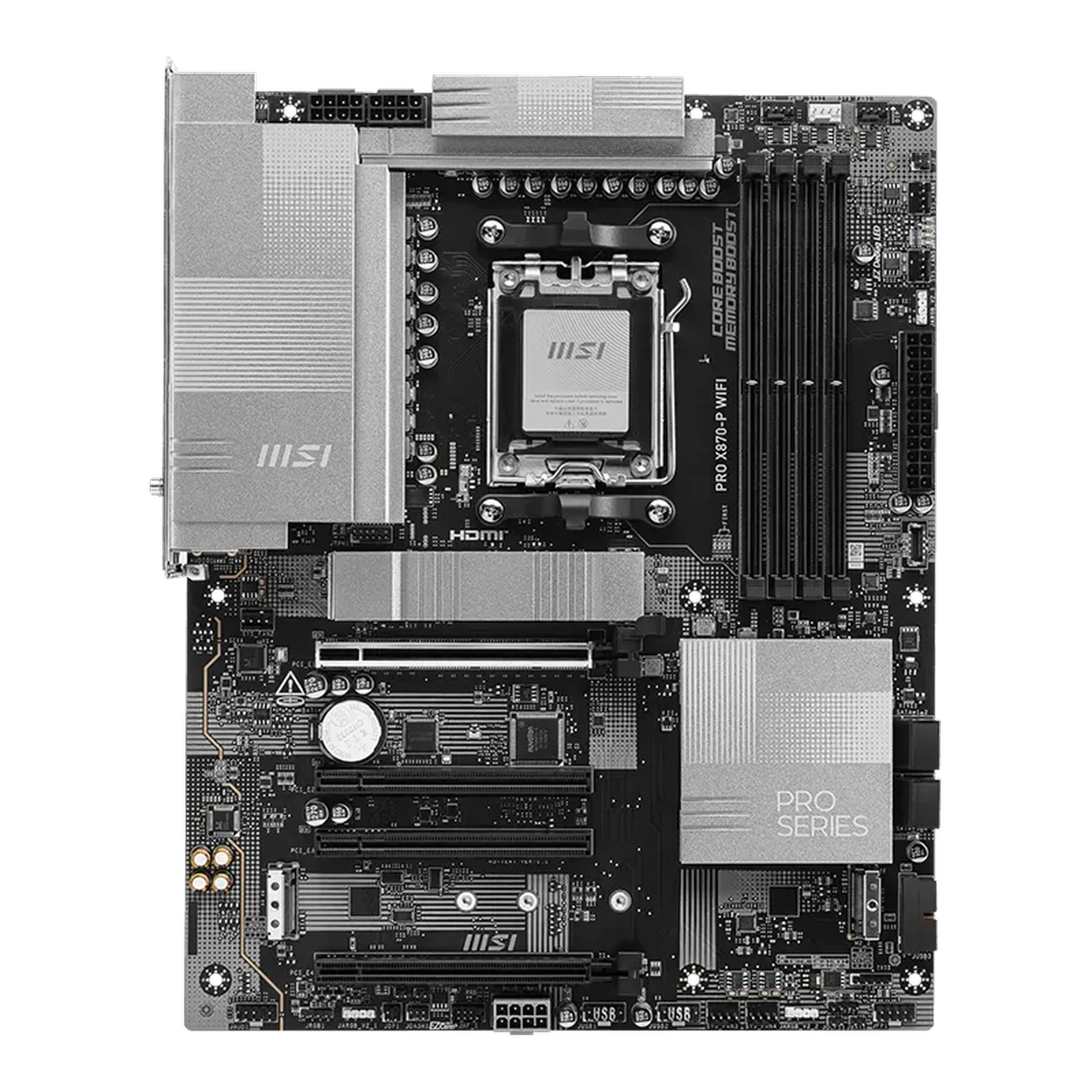

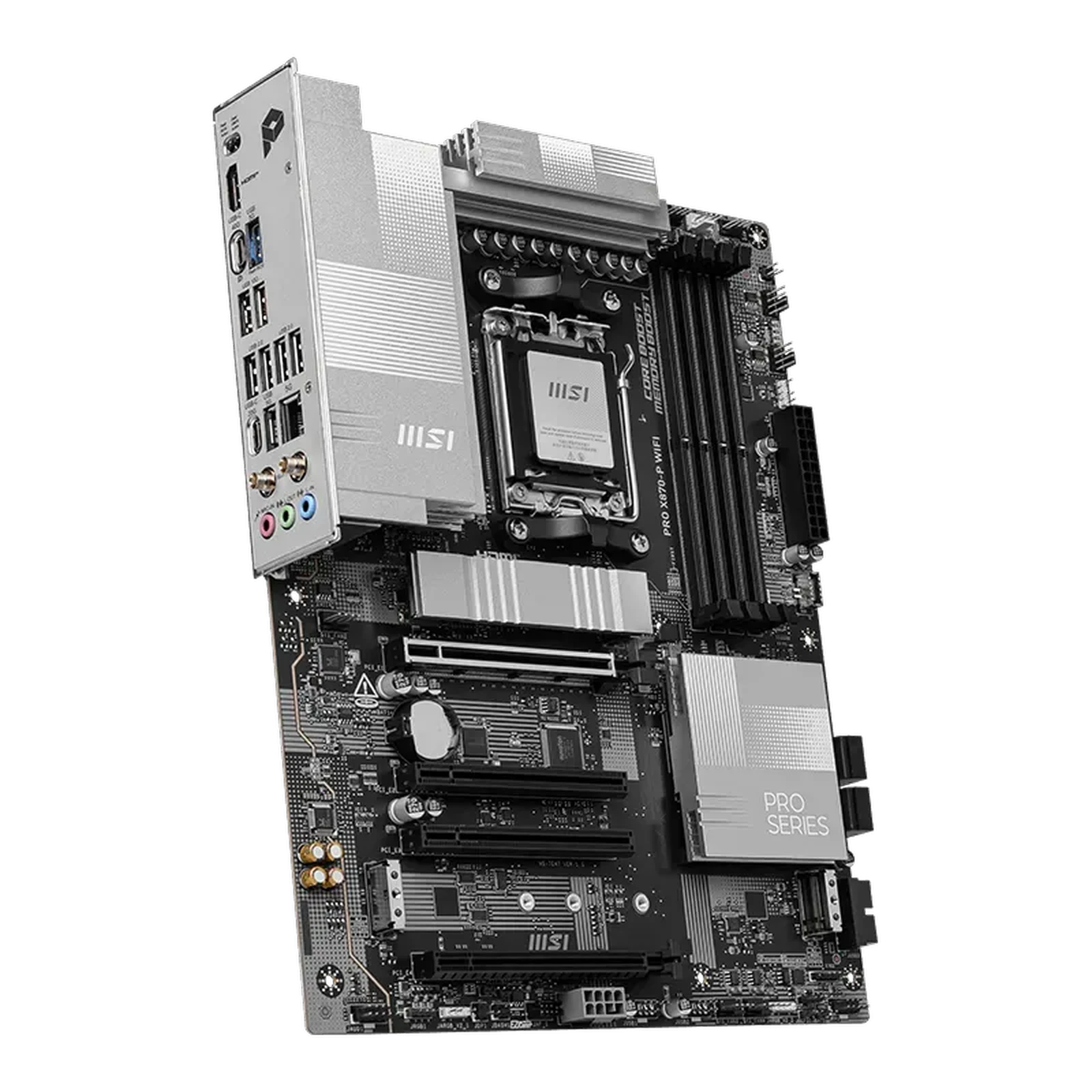

Overview of MSI PRO X870-P WIFI

The MSI PRO X870-P WIFI is a next-generation ATX motherboard built for users who demand stability, performance, and modern connectivity. Powered by the AMD X870 chipset and AM5 socket, this motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 series processors, making it a future-ready platform for both enthusiasts and professionals.

Designed under MSI’s PRO series philosophy, this motherboard focuses on productivity, reliability, and efficient system integration. Whether you are building a workstation, gaming rig, or AI-focused PC, the PRO X870-P WIFI offers a balanced mix of cutting-edge features and practical usability.

Advanced Power Design for Maximum Stability

One of the key highlights of the MSI PRO X870-P WIFI is its robust 14+2+1 Duet Rail Power System. This design ensures stable power delivery even under heavy workloads such as rendering, gaming, or overclocking.

The motherboard utilizes 60A Smart Power Stages combined with dual CPU power connectors, allowing it to handle high-end processors efficiently. This advanced VRM configuration minimizes voltage fluctuations and ensures consistent performance across all cores.

Additionally, MSI’s Core Boost and Load-Line Calibration technologies further enhance stability by maintaining accurate voltage delivery, which is especially important for demanding applications and overclocking scenarios.

DDR5 Memory Performance and Overclocking

The MSI PRO X870-P WIFI fully embraces next-generation memory technology with support for DDR5 RAM up to 8200+ MT/s (overclocked).

With four DIMM slots supporting up to 256GB of memory, this motherboard is ideal for multitasking, professional workloads, and future upgrades. It supports AMD EXPO technology, enabling users to easily overclock memory with optimized profiles.

MSI’s Memory Boost technology and optimized PCB layout ensure improved signal integrity and higher bandwidth, delivering faster data processing speeds and reduced latency. This makes it particularly beneficial for applications such as video editing, 3D rendering, and AI computation.

PCIe 5.0 and Storage Capabilities

For users seeking maximum performance, the MSI PRO X870-P WIFI includes PCIe 5.0 support for both graphics cards and storage devices.

The primary PCIe x16 slot runs at PCIe 5.0 speeds, offering unparalleled bandwidth for modern GPUs. This ensures compatibility with next-generation graphics cards and delivers higher frame rates and smoother gameplay.

On the storage side, the motherboard features three M.2 slots:

• 1× PCIe 5.0 x4 M.2 slot
• 2× PCIe 4.0 M.2 slots

These slots allow users to install ultra-fast NVMe SSDs for lightning-fast boot times and data transfer speeds. Additionally, four SATA ports are available for traditional storage drives, providing flexibility for different storage configurations.

RAID support (0, 1, and 5) further enhances data management and redundancy options, making this motherboard suitable for both personal and professional use.

Next-Generation Connectivity: Wi-Fi 7 and 5G LAN

Connectivity is a major strength of the MSI PRO X870-P WIFI. It features the latest Wi-Fi 7 technology, delivering faster speeds, lower latency, and improved reliability compared to previous wireless standards.

With support for 2.4GHz, 5GHz, and 6GHz bands, users can enjoy seamless wireless performance for gaming, streaming, and large file transfers.

In addition to wireless connectivity, the motherboard includes a Realtek 5G LAN port, providing ultra-fast wired networking for stable and high-speed internet connections. This combination ensures users have the best of both wired and wireless networking options.

USB4 and High-Speed I/O Options

The MSI PRO X870-P WIFI is equipped with a wide range of modern I/O options, including USB4 connectivity.

Key USB features include:

• USB4 (40Gbps Type-C)
• USB 20Gbps Type-C
• Multiple USB 10Gbps and 5Gbps ports

These high-speed ports allow for fast data transfers, external GPU support, and compatibility with modern peripherals. The inclusion of USB4 ensures future-proof connectivity for professional workflows and high-performance setups.

Efficient Cooling with Frozr Design

To maintain optimal performance, MSI integrates its Frozr cooling design into the PRO X870-P WIFI.

This includes:

• Extended heatsinks for better thermal dissipation
• VRM heatsinks for stable power delivery
• M.2 Shield Frozr for SSD cooling
• High-quality thermal pads for efficient heat transfer

The motherboard also features multiple fan headers, including a dedicated pump header for liquid cooling systems. MSI’s smart fan control allows users to customize cooling profiles for quiet or performance-focused operation.

EZ DIY Features for Easy Installation

The MSI PRO X870-P WIFI is designed with user-friendly features that simplify the building process.

EZ DIY features include:

• EZ M.2 Clip for tool-free SSD installation
• EZ PCIe Clip for easy GPU removal
• EZ Antenna for quick Wi-Fi setup

These features reduce installation time and make the motherboard accessible for both beginners and experienced builders.

Audio and Multimedia Experience

The motherboard uses Realtek ALC897 audio chipset, delivering 7.1-channel high-definition audio.

MSI’s Audio Boost technology enhances sound quality, providing immersive audio for gaming, movies, and music. Whether you are using headphones or speakers, the audio output is clear and detailed.

Built for Productivity and AI Workloads

The MSI PRO X870-P WIFI is optimized for modern computing needs, including AI workloads and content creation.

With its high-speed memory, powerful VRM design, and advanced connectivity, it is capable of handling:

• AI model training
• Video editing and rendering
• 3D design and simulation
• Multi-tasking environments

This makes it an excellent choice for professionals who need reliable and high-performance hardware.

Conclusion

The MSI PRO X870-P WIFI stands out as a versatile and future-ready motherboard for AMD users. With support for the latest Ryzen processors, DDR5 memory, PCIe 5.0, Wi-Fi 7, and USB4, it delivers a comprehensive platform for modern computing needs.

Whether you are building a gaming PC, workstation, or AI-focused system, this motherboard provides the performance, stability, and connectivity required for demanding tasks.
