MSI MEG X870E ACE MAX Motherboard – AMD X870E, DDR5 9000+, PCIe 5.0, Wi-Fi 7, USB4, 10G LAN

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 9000+ MT/s (OC)
• Ultra Performance: 18+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
• EZ DIY: 64MB BIOS ROM, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna and EZ Conn-Design.
• Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
• Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

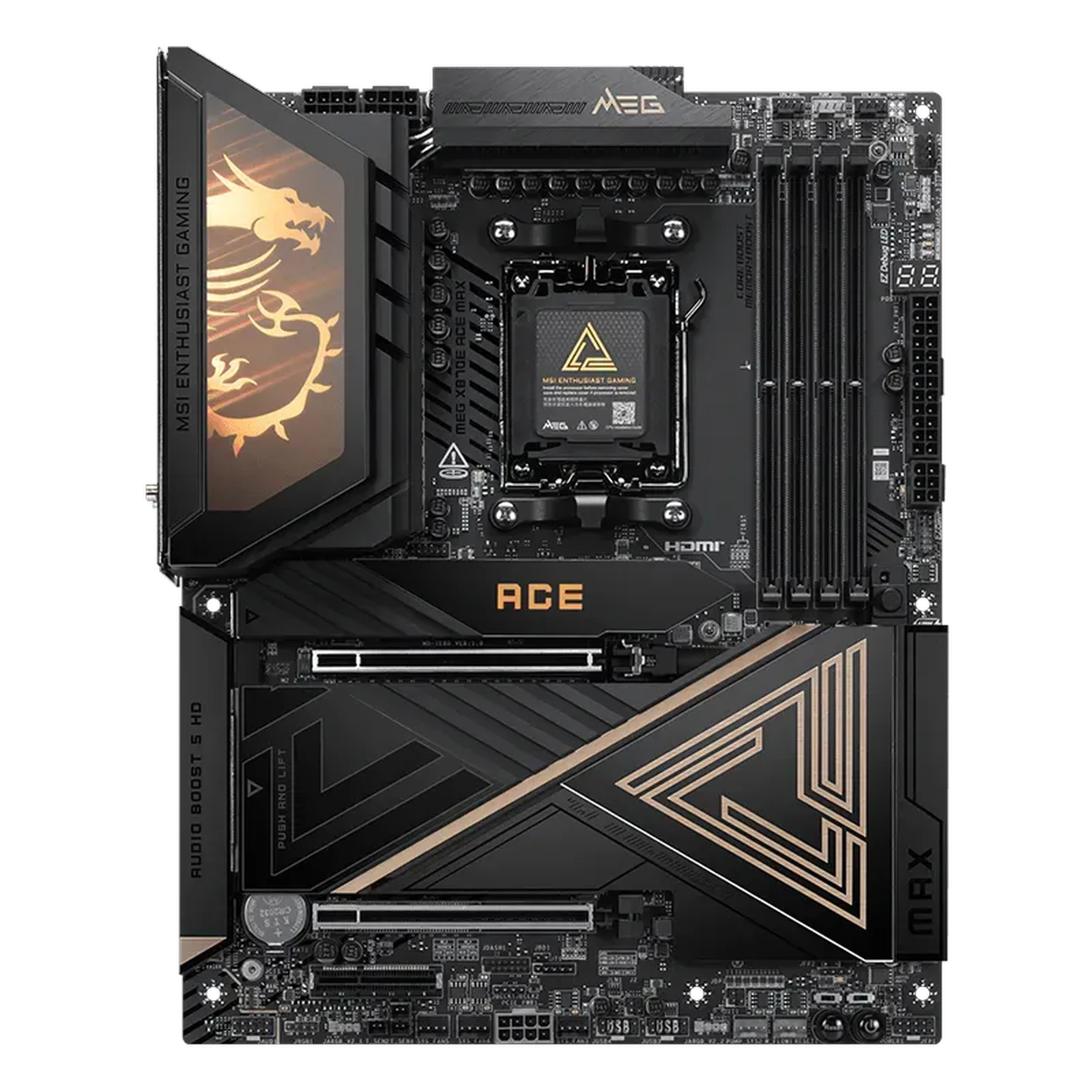

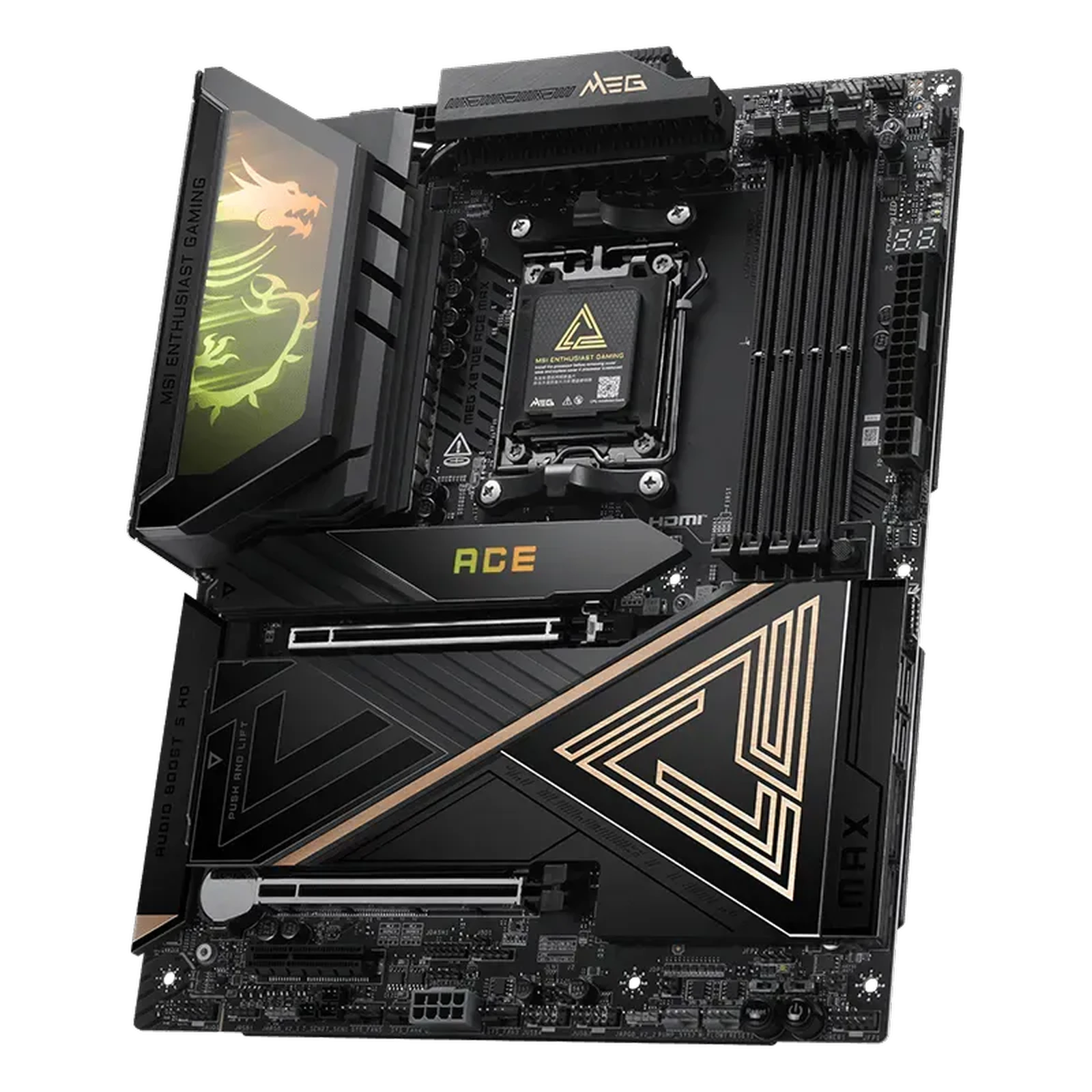

Overview of MSI MEG X870E ACE MAX

The MSI MEG X870E ACE MAX is a flagship-class ATX motherboard engineered for enthusiasts, overclockers, and professional users who demand maximum performance and future-ready technology. Built on the AMD X870E chipset and AM5 socket, it supports AMD Ryzen 9000, 8000, and 7000 series processors, delivering cutting-edge performance across gaming, AI, and workstation workloads.

As part of MSI’s MEG (MSI Enthusiast Gaming) lineup, the ACE MAX is designed to push hardware limits. Its premium black-and-gold aesthetic reflects its high-end positioning, while its advanced feature set ensures top-tier performance, stability, and expandability.

Extreme Power Design for Overclocking

At the core of the MEG X870E ACE MAX is an advanced 18+2+1 phase Duet Rail Power System powered by 110A Smart Power Stages.

This robust VRM architecture ensures stable and efficient power delivery even under extreme workloads and overclocking scenarios. Combined with dual 8-pin CPU power connectors and MSI’s Core Boost technology, the motherboard maintains consistent voltage levels, allowing high-end Ryzen processors to operate at peak performance.

A standout feature is the OC Engine, a dedicated chip that enables independent base clock (BCLK) control. This allows precise tuning without affecting other system components, unlocking higher overclocking potential while maintaining stability.

DDR5 Memory Performance up to 9000+ MT/s

The motherboard supports next-generation DDR5 memory with speeds up to 9000+ MT/s (overclocked), providing exceptional bandwidth and responsiveness.

With four DIMM slots supporting up to 256GB, users can handle demanding workloads such as AI model training, 3D rendering, and large-scale data processing. The board supports AMD EXPO memory profiles for easy overclocking and optimized performance.

MSI’s Memory Boost technology and SMT manufacturing enhance signal integrity, reduce interference, and improve latency, ensuring stable operation at extreme memory speeds.

PCIe 5.0 Expansion and Storage Capabilities

The MEG X870E ACE MAX delivers full PCIe 5.0 support, enabling next-generation GPUs and storage devices to operate at maximum bandwidth.

Expansion Slots:

• 2× PCIe 5.0 x16 slots (x16 or x8/x8 configuration)
• 1× PCIe 5.0 x4 slot

Storage Configuration:

• 5× M.2 slots (2× PCIe 5.0, 3× PCIe 4.0)
• 4× SATA 6Gb/s ports

This setup enables ultra-fast NVMe storage, faster boot times, and seamless multitasking. MSI’s optimized PCIe lane design ensures that both GPU and storage devices can operate without bandwidth limitations.

Ultra-Fast Connectivity with Wi-Fi 7 and Dual LAN

Connectivity is one of the strongest aspects of the MEG X870E ACE MAX. It features dual LAN ports, including 10G LAN and 5G LAN, providing ultra-fast wired networking for professional workloads and gaming.

In addition, Wi-Fi 7 support delivers next-generation wireless performance with faster speeds, lower latency, and improved efficiency. This ensures stable connections for streaming, gaming, and large data transfers.

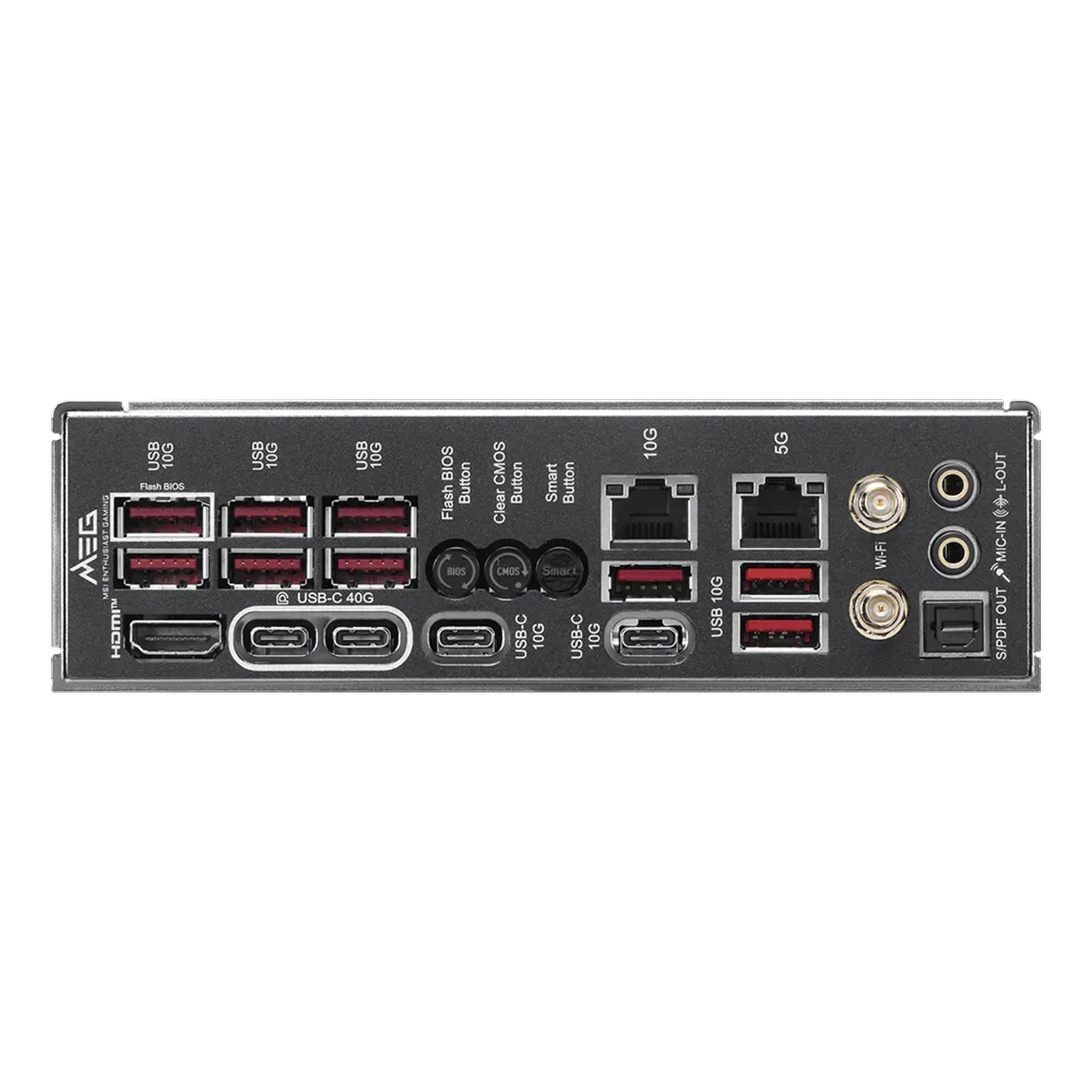

USB4 and Advanced I/O Connectivity

The motherboard includes dual USB4 Type-C ports capable of up to 40Gbps transfer speeds, offering unmatched versatility for modern peripherals.

Key I/O Features:

• Dual USB4 (40Gbps Type-C)
• Front USB Type-C with 60W Power Delivery
• Multiple USB 10Gbps and 5Gbps ports
• HDMI 2.1 and DisplayPort via USB-C

These features enable high-speed data transfer, multi-display setups, and seamless device connectivity, making the board ideal for creators and professionals.

Advanced Thermal Design with Frozr Guard

To maintain peak performance, MSI integrates its Frozr Guard thermal solution into the ACE MAX.

Cooling features include:

• Wavy fin heatsink design for improved airflow
• Direct Touch cross heat-pipe for efficient heat transfer
• Double-sided M.2 Shield Frozr
• 9W/mK thermal pads for optimal heat dissipation

This advanced cooling system ensures stable operation even during prolonged heavy workloads or overclocking sessions.

Premium Audio with Audio Boost 5 HD

The motherboard features Audio Boost 5 HD powered by the Realtek ALC4082 codec and ESS DAC, delivering studio-grade sound quality.

With support for 32-bit/384kHz playback and a dedicated headphone amplifier, users can enjoy immersive audio for gaming, music production, and multimedia applications.

EZ DIY and User-Friendly Features

MSI enhances usability with its EZ DIY features, designed to simplify installation and upgrades:

• EZ M.2 Clip II for tool-free SSD installation
• EZ PCIe Release for easy GPU removal
• Pre-installed I/O shield
• EZ Antenna for quick setup

These features make the motherboard accessible for both beginners and experienced PC builders.

AI Optimization and Smart Software

The MEG X870E ACE MAX includes AI-powered optimization features through MSI Center. The AI Engine automatically adjusts system settings based on usage scenarios, optimizing performance for gaming, productivity, or content creation.

Additional tools such as smart fan control and one-click overclocking further enhance system performance and usability.

Built for Gaming, AI, and Professional Workloads

This motherboard is designed to handle the most demanding computing tasks, including:

• High-end gaming systems
• AI model training and inference
• Video editing and 3D rendering
• Multi-tasking and workstation environments

Its combination of powerful hardware, high-speed connectivity, and advanced cooling ensures reliable performance in all scenarios.

Conclusion

The MSI MEG X870E ACE MAX is a flagship motherboard that delivers exceptional performance, advanced connectivity, and future-proof features. With DDR5 9000+, PCIe 5.0, dual LAN (10G + 5G), Wi-Fi 7, USB4, and an extreme power design, it is built for enthusiasts who demand the best.

Whether you are building a high-end gaming rig or a professional workstation, the ACE MAX provides unmatched performance and reliability.
