• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

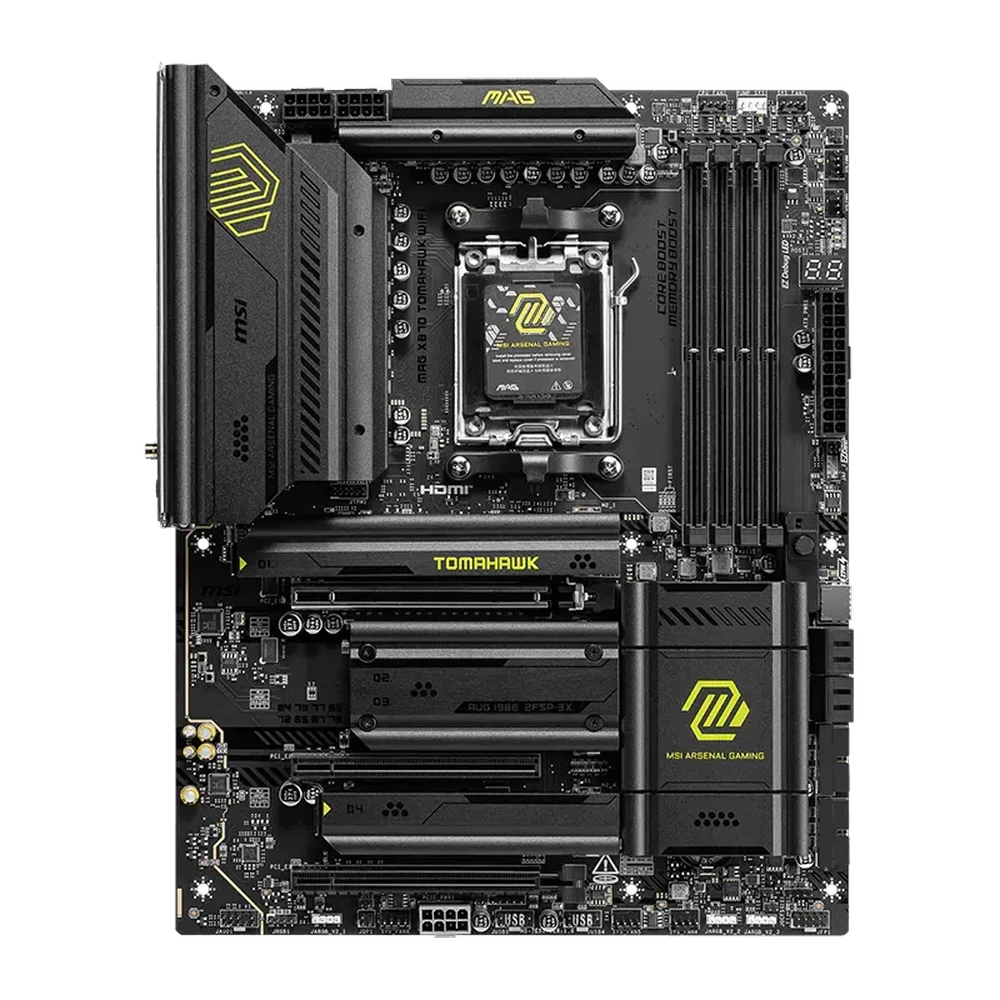

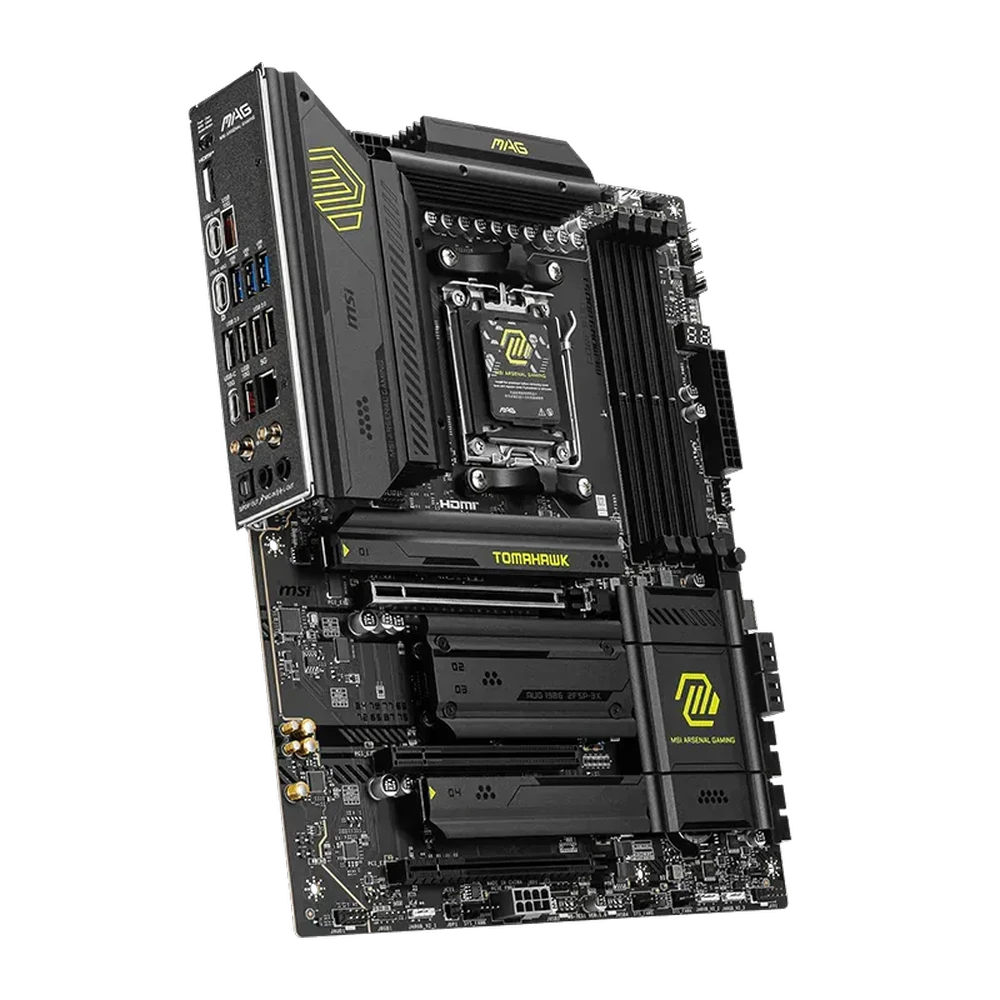

Introduction to MSI MAG X870 TOMAHAWK WIFI

The MSI MAG X870 TOMAHAWK WIFI is a premium gaming motherboard designed to meet the demands of modern PC enthusiasts. Built on the AMD X870 chipset and AM5 platform, it supports AMD Ryzen 9000, 8000, and 7000 series processors, offering cutting-edge performance for gaming, content creation, and multitasking.

Combining robust power delivery, next-generation connectivity, and advanced cooling, this motherboard is engineered to deliver consistent performance and long-term reliability.

High-Performance AM5 Platform

At its core, the motherboard features the AM5 socket, enabling compatibility with AMD’s latest CPUs. This ensures improved efficiency, higher core counts, and better overall performance.

The board is powered by a 14+2+1 Duet Rail Power System with dual 8-pin CPU connectors and high-quality components, providing stable and efficient power delivery even under heavy workloads.

This design allows users to push their systems further, whether through gaming, streaming, or overclocking.

DDR5 Memory with Extreme Speeds

The MSI MAG X870 TOMAHAWK WIFI supports the latest DDR5 memory technology, offering significant improvements in speed and efficiency over previous generations.

With support for up to 256GB DDR5 RAM and overclocking speeds reaching 8400+ MT/s, the motherboard ensures smooth multitasking and high-speed performance.

It also includes support for AMD EXPO profiles, allowing users to easily optimize memory performance with minimal effort.

PCIe 5.0 and Next-Gen Storage

For next-generation hardware, the motherboard offers full PCIe 5.0 support for graphics cards and storage devices.

The primary PCIe x16 slot delivers maximum bandwidth for modern GPUs, ensuring top-tier gaming and rendering performance.

Additionally, the board includes Lightning Gen 5 M.2 slots, enabling ultra-fast storage speeds that significantly reduce loading times and improve system responsiveness.

With multiple M.2 and SATA options, users can build flexible and high-capacity storage setups.

Advanced Cooling with FROZR Guard

Thermal performance is critical for maintaining system stability, and MSI addresses this with its FROZR Guard cooling system.

Key cooling features include:

• Extended heatsinks for efficient heat dissipation

• 7W/mK MOSFET thermal pads

• Additional choke thermal pads

• EZ M.2 Shield Frozr II for SSD cooling

These features help maintain optimal temperatures during demanding workloads, ensuring long-term stability and performance.

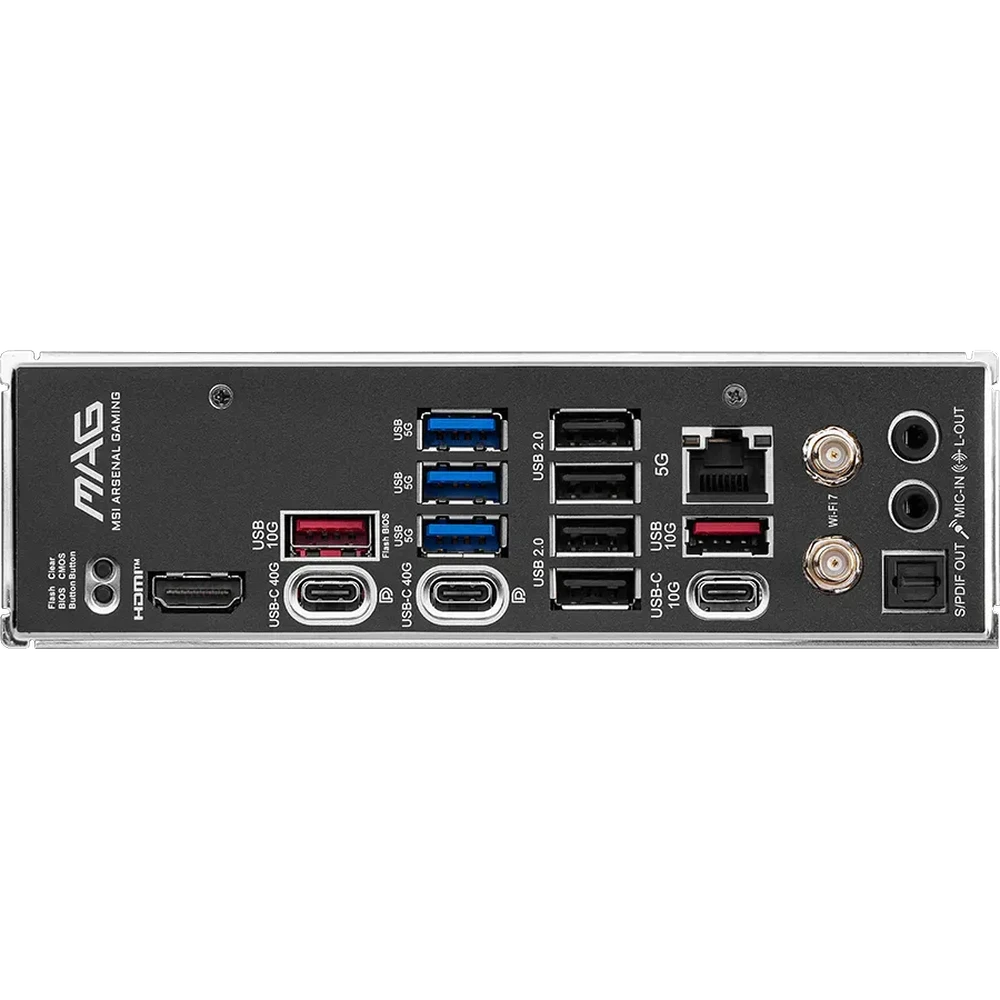

Ultra-Fast Connectivity: USB4, WiFi 7 & 5G LAN

The MSI MAG X870 TOMAHAWK WIFI stands out with its advanced connectivity options.

It features USB4 technology, delivering up to 40Gbps transfer speeds for ultra-fast data transfer and modern peripherals.

The motherboard also includes WiFi 7, supporting multi-band connectivity and speeds up to 5.8Gbps, along with Bluetooth 5.4 for seamless wireless communication.

Additionally, the integrated 5G LAN port ensures low-latency, high-speed wired networking, making it ideal for gaming and professional applications.

Immersive Audio with Audio Boost 5

The motherboard features Audio Boost 5 powered by the Realtek ALC4080 codec, delivering high-definition 7.1-channel sound.

With support for up to 32-bit/384kHz playback and optical S/PDIF output, users can enjoy immersive audio for gaming, movies, and music.

EZ DIY Features for Easy Building

MSI integrates several user-friendly features to simplify PC building and upgrades:

• EZ M.2 Clip II for tool-free SSD installation

• EZ PCIe Release for easy GPU removal

• EZ Antenna for quick wireless setup

• Flash BIOS Button for convenient updates

These features make the motherboard accessible to beginners while providing convenience for experienced builders.

Premium Build Quality and PCB Design

The MSI MAG X870 TOMAHAWK WIFI features an 8-layer PCB with 2oz thickened copper, improving signal integrity, durability, and thermal performance.

This server-grade PCB design ensures stable operation under heavy loads and enhances the longevity of the motherboard.

Future-Ready Features

Designed with future compatibility in mind, this motherboard includes support for PCIe 5.0, DDR5 memory, USB4, and WiFi 7.

These technologies ensure that users can take advantage of upcoming hardware advancements without needing immediate upgrades.

Conclusion

The MSI MAG X870 TOMAHAWK WIFI is a feature-rich motherboard that combines performance, durability, and modern connectivity.

With support for AMD Ryzen processors, DDR5 memory up to 8400+ MT/s, PCIe 5.0, USB4, and WiFi 7, it is built to handle demanding workloads and future upgrades.

Whether you are building a high-performance gaming system or a professional workstation, this motherboard offers the reliability and features needed for top-tier performance.

✅ Specifications
