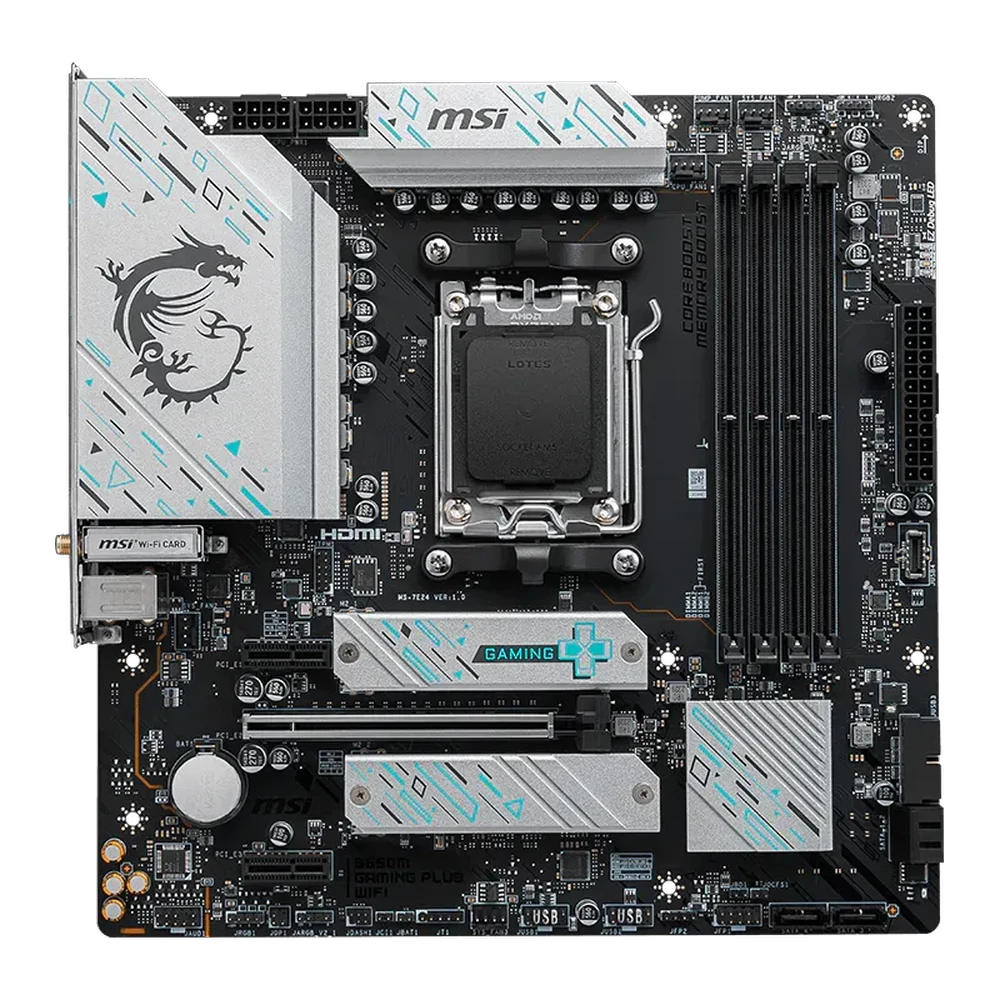

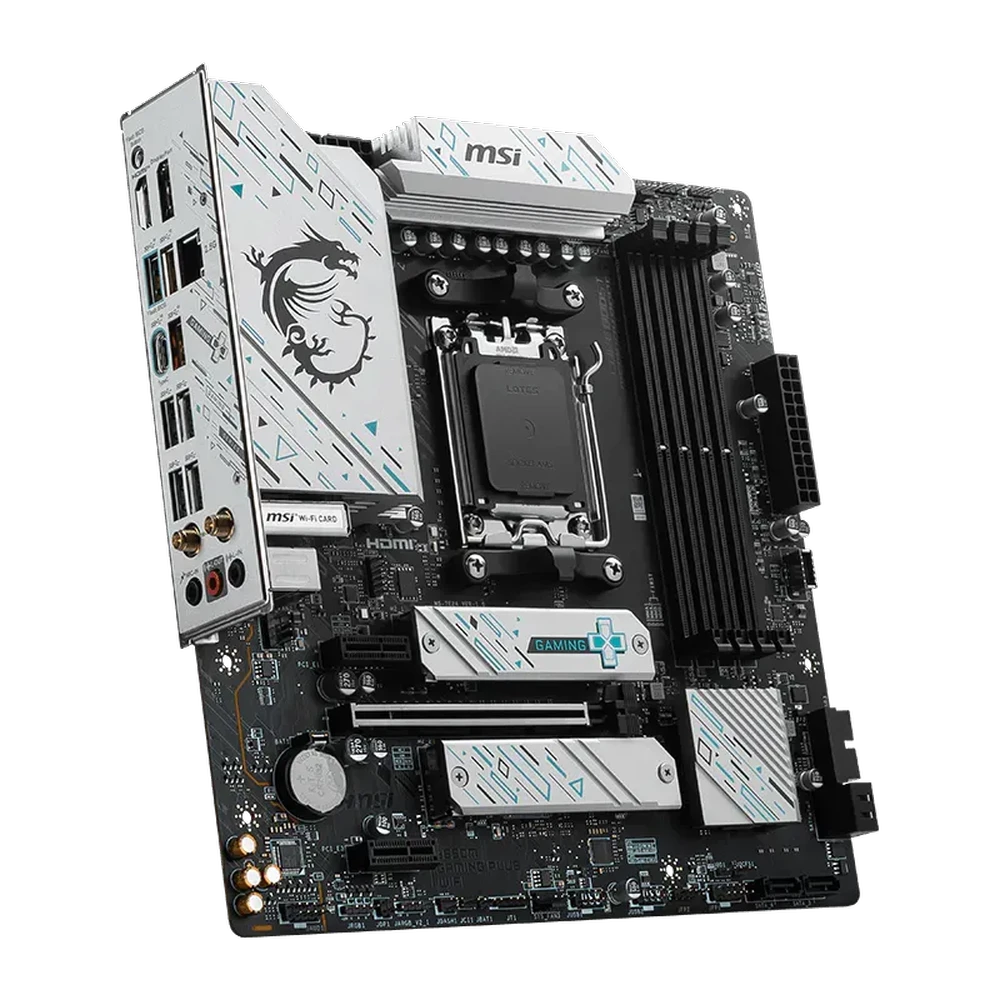

MSI B650M GAMING PLUS WIFI

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper

The MSI B650M GAMING PLUS WIFI is designed to deliver powerful performance, advanced connectivity, and long-term reliability for gamers and PC builders. Built on the AMD B650 chipset and AM5 socket, it supports AMD Ryzen 9000, 8000, and 7000 series processors, making it a future-ready solution for modern computing needs.

With a compact micro-ATX form factor, this motherboard combines high-end features such as DDR5 memory, PCIe 4.0 support, and next-generation networking into a versatile and affordable platform.

AMD AM5 Platform for Future-Proof Performance

The MSI B650M GAMING PLUS WIFI is built around AMD’s latest AM5 platform, delivering improved efficiency and performance.

Key advantages include:

• Support for multi-core Ryzen CPUs

• Enhanced platform longevity

• Optimized power delivery for stable performance

Its 10+2+1 Duet Rail Power System ensures efficient and precise power distribution, allowing CPUs to operate at peak performance even during demanding workloads.

High-Speed DDR5 Memory Support

This motherboard supports up to 256GB of DDR5 memory across four DIMM slots, offering significantly improved bandwidth and efficiency over previous generations.

Key features:

• Memory speeds up to 7200+ MHz (OC)

• Dual-channel architecture

• AMD EXPO support for easy overclocking

MSI’s Memory Boost technology ensures cleaner signals and improved stability, enabling higher performance for gaming, rendering, and multitasking.

PCIe 4.0 for Graphics and Expansion

The MSI B650M GAMING PLUS WIFI includes a PCIe 4.0 x16 slot, delivering high bandwidth for modern GPUs and expansion devices.

Highlights:

• PCIe 4.0 support for next-gen graphics cards

• Steel Armor reinforcement for durability

• Optimized slot layout for airflow

This ensures smooth gaming performance, faster rendering, and stable operation even with high-end GPUs.

Dual M.2 Storage for Ultra-Fast Speeds

Storage performance is a key strength of this motherboard. It features dual M.2 slots with PCIe 4.0 x4 bandwidth, enabling ultra-fast NVMe SSD performance.

Storage features:

• 2× PCIe 4.0 M.2 slots

• 4× SATA 6Gb/s ports

• RAID support (0/1/10 for SATA, 0/1 for NVMe)

These capabilities ensure fast boot times, quick data transfers, and smooth application performance.

Advanced Networking: WiFi 6E + 2.5G LAN

The MSI B650M GAMING PLUS WIFI offers cutting-edge networking technologies for both wired and wireless connectivity.

Key networking features:

• WiFi 6E with 6GHz band support

• Bluetooth 5.3

• 2.5Gbps LAN for high-speed wired connections

This ensures low latency, high bandwidth, and reliable connectivity for gaming, streaming, and professional workloads.

Premium Thermal Design for Stability

To maintain consistent performance, MSI has integrated advanced cooling solutions into this motherboard.

Cooling highlights:

• Extended heatsink design

• M.2 Shield Frozr for SSD cooling

• Optimized PCB layout for heat dissipation

These features help prevent thermal throttling and ensure stable performance under heavy workloads.

Audio Boost for Immersive Sound

The motherboard is equipped with Audio Boost technology, powered by the Realtek ALC897 codec.

Audio features:

• 7.1-channel HD audio

• Isolated circuitry for reduced noise

• Enhanced sound clarity for gaming and media

This delivers a high-quality audio experience for gaming, streaming, and entertainment.

Comprehensive Connectivity Options

The MSI B650M GAMING PLUS WIFI offers a wide range of connectivity options for modern systems.

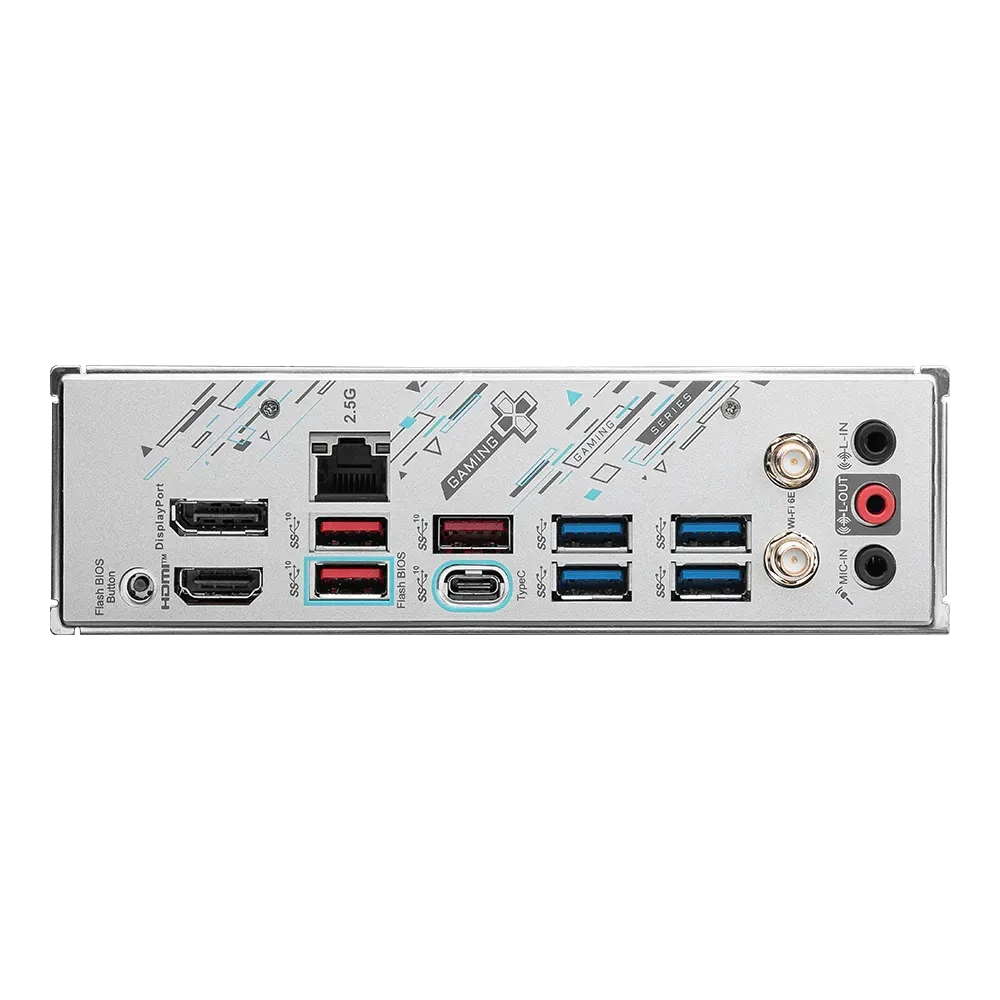

Rear I/O includes:

• HDMI 2.1 and DisplayPort 1.4 (4K 60Hz)

• USB 10Gbps Type-A and Type-C ports

• Flash BIOS button

• Audio ports and LAN

Internal headers support additional USB ports, RGB lighting, and cooling devices, allowing users to fully customize their systems.

Durable Build Quality and PCB Design

MSI ensures long-term reliability with premium materials and engineering.

Durability features:

• 6-layer PCB with 2oz copper for better heat dissipation

• Reinforced PCIe slots

• High-quality components for stability

These features enhance durability and ensure consistent performance over time.

RGB Customization with Mystic Light

The motherboard supports MSI Mystic Light, allowing users to customize lighting effects.

Features include:

• ARGB Gen2 and RGB headers

• Synchronization with compatible devices

• Multiple lighting effects

This enables users to create visually stunning builds that match their personal style.

Optimized for Gaming and Productivity

The MSI B650M GAMING PLUS WIFI is designed for a wide range of applications:

• Gaming (AAA and esports titles)

• Content creation and editing

• Streaming and multitasking

• Professional workloads

Its powerful feature set ensures smooth and reliable performance across all use cases.

Compact Micro-ATX Form Factor

With its micro-ATX size (243.84mm × 243.84mm), the motherboard is ideal for compact builds while still offering excellent expandability.

Conclusion

The MSI B650M GAMING PLUS WIFI is a well-balanced motherboard that combines performance, connectivity, and durability. With support for AMD Ryzen processors, DDR5 memory, PCIe 4.0, and advanced networking, it provides excellent value for gamers and professionals alike.

Whether you’re building a gaming PC or a workstation, this motherboard offers a reliable and future-proof platform.

✅ Specifications
