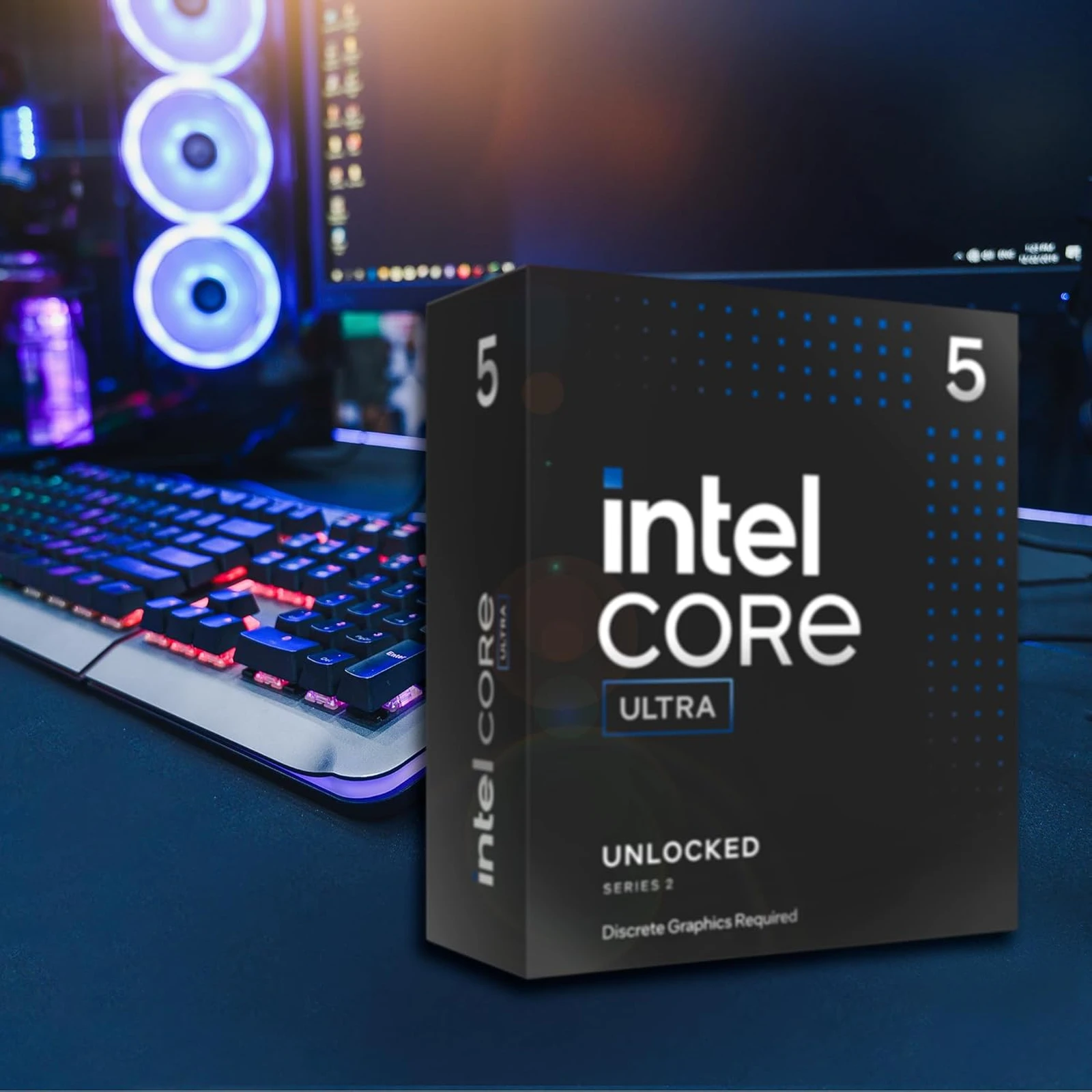

Intel Core Ultra 5 Processor 230F – 10 Cores, Up to 5.0GHz, Arrow Lake Desktop CPU

Introduction to Intel Core Ultra 5 230F

The Intel Core Ultra 5 Processor 230F is part of Intel’s latest Arrow Lake-S desktop processor lineup, designed to deliver strong performance, high efficiency, and modern AI capabilities for mainstream users. Positioned as a cost-effective yet capable CPU, the 230F is ideal for gaming systems, productivity PCs, and entry-level workstations.

Built using a cutting-edge 3nm-class manufacturing process and a hybrid architecture, this processor combines performance and efficiency cores to deliver responsive computing across a wide range of workloads. With a maximum turbo frequency of up to 5.0 GHz and support for next-generation technologies like DDR5 and PCIe 5.0, the 230F ensures a future-ready platform for modern desktop builds.

Hybrid Architecture for Efficient Performance

The Intel Core Ultra 5 230F features a hybrid core configuration consisting of:

• 6 Performance cores (P-cores)
• 4 Efficient cores (E-cores)

This results in a total of 10 cores and 10 threads, delivering balanced performance for both single-threaded and multi-threaded workloads.

Performance cores are optimized for high-demand applications such as gaming and content creation, while efficient cores handle background processes and multitasking with minimal power consumption. Intel Thread Director technology dynamically manages workload distribution, ensuring optimal efficiency and responsiveness.

This architecture allows users to enjoy smooth multitasking, faster application performance, and better system efficiency compared to traditional CPU designs.

Clock Speeds and Processing Power

The Intel Core Ultra 5 230F offers competitive clock speeds that ensure reliable performance across various tasks:

• Performance-core base frequency: 3.4 GHz
• Efficient-core base frequency: 2.9 GHz
• Max turbo frequency: up to 5.0 GHz
• Efficient-core turbo frequency: up to 4.4 GHz

These clock speeds enable fast application launches, responsive system behavior, and smooth performance in gaming and productivity workloads.

Whether you’re browsing, editing content, or running demanding applications, the processor maintains consistent performance while staying energy efficient.

Arrow Lake Architecture and Advanced Process Node

The processor is based on Intel’s Arrow Lake-S architecture, a significant advancement over previous generations. It utilizes a tile-based (chiplet) design manufactured using TSMC’s N3B process node, offering improved performance per watt and better thermal characteristics.

This architecture separates CPU, I/O, and AI components into dedicated tiles, allowing Intel to optimize each function independently. As a result, users benefit from:

• Improved efficiency
• Lower heat output
• Better scalability for future technologies

No Integrated Graphics – Designed for Dedicated GPUs

The “F” suffix indicates that the Intel Core Ultra 5 230F does not include integrated graphics.

Key implications:

• Requires a dedicated graphics card
• Lower cost compared to non-F models
• Ideal for gaming systems with discrete GPUs

Since there is no integrated GPU, features like Quick Sync Video and display outputs are not available.

This makes the processor best suited for users who already plan to use a dedicated GPU.

AI Acceleration with Intel AI Boost

The Intel Core Ultra 5 230F introduces integrated AI capabilities through Intel AI Boost:

• NPU performance: up to 13 TOPS
• Total AI performance: up to 19 TOPS

This enables faster AI workloads such as:

• AI-assisted content creation
• Real-time image and video enhancements
• Machine learning inference
• Background noise removal and video effects

The processor supports major AI frameworks including OpenVINO™, Windows ML, DirectML, ONNX Runtime, and WebNN.

These features make the CPU well-suited for modern AI-enhanced applications.

Memory and Platform Support

The Intel Core Ultra 5 230F supports the latest memory and platform technologies:

• DDR5 memory up to 6400 MT/s
• Dual-channel memory configuration
• Maximum memory capacity up to 256GB

High-speed DDR5 memory ensures improved bandwidth and system responsiveness, especially in multitasking and content creation scenarios.

The processor also supports:

• PCIe 5.0 and PCIe 4.0
• Up to 24 PCIe lanes

This enables faster data transfer and compatibility with next-generation GPUs and SSDs.

Power Efficiency and Thermal Design

One of the standout features of the Intel Core Ultra 5 230F is its power efficiency:

• Processor Base Power: 65W
• Maximum Turbo Power: 121W

This makes it suitable for:

• Energy-efficient systems
• Compact builds
• Quiet PC setups

Despite its moderate power consumption, the processor delivers strong performance, making it an excellent choice for balanced systems.

Connectivity and Expansion Capabilities

The processor includes support for modern connectivity standards:

• PCIe 5.0 and PCIe 4.0
• Thunderbolt 4 support
• DMI 4.0 interface

These features ensure high-speed connectivity for storage devices, graphics cards, and external peripherals.

Additionally, compatibility with Intel 800-series chipsets (such as Z890 and H810) allows users to build flexible and future-ready systems.

Security and Reliability Features

Intel integrates multiple advanced security technologies into the processor:

• Intel Threat Detection Technology
• Intel AES-NI encryption
• Intel Boot Guard
• Intel Trusted Execution Technology
• Virtualization support (VT-x, VT-d)

These features help protect sensitive data and ensure system stability in both consumer and professional environments.

Ideal Use Cases

The Intel Core Ultra 5 230F is well-suited for a variety of applications:

Gaming

Provides strong performance when paired with a dedicated GPU, delivering smooth frame rates and responsiveness.

Productivity

Handles multitasking, office applications, and everyday computing efficiently.

Content Creation

Supports light to moderate workloads such as video editing and photo processing.

AI Applications

Built-in NPU accelerates modern AI-powered software and workflows.

Budget Builds

Offers excellent value for cost-conscious users building new PCs.

Conclusion

The Intel Core Ultra 5 Processor 230F is a powerful and efficient mid-range desktop CPU that brings next-generation features to mainstream users. With its hybrid architecture, AI acceleration, and support for modern technologies, it offers a well-balanced solution for gaming, productivity, and everyday computing.

Although it lacks integrated graphics, its performance and efficiency make it an excellent choice for systems with dedicated GPUs. For users seeking a reliable and future-ready processor at a competitive price point, the 230F is a strong contender in the Arrow Lake lineup.
