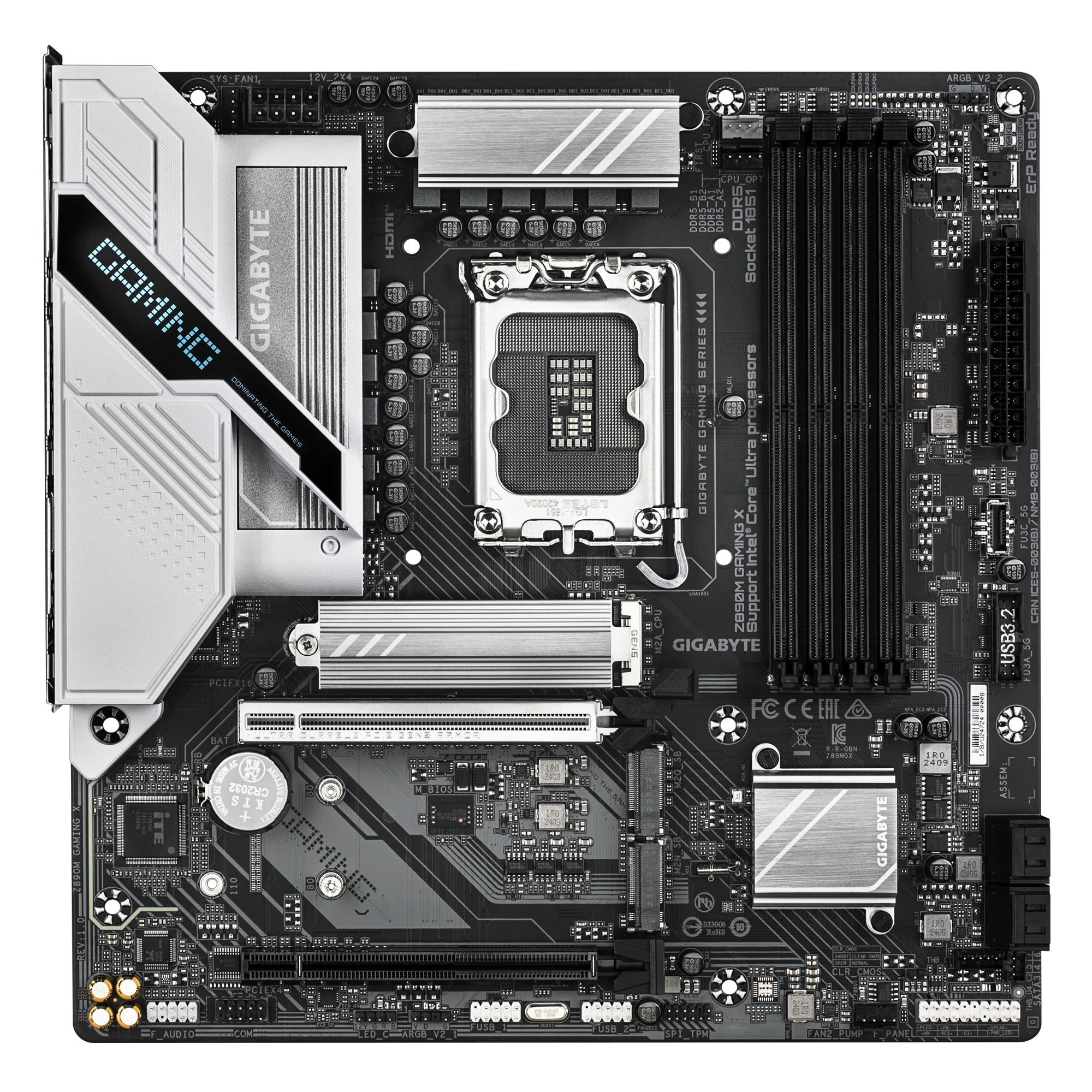

GIGABYTE Z890M-GAMING-X DDR5 Micro-ATX Motherboard

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital 8+1+2 phases VRM solution
• D5 Bionic Corsa : for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• PCIe EZ-Latch : PCIe slots with Quick Release & Screwless Design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN
• Extended Connectivity : HDMI, DisplayPort

The GIGABYTE Z890M-GAMING-X motherboard is designed for gamers and PC enthusiasts who want powerful performance in a compact Micro-ATX form factor. Built on Intel’s latest Z890 chipset, this motherboard supports the newest Intel Core Ultra desktop processors and provides modern features such as PCIe 5.0 expansion, DDR5 memory, and high-speed NVMe storage.

The Z890M-GAMING-X combines advanced connectivity with reliable hardware engineering to create a balanced motherboard suitable for gaming, productivity, and content creation systems. Its compact design allows it to fit in smaller cases while still delivering performance comparable to larger ATX boards.

With high-speed memory support, advanced expansion capabilities, and flexible storage options, this motherboard offers an excellent platform for next-generation PC builds.

Intel Z890 Chipset and LGA1851 Processor Support

At the core of the Z890M-GAMING-X is the Intel Z890 Express chipset, paired with the LGA1851 CPU socket. This configuration supports Intel’s latest Core Ultra desktop processors, providing improved performance, AI capabilities, and next-generation system architecture.

The LGA1851 platform delivers several improvements over previous generations, including enhanced power delivery, better memory compatibility, and expanded PCIe connectivity. This allows users to build powerful gaming systems or workstation PCs capable of handling demanding applications.

The motherboard’s chipset provides the connectivity and expansion options needed for modern PCs, including high-speed storage interfaces, USB connectivity, and networking features.

Ultra-Fast DDR5 Memory Performance

The Z890M-GAMING-X supports DDR5 memory technology, offering significantly higher bandwidth and improved power efficiency compared to previous DDR4 memory modules.

Key memory specifications include:

• 4 × DDR5 DIMM slots

• Maximum capacity of 256GB system memory

• Memory speeds up to DDR5-9066 (OC)

• Dual-channel memory architecture

• Intel XMP support for easy overclocking

• Support for ECC and non-ECC memory modules (non-ECC mode operation)

High-frequency DDR5 memory allows faster data transfer between the CPU and system memory, improving performance in gaming, rendering, and multitasking workloads.

This motherboard is designed with optimized memory routing to ensure signal stability, enabling users to take full advantage of high-speed DDR5 kits.

PCIe 5.0 Expansion for Next-Generation GPUs

One of the most important features of modern motherboards is PCIe expansion support. The Z890M-GAMING-X includes a PCIe 5.0 x16 slot connected directly to the CPU.

PCIe 5.0 provides twice the bandwidth of PCIe 4.0, ensuring compatibility with next-generation graphics cards and high-performance expansion devices.

Expansion slots include:

• 1 × PCIe 5.0 x16 slot (CPU connected)

• 1 × PCIe 4.0 x16 slot (x4 mode via chipset)

The reinforced PCIe slot helps support heavy graphics cards and provides increased durability for long-term usage.

This configuration makes the motherboard ideal for gaming PCs equipped with modern GPUs.

High-Speed Storage with PCIe 5.0 and PCIe 4.0 M.2

Storage speed plays a major role in system performance, especially for gaming and content creation workloads.

The Z890M-GAMING-X provides three M.2 connectors that support ultra-fast NVMe SSDs.

Storage configuration includes:

• 1 × PCIe 5.0 x4 M.2 slot (CPU connected)

• 2 × PCIe 4.0 x4 M.2 slots

• 4 × SATA 6Gb/s connectors

These storage options allow users to build extremely fast storage systems capable of delivering high read and write speeds.

The motherboard also supports RAID configurations including:

• RAID 0

• RAID 1

• RAID 5

• RAID 10

These RAID options allow users to configure storage for maximum performance or enhanced data redundancy.

Integrated Graphics and Multi-Display Support

The motherboard includes integrated display outputs for processors with built-in graphics.

Available display outputs include:

• 1 × HDMI 2.1

• 2 × DisplayPort 2.1

These outputs support resolutions up to 4K at 60Hz and allow systems to run without a discrete GPU if the processor includes integrated graphics.

The motherboard can support up to three displays simultaneously, making it suitable for multi-monitor productivity setups.

Fast Networking with 2.5Gb Ethernet

Reliable network connectivity is essential for online gaming, streaming, and file transfers.

The Z890M-GAMING-X includes a Realtek 2.5Gb Ethernet controller, delivering significantly faster network speeds than traditional Gigabit LAN.

Benefits of 2.5Gb networking include:

• Lower latency for online gaming

• Faster downloads and uploads

• Improved performance for NAS and local networks

This networking capability helps ensure stable and fast internet connectivity for modern gaming systems.

High-Definition Audio Experience

For gamers and multimedia users, audio quality is an important aspect of system design.

The Z890M-GAMING-X features a Realtek high-definition audio codec supporting multiple audio channel configurations including:

• 2-channel audio

• 4-channel audio

• 5.1 surround sound

• 7.1 surround sound

This allows the motherboard to deliver immersive audio experiences for gaming, movies, and music playback.

Flexible USB and Peripheral Connectivity

Modern PCs require multiple USB ports for connecting peripherals such as gaming devices, external drives, and VR equipment.

The Z890M-GAMING-X provides a wide selection of USB connectivity options including:

• USB 3.2 Gen1 Type-C header

• USB 3.2 Gen1 Type-A ports

• USB 2.0 ports

• Internal USB headers for front-panel connectivity

These ports provide excellent flexibility for connecting both modern and legacy devices.

Smart Cooling and System Stability

Thermal management is essential for maintaining system stability and long-term hardware reliability.

The motherboard includes several fan headers and monitoring features, allowing users to control cooling systems efficiently.

Cooling features include:

• CPU fan header

• System fan headers

• Water-cooling pump header

• Temperature monitoring sensors

These cooling options allow builders to create efficient airflow configurations and maintain optimal system temperatures.

Micro-ATX Design for Compact Gaming Systems

The Micro-ATX form factor (24.4 × 24.4 cm) makes the Z890M-GAMING-X ideal for compact gaming PCs while still offering powerful features.

Advantages of the Micro-ATX format include:

• Compatibility with smaller PC cases

• Reduced system footprint

• Lower build cost compared to large ATX systems

• Excellent performance-to-size ratio

Despite its smaller size, the motherboard still provides powerful expansion options and advanced connectivity.

Operating System Support

The motherboard supports modern operating systems including:

• Windows 11 64-bit

• Windows 10 64-bit

These operating systems provide full compatibility with the Z890 platform and modern hardware features.

Conclusion

The GIGABYTE Z890M-GAMING-X is a versatile and powerful motherboard designed for modern gaming and productivity systems.

With support for Intel Core Ultra processors, ultra-fast DDR5 memory, PCIe 5.0 expansion, and advanced storage options, it provides the performance required for next-generation PC builds.

Its compact Micro-ATX design, robust connectivity, and reliable hardware architecture make it an excellent choice for gamers, PC builders, and technology enthusiasts looking for a high-performance yet space-efficient motherboard.
