GIGABYTE Z890 AORUS MASTER: Premium Intel Z890 ATX Motherboard for Core Ultra Series 2, Wi-Fi 7, PCIe 5.0 & AI Overclocking
$626.00
GIGABYTE Z890 AORUS MASTER is a flagship Intel Z890 ATX motherboard built for Intel Core Ultra Series 2 processors, featuring AI-powered overclocking, PCIe 5.0, Wi‑Fi 7, 10GbE, dual Thunderbolt 4, and comprehensive cooling for high‑end gaming and content creation.
GIGABYTE Z890 AORUS MASTER
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 18+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- DDR Wind Blade : Enhanced Active Cooling for Memory Modules
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 5*M.2 slots, including 2* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking : 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : Dual THUNDERBOLT™ 4 Type-C with DP-Alt
- DTS : X® Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
The GIGABYTE Z890 AORUS MASTER stands as a top‑tier ATX motherboard engineered to unlock the full potential of Intel Core Ultra processors (Series 2). Designed for enthusiasts, gamers, and content creators, it combines robust power delivery, AI‑enhanced performance tuning, ultra‑fast connectivity, heavy‑duty cooling, and user‑friendly DIY features. Whether you’re building a high‑end gaming rig, a streaming workstation, or an overclocking platform, this motherboard delivers stability, speed, and versatility in a premium durable package.
Powerful Platform for Intel Core Ultra Series 2
At its core, the Z890 AORUS MASTER is built around the Intel Z890 chipset and fully supports Intel Core Ultra processors (Series 2). This platform brings improved multi‑thread performance, better integrated graphics, and enhanced AI computing capabilities. The motherboard uses a reinforced power delivery layout and high‑quality connectors to maintain stability even under extreme overclocking and heavy workloads.
The board includes a UD Power Connector system: a 24‑pin ATX with UD Solid Pin and 8+8 pin CPU power connectors with UD Solid Pin. These reinforced connectors reduce resistance, improve current flow, and enhance long‑term durability, supporting sustained high power draw for overclocked CPUs.
Industry‑Leading 18+1+2 Twin Digital VRM Design
Stable and clean power is critical for performance and overclocking. The Z890 AORUS MASTER uses a digital twin 18+1+2 phases VRM solution with 110A Smart Power Stages in a 9+9 parallel VCORE design. This setup ensures precise power distribution to every CPU core, supporting extreme overclocking while keeping voltage regulation steady.
- 18 VCORE phases (110A SPS) for raw CPU power
- 1 VCCGT phase (40A DrMOS) for integrated graphics
- 2 VCCSA phases (80A SPS) for PCIe and system agent
The motherboard uses an 8‑layer low‑loss PCB with 2X copper, premium chokes, and capacitors. This layered design improves signal integrity, lowers operating temperatures, and boosts overall efficiency, making the board ideal for 24/7 high‑load usage.
AI‑Powered Performance & Memory Tuning
The Z890 AORUS MASTER leverages multiple AI technologies to push performance automatically without complex manual tuning.
AORUS AI SNATCH is an AI‑driven auto‑overclocking tool that optimizes CPU and DDR5 frequencies with one click. It analyzes hardware characteristics, applies safe and efficient overclocking profiles, and delivers measurable gains: up to 5% higher CPU multi‑core performance and up to 7% faster memory throughput. AI Perfdrive provides custom BIOS presets tailored to your hardware, simplifying setup for all users.

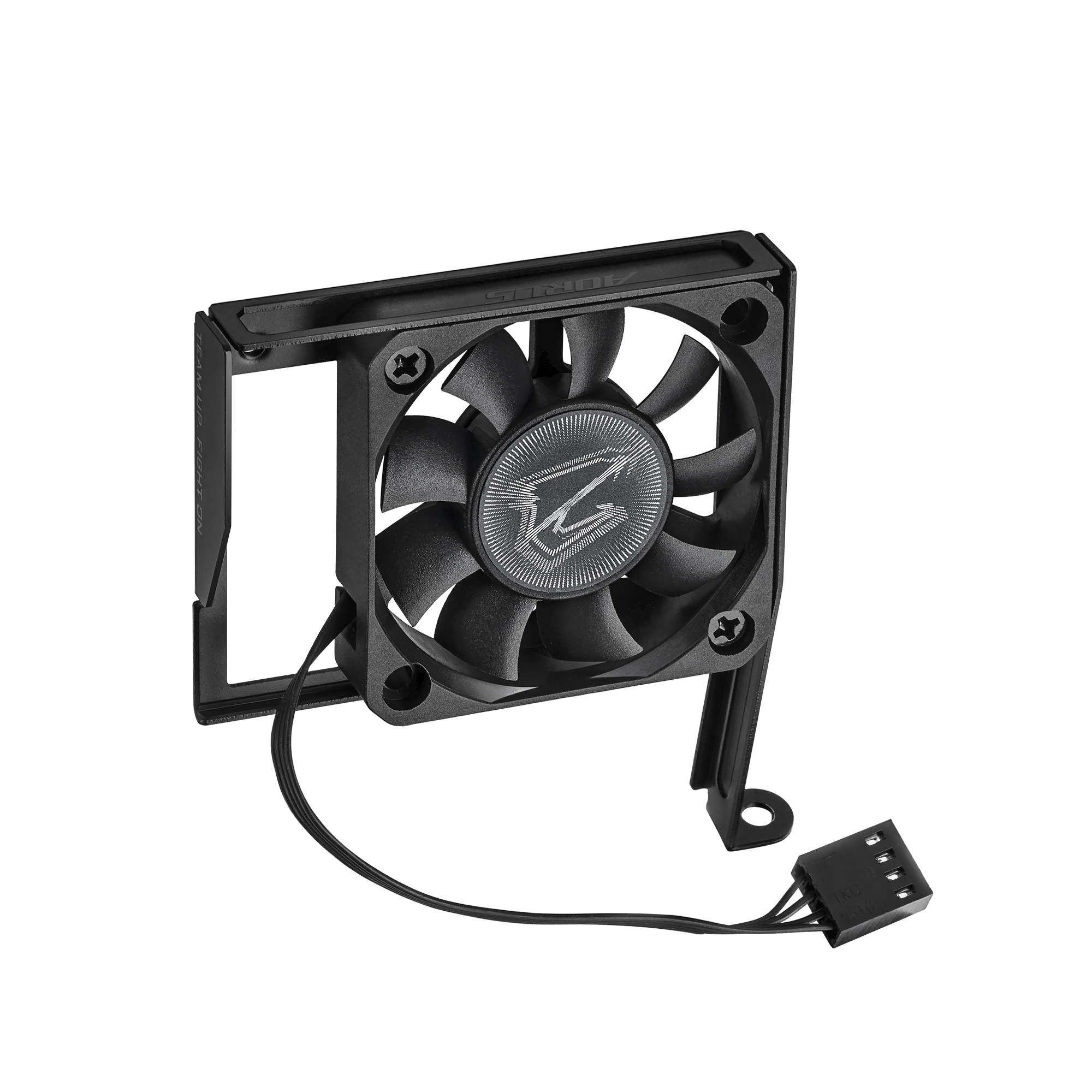

For memory, the board supports 4×DDR5 dual‑channel slots with XMP 3.0 and D5 Bionic Corsa technology. This AI memory enhancement optimizes timings, frequencies, and voltages automatically, delivering Infinite Memory Performance. The DDR Wind Blade active memory cooler reduces temps by up to 10°C, improving stability for high‑speed DDR5 overclocking.
HyperTune BIOS uses AI to optimize Memory Reference Code (MRC) parameters, adapt signal strength, and boost memory compatibility and speed. The system achieves tuning accuracy above 95%, ensuring strong performance across different DDR5 modules.
Advanced Thermal Design for Sustained Performance
Heavy workloads and overclocking generate significant heat. The Z890 AORUS MASTER features a full‑coverage thermal system to keep temperatures in check.
VRM Thermal Armor Advanced uses a large heatsink with superior heatpipes and 7 W/mK thermal pads. It offers 10× larger cooling surface than standard designs, keeping power stages cool even at full load. M.2 Thermal Guard XL and Ext. provide extended cooling for up to four M.2 drives, improving heat dissipation by up to 9×. The RL‑ILM CPU socket design reduces IHS bending and lowers temps by up to 4°C, improving thermal contact between CPU and cooler.
Smart Fan 6 supports PWM/DC fans and water pumps with 24W per header and fan stop for silent low‑load operation. Users can create custom fan curves with slope or stair modes, seven adjustable points, and profile saving. The system maintains a balance of low noise and strong cooling.
Ultra‑Fast Storage & Expansion
Storage speed is no longer a bottleneck on the Z890 AORUS MASTER, which offers five M.2 slots for massive, fast storage expansion.
- 2× PCIe 5.0 x4 M.2 UD Slots
- 3× PCIe 4.0 x4 M.2 Slots
PCIe 5.0 delivers blistering read/write speeds for large games, 4K/8K video editing, and fast file transfers. The EZ‑Latch Plus and EZ‑Latch Click systems enable screwless installation and removal of M.2 SSDs and heatsinks, speeding up builds and upgrades.
Four SATA 6Gb/s ports add legacy storage support. The PCIe layout includes:
- 1× PCIe 5.0 x16 (PCIe UD Slot X, 10X strength)
- 1× PCIe 4.0 x4
- 1× PCIe 4.0 x1
Ultra Durable PCIe Armor reinforces slots for heavy graphics cards, preventing damage and ensuring long‑term reliability.
Next‑Level Connectivity: Wi‑Fi 7, 10GbE, Thunderbolt 4
The Z890 AORUS MASTER leads in wired and wireless connectivity for low latency and high bandwidth.

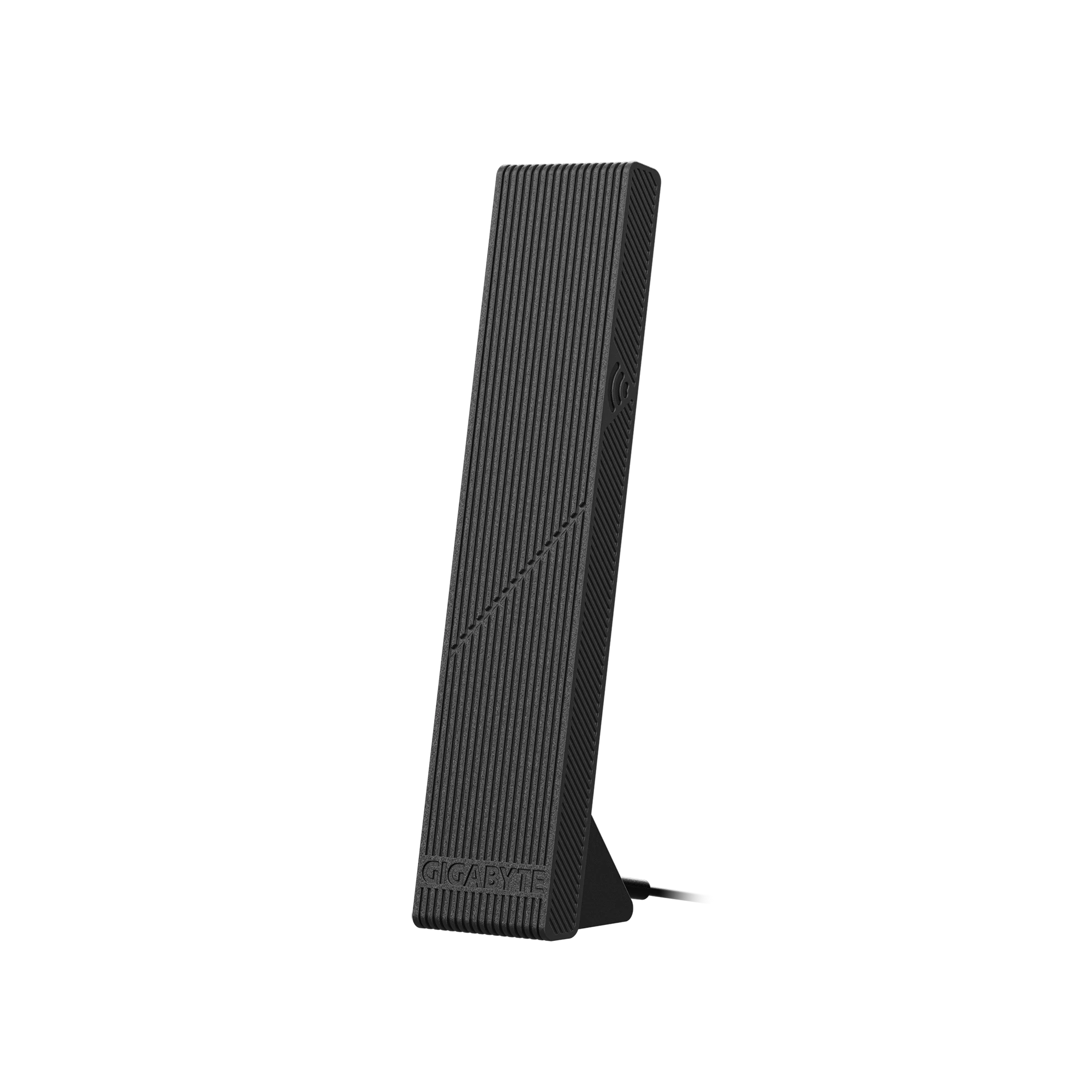

It comes with Wi‑Fi 7 with directional ultra‑high gain antennas (up to 5dBi directional, 4dBi omnidirectional). Wi‑Fi 7 supports 320/160MHz channels, 4K‑QAM, and Multi‑Link Operation (MLO), delivering higher throughput, lower latency, and better stability for online gaming, VR, and 8K streaming.
A 10GbE LAN port provides ultra‑fast wired networking for large file transfers, local server access, and competitive online play. Dual Thunderbolt 4 (USB4) Type‑C ports offer 40Gb/s bandwidth, support DP Alt mode, and can daisy‑chain up to 10 devices including 4K/8K displays and high‑speed docks.
Rear I/O includes multiple USB ports:
- 6× USB 3.2 Gen 2
- 4× USB 3.2 Gen 1
- 2× USB 2.0
- 1× front USB‑C 20Gb/s
A Sensor Panel Link (HDMI) allows easy internal monitoring panel setup.
Studio‑Grade Audio & Immersive Sound
Audio quality matches the board’s performance level. The Z890 AORUS MASTER uses Realtek ALC1220 plus an ESS SABRE Hi‑Fi 9118 DAC for high‑resolution playback. Features include:
- 125dB SNR Hyperstream Dynamic Range
- Support for 32‑bit/192kHz PCM
- Ultra‑low THD+N (−112dB)
- Audiophile‑grade capacitors (WIMA and premium audio caps)
- DTS:X Ultra for immersive 3D surround sound
This setup provides crisp, detailed sound for gaming, music production, and movie watching.
DIY Friendly & Easy Maintenance
GIGABYTE designed the Z890 AORUS MASTER to simplify building and upgrading.
- EZ‑Latch Plus: screwless PCIe and M.2 release
- EZ‑Latch Click: screwless M.2 heatsink mounting
- WIFI EZ‑Plug: quick antenna installation
- Q‑Flash Plus: update BIOS without CPU, RAM, or GPU
- EZ Debug Zone: debug LEDs, power, reset, and safe‑mode buttons
- Clear CMOS and Direct‑To‑BIOS quick access
These features reduce build time, lower the chance of damage, and make troubleshooting faster for beginners and veterans alike.
Software & BIOS Features
The motherboard includes intuitive software and a modern BIOS for full control.
- AORUS AI SNATCH: one‑click AI overclocking
- AI Perfdrive: custom BIOS profiles
- RGB FUSION: addressable RGB lighting control
- Smart Fan 6: advanced fan tuning
- Q‑Flash Auto Scan: automatic BIOS file detection
- Friendly UI: multi‑theme, streamlined fan control
The Power Monitor in HWiNFO provides real‑time VRM power monitoring, helping enthusiasts track system health.
Conclusion
The GIGABYTE Z890 AORUS MASTER is a complete flagship motherboard that excels in power, performance, cooling, connectivity, and usability. Built for Intel Core Ultra Series 2, it combines AI overclocking, DDR5 enhancement, PCIe 5.0, Wi‑Fi 7, 10GbE, and dual Thunderbolt 4. With heavy‑duty cooling, reinforced slots, screwless DIY features, and studio audio, it is the ideal foundation for extreme gaming, content creation, and high‑end desktops. If you demand the best stability, speed, and customization, the Z890 AORUS MASTER delivers without compromise.
Specifications Table
| Category | Details |
|---|---|
| Model | GIGABYTE Z890 AORUS MASTER |
| Form Factor | ATX |
| Chipset | Intel Z890 |
| CPU Support | Intel Core Ultra processors (Series 2) |
| Power Phase | Digital Twin 18+1+2 phases; 110A Smart Power Stage |
| Memory | 4×DDR5 DIMM, Dual Channel, XMP 3.0, D5 Bionic Corsa |
| M.2 Slots | 5×M.2: 2×PCIe 5.0 x4, 3×PCIe 4.0 x4 |
| PCIe Slots | 1×PCIe 5.0 x16, 1×PCIe 4.0 x4, 1×PCIe 4.0 x1 |
| SATA | 4×SATA 6Gb/s |
| Networking | 10GbE LAN, Wi‑Fi 7 with high‑gain antenna |
| USB Ports | 6×USB3.2 Gen2, 4×USB3.2 Gen1, 2×USB2.0, 1×Front USB‑C 20Gb/s |
| Video | Sensor Panel Link (HDMI) |
| Thunderbolt | Dual Thunderbolt 4 Type‑C with DP Alt |
| Audio | ALC1220, ESS SABRE ES9118 DAC, DTS:X Ultra |
| Cooling | VRM Thermal Armor Advanced, M.2 Thermal Guard XL, DDR Wind Blade, Smart Fan 6 |
| DIY Features | EZ‑Latch Plus/Click, WIFI EZ‑Plug, Q‑Flash Plus, EZ Debug Zone |
| RGB | 1×RGB Header, 4×ARGB Headers |
| Special Tech | AORUS AI SNATCH, AI Perfdrive, HyperTune BIOS |
| Weight | 2 kg |
|---|---|
| Dimensions | 40 × 30 × 20 cm |
| CPU Socket | LGA1851 |
| Chipset | Intel Z890 |
| Form Factor | ATX |
| Memory Socket | 4 X DDR5 |
| Products Status | NEW |
