• Intel^® Socket LGA 1700：Support 13th and 12th Gen Series Processors
• Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks：2.5GbE LAN
• Extended Connectivity：HDMI, DP, Rear USB-C^® 20Gb/s, Front USB-C^® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

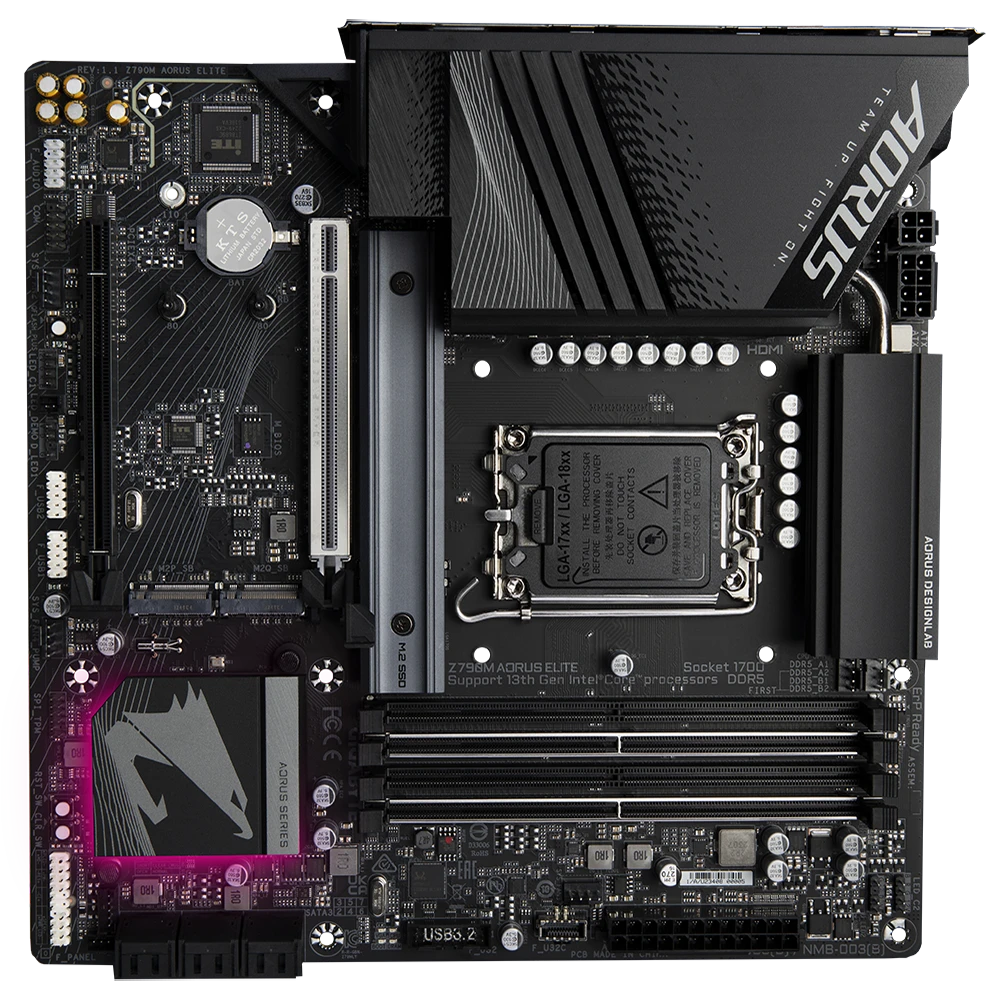

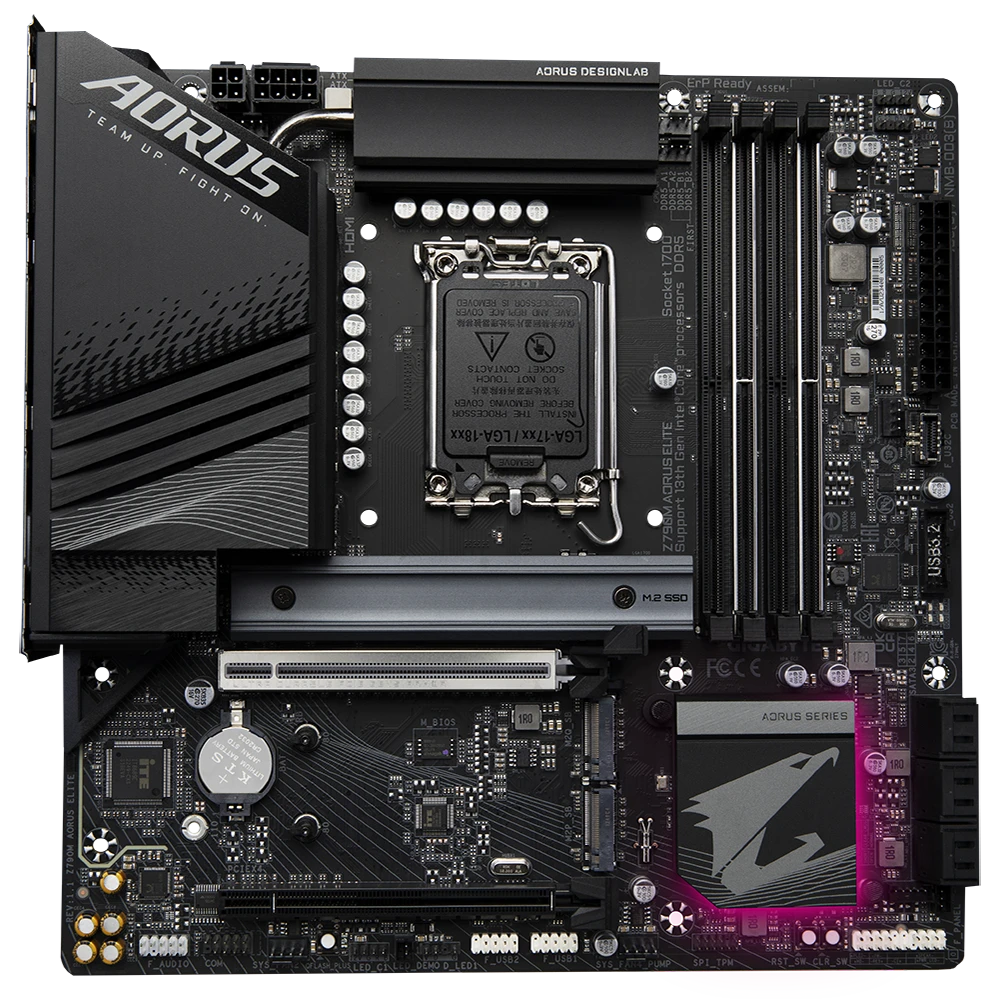

Overview of the GIGABYTE Z790M AORUS ELITE

The GIGABYTE Z790M AORUS ELITE is a high-performance Micro-ATX motherboard built on Intel’s powerful Z790 chipset. Designed for enthusiasts, gamers, and content creators, it supports Intel’s latest processors and cutting-edge technologies including DDR5 memory, PCIe 5.0 graphics, and ultra-fast NVMe storage.

Despite its compact Micro-ATX form factor, this motherboard delivers outstanding power delivery, advanced cooling solutions, and extensive connectivity options. It is ideal for users who want to build a high-performance PC without sacrificing space efficiency.

The Z790M AORUS ELITE is part of GIGABYTE’s premium AORUS lineup, known for reliability, high-quality components, and performance-focused engineering.

Built for Intel 12th, 13th and 14th Generation Processors

At the heart of the motherboard is the Intel Z790 Express chipset, designed to support Intel’s LGA1700 processor platform. This allows compatibility with Intel Core, Pentium Gold, and Celeron processors from the 12th, 13th, and 14th generations.

The board provides excellent performance for modern workloads including gaming, streaming, content creation, and productivity applications.

Advanced BIOS optimization ensures seamless CPU compatibility and improved stability under heavy workloads. Combined with the robust power delivery system, this motherboard allows users to maximize the performance of high-end Intel CPUs.

Powerful Digital VRM Design

Stable power delivery is essential for high-performance computing. The Z790M AORUS ELITE features a robust digital VRM design that ensures consistent power supply to the CPU.

The advanced VRM architecture helps maintain stable voltage during demanding tasks such as gaming, rendering, and overclocking.

High-quality components including premium chokes, capacitors, and MOSFETs improve efficiency and durability.

This ensures that even power-hungry processors like Intel Core i7 and i9 models operate smoothly under sustained workloads.

Next-Generation DDR5 Memory Performance

The motherboard fully supports the latest DDR5 memory technology, which offers significantly higher bandwidth and efficiency compared to DDR4.

Memory features include:

• 4× DDR5 DIMM slots

• Maximum capacity up to 256GB

• Memory speeds up to DDR5-7600 (OC)

• Dual-channel architecture

• Intel XMP support for easy overclocking

These features allow the system to deliver faster data transfer speeds and lower latency for modern applications.

High-speed DDR5 memory improves gaming frame rates, multitasking performance, and overall system responsiveness.

PCIe 5.0 Graphics Expansion

The motherboard includes a PCIe 5.0 x16 slot, providing the highest bandwidth available for modern graphics cards.

PCIe 5.0 doubles the bandwidth of PCIe 4.0, allowing future GPUs to reach their full potential.

Expansion slots include:

• 1× PCIe 5.0 x16 slot (CPU)

• 1× PCIe 4.0 x16 slot (x4 mode)

This configuration allows installation of high-performance GPUs, capture cards, or other expansion devices.

Gamers and creators will benefit from smoother graphics performance and faster rendering capabilities.

Ultra-Fast Storage with Triple M.2 Slots

Modern systems require fast storage for operating systems, games, and creative workloads.

The Z790M AORUS ELITE provides extensive storage options including:

• 3× PCIe 4.0 M.2 NVMe slots

• 6× SATA 6Gb/s ports

The motherboard also supports RAID configurations including RAID 0, RAID 1, RAID 5, and RAID 10 for both NVMe and SATA storage devices.

High-speed NVMe drives dramatically reduce application loading times and improve overall system performance.

Advanced Thermal Design

Thermal management plays a critical role in maintaining system stability.

The Z790M AORUS ELITE features a comprehensive cooling solution designed to keep system temperatures under control.

Key thermal features include:

• Large VRM heatsinks

• M.2 Thermal Guard

• High-efficiency thermal pads

• Optimized PCB layout for airflow

These features help dissipate heat effectively, ensuring consistent performance even during intensive workloads.

Smart Fan 6 Cooling Technology

The motherboard includes Smart Fan 6, GIGABYTE’s advanced cooling control system.

Smart Fan 6 provides:

• Multiple temperature sensors

• Hybrid fan headers

• PWM and DC fan compatibility

• Customizable fan curves

• Fan stop technology

This intelligent cooling system allows users to fine-tune airflow and maintain the perfect balance between cooling performance and system noise.

High-Speed Networking

Fast and reliable networking is essential for gaming, streaming, and large file transfers.

The Z790M AORUS ELITE includes a Realtek 2.5GbE LAN controller, delivering faster network speeds compared to traditional Gigabit Ethernet.

Benefits include:

• Lower latency for online gaming

• Faster downloads and uploads

• Improved network stability

This makes the motherboard ideal for competitive gamers and professional users who require reliable network performance.

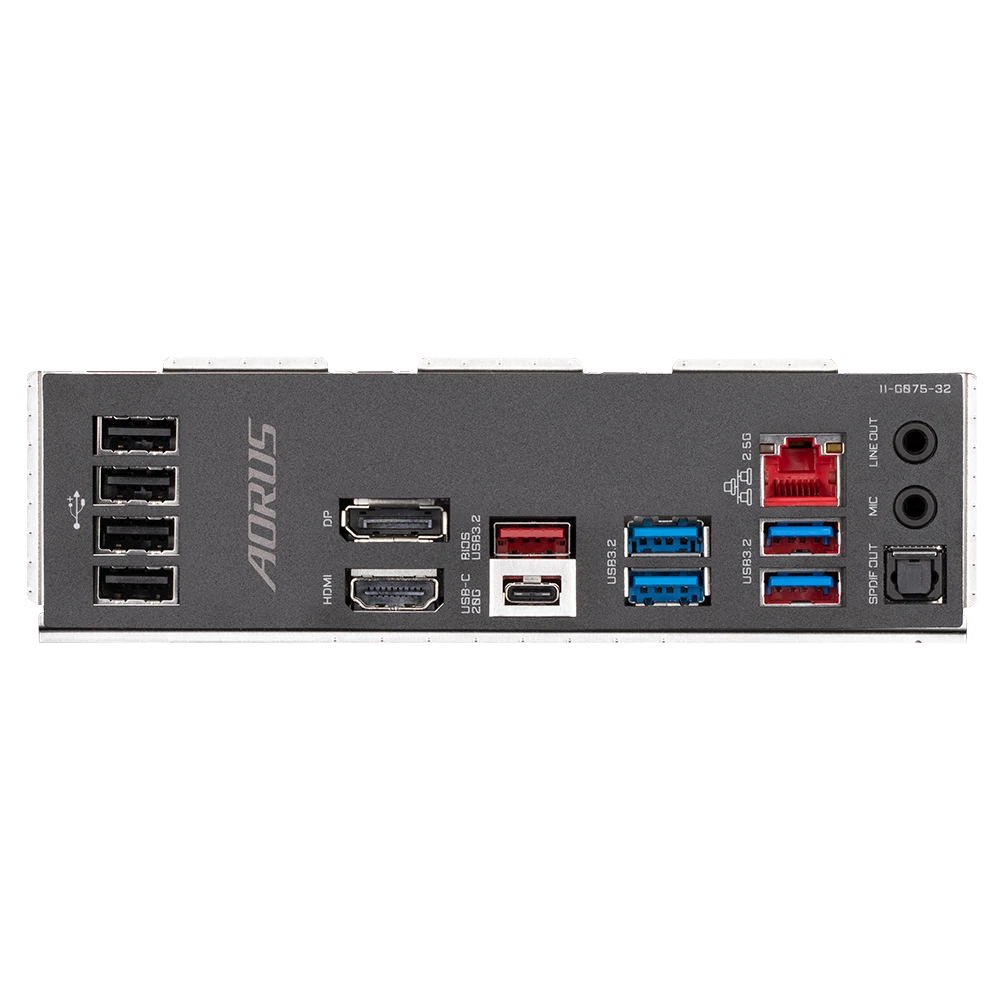

Versatile USB and Connectivity Options

The motherboard offers extensive connectivity options for modern peripherals and storage devices.

USB features include:

• USB 3.2 Gen2x2 Type-C (20Gbps)

• USB 3.2 Gen2 Type-A

• USB 3.2 Gen1 ports

• USB 2.0 ports

Internal headers allow additional front-panel USB connectivity for modern PC cases.

These options ensure compatibility with high-speed external storage, gaming peripherals, and professional devices.

Integrated Graphics Display Support

For users who rely on integrated graphics, the motherboard provides display outputs including:

• HDMI 2.1

• DisplayPort 1.2

These ports support high-resolution displays up to 4K and allow the use of Intel integrated graphics when a discrete GPU is not installed.

High-Quality Audio Experience

The motherboard features high-definition audio powered by the Realtek ALC codec.

Audio features include:

• 7.1-channel HD audio

• High-quality audio capacitors

• S/PDIF digital output support

These components deliver clear and immersive sound for gaming, movies, and music playback.

User-Friendly DIY Features

Building a PC is easier with the Z790M AORUS ELITE thanks to several DIY-friendly features.

These include:

• EZ-Latch design for easier GPU installation

• Q-Flash for BIOS updates

• Clear CMOS functionality

• Convenient internal connectors

These features simplify the building process and help reduce installation time.

Durable Construction and Reliability

GIGABYTE’s Ultra Durable design philosophy ensures long-term reliability.

Durability features include:

• High-quality PCB design

• Premium capacitors

• Reinforced PCIe slots

• Solid power connectors

These components improve stability, longevity, and electrical efficiency.

Ideal for Gaming and Professional Workloads

The Z790M AORUS ELITE is designed for a wide range of high-performance computing scenarios.

It is ideal for:

• Gaming PCs

• Streaming systems

• Content creation workstations

• Compact high-performance builds

With support for next-generation technologies, it delivers exceptional performance for modern computing tasks.

Conclusion

The GIGABYTE Z790M AORUS ELITE is a powerful Micro-ATX motherboard that combines advanced performance features with compact design.

With support for Intel’s latest processors, DDR5 memory, PCIe 5.0 graphics, and high-speed NVMe storage, it provides a solid foundation for modern gaming and productivity systems.

Whether you are building a high-end gaming rig or a powerful workstation, this motherboard offers the performance, connectivity, and reliability needed for today’s demanding applications.
