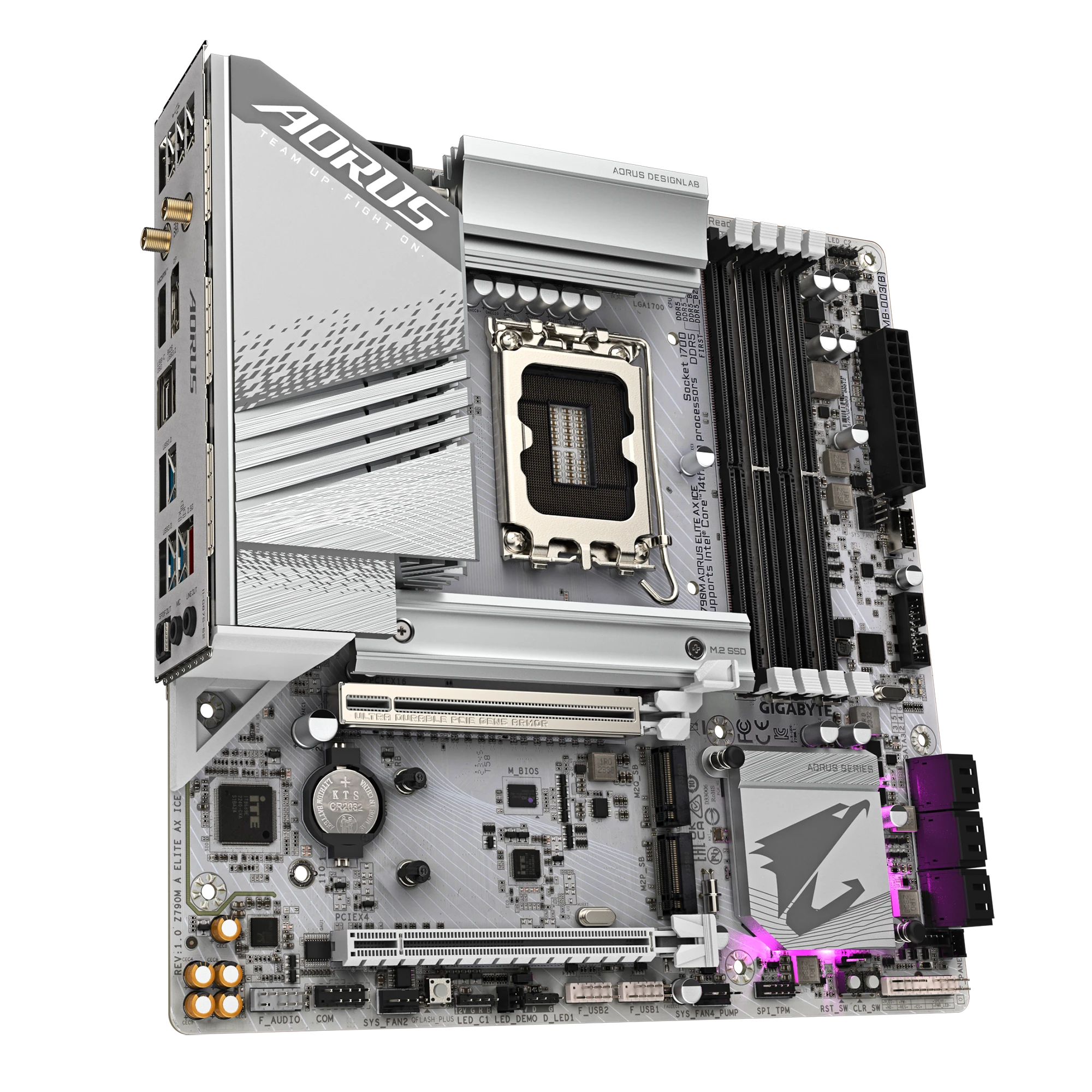

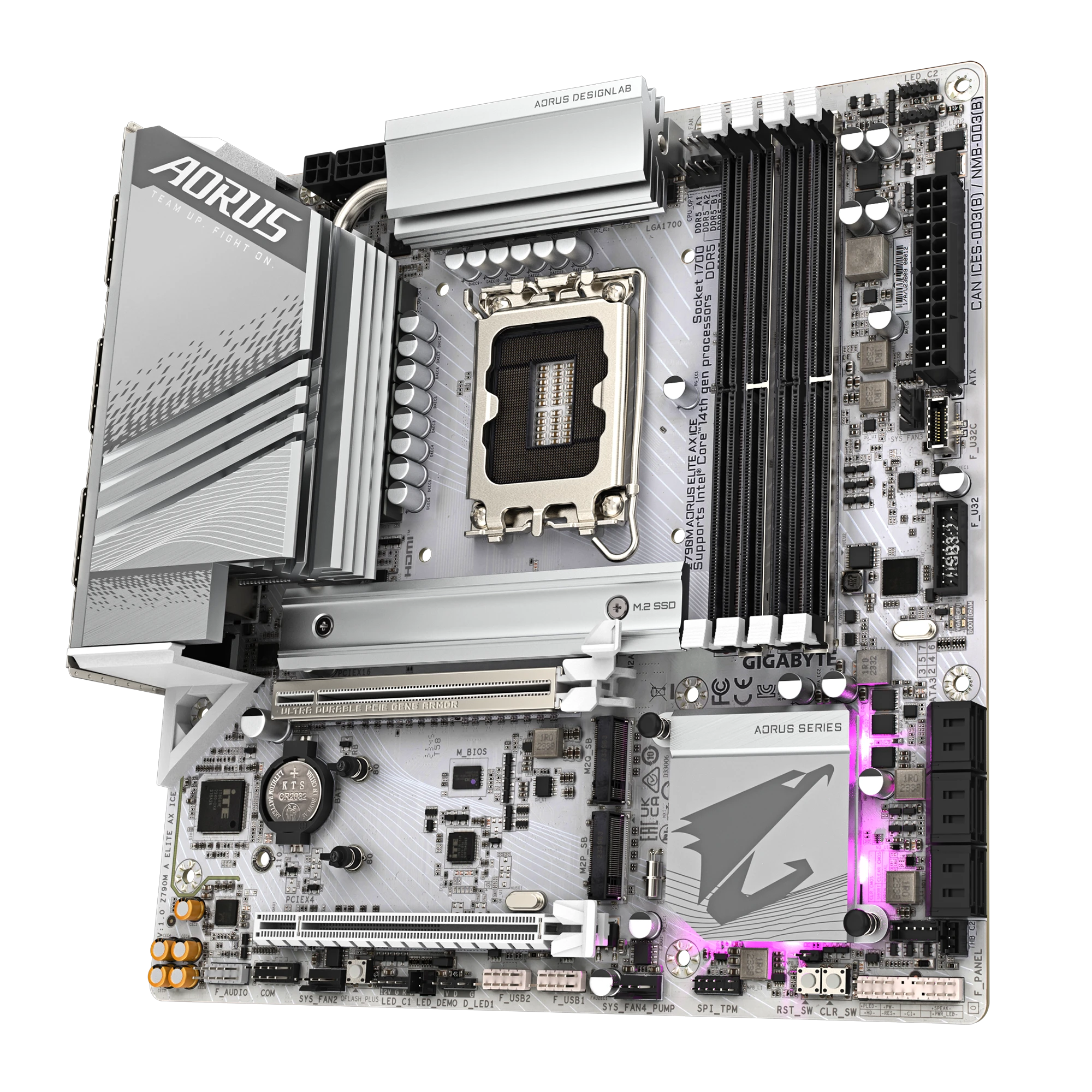

GIGABYTE Z790M AORUS ELITE AX ICE DDR5 Micro-ATX Motherboard

Key Features

• Intel® Socket LGA 1700：Support 14th and 13th Gen Series Processors
• Unparalleled Performance：Twin 12+1+1 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

The GIGABYTE Z790M AORUS ELITE AX ICE is a next-generation Micro-ATX motherboard engineered to unlock the full potential of Intel’s latest processors. Designed around the Intel Z790 chipset and LGA1700 socket, this motherboard supports Intel 12th, 13th, and 14th generation processors, making it an ideal platform for gamers, content creators, and high-performance PC builders.

With its sleek all-white ICE design, powerful VRM configuration, DDR5 memory compatibility, and high-speed connectivity options, the Z790M AORUS ELITE AX ICE offers the perfect blend of performance, reliability, and aesthetics. Whether you are building a compact gaming PC or a powerful workstation, this motherboard delivers exceptional performance in a compact Micro-ATX form factor.

Designed for Intel 12th, 13th, and 14th Gen Processors

At the core of the motherboard lies the Intel Z790 Express chipset paired with the LGA1700 socket. This platform supports Intel Core, Pentium Gold, and Celeron processors from the latest generations.

The motherboard is optimized to fully utilize modern Intel CPUs with advanced power delivery and BIOS optimization. This ensures excellent stability during heavy workloads, gaming sessions, and overclocking.

The board’s digital VRM design ensures consistent and reliable power delivery to the CPU. A 12+1+1 phase power design allows the motherboard to handle high-performance CPUs while maintaining system stability under load.

This makes it an ideal choice for enthusiasts who want maximum performance from their processor.

High-Speed DDR5 Memory Support

Memory performance is critical for modern computing, especially gaming and multitasking. The Z790M AORUS ELITE AX ICE supports the latest DDR5 memory technology, offering dramatically improved bandwidth and efficiency compared to previous DDR4 platforms.

The motherboard features:

• 4 DDR5 DIMM slots

• Support for up to 256GB system memory

• Memory speeds up to 7600 MHz (OC)

• Dual-channel architecture

• Intel XMP 3.0 memory profiles

These features enable faster data transfer and improved responsiveness across applications. High-speed memory helps maximize CPU performance, reduces latency in games, and boosts productivity in demanding workloads.

PCIe 5.0 Graphics and Expansion

One of the key highlights of the Z790M AORUS ELITE AX ICE is its support for PCI Express 5.0.

The motherboard includes:

• 1× PCIe 5.0 x16 slot for the latest GPUs

• 1× PCIe 4.0 x16 slot (x4 mode) for expansion cards

PCIe 5.0 offers double the bandwidth of PCIe 4.0, ensuring compatibility with future high-performance graphics cards and expansion devices.

For gamers and creators, this means faster rendering, smoother gameplay, and improved GPU performance.

Ultra-Fast Storage with Triple M.2 Slots

Storage performance is another area where this motherboard excels. It includes three PCIe 4.0 M.2 slots, allowing users to install high-speed NVMe SSDs.

Storage configuration includes:

• 3× M.2 PCIe 4.0 x4 slots

• 6× SATA 6Gb/s ports

• Support for RAID 0, 1, 5, and 10

This flexible configuration allows users to build ultra-fast storage arrays for gaming libraries, large projects, and content creation workflows.

With PCIe 4.0 NVMe drives, users can achieve extremely fast read and write speeds, significantly reducing loading times.

Advanced Thermal Design for Stability

Modern high-performance components generate significant heat. To ensure stable operation, GIGABYTE equips the Z790M AORUS ELITE AX ICE with an advanced thermal design.

Key cooling features include:

• Large VRM heatsinks

• Integrated heatpipe design

• M.2 Thermal Guard for SSD cooling

• High-efficiency thermal pads

These cooling elements help maintain lower temperatures during gaming and heavy workloads. The motherboard’s thermal solution improves airflow and dissipates heat efficiently to maintain system stability.

Smart Fan 6 Cooling Technology

The motherboard integrates Smart Fan 6, GIGABYTE’s advanced cooling control system.

Smart Fan 6 provides:

• Multiple temperature sensors

• Hybrid fan headers supporting PWM/DC fans

• Water cooling pump support

• Customizable fan curves

• Fan stop functionality

These features give users complete control over system cooling and noise levels. Whether building a silent workstation or a high-performance gaming rig, Smart Fan 6 ensures optimal thermal performance.

High-Speed Networking and Connectivity

Connectivity is essential for gaming, streaming, and modern networking needs. The Z790M AORUS ELITE AX ICE delivers excellent networking capabilities.

Networking features include:

• 2.5GbE Realtek LAN

• WiFi 6E wireless connectivity

• Bluetooth 5.3 support

WiFi 6E expands wireless bandwidth to the 6GHz spectrum, delivering faster speeds, lower latency, and improved reliability for wireless connections.

This makes the motherboard ideal for high-speed gaming networks, streaming setups, and wireless workstations.

Versatile USB and Display Connectivity

The motherboard offers a wide range of modern connectivity ports.

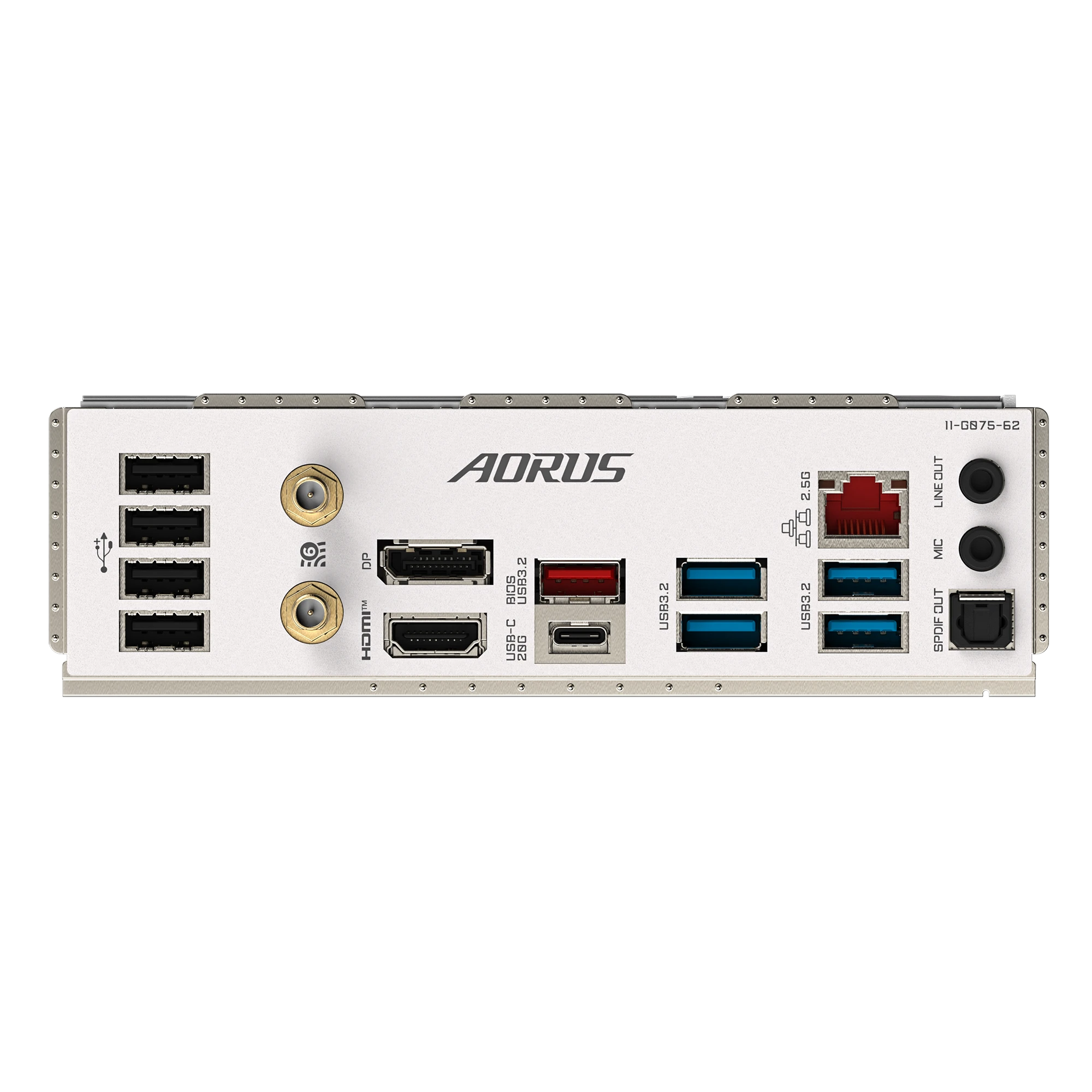

Rear and internal I/O includes:

• USB 3.2 Gen2x2 Type-C (20Gbps)

• USB 3.2 Gen2 Type-A

• Multiple USB 3.2 Gen1 ports

• USB 2.0 ports

• Internal USB Type-C header

For display output, the motherboard includes:

• HDMI 2.1

• DisplayPort 1.2

These outputs allow users to utilize integrated graphics on Intel processors when a discrete GPU is not installed.

Premium Audio Experience

The motherboard delivers immersive audio with high-quality components.

Features include:

• High-grade audio capacitors

• 7.1 channel HD audio support

• Noise-isolated audio circuitry

These components provide a clean and immersive audio experience for gaming, music, and multimedia applications.

DIY-Friendly Features

Building a PC should be simple and convenient. The Z790M AORUS ELITE AX ICE includes several DIY-friendly features.

These include:

• EZ-Latch Plus tool-free M.2 installation

• Q-Flash Plus BIOS update without CPU or memory

• Multi-function reset button

• Clear CMOS button

These features make installation and maintenance easier, even for first-time builders.

Stylish ICE White Design

A standout feature of this motherboard is its stunning ICE white design. The board’s white PCB and heatsinks make it ideal for themed PC builds, particularly white gaming setups.

Combined with RGB lighting support and customizable LED headers, users can create visually stunning PC builds that stand out.

Built for Reliability

GIGABYTE’s Ultra Durable technology ensures long-term reliability and performance.

Key durability features include:

• 6-layer PCB design

• 2X copper PCB

• Solid pin power connectors

• Premium capacitors and chokes

These design elements improve electrical efficiency, heat dissipation, and component lifespan.

Ideal for Gaming and Content Creation

The Z790M AORUS ELITE AX ICE is a versatile motherboard suitable for many use cases:

• High-end gaming PCs

• Streaming setups

• Creative workstations

• Compact performance builds

With powerful VRM design, DDR5 memory support, and fast connectivity, it delivers exceptional performance across gaming, productivity, and professional workloads.

Conclusion

The GIGABYTE Z790M AORUS ELITE AX ICE is a feature-rich Micro-ATX motherboard designed for modern Intel platforms. Combining powerful performance, next-generation connectivity, advanced cooling, and stylish aesthetics, it stands out as an excellent choice for gamers and PC enthusiasts.

With support for DDR5 memory, PCIe 5.0 graphics, WiFi 6E networking, and high-speed storage, this motherboard provides everything needed to build a high-performance PC.

Whether you are building a compact gaming rig or a powerful workstation, the Z790M AORUS ELITE AX ICE delivers outstanding reliability, speed, and expandability.
