• Intel^® Socket LGA 1700：Support 13th and 12th Gen Series Processors
• Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：HDMI, DP, Rear USB-C^® 20Gb/s, Front USB-C^® 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

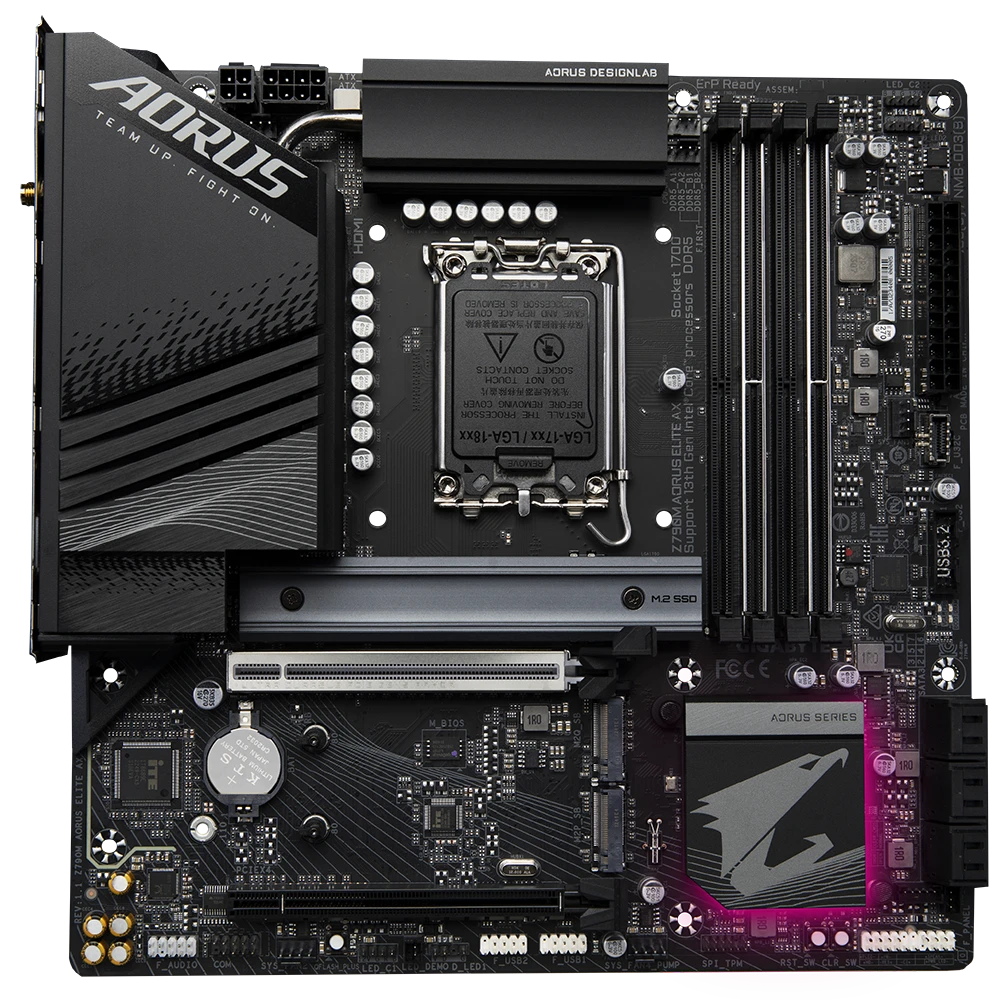

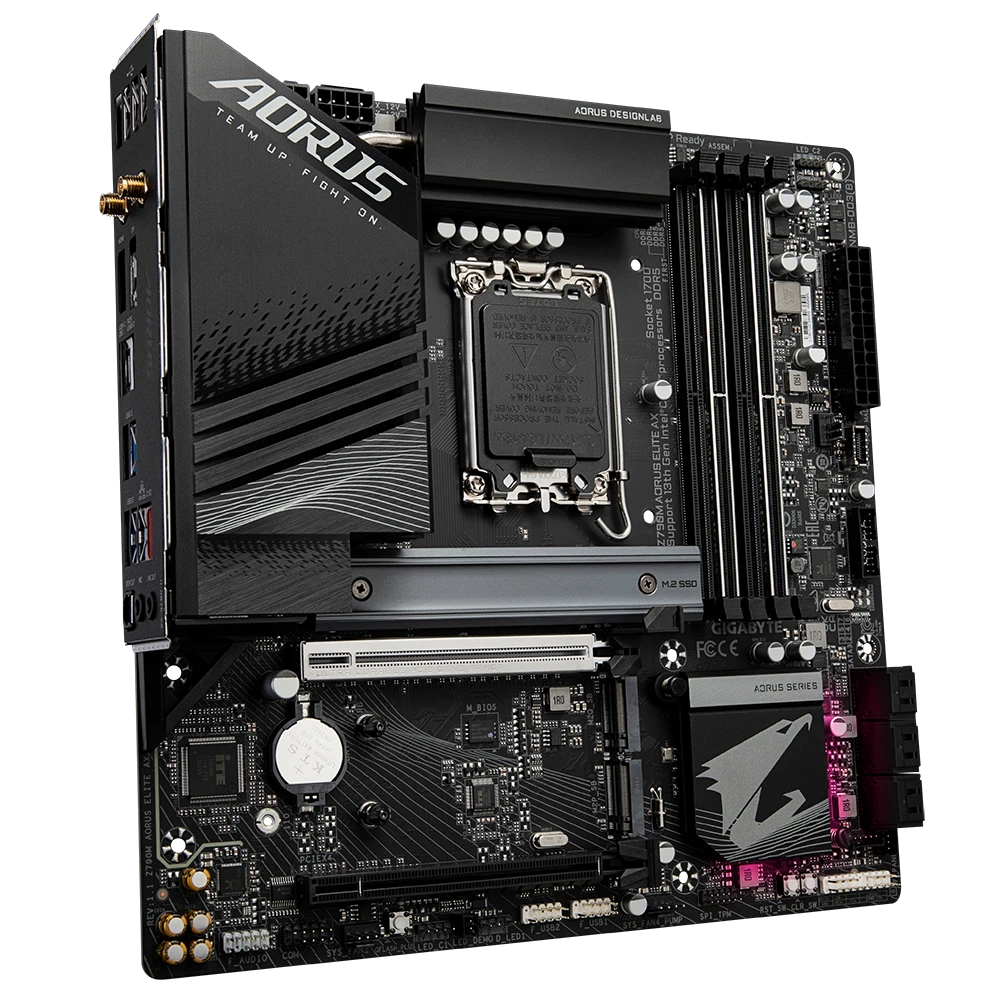

Introduction to the GIGABYTE Z790M AORUS ELITE AX

The GIGABYTE Z790M AORUS ELITE AX is a high-performance Micro-ATX motherboard designed for gamers, creators, and PC enthusiasts who demand premium features in a compact form factor. Built around the powerful Intel Z790 chipset, this motherboard delivers exceptional performance, advanced connectivity, and robust power delivery for the latest Intel processors.

Supporting 12th, 13th, and 14th Generation Intel Core processors, the Z790M AORUS ELITE AX offers next-generation computing power for gaming, content creation, streaming, and productivity workloads. With DDR5 memory support, PCIe 5.0 expansion, ultra-fast storage options, and integrated WiFi 6E networking, it provides a future-ready platform for building high-performance systems.

Whether you are building a compact gaming PC or a professional workstation, this motherboard combines performance, reliability, and advanced features in a Micro-ATX design.

Powerful Intel Z790 Chipset Platform

At the core of the Z790M AORUS ELITE AX lies the Intel Z790 chipset. This advanced chipset enables cutting-edge system performance and expanded connectivity for modern PC builds.

The board uses the LGA1700 socket, supporting Intel Core processors across multiple generations. This ensures excellent compatibility with CPUs such as the Intel Core i5, Core i7, and Core i9 series.

The chipset also provides enhanced PCIe bandwidth, faster memory speeds, and improved I/O capabilities. As a result, users can build systems capable of handling demanding workloads, gaming sessions, and multitasking environments with ease.

For users seeking maximum performance from their CPU and components, the Z790 platform provides a reliable foundation.

DDR5 Memory Support for Extreme Speed

One of the major highlights of the motherboard is its DDR5 memory support, which offers significantly improved performance compared to previous memory standards.

The Z790M AORUS ELITE AX includes four DDR5 DIMM slots that support up to 256GB of system memory. Memory speeds can reach 7600 MHz (overclocked), allowing users to unlock faster data transfer rates and improved system responsiveness.

Benefits of DDR5 memory include:

• Higher bandwidth for demanding applications

• Lower power consumption

• Improved memory stability

• Enhanced multitasking capabilities

With support for Intel XMP profiles, users can easily overclock compatible memory modules for even higher performance.

This makes the motherboard ideal for gaming systems, workstation builds, and heavy multitasking setups.

PCIe 5.0 Expansion for Next-Generation GPUs

The motherboard features a PCI Express 5.0 x16 slot, providing massive bandwidth for modern graphics cards and high-speed expansion devices.

PCIe 5.0 delivers double the bandwidth of PCIe 4.0, enabling faster communication between the CPU and GPU. This ensures compatibility with the newest graphics cards and prepares your system for future hardware upgrades.

The board also includes a secondary PCIe 4.0 slot, offering additional flexibility for expansion cards such as capture cards, storage controllers, or networking adapters.

This powerful expansion configuration makes the Z790M AORUS ELITE AX a perfect choice for gaming PCs, streaming systems, and professional workstation builds.

Ultra-Fast Storage with Multiple M.2 Slots

Modern PCs demand high-speed storage for fast boot times, quick application launches, and smooth gaming experiences.

The motherboard provides three M.2 slots, allowing users to install multiple NVMe SSDs. These slots support PCIe 4.0 x4 interfaces, delivering extremely fast storage speeds for demanding workloads.

Key storage features include:

• 3 × PCIe 4.0 M.2 slots

• Support for high-performance NVMe SSDs

• RAID support for NVMe and SATA drives

• 6 × SATA 6Gb/s connectors

These options enable flexible storage configurations, from ultra-fast system drives to large-capacity data storage setups.

Advanced Cooling Design

To maintain optimal performance, the Z790M AORUS ELITE AX includes an advanced cooling design that helps regulate system temperatures.

Large heatsinks and optimized thermal layouts help dissipate heat efficiently from critical components such as VRMs and M.2 SSDs. This ensures stable operation even during intensive workloads or overclocking sessions.

The motherboard also includes multiple fan headers and support for water cooling pumps. Users can easily create custom cooling setups tailored to their system requirements.

With improved thermal performance, the motherboard helps maintain consistent performance and reliability.

High-Speed Networking with WiFi 6E and 2.5GbE LAN

Connectivity is another key strength of the Z790M AORUS ELITE AX.

The board integrates WiFi 6E technology, providing faster wireless speeds, lower latency, and improved network stability. It supports 2.4GHz, 5GHz, and 6GHz frequency bands for optimized wireless performance.

Additionally, the motherboard includes 2.5 Gigabit Ethernet LAN, offering significantly faster wired networking compared to traditional Gigabit connections.

Benefits include:

• Faster game downloads

• Lower latency in online gaming

• Stable streaming and video conferencing

• Improved large file transfers

With both wired and wireless networking options available, the motherboard ensures reliable connectivity for any setup.

Premium Audio Experience

Audio quality is an important aspect of modern PC builds, especially for gamers and content creators.

The Z790M AORUS ELITE AX features a Realtek high-definition audio codec, supporting multi-channel audio configurations up to 7.1 channels.

The motherboard also includes support for high-quality digital audio output through S/PDIF, providing enhanced sound clarity for music, movies, and gaming.

This audio solution delivers immersive sound experiences for both entertainment and professional content production.

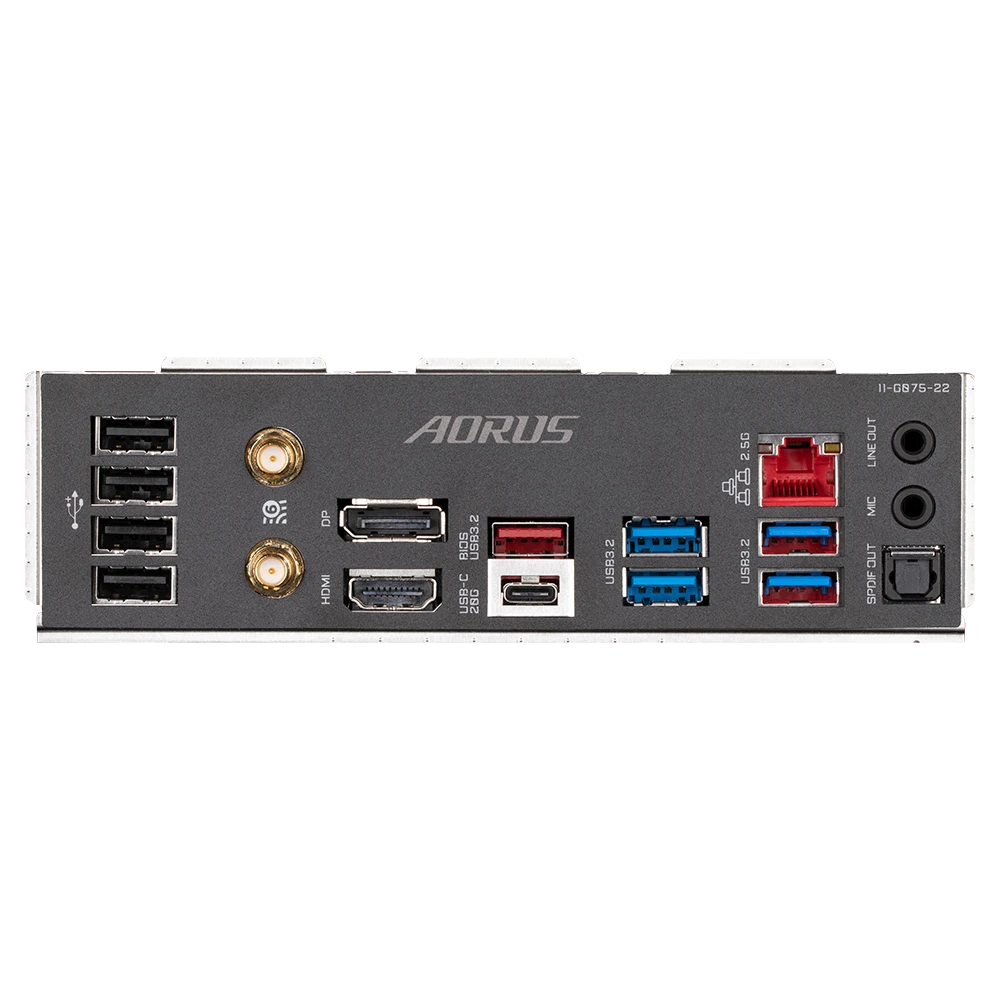

Extensive USB and Connectivity Options

The motherboard provides a wide variety of connectivity options for modern peripherals and accessories.

These include high-speed USB ports such as USB 3.2 Gen2 and USB 3.2 Gen2x2 Type-C ports, enabling fast data transfer and compatibility with the latest devices.

Users can easily connect external storage, gaming accessories, VR devices, and professional equipment without limitations.

Internal headers also allow easy expansion for front panel USB ports and additional peripherals.

Built for Reliability and Durability

GIGABYTE’s AORUS series is known for its premium build quality and reliable components.

The Z790M AORUS ELITE AX features high-quality power delivery systems, durable PCB construction, and advanced protection features designed to ensure long-term stability.

Additional reliability features include:

• Smart fan control systems

• High-quality capacitors

• Reinforced PCIe slots

• BIOS protection technologies

These features help ensure a stable and long-lasting PC build.

Perfect for Compact High-Performance Builds

Despite its powerful features, the motherboard maintains a Micro-ATX form factor, making it ideal for compact gaming PCs and space-efficient builds.

Users can enjoy flagship-level performance without needing a large ATX case.

This makes the Z790M AORUS ELITE AX perfect for:

• Compact gaming PCs

• Streaming systems

• Content creation workstations

• High-performance home computers

Its balanced combination of performance, connectivity, and compact size makes it one of the best Micro-ATX Z790 motherboards available.

Specifications Sheet
