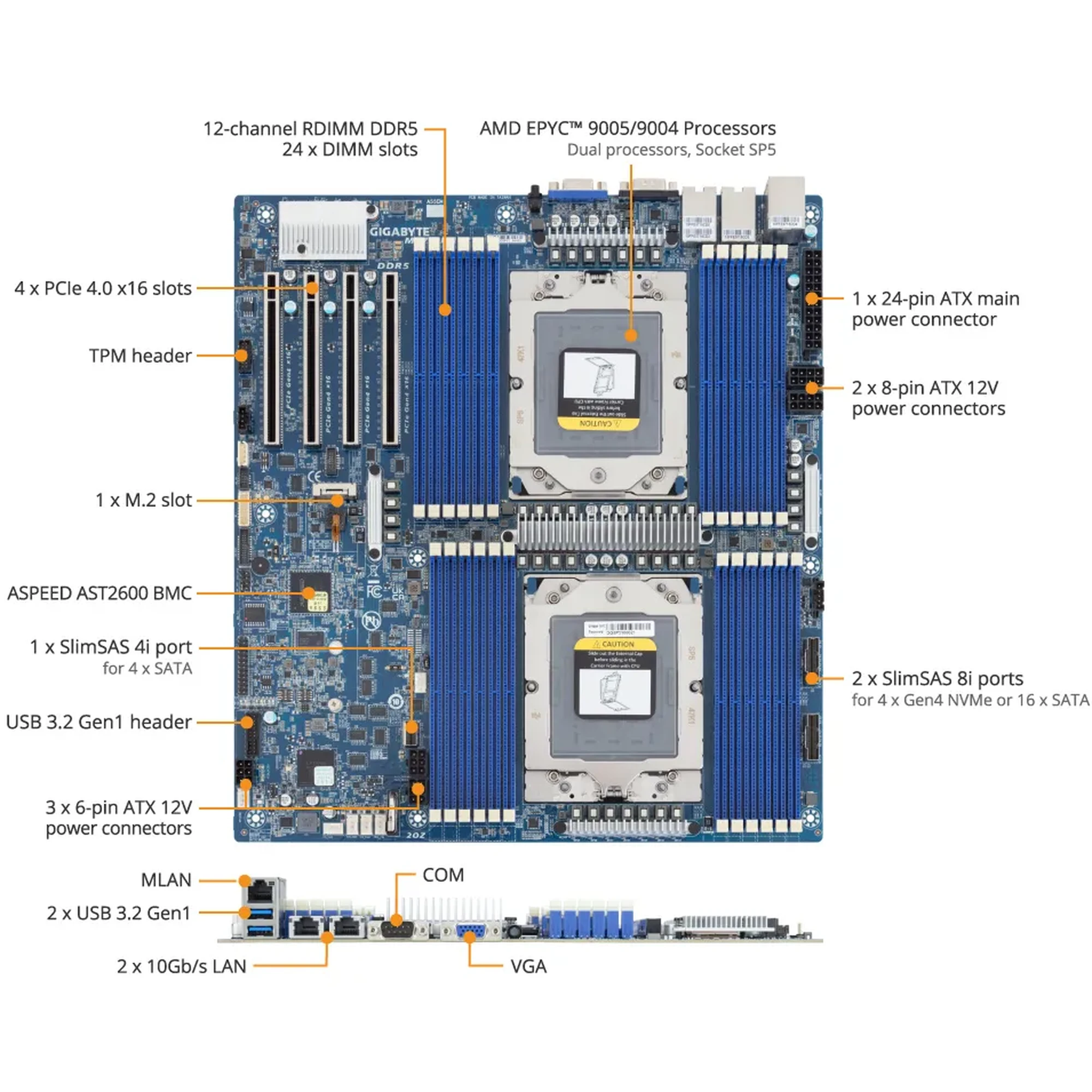

GIGABYTE MZ73-LM1 Server Motherboard – AMD EPYC 9005/9004 Dual Socket E-ATX Server Board PCIe Gen4 cTDP 400W

• Dual AMD EPYC^™ 9005/9004 Series Processors
• 12-Channel DDR5 RDIMM, 24 x DIMMs
• 2 x 10Gb/s LAN ports via Broadcom^® BCM57416
• 2 x SlimSAS 8i connectors with PCIe Gen4 x8 or SATA interface
• 1 x SlimSAS 4i connector with SATA interface
• 1 x M.2 slot with PCIe Gen4 x4 interface
• 4 x PCIe Gen4 x16 expansion slots

Overview of MZ73-LM1 Server Motherboard

The GIGABYTE MZ73-LM1 Rev.3.x Motherboard is a powerful and reliable enterprise server platform designed to meet the demands of modern data centers and high-performance computing environments. Supporting the latest AMD EPYC™ 9005 and 9004 series processors, this motherboard delivers outstanding processing power, memory bandwidth, and system scalability.

Built in an E-ATX form factor, the MZ73-LM1 is optimized for dual-socket configurations, enabling organizations to deploy robust server infrastructures for virtualization, AI workloads, big data processing, and cloud-native applications.

With PCIe Gen4 expansion, DDR5 memory architecture, and advanced remote management capabilities, this motherboard ensures efficient and stable operation across a wide range of enterprise workloads.

Dual AMD EPYC Processor Support

The MZ73-LM1 is equipped with dual Socket SP5 (LGA 6096), supporting AMD EPYC 9005 and 9004 processors. This dual-processor design allows organizations to maximize computational density and parallel processing performance.

Key CPU features include:

• 2 x AMD EPYC processors
• cTDP up to 400W per CPU
• Scalable multi-core architecture

This configuration is ideal for:

• Virtualization platforms
• Enterprise database systems
• AI model training
• High-performance computing (HPC)

The high TDP support ensures that even the most demanding workloads can run efficiently without performance throttling.

Advanced DDR5 Memory Performance

Memory bandwidth is critical in modern server environments, and the MZ73-LM1 leverages cutting-edge DDR5 technology to deliver superior performance.

Memory specifications include:

• 24 DIMM slots
• 12-channel memory per processor
• DDR5 RDIMM support
• Up to 6400 MT/s (EPYC 9005)
• Up to 4800 MT/s (EPYC 9004)

This high-density memory configuration enables:

• Faster data processing
• Reduced latency
• Improved application responsiveness

It is particularly beneficial for memory-intensive workloads such as:

• In-memory databases
• Real-time analytics
• Large-scale virtualization

The 12-channel architecture significantly enhances throughput compared to previous generations.

PCIe Gen4 Expansion Capabilities

The MZ73-LM1 motherboard supports PCIe Gen4, delivering high-speed connectivity for modern expansion devices.

Expansion features:

• 4 x PCIe Gen4 x16 slots
• Full support for GPUs and accelerators
• High-speed networking card compatibility

These capabilities allow businesses to deploy:

• AI accelerators
• GPU-based computing systems
• High-speed storage controllers

PCIe Gen4 provides a strong balance between performance and compatibility, making it suitable for a wide range of enterprise applications.

Flexible Storage Architecture

Storage flexibility is a major advantage of the MZ73-LM1. The motherboard supports multiple storage interfaces to meet diverse deployment needs.

Storage options include:

• 2 x SlimSAS 8i (PCIe Gen4 x8 or SATA)
• 1 x SlimSAS 4i (SATA)
• 1 x M.2 (PCIe Gen4 x4)

This allows:

• NVMe SSD configurations
• SATA storage arrays
• High-speed boot drives

The combination of NVMe and SATA ensures both performance and cost efficiency in storage deployment.

High-Speed Networking

Networking performance is essential for modern enterprise systems. The MZ73-LM1 includes robust networking capabilities:

• 2 x 10GbE LAN ports (Broadcom BCM57416)
• Dedicated management LAN port

Benefits include:

• High bandwidth data transfer
• Low latency communication
• Reliable connectivity

This makes the motherboard suitable for:

• Cloud infrastructure
• Data center networking
• Distributed computing environments

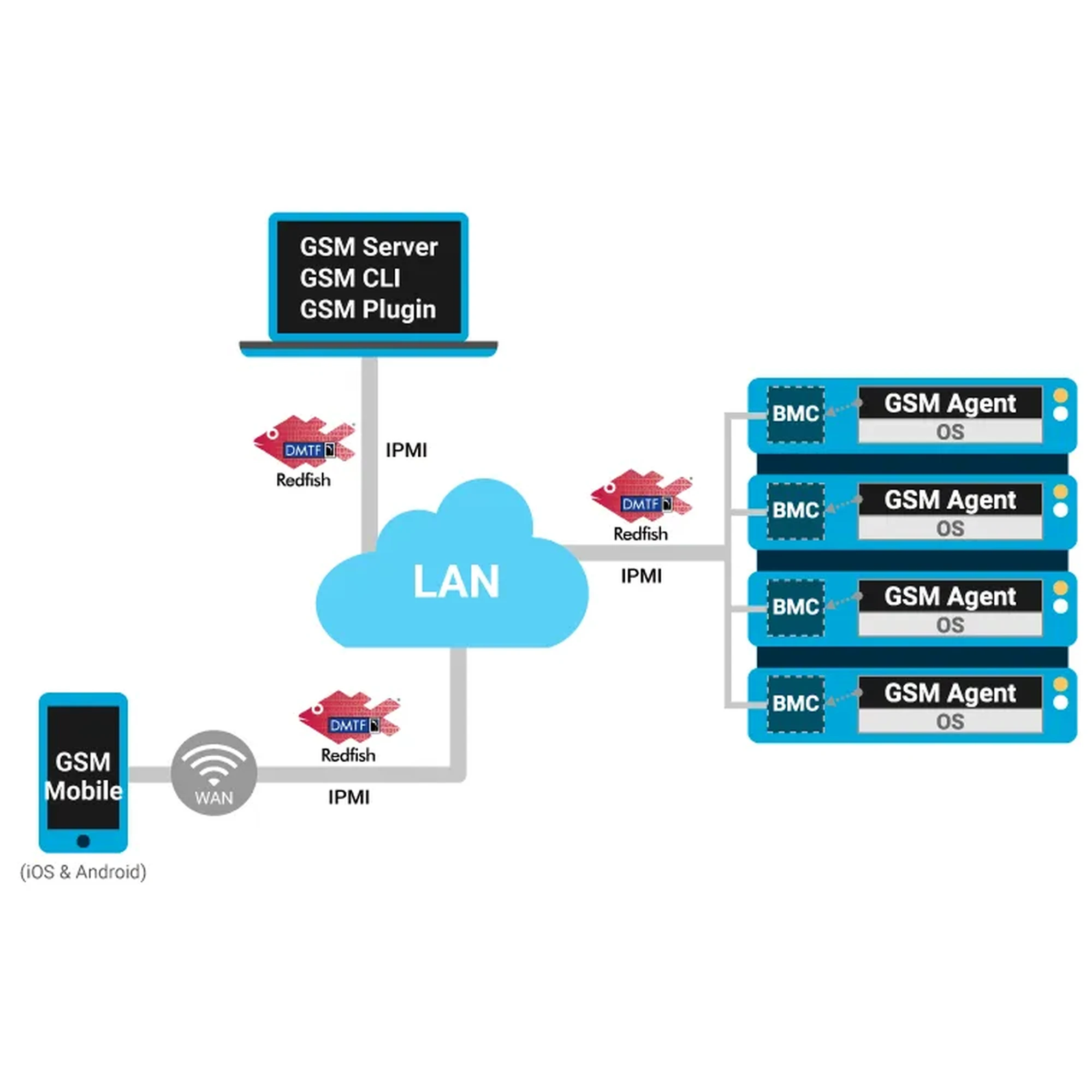

Intelligent Server Management

The motherboard integrates the ASPEED AST2600 BMC, enabling advanced remote management and monitoring.

Management features:

• Web-based interface (HTML5 KVM)
• Remote BIOS updates
• Hardware monitoring
• Power management and control
• Event logging and diagnostics

These features allow IT administrators to manage servers remotely, reducing operational costs and improving uptime.

The GIGABYTE Management Console provides a comprehensive set of tools for enterprise IT environments.

Enterprise-Grade Reliability and Security

Reliability and security are essential in enterprise systems, and the MZ73-LM1 includes several features to ensure stable operation.

Security and reliability features:

• TPM 2.0 support (optional module)
• Hardware monitoring sensors
• System event logging
• Thermal management

Operating conditions:

• Temperature: 10°C to 40°C
• Humidity: 8% to 80% (non-condensing)

These features ensure consistent performance in demanding data center environments.

Robust Power Design

The motherboard is designed with a strong power delivery system to support high-performance CPUs and expansion devices.

Power connectors include:

• 1 x 24-pin ATX connector
• 2 x 8-pin CPU power connectors
• 3 x 6-pin auxiliary connectors

This ensures stable operation even under heavy workloads and high power consumption scenarios.

Ideal Use Cases

The MZ73-LM1 is versatile and suitable for multiple enterprise applications:

Data Centers

Supports large-scale workloads and virtualization environments.

Artificial Intelligence

Optimized for GPU acceleration and AI model training.

Cloud Computing

Provides scalability and reliability for cloud platforms.

High Performance Computing (HPC)

Ideal for scientific simulations and engineering workloads.

Enterprise Storage Servers

Flexible storage configurations for large data volumes.

Conclusion

The GIGABYTE MZ73-LM1 Rev.3.x Motherboard is a reliable and high-performance solution for enterprise computing. With support for AMD EPYC 9005/9004 processors, DDR5 memory, PCIe Gen4 expansion, and advanced management features, it offers a balanced combination of performance, scalability, and efficiency.

Whether deployed in data centers, AI environments, or cloud infrastructures, the MZ73-LM1 provides the stability and power required for modern enterprise workloads.
