GIGABYTE MZ73-LM0 Server Motherboard – AMD EPYC 9005/9004 Dual Socket E-ATX Server Board PCIe Gen5 cTDP 400W

• Dual AMD EPYC^™ 9005/9004 Series Processors
• 12-Channel DDR5 RDIMM, 24 x DIMMs
• 2 x 10Gb/s LAN ports via Broadcom^® BCM57416
• 2 x MCIO 8i connectors with PCIe Gen5 x8 or SATA interface
• 1 x SlimSAS 4i connector with SATA interface
• 1 x M.2 slot with PCIe Gen4 x4 interface
• 4 x PCIe Gen5 x16 expansion slots

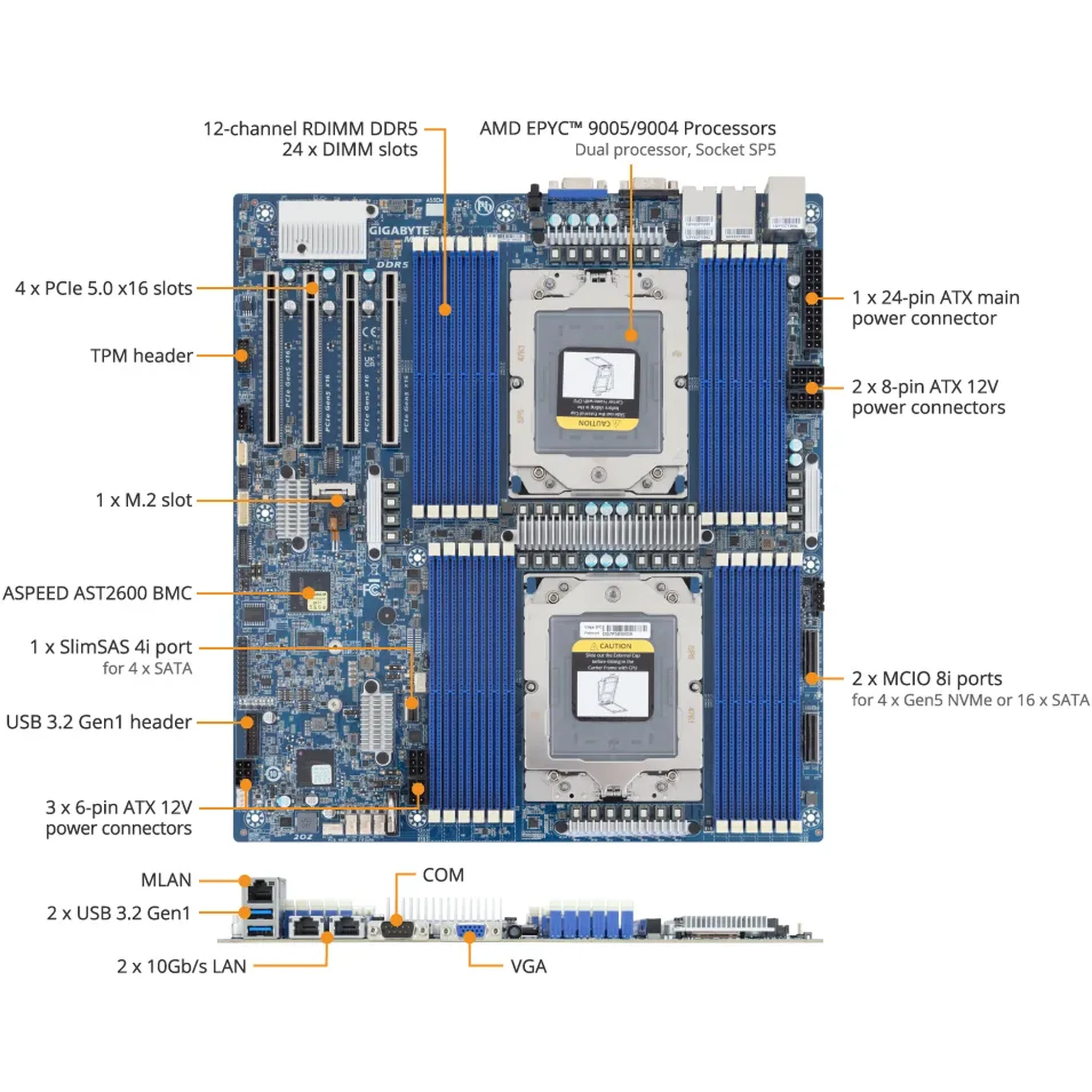

Overview of MZ73-LM0 Server Motherboard

The GIGABYTE MZ73-LM0 Rev.3.x Motherboard is an advanced enterprise-grade server motherboard engineered for modern data centers, cloud computing, and high-performance workloads. Built with support for the latest AMD EPYC™ 9005 and 9004 series processors, this motherboard delivers exceptional scalability, computing power, and efficiency.

Designed in an E-ATX form factor, the MZ73-LM0 provides a robust platform for dual-socket configurations, enabling businesses to deploy powerful systems capable of handling virtualization, AI workloads, big data analytics, and HPC applications.

With PCIe Gen5 expansion, DDR5 memory architecture, and advanced remote management capabilities, this motherboard ensures optimal performance and reliability for enterprise IT environments.

Dual AMD EPYC Processor Support

At the heart of the MZ73-LM0 lies support for dual AMD EPYC 9005 and 9004 processors, offering outstanding computational density and multi-threaded performance.

The motherboard features:

• 2 x LGA 6096 (Socket SP5)
• Dual processor architecture
• Configurable TDP up to 400W per CPU

This dual-socket configuration enables massive parallel processing capabilities, making it ideal for:

• Virtual machines and cloud infrastructure
• Database processing
• Scientific computing
• AI training and inference

The support for high TDP CPUs ensures maximum performance scaling without bottlenecks.

Advanced DDR5 Memory Architecture

Memory performance is critical in enterprise environments, and the MZ73-LM0 excels with its next-generation DDR5 support.

Key memory features include:

• 24 DIMM slots
• 12-channel memory per processor
• DDR5 RDIMM support
• Up to 6400 MT/s (EPYC 9005)
• Up to 4800 MT/s (EPYC 9004)

This architecture allows for extremely high memory bandwidth and capacity, ensuring smooth performance in memory-intensive workloads such as:

• In-memory databases
• Real-time analytics
• Virtualization environments

The 12-channel design significantly improves throughput compared to previous generations, reducing latency and enhancing overall system responsiveness.

PCIe Gen5 Expansion for Maximum Throughput

The motherboard is equipped with PCIe Gen5 technology, delivering doubled bandwidth compared to PCIe Gen4.

Expansion capabilities include:

• 4 x PCIe Gen5 x16 slots
• High-speed GPU and accelerator support
• NVMe storage expansion

This enables:

• Faster data transfer speeds
• Support for modern GPUs and AI accelerators
• Future-proof scalability

Whether deploying GPU-based AI workloads or high-speed networking cards, the MZ73-LM0 provides unmatched flexibility.

Flexible Storage Options

Storage flexibility is a key strength of this motherboard. It supports multiple interfaces to accommodate different storage configurations.

Storage connectivity includes:

• 2 x MCIO 8i (PCIe Gen5 x8 or SATA)
• 1 x SlimSAS 4i (SATA)
• 1 x M.2 slot (PCIe Gen4 x4)

This allows support for:

• NVMe SSD arrays
• SATA storage solutions
• Boot drives via M.2

The combination of Gen5 NVMe and SATA options ensures both high-speed and cost-efficient storage deployments.

High-Speed Networking Capabilities

Networking performance is crucial for enterprise workloads. The MZ73-LM0 integrates high-speed LAN capabilities:

• 2 x 10GbE LAN ports (Broadcom BCM57416)
• Dedicated management LAN port

These features provide:

• High-bandwidth data transfer
• Low latency communication
• Reliable network connectivity

This makes the motherboard suitable for:

• Cloud infrastructure
• Data center networking
• Distributed systems

Intelligent Server Management

The motherboard includes a powerful ASPEED AST2600 Baseboard Management Controller (BMC), enabling advanced remote management.

Management features include:

• HTML5-based KVM remote control
• Hardware monitoring (temperature, voltage, fan speed)
• Remote BIOS and firmware updates
• Power control and consumption monitoring
• Event logging and diagnostics

With the GIGABYTE Management Console, administrators can monitor and control systems remotely, reducing downtime and maintenance costs.

Enterprise-Level Reliability and Security

Reliability is essential for mission-critical systems. The MZ73-LM0 integrates multiple features to ensure stable operation:

• TPM 2.0 support for hardware security
• Redundant power connectors
• Thermal monitoring and fan control
• System event logging

Operating conditions:

• Temperature: 10°C to 40°C
• Humidity: 8% to 80% (non-condensing)

These features ensure consistent performance even in demanding environments.

Efficient Power Design

The motherboard supports:

• 1 x 24-pin ATX power connector
• 2 x 8-pin CPU power connectors
• 3 x 6-pin auxiliary connectors

This robust power design ensures stable delivery for high-performance CPUs and expansion cards, even under heavy workloads.

Ideal Use Cases

The MZ73-LM0 is designed for a wide range of enterprise applications:

Data Centers

Handles large-scale workloads and virtualization environments.

Artificial Intelligence

Supports GPUs and accelerators for AI model training.

Cloud Computing

Provides scalability and reliability for cloud platforms.

High Performance Computing (HPC)

Delivers the processing power needed for scientific and engineering tasks.

Enterprise Storage Servers

Supports flexible storage configurations for large datasets.

Conclusion

The GIGABYTE MZ73-LM0 Rev.3.x Motherboard is a powerful, scalable, and future-ready server motherboard tailored for enterprise environments. With support for AMD EPYC 9005/9004 processors, DDR5 memory, PCIe Gen5 expansion, and advanced management features, it provides a complete solution for modern data centers.

Whether building AI infrastructure, cloud platforms, or high-performance computing systems, the MZ73-LM0 delivers the reliability and performance required to stay ahead in today’s competitive landscape.

✅ Specifications
