The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.

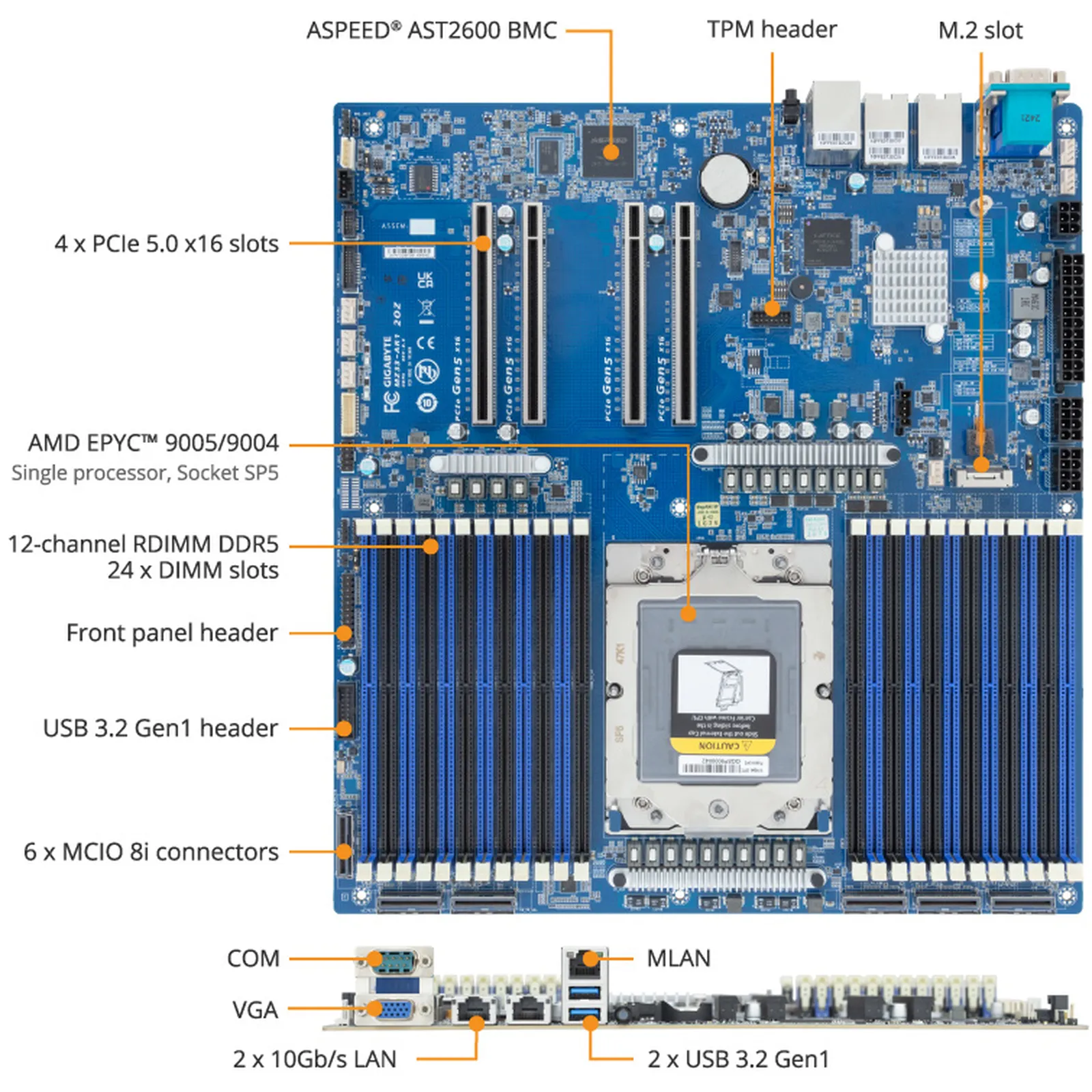

Overview of MZ33-AR1 Server Motherboard

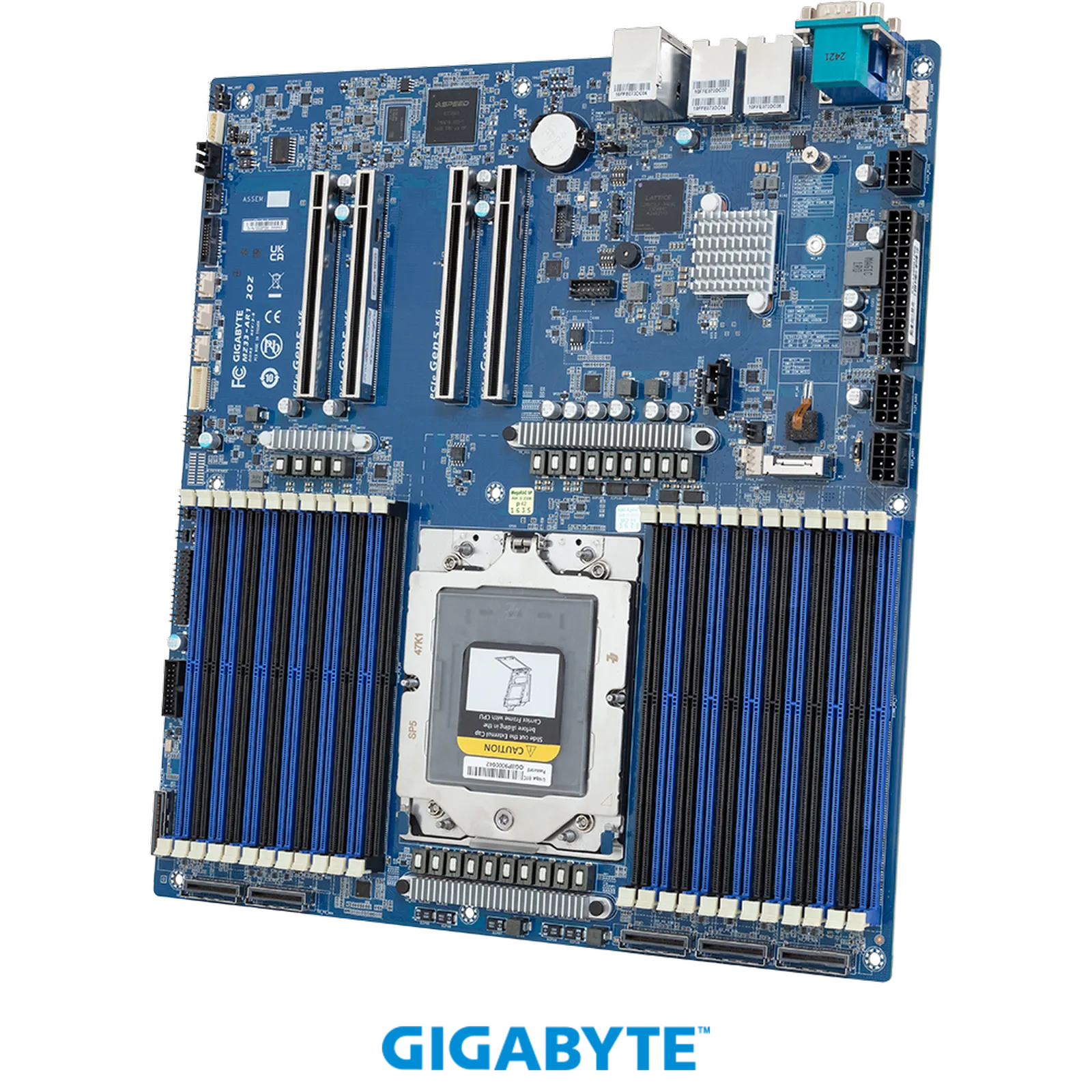

The GIGABYTE MZ33-AR1 motherboard is a next-generation single-socket (UP) server platform designed to support AMD EPYC™ 9004 and 9005 series processors. Built with enterprise workloads in mind, this motherboard combines cutting-edge technologies such as DDR5 memory, PCIe Gen5 expansion, and advanced server management.

With its E-ATX form factor and SP5 socket, the MZ33-AR1 delivers exceptional scalability and performance for modern data centers, cloud computing platforms, and high-performance computing (HPC) environments.

High-Performance AMD EPYC™ 9004/9005 Platform

At the heart of the MZ33-AR1 lies support for AMD EPYC™ 9004 and 9005 series processors, offering industry-leading performance and efficiency. The motherboard supports a single SP5 (LGA 6096) processor with configurable TDP up to 500W, making it suitable for extremely demanding workloads.

Key advantages include:

• Massive core counts for parallel computing
• Advanced 5nm architecture
• High I/O bandwidth
• Optimized power efficiency

This platform is ideal for AI workloads, virtualization, big data analytics, and enterprise applications.

12-Channel DDR5 Memory Architecture

The MZ33-AR1 features 24 DIMM slots supporting DDR5 RDIMM modules across 12 memory channels, ensuring maximum memory bandwidth and scalability.

Memory capabilities include:

• Up to 5200 MT/s with EPYC 9005 processors
• Up to 4800 MT/s with EPYC 9004 processors
• Support for high-capacity memory configurations
• Enhanced power efficiency and performance

This configuration is ideal for memory-intensive workloads such as virtualization, database processing, and real-time analytics.

PCIe Gen5 Expansion for Next-Gen Workloads

To support modern accelerators and storage devices, the MZ33-AR1 includes four PCIe Gen5 x16 expansion slots, delivering ultra-high bandwidth connectivity.

Benefits of PCIe Gen5:

• Double bandwidth compared to Gen4
• Lower latency for compute-intensive applications
• Support for GPUs, FPGAs, and high-speed NICs

This makes the motherboard highly suitable for AI training, HPC, and GPU-intensive workloads.

Flexible Storage with MCIO and NVMe Support

The MZ33-AR1 offers extensive storage flexibility through multiple MCIO connectors and M.2 support.

Storage highlights:

• 2 x MCIO connectors for Gen5 NVMe or SATA
• 3 x MCIO connectors for Gen5 NVMe
• 1 x MCIO connector for Gen4 NVMe
• 1 x M.2 PCIe Gen4 slot for OS or boot drive

This allows deployment of high-speed NVMe storage arrays or hybrid storage configurations, supporting both performance and capacity needs.

High-Speed Networking with Dual 10GbE LAN

Networking performance is critical in data centers, and the MZ33-AR1 delivers with dual 10GbE LAN ports powered by Broadcom BCM57416.

Networking features:

• 2 x 10Gb Ethernet ports
• Dedicated management LAN
• NCSI support for remote management

These capabilities ensure reliable, high-speed connectivity for enterprise workloads.

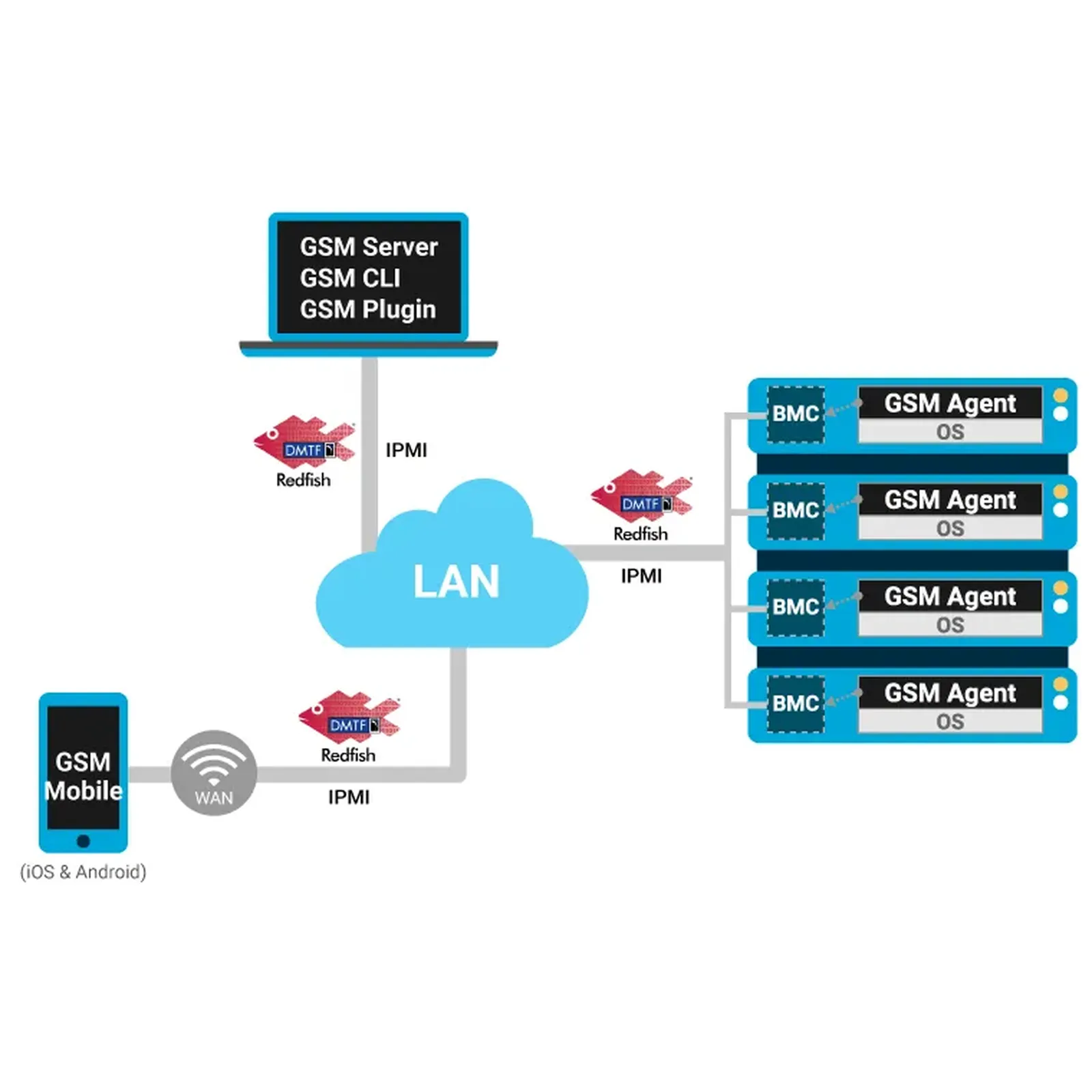

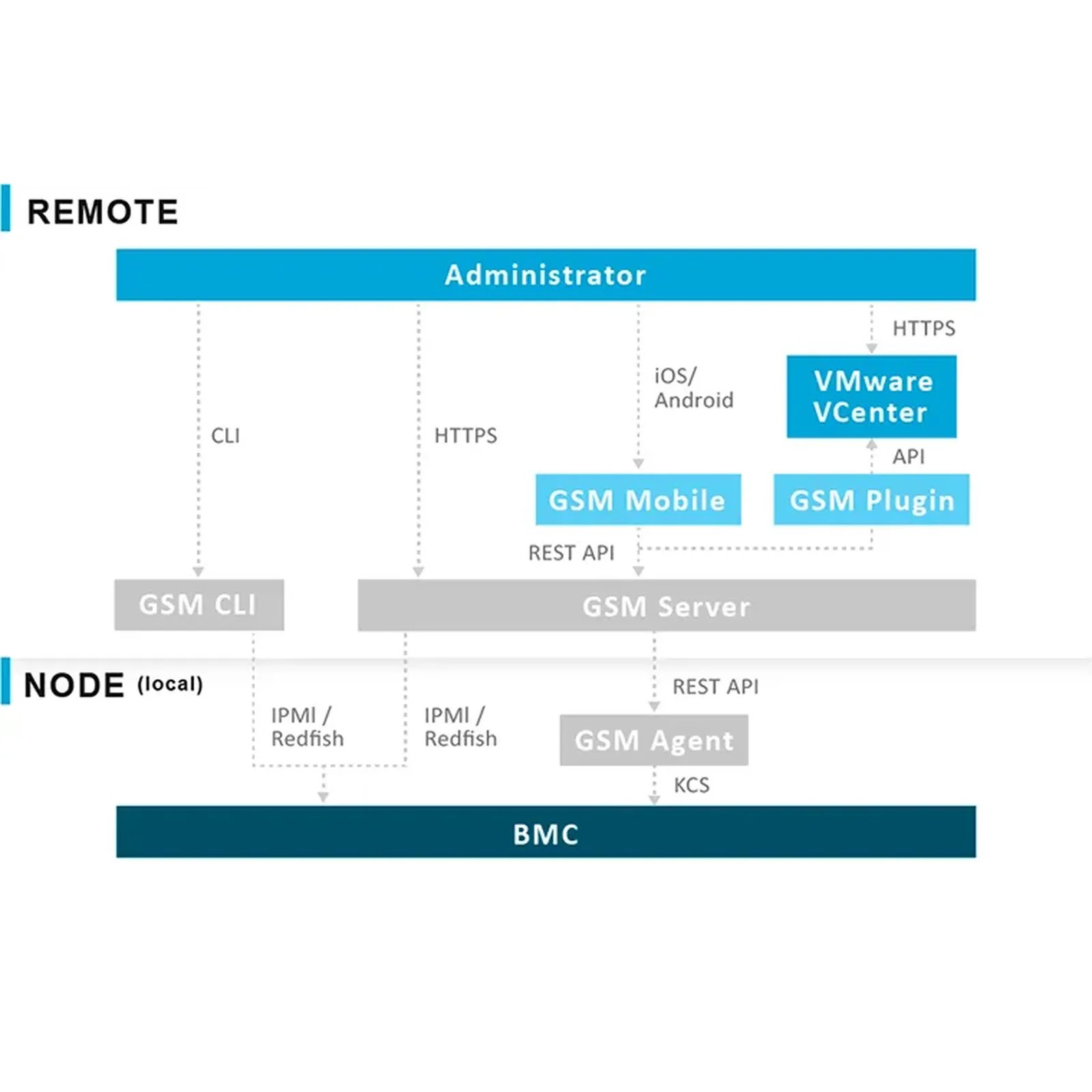

Advanced Server Management with AST2600 BMC

The motherboard integrates the ASPEED AST2600 Baseboard Management Controller (BMC), enabling comprehensive remote management capabilities.

Key features include:

• HTML5-based remote KVM
• Real-time hardware monitoring
• Power control and power capping
• Remote firmware updates
• Event logging and alert system

This allows administrators to manage servers remotely, reducing operational complexity and downtime.

Robust Power and Thermal Design

Designed to support high-performance CPUs up to 500W TDP, the MZ33-AR1 incorporates a robust power delivery system and efficient thermal design.

Highlights:

• 24-pin ATX power connector
• Dual 8-pin CPU power connectors
• Additional 6-pin power connector
• Multiple fan headers for airflow optimization

This ensures system stability under heavy workloads.

Comprehensive I/O Connectivity

The MZ33-AR1 provides a wide range of connectivity options for flexibility in server deployments.

Rear I/O includes:

• 2 x USB 3.2 Gen1 ports
• VGA output
• Serial port
• Dual RJ45 LAN ports
• Dedicated management LAN port

Internal I/O includes:

• Multiple MCIO connectors
• USB headers
• TPM header for security
• Fan and system connectors

Enterprise Security and Reliability

Security is essential in enterprise environments, and the MZ33-AR1 supports TPM 2.0 modules for enhanced data protection.

Additional reliability features:

• Enterprise-grade components
• Long lifecycle support
• Stable firmware ecosystem
• Compatibility with major operating systems

Wide OS Compatibility

The motherboard supports a variety of enterprise operating systems, including:

• Microsoft Windows Server
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• Ubuntu
• VMware ESXi
• Citrix Hypervisor

This ensures flexibility for different IT environments.

Ideal Applications

The MZ33-AR1 is optimized for a wide range of use cases:

• Cloud computing infrastructure
• Virtualization platforms
• High-performance computing (HPC)
• Artificial intelligence and machine learning
• Enterprise databases
• Edge computing

Conclusion

The GIGABYTE MZ33-AR1 motherboard is a powerful and future-ready server solution designed for AMD EPYC™ 9004 and 9005 processors. With support for DDR5 memory, PCIe Gen5 expansion, flexible storage, and advanced remote management, it delivers outstanding performance and scalability.

Whether you are building cloud infrastructure or deploying AI workloads, the MZ33-AR1 provides the reliability and efficiency required for modern data centers.
