The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

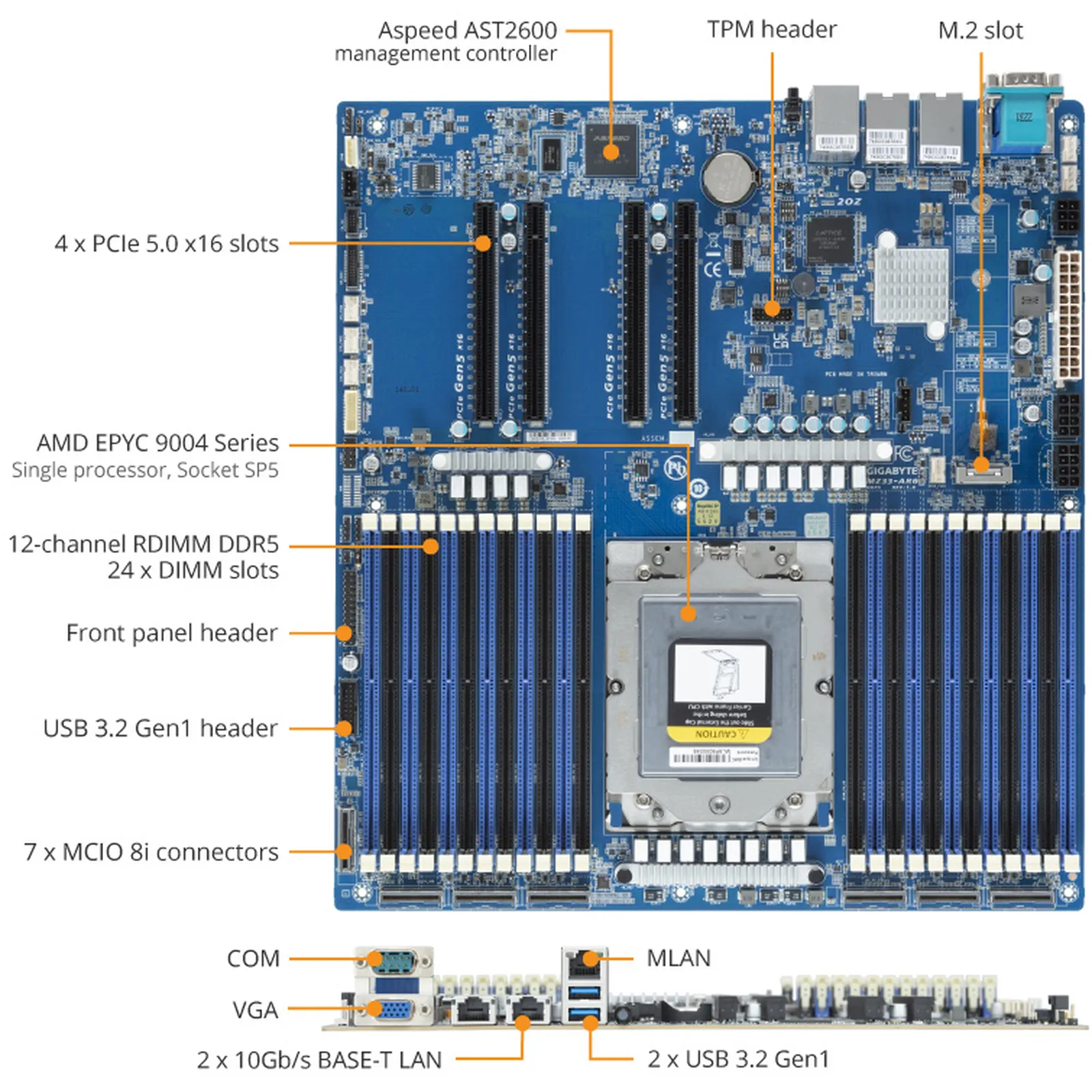

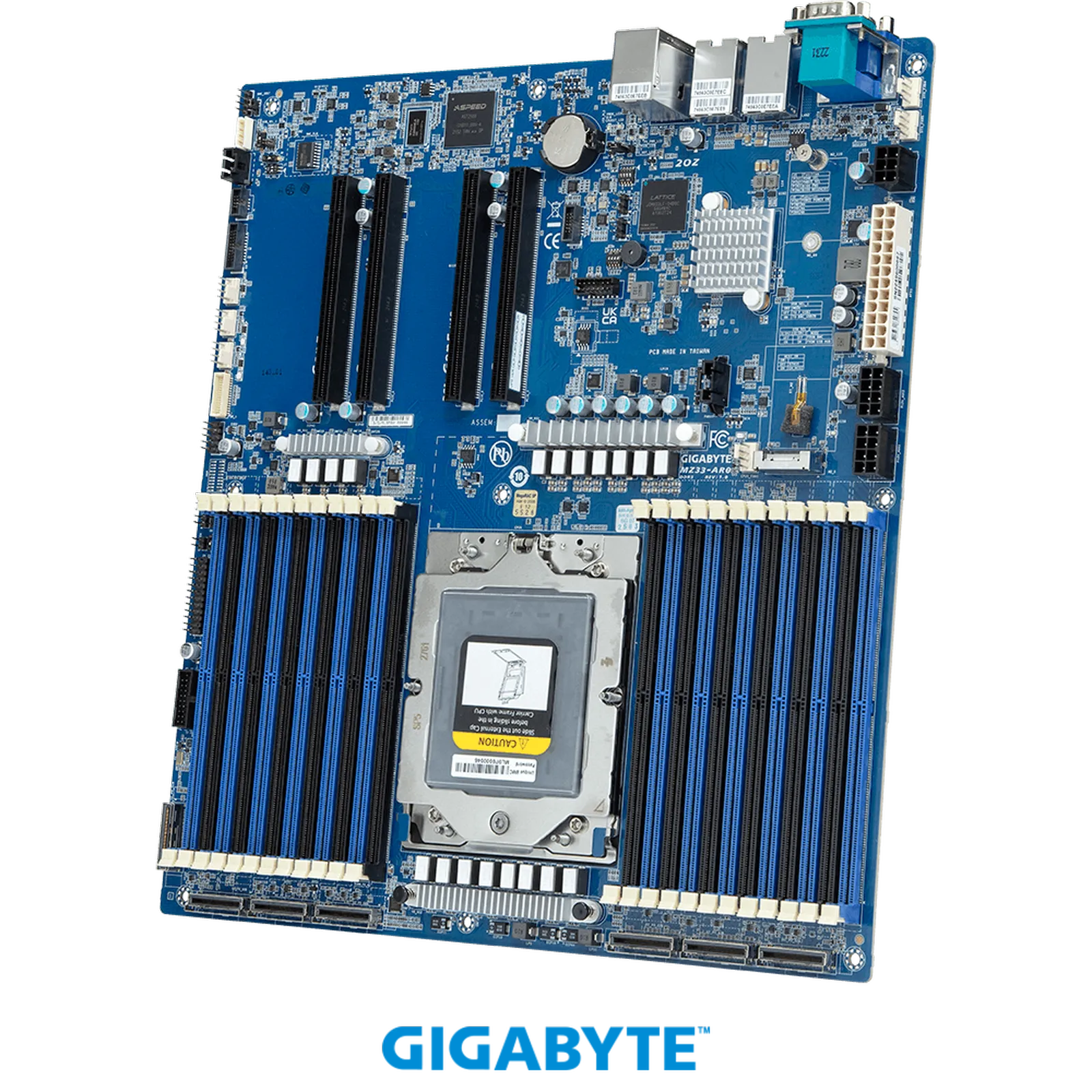

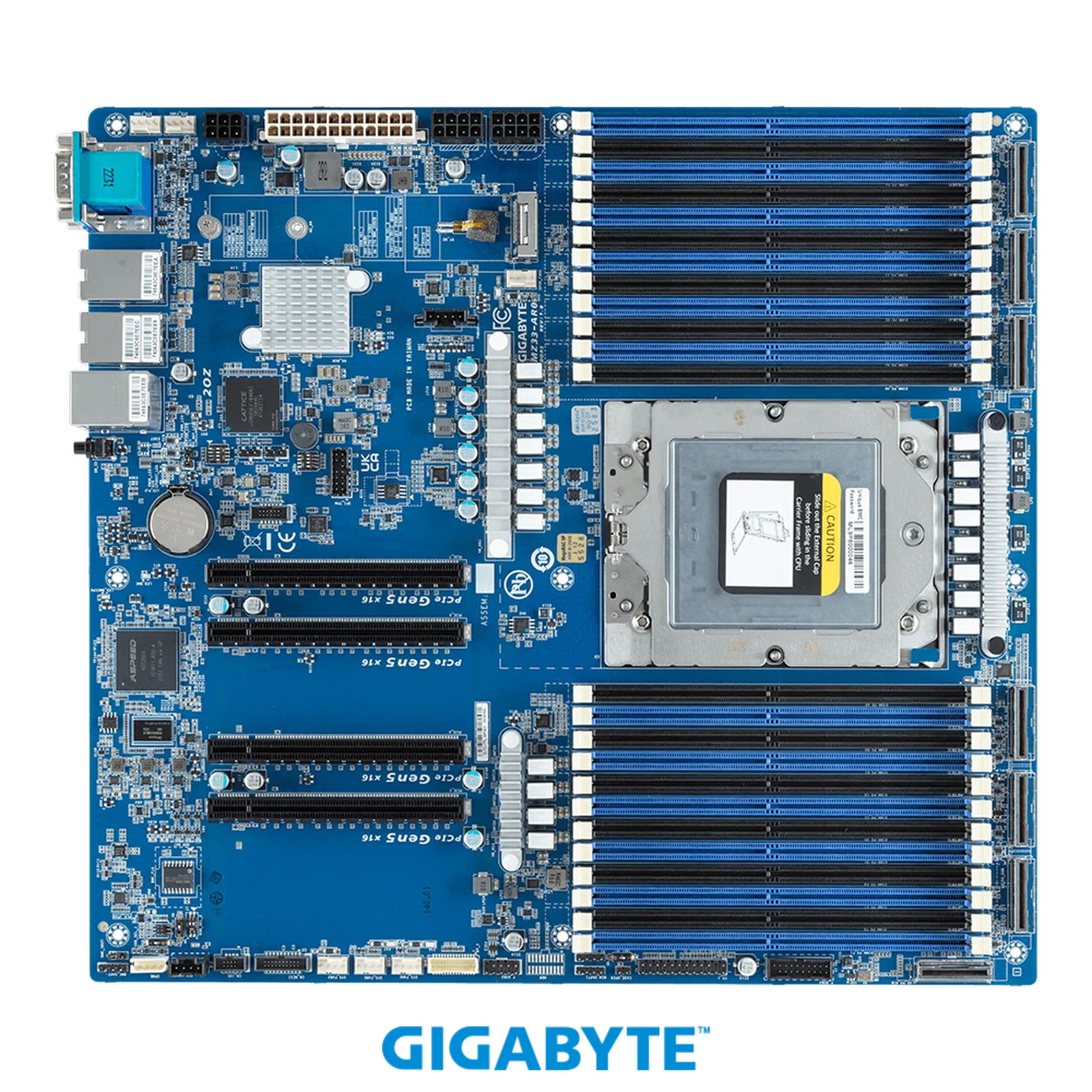

Overview of MZ33-AR0 Server Motherboard

The GIGABYTE MZ33-AR0 motherboard is a high-performance single-socket (UP) server platform engineered to support the latest AMD EPYC™ 9004 and 9005 series processors. Built on the SP5 socket architecture, this motherboard is designed for enterprise data centers, cloud computing, virtualization, and high-performance computing (HPC) workloads.

With its E-ATX form factor and cutting-edge PCIe Gen5 support, the MZ33-AR0 provides exceptional scalability, high bandwidth, and advanced system flexibility. It enables organizations to deploy next-generation infrastructure capable of handling data-intensive applications with maximum efficiency.

Powerful AMD EPYC™ 9004 Platform

At the core of the MZ33-AR0 lies support for AMD EPYC™ 9004 series processors, built on advanced 5nm architecture. This platform delivers significant improvements in performance-per-watt, core density, and memory bandwidth.

The motherboard supports a single SP5 socket with configurable TDP up to 400W, making it ideal for compute-heavy workloads such as AI inference, virtualization, and database management systems.

Key benefits include:

• High core count for parallel workloads
• Optimized energy efficiency
• Advanced I/O capabilities
• Future-ready support for EPYC 9005 CPUs (BIOS dependent)

Advanced DDR5 Memory Architecture

The MZ33-AR0 features a robust 12-channel DDR5 memory architecture with 24 DIMM slots, delivering exceptional memory bandwidth and scalability.

DDR5 memory support ensures:

• Faster data transfer rates up to 4800 MT/s
• Improved power efficiency
• Higher capacity for large datasets
• Enhanced performance for virtualization and analytics

This configuration enables enterprises to deploy memory-intensive applications such as in-memory databases and real-time analytics platforms.

PCIe Gen5 Expansion for Maximum Scalability

To meet the demands of modern data centers, the MZ33-AR0 is equipped with four PCIe Gen5 x16 expansion slots. These slots provide ultra-high bandwidth connectivity for GPUs, accelerators, storage controllers, and networking cards.

PCIe Gen5 advantages:

• Double the bandwidth of PCIe Gen4
• Reduced latency for high-speed workloads
• Support for next-generation GPUs and AI accelerators

This makes the motherboard an excellent choice for AI, machine learning, and HPC environments.

Flexible Storage Connectivity with MCIO and NVMe

Storage flexibility is one of the standout features of the MZ33-AR0. It includes multiple MCIO connectors supporting PCIe Gen5 and Gen4 interfaces, enabling extensive NVMe and SATA configurations.

Storage highlights:

• Up to 8 x Gen5 NVMe drives via MCIO
• Additional Gen4 NVMe support
• Up to 16 SATA devices supported
• 1 x M.2 PCIe Gen4 slot for OS or boot drive

This flexible storage design allows users to build high-speed storage arrays for data-intensive workloads.

High-Speed Networking Capabilities

The MZ33-AR0 comes equipped with dual 10GbE LAN ports powered by Broadcom BCM57416, ensuring high-speed and reliable network connectivity.

Networking features include:

• 2 x 10Gb/s Ethernet ports
• Dedicated management LAN port
• Support for NCSI for remote management

These capabilities make the motherboard ideal for cloud environments, enterprise networking, and distributed systems.

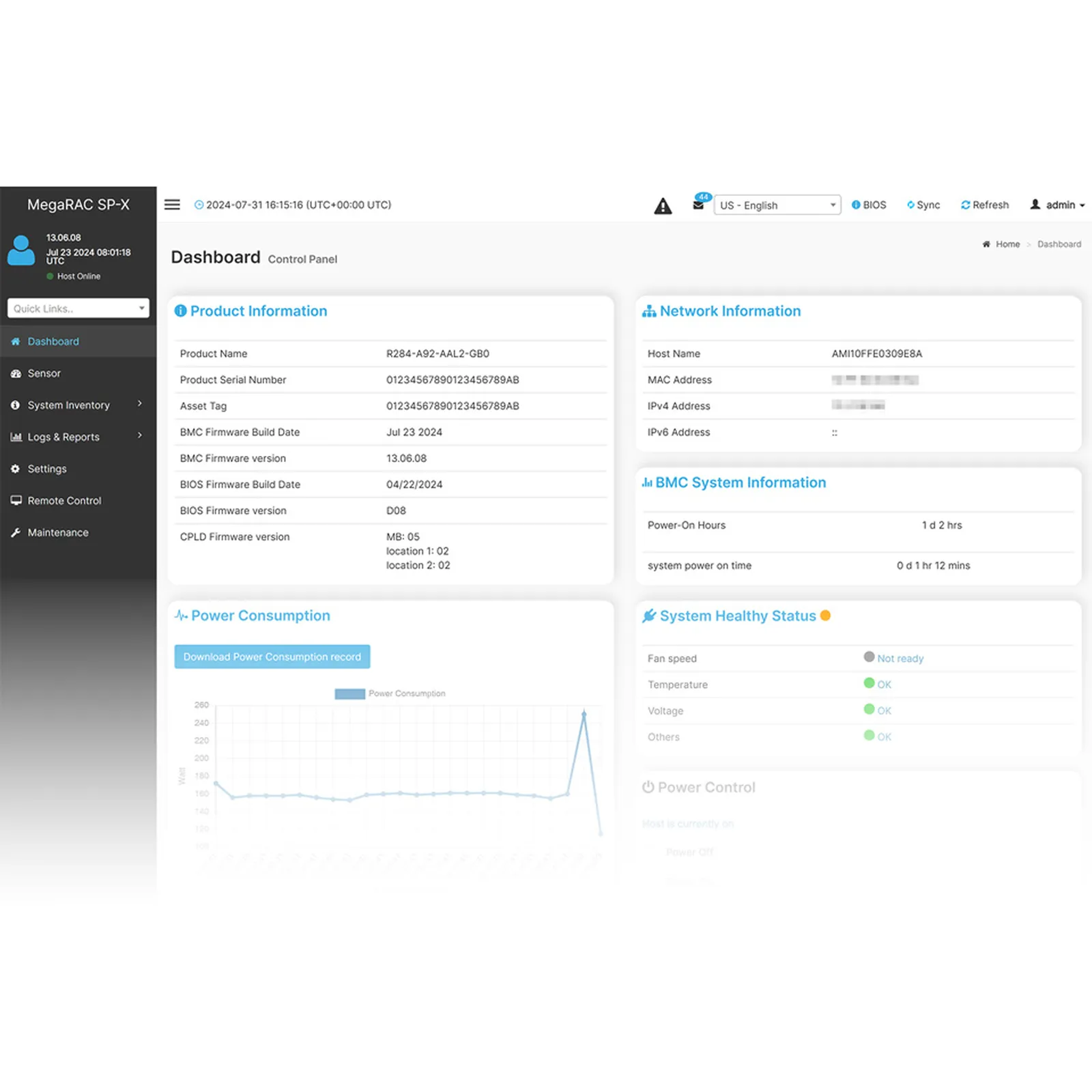

Intelligent Server Management with BMC

The motherboard integrates an ASPEED AST2600 Baseboard Management Controller (BMC), offering advanced remote management capabilities.

Management features:

• HTML5-based remote KVM
• Hardware monitoring (temperature, voltage, fan speed)
• Power control and power capping
• Remote BIOS and firmware updates
• Event logging and alerting

This allows IT administrators to efficiently monitor and manage systems remotely, reducing downtime and operational costs.

Optimized Thermal and Power Design

The MZ33-AR0 is engineered for efficient thermal performance and stable power delivery, supporting high-TDP processors and demanding workloads.

Key design features:

• Multiple fan headers for airflow optimization
• High-efficiency power connectors
• Support for 400W CPUs
• Enterprise-grade reliability

This ensures stable operation even under continuous heavy workloads.

Versatile I/O and Connectivity Options

The motherboard includes a wide range of internal and external I/O options to support various enterprise configurations.

Rear I/O includes:

• USB 3.2 ports
• VGA output
• Serial port
• Dual RJ45 LAN ports
• Management LAN port

Internal connectors include:

• MCIO connectors for storage
• USB headers
• TPM header for security
• Fan and power connectors

This versatility allows seamless integration into different server chassis and configurations.

Ideal Use Cases

The GIGABYTE MZ33-AR0 is designed for a variety of enterprise and data center applications:

• Cloud computing infrastructure
• Virtualization platforms
• High-performance computing (HPC)
• AI and machine learning workloads
• Enterprise databases
• Edge computing solutions

Its combination of performance, scalability, and reliability makes it a future-proof solution for modern IT environments.

Reliability and Enterprise-Grade Build

GIGABYTE is known for delivering high-quality server hardware, and the MZ33-AR0 is no exception. It is built with enterprise-grade components and undergoes rigorous validation to ensure stability and longevity.

Benefits include:

• Long lifecycle support
• Firmware and BIOS updates
• Compatibility with major operating systems
• Reliable performance in mission-critical environments

Conclusion

The MZ33-AR0 motherboard is a powerful, flexible, and scalable platform designed to meet the needs of modern data centers. With support for AMD EPYC™ 9004 processors, DDR5 memory, PCIe Gen5 expansion, and advanced management features, it provides an ideal foundation for high-performance computing environments.

Whether you are building cloud infrastructure, AI systems, or enterprise servers, the MZ33-AR0 delivers the performance and reliability required for next-generation workloads.

✅ Specifications Sheet
