Introduction to Gigabyte MU72‑SU0 Server Motherboard

The Gigabyte MU72‑SU0 (Rev. 1.x / 2.x) is a robust, ATX form‑factor single‑socket (UP) server motherboard engineered to deliver reliable, high‑performance computing for modern data centers, edge deployments, and professional workstations. Built around Intel’s 3rd Gen Xeon Scalable (Ice Lake) and Xeon W‑3300 processor families, this platform combines advanced CPU performance, high‑speed I/O, expandable memory, enterprise‑grade storage, and comprehensive remote management. Designed for 24/7 operation, the MU72‑SU0 addresses compute‑intensive workloads including virtualization, cloud computing, AI inference, high‑performance computing (HPC), media processing, data analytics, and storage servers. With a stable Intel C621A chipset, PCIe 4.0 connectivity, and server‑grade management features, the MU72‑SU0 provides a scalable, secure, and cost‑effective foundation for single‑socket server deployments.

Powerful CPU Support: 3rd Gen Intel Xeon Scalable & Xeon W‑3300

At the heart of the MU72‑SU0 is support for single 3rd Gen Intel Xeon Scalable processors and Intel Xeon W‑3300 workstation processors, using the LGA 4189 (Socket P+) interface. Built on Intel 10nm process technology, these CPUs deliver exceptional multi‑threaded performance, high core counts, and strong per‑core efficiency. The platform supports CPUs with TDP up to 270W, accommodating high‑core configurations for demanding workloads. 3rd Gen Xeon Scalable CPUs offer up to 40 cores per socket, improved IPC, and enhanced UPI interconnects for low‑latency CPU communication. These processors include Intel DL Boost technology to accelerate AI inference and training tasks, making the board ideal for machine learning and deep learning applications. The Xeon W‑3300 series is optimized for professional workstation users, supporting up to 38 cores, 76 threads, and 4.0 GHz turbo frequencies, with strong support for Intel AVX‑512 instructions. This makes the MU72‑SU0 suitable for architecture, engineering, media & entertainment, and data science workloads. Combined with hardware‑enabled security features, including cryptographic accelerators, memory encryption, and Intel Software Guard Extensions (SGX), the platform ensures data integrity and protection for sensitive workloads.

High‑Speed Memory Architecture & Persistent Memory Support

The MU72‑SU0 features an 8‑channel DDR4 memory architecture with 8 DIMM slots, supporting RDIMM, LRDIMM, and 3DS RDIMM/LRDIMM modules. Memory speeds up to DDR4‑3200 MT/s are supported, with capacities up to 128GB per RDIMM/LRDIMM and 256GB per 3DS module, enabling exceptional memory bandwidth and capacity for memory‑bound applications. The board supports Intel Optane Persistent Memory 200 series, offering two operational modes—App Direct Mode for persistent storage and Memory Mode for expanded volatile capacity. This allows users to balance high‑speed RAM and large persistent storage pools, accelerating big data processing, in‑memory databases, and storage‑intensive workloads. Sub NUMA Clustering (SNC) and Hemisphere (HEMI) modes optimize memory routing and latency, further boosting real‑world performance in virtualized and multi‑tasking environments.

Extensive I/O & Expansion: PCIe 4.0, Storage, and Connectivity

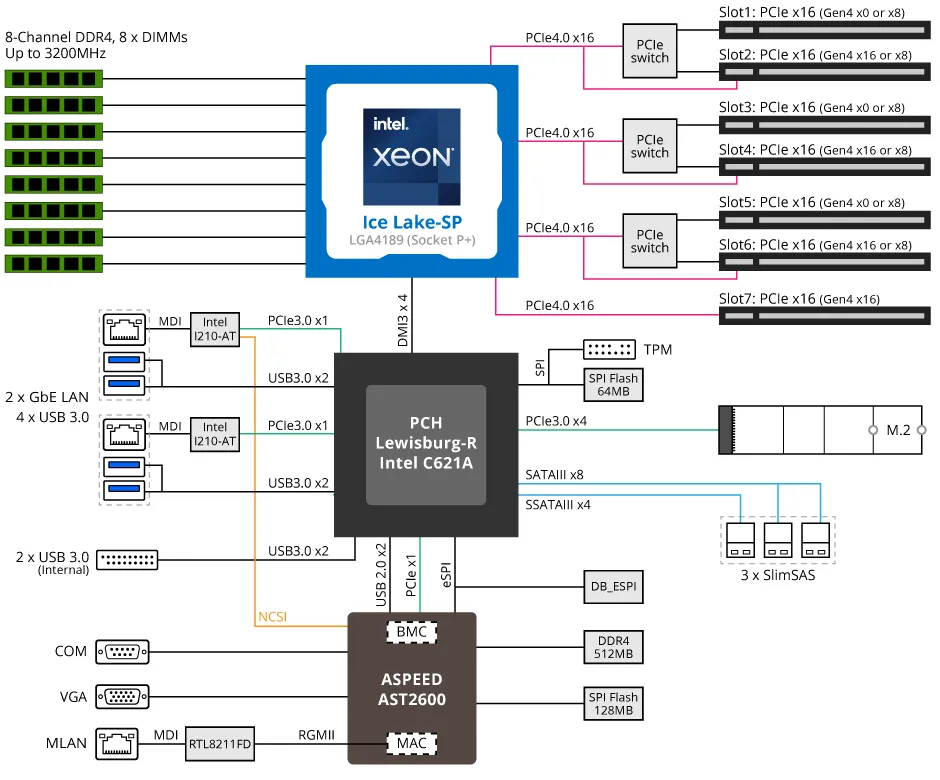

The MU72‑SU0 provides exceptional expansion and connectivity via PCIe 4.0, high‑speed storage, and versatile I/O. It includes seven PCIe Gen4 slots (x16 and x8 configurations), delivering twice the throughput of PCIe 3.0 for high‑speed GPUs, NVMe storage adapters, network cards, and hardware accelerators. Some slots are shared to maintain flexible lane allocation, supporting diverse adapter configurations. For storage, the board uses three SlimSAS connectors supporting 12 SATA 6Gb/s ports, with Intel SATA RAID 0/1/10/5 for data protection and disk aggregation. A dedicated M.2 slot (M‑key, PCIe Gen3 x4) supports 2280 form‑factor NVMe SSDs for fast boot, OS deployment, or caching, improving system responsiveness and reliability. Networking includes dual Intel I210‑AT 1Gb/s LAN ports for high‑speed data transfer and a dedicated 10/100/1000 Mbps management LAN (MLAN) port for out‑of‑band server control. Rear I/O offers four USB 3.0 ports, VGA, COM, and an ID button with LED for easy server identification. Internal connectors include 24‑pin ATX, 8‑pin and 6‑pin 12V power, multiple fan headers, USB 3.0, TPM, PMBus, IPMB, and front panel headers for enterprise integration.

Enterprise Management & Security

The MU72‑SU0 integrates enterprise‑grade server management and hardware security for reliable deployment and maintenance. It uses the Aspeed AST2600 management controller with Gigabyte Management Console (AMI MegaRAC SP‑X), a browser‑based interface supporting HTML5 KVM, sensor monitoring, hardware inventory, event logging, user management, power control, and remote BIOS/BMC/CPLD updates. The system supports IPMI and Redfish standards for integration into data center management platforms. Gigabyte Server Management (GSM) suite enables remote cluster management via GUI, CLI, mobile app (Android/iOS), and plugins for VMware vCenter. Automatic event recording captures system behavior 30 seconds before faults, simplifying troubleshooting. For security, an optional SPI TPM 2.0 module (CTM010) securely stores encryption keys, passwords, and certificates, strengthening hardware‑based authentication and data protection. The board supports LDAP, AD, RADIUS, and system firewall features for secure access control.

Operating Conditions & Compatibility

Designed for server‑grade reliability, the MU72‑SU0 operates at 10°C–40°C with 8–80% non‑condensing humidity, and withstands storage from ‑40°C to 60°C. It supports major operating systems: Windows Server 2016–2022, Red Hat Enterprise Linux 7.9–9.0, SUSE Linux Enterprise Server 12 SP5–15 SP2, Ubuntu 20.04–22.04 LTS, VMware ESXi 6.7–8.0, and Citrix Hypervisor 8.2.0+. This broad compatibility ensures seamless deployment in heterogeneous IT environments.

Ideal Use Cases

The MU72‑SU0 is ideal for single‑socket servers in edge computing, small to medium data centers, virtualization hosts, storage servers, AI workstations, media servers, and HPC nodes. Its combination of strong CPU performance, large memory, PCIe 4.0 expansion, and enterprise management makes it a versatile choice for IT teams building reliable, scalable infrastructure.

Conclusion

The Gigabyte MU72‑SU0 server motherboard delivers professional‑grade performance, expandability, and security for modern single‑socket server and workstation applications. With 3rd Gen Intel Xeon support, 8‑channel DDR4, PCIe 4.0, flexible storage, and robust management, it provides a future‑proof platform for mission‑critical workloads. Whether for data centers, edge deployments, or high‑end workstations, the MU72‑SU0 combines stability, performance, and value to meet demanding enterprise requirements.
