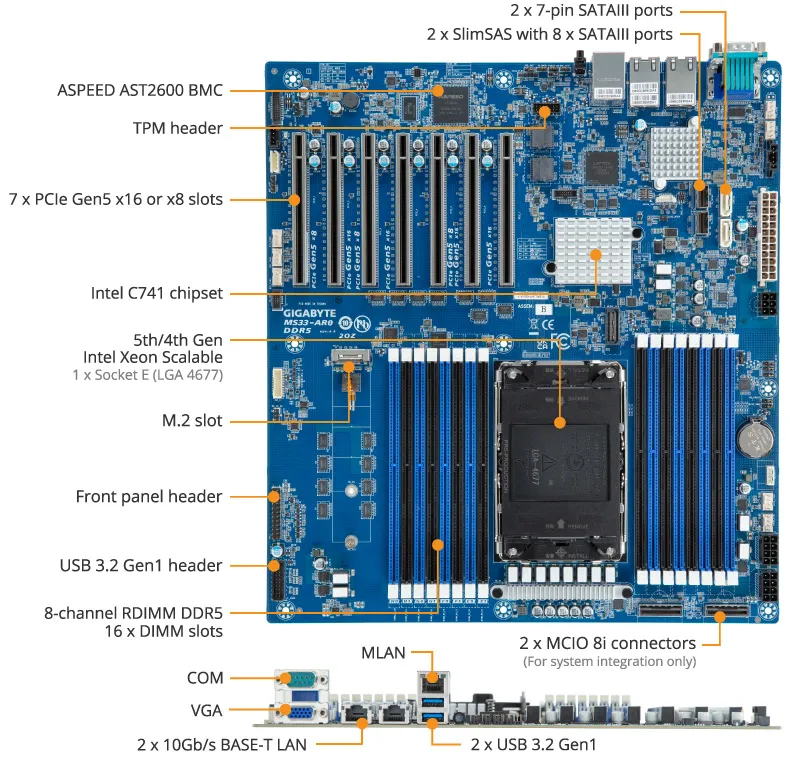

• Single 5th/4th Gen Intel^® Xeon^® Scalable Processors
• Single Intel^® Xeon^® CPU Max Series
• 8-Channel DDR5 RDIMM, 16 x DIMMs
• Intel^® C741 Chipset
• 2 x 10Gb/s LAN ports via Intel^® X710-AT2
• 2 x MCIO 8i connectors with PCIe Gen5 x8 interface
• 2 x SlimSAS 4i connectors with SATA interface
• 2 x SATA 7-pin ports
• 1 x M.2 slot with PCIe Gen3 x4 interface
• 7 x PCIe Gen5 x16 and x8 expansion slots

Introduction: Enterprise‑Grade Platform for Modern Workloads

The Gigabyte MS33‑AR0 (Rev. 1.x/3.x) is a high‑end E‑ATX single‑processor server motherboard engineered to unlock the full potential of 5th and 4th Generation Intel Xeon Scalable processors as well as the Intel Xeon CPU Max Series. Designed for mission‑critical deployments, this board combines leading computing performance, massive memory bandwidth, next‑generation I/O expansion, and robust server‑class management features. It addresses the demands of modern data centers, virtualization platforms, cloud computing, hyper‑converged infrastructure, high‑performance computing (HPC), database servers, and storage servers. Built with the Intel C741 chipset and validated for enterprise stability, the MS33‑AR0 ensures long lifecycles, low power consumption under load, and strong compatibility with server operating systems including Windows Server 2022. Whether scaling enterprise applications, running virtual machines, or supporting high‑speed storage arrays, the MS33‑AR0 delivers a balanced, future‑ready foundation for diverse server environments.

Powerful Processor Compatibility & Performance

At the core of the MS33‑AR0 is support for single 5th/4th Gen Intel Xeon Scalable processors and Intel Xeon CPU Max Series processors, using the LGA 4677 (Socket E) interface. This platform supports CPUs with TDP up to 350W, enabling high‑core‑count, high‑frequency configurations that excel in multithreaded enterprise workloads. The 5th Gen Intel Xeon Scalable lineup enhances integer and floating‑point performance, accelerates AI inference tasks, and improves power efficiency compared to previous generations. Compatibility with 4th Gen Xeon Scalable CPUs ensures investment protection and smooth upgrades for existing infrastructure. The Intel Xeon CPU Max Series further boosts performance for memory‑bound workloads with large onboard high‑bandwidth memory. Combined with the Intel C741 chipset, the motherboard provides excellent I/O throughput, secure enterprise features, and extensive peripheral support. This processor ecosystem makes the MS33‑AR0 ideal for compute‑intensive roles such as virtualization hosts, application servers, rendering nodes, and real‑time analytics engines.

High‑Bandwidth DDR5 Memory Architecture

Memory performance is critical for server responsiveness and scalability, and the MS33‑AR0 excels with a robust 16‑DIMM DDR5 design supporting eight memory channels per processor. This configuration maximizes memory bandwidth and capacity to handle large virtual machine densities, in‑memory databases, and data‑intensive applications. For 5th Gen Intel Xeon Scalable CPUs, the board supports speeds up to 5600 MT/s in 1DPC mode and 4400 MT/s in 2DPC mode; 4th Gen Xeon and Xeon Max Series CPUs run at up to 4800 MT/s (1DPC) and 4400 MT/s (2DPC). With support for registered DDR5 RDIMMs, the platform delivers improved stability, signal integrity, and capacity over non‑registered modules. Enterprise deployments benefit from lower latency, higher throughput, and the ability to scale memory to meet expanding workload requirements. This high‑performance memory subsystem ensures the server maintains consistent performance under heavy multitasking and large data loads.

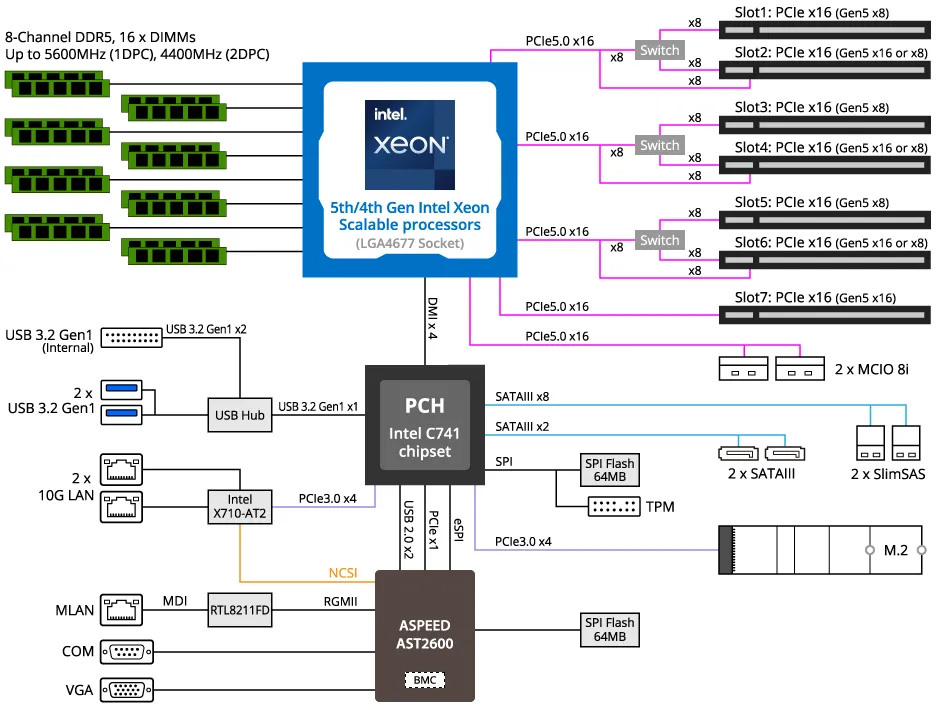

Next‑Gen PCIe Gen5 Expansion & Flexible I/O

The MS33‑AR0 brings next‑generation connectivity with a complete PCIe Gen5 expansion layout, delivering exceptional I/O bandwidth for compute accelerators, high‑speed NVMe storage, network adapters, and RAID controllers. It includes seven PCIe Gen5 x16/x8 slots with flexible lane allocation, with some slots shared to optimize usability for different expansion cards. Two MCIO 8i connectors with PCIe Gen5 x8 interface support fast NVMe SSD arrays for low‑latency storage. For traditional storage needs, two SlimSAS 4i connectors support up to eight SATA drives, plus two additional SATA 7‑pin ports. An onboard M.2 slot (2280/22110) with PCIe Gen3 x4 provides a compact boot drive solution for operating systems and hypervisors. This flexible I/O design lets administrators configure storage tiers, expand networking capabilities, add GPU or FPGA accelerators, and deploy high‑speed bus extensions without bottlenecks. The PCIe Gen5 infrastructure ensures readiness for future‑generation components, extending the server’s usable lifespan.

High‑Speed Networking & Server Management

Network performance and remote administration are central to enterprise server design, and the MS33‑AR0 integrates premium connectivity and management features. Dual 10GbE LAN ports powered by the Intel X710‑AT2 controller deliver high‑bandwidth, low‑latency networking with support for enterprise protocols and NCSI function. A dedicated 10/100/1000 Mbps management LAN (MLAN) port enables secure, out‑of‑band server control even when the main OS is offline. Board management relies on the ASPEED AST2600 Baseboard Management Controller (BMC), supporting a full‑featured Gigabyte Management Console web interface. This web UI provides real‑time dashboard monitoring, HTML5 KVM redirection, sensor readings for voltage, fan speed, and temperature, hardware inventory, FRU information, system event logs (SEL), fan profile control, power capping, user management, LDAP/AD/RADIUS integration, and remote updates for BIOS, BMC, and CPLD. These tools simplify 24/7 remote operation, reduce on‑site maintenance, speed up troubleshooting, and improve overall infrastructure reliability. A rear VGA port driven by the AST2600 supports local video output for direct configuration.

Storage, RAID, & Security Features

The MS33‑AR0 offers comprehensive storage capabilities to support diverse enterprise storage architectures. Intel SATA RAID 0/1/10/5 is supported onboard for traditional RAID configurations, and a VROC key header enables Intel Virtual RAID on CPU for high‑performance NVMe RAID without a separate controller card. This lowers latency, increases throughput, and simplifies storage virtualization. The board includes a TPM header with SPI interface supporting an optional TPM 2.0 module (CTM010) for hardware‑based security, encryption, and secure boot functions, protecting sensitive data and ensuring platform integrity. These features meet strict enterprise security standards for compliance in finance, healthcare, government, and cloud hosting.

Physical Design, Connectivity, & Environmental Reliability

Built in the E‑ATX form factor (304.8 mm × 330.2 mm), the MS33‑AR0 fits standard server chassis while providing ample space for components and cooling. Rear I/O includes two USB 3.2 Gen1 Type‑A ports, VGA, serial port, dual RJ45 10GbE, a dedicated management LAN port, and an ID button with LED. Internal connectors include a 24‑pin ATX power input, multiple 8‑pin and 6‑pin 12V power connectors for stable power delivery to high‑TDP CPUs and expansion cards, CPU and system fan headers, USB 3.2 Gen1 internal header, and control interfaces including PMBus, IPMB, and TPM. The board operates reliably in temperatures from 10°C to 40°C and humidity 8%–80% (non‑condensing), with non‑operating ranges of -40°C to 60°C and 20%–95% humidity. This rugged design ensures stable operation in data centers and edge environments.

Packaging & Deployment Ready

The MS33‑AR0 comes complete with an I/O shield, quick start guide, carrier brackets, and a SlimSAS 4i‑to‑4×SATA cable. Retail and bulk packaging options support both single‑unit deployment and large‑scale server rollouts. Certified for Windows Server 2022 and validated for enterprise Linux distributions, the board ensures broad OS compatibility for simplified deployment.

Conclusion

The Gigabyte MS33‑AR0 server motherboard is a premium, future‑ready platform that combines 5th/4th Gen Intel Xeon Scalable performance, 8‑channel DDR5, PCIe Gen5 expansion, dual 10GbE Intel LAN, and enterprise IPMI management. It delivers exceptional performance, scalability, security, and reliability for data centers, cloud infrastructure, virtualization, HPC, and storage servers. With robust I/O, flexible storage, remote management, and strict enterprise compatibility, the MS33‑AR0 is a trusted foundation for mission‑critical server deployments.
