Gigabyte MH53-G40 E-ATX Server Motherboard | AMD Threadripper PRO WRX90 PCIe 5.0

Introduction

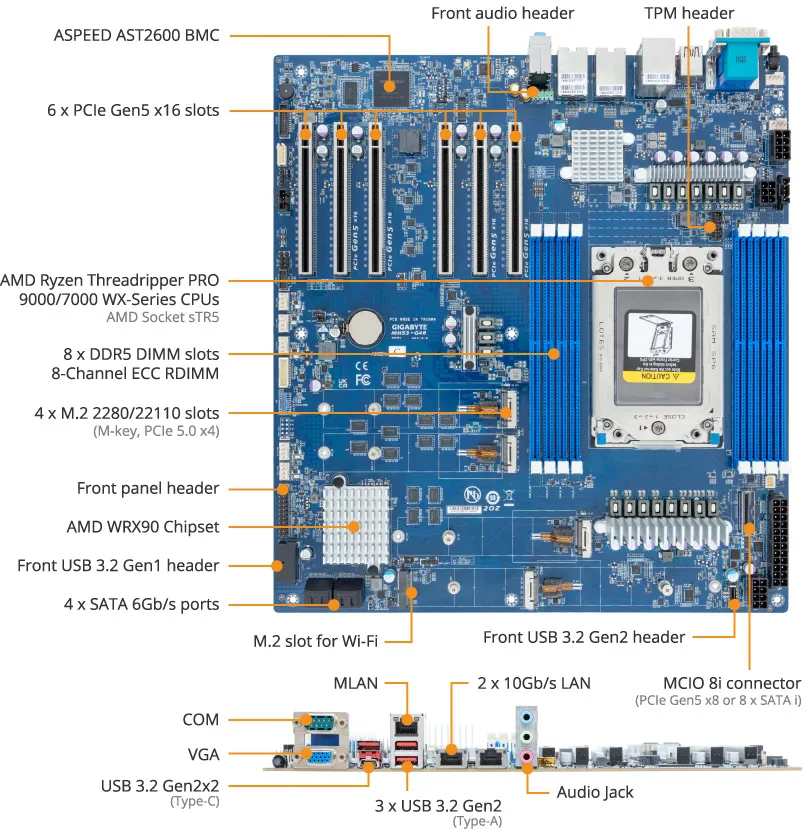

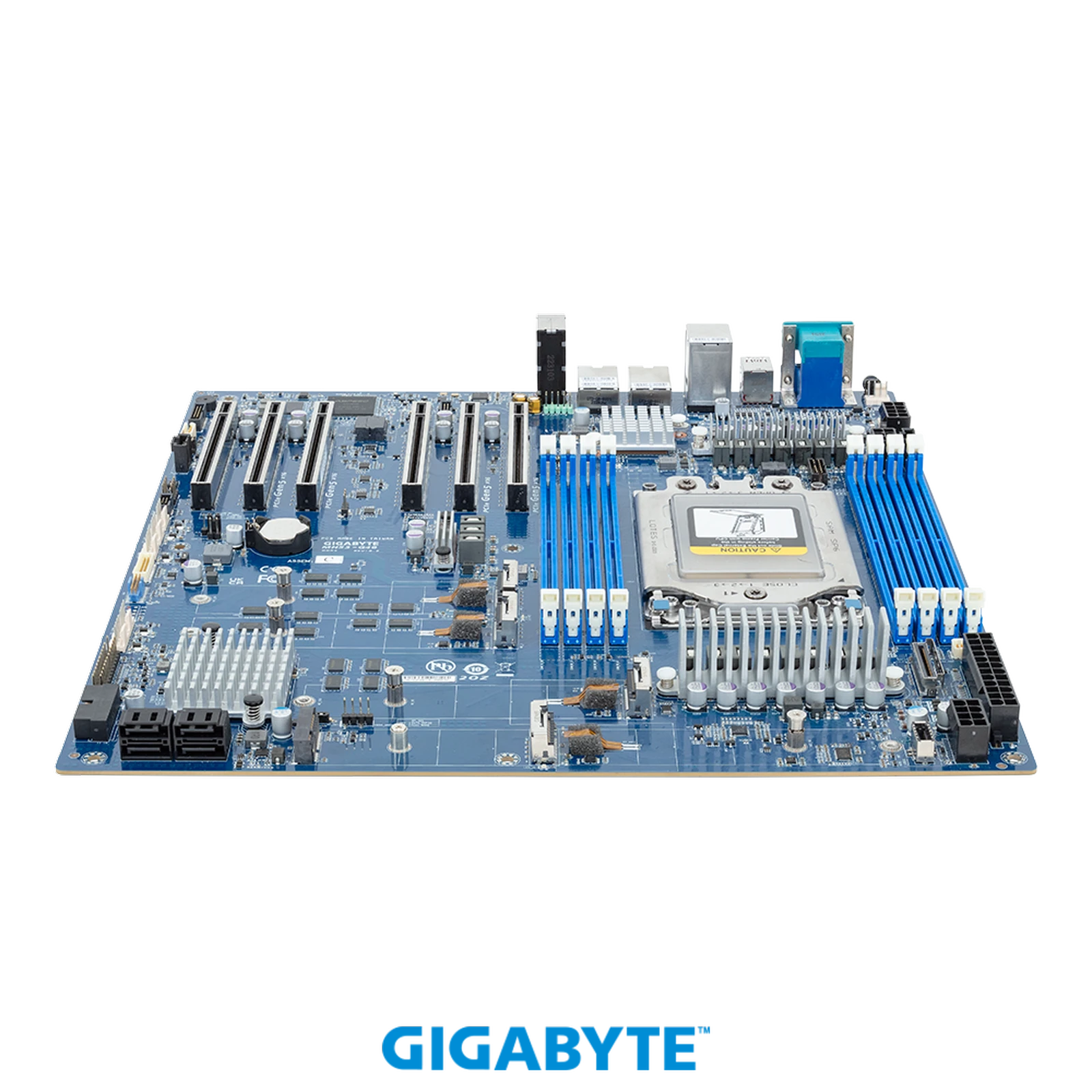

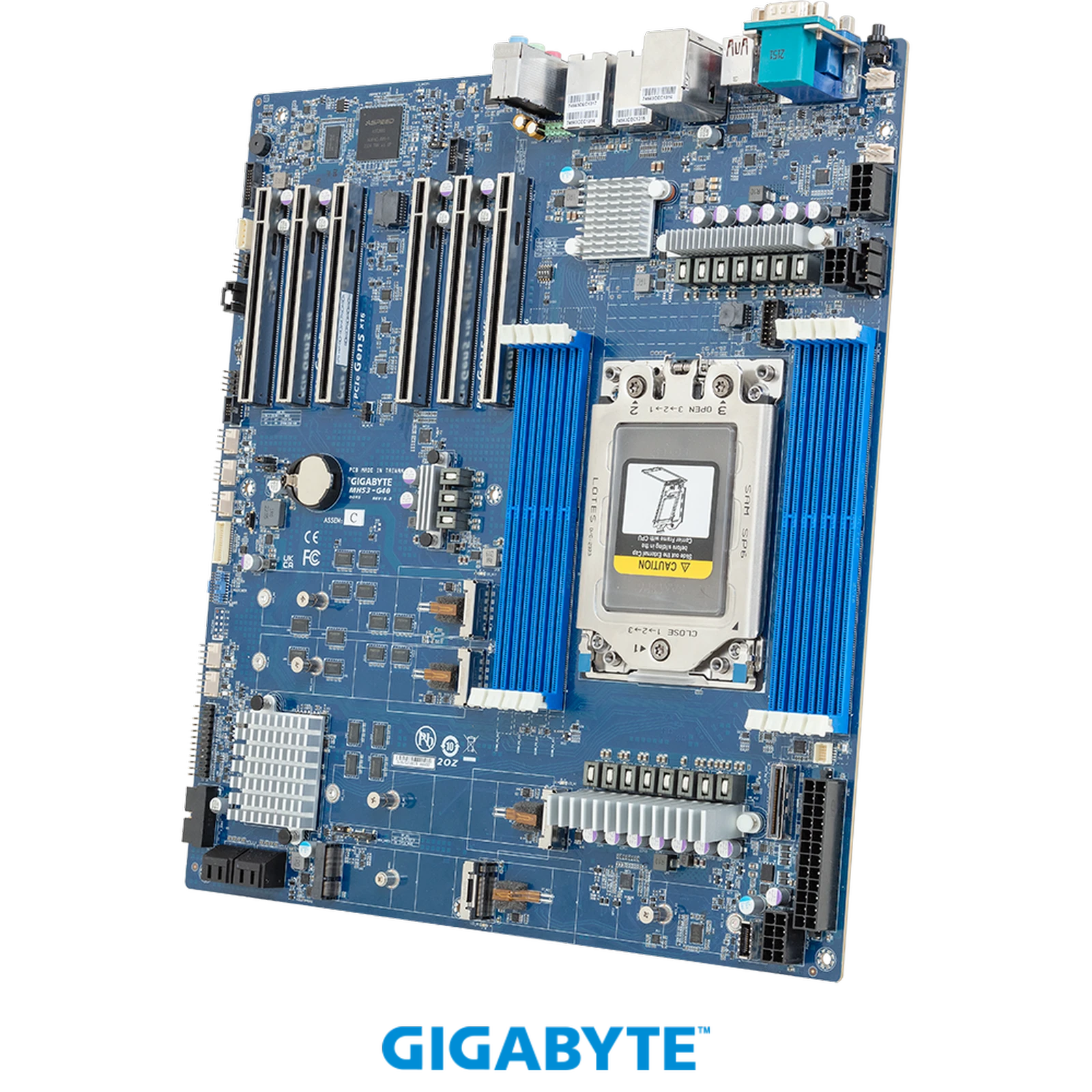

The Gigabyte MH53-G40 (Rev. 1.x/3.x) is a premium E‑ATX single‑socket server motherboard engineered to unlock the full potential of AMD Ryzen Threadripper PRO 9000 and 7000 WX‑series processors. Built around the high‑speed AMD WRX90 chipset, this platform combines extreme compute, vast memory bandwidth, massive PCIe 5.0 expansion, rich storage, enterprise connectivity, and robust server‑grade management. Designed for professional workstations, rendering clusters, simulation environments, generative design, and data‑intensive enterprise applications, the MH53-G40 delivers uncompromising performance, stability, and expandability for the most demanding workloads.

Unmatched Processing Power

At the core of the MH53-G40 is support for single AMD Ryzen Threadripper PRO 9000 WX‑series processors based on the 4nm Zen5 architecture, as well as the 7000 WX series. These CPUs deliver industry‑leading core counts, high boost clocks, exceptional IPC, and massive L3 cache per core to accelerate both lightly threaded and heavily threaded workloads. With a TDP support of up to 350W and the sTR5 socket, the board maintains stable power delivery and thermal headroom for sustained full‑load operation. Whether for 3D rendering, CAD/CAM, architectural visualization, engineering simulation, large‑scale compilation, or AI inference, the Threadripper PRO platform paired with the MH53-G40 sets a new standard for workstation performance.

High‑Bandwidth 8‑Channel DDR5 Memory

Memory bandwidth and capacity are critical for professional workloads, and the MH53-G40 features eight DDR5 DIMM slots supporting 8‑channel ECC RDIMM. Threadripper PRO 9000 WX CPUs support speeds up to 6400 MT/s, while 7000 WX models run at up to 5200 MT/s. ECC memory protection enhances system stability by detecting and correcting data errors, essential for long‑duration rendering, simulation, and server uptime. The 8‑channel architecture provides exceptional memory throughput to eliminate bottlenecks in large dataset processing, virtualization, and multi‑tasking across heavy applications.

Full PCIe Gen5 Expansion & Accelerator Support

The MH53-G40 leverages up to 128 PCIe 5.0 lanes from the Threadripper PRO CPU to enable extreme I/O expansion. It features six PCIe Gen5 x16 slots, supporting up to four dual‑slot accelerators such as high‑end GPUs or compute cards. This makes the board ideal for multi‑GPU configurations, AI training, video production, and parallel computing. The board uses low‑loss PCB materials, PCIe 5.0‑optimized slots, re‑drivers, and switches to preserve signal integrity and full bandwidth without compromise. Users can configure top‑tier workstation accelerators with confidence in sustained PCIe 5.0 performance.

Abundant High‑Speed Storage Interfaces

Storage flexibility is a highlight of the MH53-G40, with multiple interfaces for fast NVMe and high‑capacity SATA storage. Four M.2 slots (2280/22110) run PCIe Gen5 x4 directly from the CPU for ultra‑low latency and blistering read/write speeds. One MCIO 8i connector supports either two PCIe Gen5 NVMe drives or eight SATA 6Gb/s devices, configurable via BIOS. Four additional SATA 6Gb/s ports provide reliable high‑capacity storage. This mix of blazing‑fast NVMe for hot data and economical SATA for cold storage satisfies diverse enterprise storage needs in a single board.

Enterprise Connectivity & Network Performance

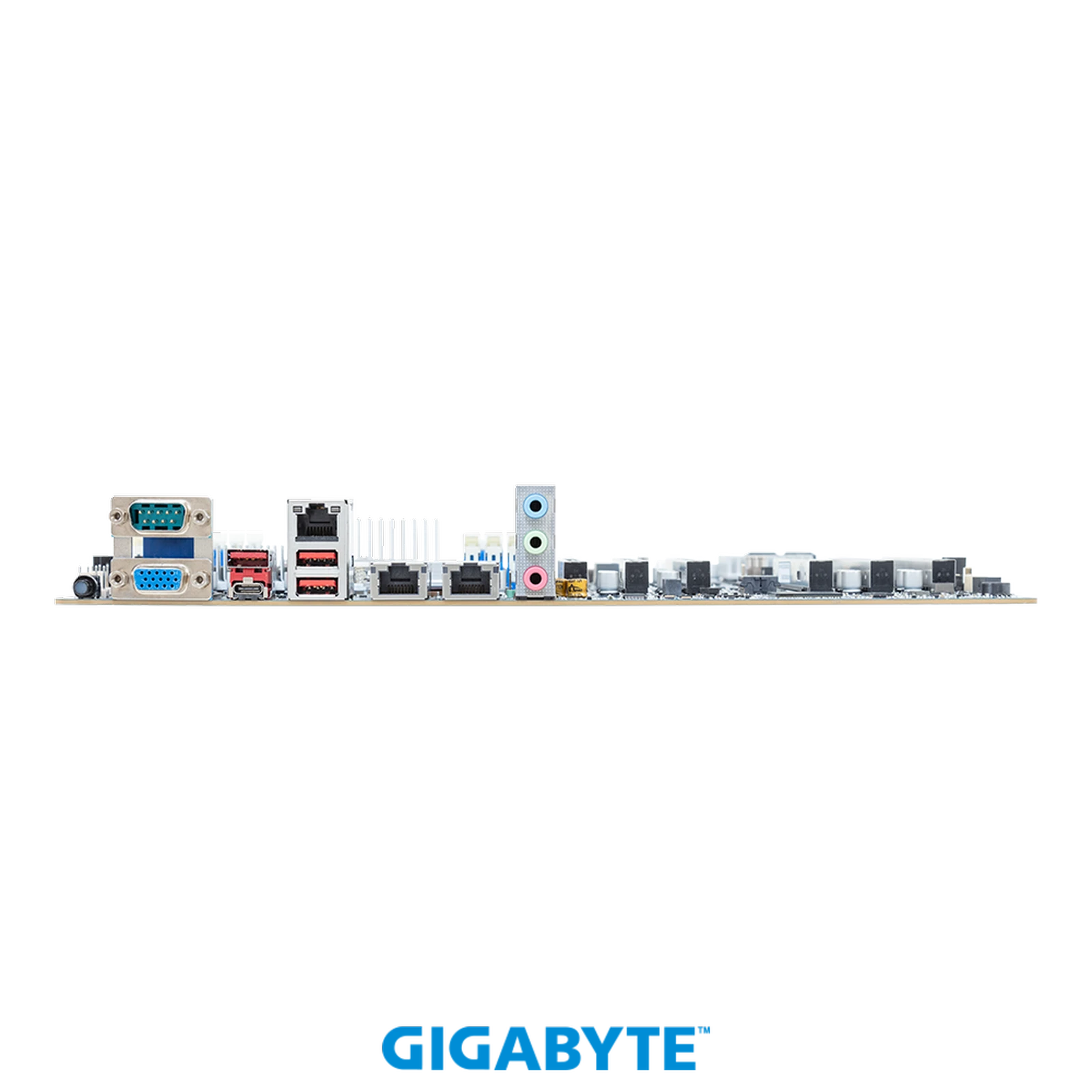

Network performance is enterprise‑ready with dual 10GbE LAN ports powered by the Broadcom BCM57416 controller. These ports offer broad interoperability, performance optimizations, and agility for cloud, communications, and IT infrastructure. A dedicated 10/100/1000 Mbps management LAN (MLAN) supports out‑of‑band server control, ensuring connectivity even when the main OS is offline. Rear I/O includes USB 3.2 Gen2x2 Type‑C, multiple USB 3.2 Gen2 Type‑A ports, a VGA port from the AST2600 BMC, a COM port, and audio jacks for versatile peripheral connectivity.

Server‑Grade Management & Security

The MH53-G40 includes an ASPEED AST2600 BMC for comprehensive baseboard management. The Gigabyte Management Console provides a browser‑based GUI for real‑time health monitoring, sensor tracking, HTML5 KVM, event logging, hardware inventory, fan control, power capping, user management, and remote BIOS/BMC/CPLD updates. It supports IPMI and Redfish standards for integration into data center management platforms. For hardware security, a TPM 2.0 header supports optional TPM modules to securely store encryption keys, passwords, and certificates, strengthening authentication and data protection.

Stable Power & Thermal Design

Stable power delivery is ensured by a robust power subsystem with one 24‑pin ATX main power connector, two 8‑pin ATX 12V connectors, and one 6‑pin ATX 12V connector to support high‑TDP CPUs and power‑hungry expansion cards. The board provides one CPU fan header and six system fan headers for flexible thermal control, supporting configurable fan profiles to balance cooling performance and acoustics. Operating conditions are rated for 10°C to 40°C, with non‑operating tolerance from -40°C to 60°C, ensuring reliability in diverse environments.

OS Compatibility & Deployment Ready

The MH53-G40 supports major operating systems including Windows 11, Red Hat Enterprise Linux, and Ubuntu, making it compatible with enterprise software stacks and professional applications. Retail and bulk packaging options simplify deployment for single workstations or large server rollouts. The bundle includes the motherboard, I/O shield, and quick start guide for straightforward installation.

Conclusion

The Gigabyte MH53-G40 is a complete, high‑performance server motherboard built for professional workstations and enterprise servers. With support for AMD Threadripper PRO 9000/7000 WX, 8‑channel DDR5, full PCIe Gen5 expansion, rich storage, dual 10GbE, AST2600 BMC, and robust security, it addresses the most demanding professional workloads. Whether for content creation, engineering, data science, or cloud infrastructure, the MH53-G40 delivers exceptional performance, reliability, and expandability in a standard E‑ATX form factor.
