Gigabyte ME03-CE1 Server Motherboard | AMD EPYC 8004 ATX 1Gb LAN

Introduction

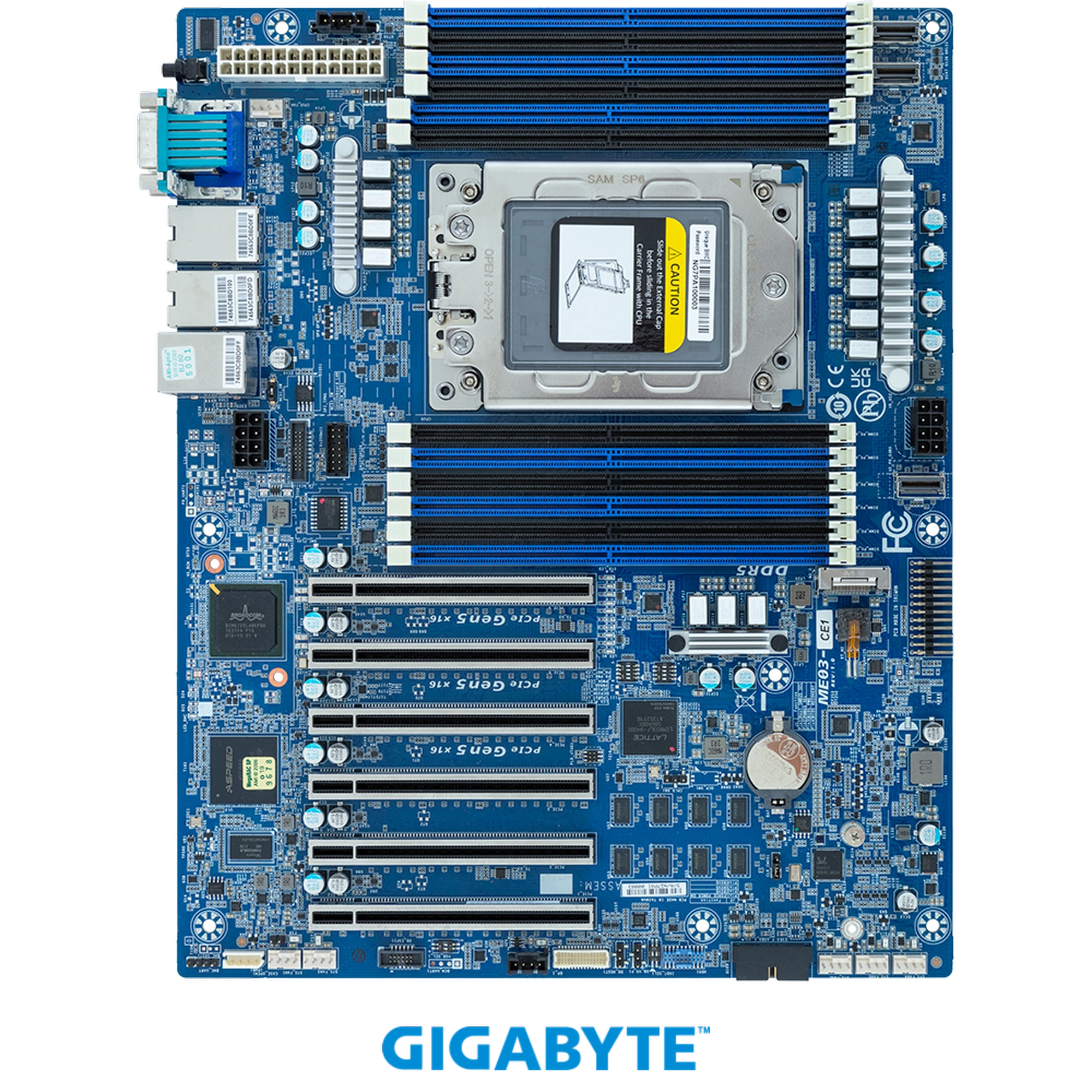

The Gigabyte ME03-CE1 Rev. 1.0 is a purpose‑built single‑socket UP ATX server motherboard engineered to unlock the full potential of AMD EPYC™ 8004 series processors. Designed for data centers, edge computing, virtualization, storage servers, and general enterprise computing, this platform combines next‑generation connectivity, high‑speed memory, flexible storage, and robust remote management in a standard ATX form factor. Built with server‑grade components and strict quality controls, the ME03-CE1 ensures long‑term reliability, stability, and performance under continuous 24/7 operation. It supports processors with cTDP up to 225W, making it suitable for compute‑intensive applications while maintaining power efficiency. This motherboard is an ideal foundation for building scalable, cost‑effective server solutions without compromising expandability or manageability.

Processor & Platform Architecture

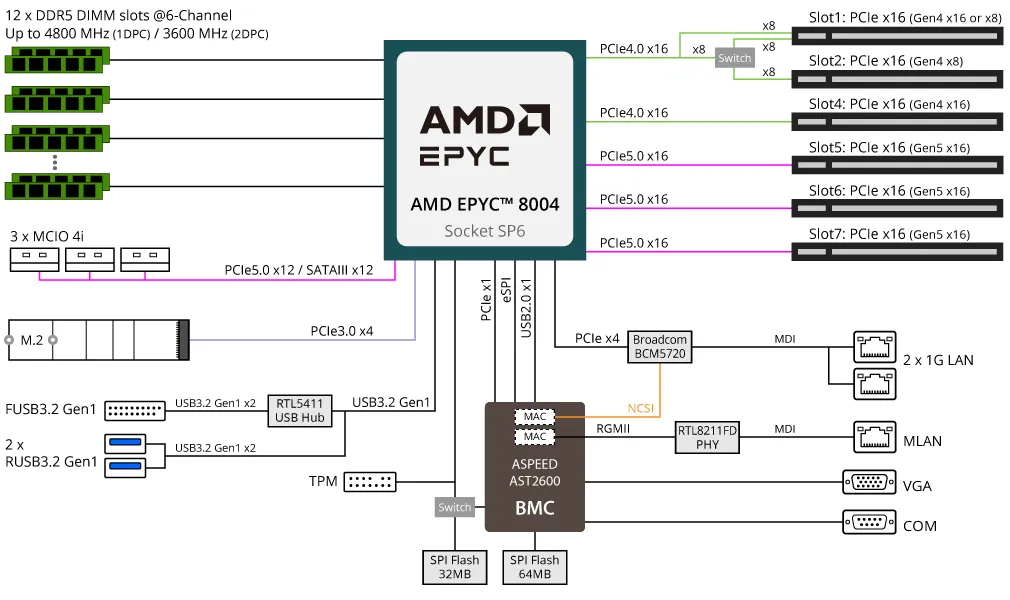

At the core of the ME03-CE1 is support for a single AMD EPYC™ 8004 series processor using the LGA 4844 SP6 socket. This chipset‑less SoC design streamlines the platform, reduces latency, and improves power efficiency compared to traditional multi‑chip architectures. The SP6 socket supports high‑TDP models up to 225W, allowing deployment of the fastest EPYC 8004 SKUs for heavy workloads such as virtual machines, database hosting, content delivery, and hybrid cloud applications. The SoC architecture integrates critical functions directly into the processor, enhancing data flow and reducing dependency on external controllers. This design results in faster response times, higher throughput, and improved overall system efficiency for modern enterprise environments.

Memory Subsystem: High‑Bandwidth DDR5

Memory performance is critical for server responsiveness, and the ME03-CE1 features a 6‑channel DDR5 memory architecture with 12 DIMM slots. It supports RDIMM modules at speeds up to 4800 MT/s in 1DPC (1 DIMM per channel) configuration and 3600 MT/s in 2DPC (2 DIMMs per channel). This high‑bandwidth subsystem significantly improves multitasking capability, virtual machine density, and in‑memory data processing. With generous slot count, the board supports large memory configurations required by virtualization hosts, in‑memory databases, big data analytics, and caching servers. DDR5 technology delivers lower power consumption, higher data rates, and improved signal integrity compared to DDR4, making the ME03-CE1 a future‑ready platform for memory‑bound workloads.

Expansion & Connectivity: PCIe Gen5 & Gen4

The ME03-CE1 provides extensive expansion capabilities with a mix of PCIe Gen5 and Gen4 slots to meet diverse I/O requirements. It includes three PCIe Gen5 x16 slots for ultra‑high‑speed devices such as next‑generation GPUs, NVMe storage adapters, and smart network cards. Additionally, three PCIe Gen4 slots (two x16, one x8) offer backward compatibility and balanced bandwidth for conventional add‑in cards like RAID controllers, legacy NICs, and HBAs. Slot sharing design optimizes hardware utilization while maintaining flexibility for multi‑card deployments. This combination of PCIe generations ensures compatibility with existing hardware while enabling investment in future‑proof components. The board’s expansion layout supports dense I/O configurations typical in storage servers, application servers, and hybrid cloud nodes.

Storage Interfaces: MCIO & M.2

Storage flexibility is a highlight of the ME03-CE1, featuring three MCIO 4i connectors that support either PCIe Gen5 x4 NVMe or SATA drives. Each MCIO 4i can connect up to four SATA devices, allowing up to 12 SATA drives total for high‑capacity storage scenarios. MCIO’s compact design improves airflow and cable management compared to traditional SATA connectors. For fast boot and dedicated OS storage, the board includes one M.2 slot (2280/22110) with PCIe Gen3 x4 interface, supporting high‑endurance NVMe SSDs. This configuration separates the OS from data storage, enhancing system stability, security, and boot speed. The ME03-CE1 accommodates hybrid storage setups combining fast NVMe caching and high‑capacity SATA arrays, suitable for file servers, media servers, and backup appliances.

Networking & Management

Networking and remote management are enterprise‑grade on the ME03-CE1. It provides two 1Gb/s LAN ports powered by the Broadcom BCM5720 controller, supporting reliable high‑throughput connectivity and NCSI function for network integration. A dedicated 10/100/1000 Mbps management LAN port ensures independent, secure BMC access even when main network ports are under load. The board uses the ASPEED AST2600 Baseboard Management Controller, offering a full‑featured Gigabyte Management Console web interface. Features include HTML5 KVM, sensor monitoring, hardware inventory, fan tuning, power capping, user authentication, LDAP/AD/RADIUS support, and remote firmware updates. These tools enable secure, lights‑out management from anywhere, reducing on‑site maintenance and improving uptime.

Rear & Internal I/O

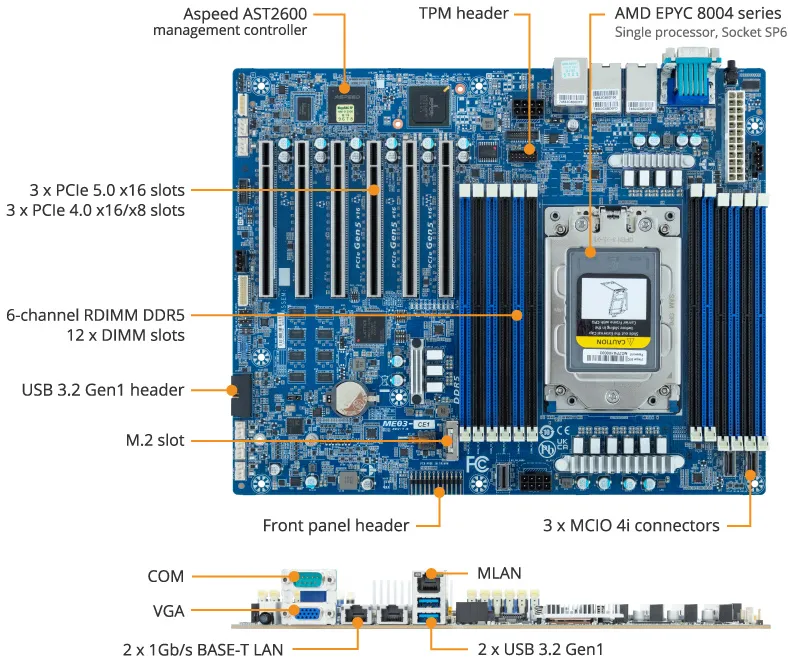

Rear I/O ports include two USB 3.2 Gen1 Type‑A, one VGA, one COM, two RJ45 LAN, one management LAN, and an ID button with LED for physical identification. Internal connectors consist of a 24‑pin ATX power, dual 8‑pin 12V CPU power, CPU fan, five system fan headers, USB 3.2 Gen1 header, front panel, backplane board, PMBus, IPMB, and TPM header. These connectors support enterprise‑grade security, system monitoring, and integration with server chassis and peripherals. The TPM header supports optional TPM 2.0 modules for hardware‑based security, encryption, and secure boot compliance.

Form Factor & Environmental Specifications

The ME03-CE1 uses the standard ATX form factor (304.8 x 243.8 mm), compatible with most server and workstation chassis. This simplifies integration into existing infrastructure and reduces deployment costs. Operating temperature ranges from 10°C to 40°C, with non‑operating tolerance from -40°C to 60°C. Humidity ranges from 8% to 80% (operating, non‑condensing) and 20% to 95% (non‑operating). These ranges ensure stable operation in data centers, edge locations, and industrial environments.

Use Cases & Deployment Scenarios

The ME03-CE1 is versatile across many enterprise scenarios: virtualization hosts with high memory and PCIe support; storage servers with extensive MCIO and SATA connectivity; edge computing with compact ATX and robust environmental specs; SMB and enterprise servers with balanced performance and management; cloud and application nodes with PCIe 5.0 for future accelerators.

Conclusion

The Gigabyte ME03-CE1 Rev. 1.0 is a high‑value, feature‑rich server motherboard for AMD EPYC 8004 processors. It combines DDR5 memory, PCIe Gen5/Gen4 expansion, flexible MCIO/M.2 storage, dual 1Gb LAN, and AST2600 BMC in a standard ATX frame. Built for stability, security, and ease of management, it supports long‑term operation in demanding environments. Whether for virtualization, storage, edge computing, or general server use, the ME03-CE1 delivers performance, expandability, and reliability to support critical business operations.
