Gigabyte MD72-HB3 Server Motherboard | 3rd Gen Intel Xeon Scalable E‑ATX DP

Gigabyte MD72-HB3 Server Motherboard | 3rd Gen Intel Xeon Scalable E‑ATX DP

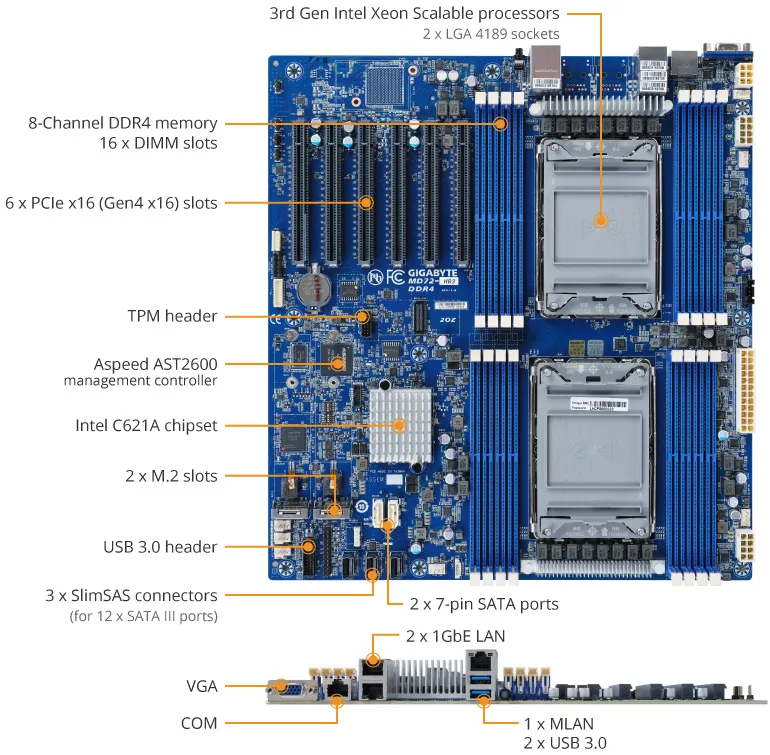

• Dual 3rd Gen Intel^® Xeon^® Scalable Processors
• 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
• Supports Intel^® Optane^™ Persistent Memory 200 series
• Intel^® C621A Chipset
• 2 x 1Gb/s LAN ports via Intel^® I210-AT
• 3 x SlimSAS 4i connectors with SATA interface
• 2 x SATA 7-pin ports
• 2 x M.2 slots with PCIe Gen4 x4 interface
• 6 x PCIe Gen4 x16 expansion slots

Introduction to Gigabyte MD72-HB3 Server Motherboard

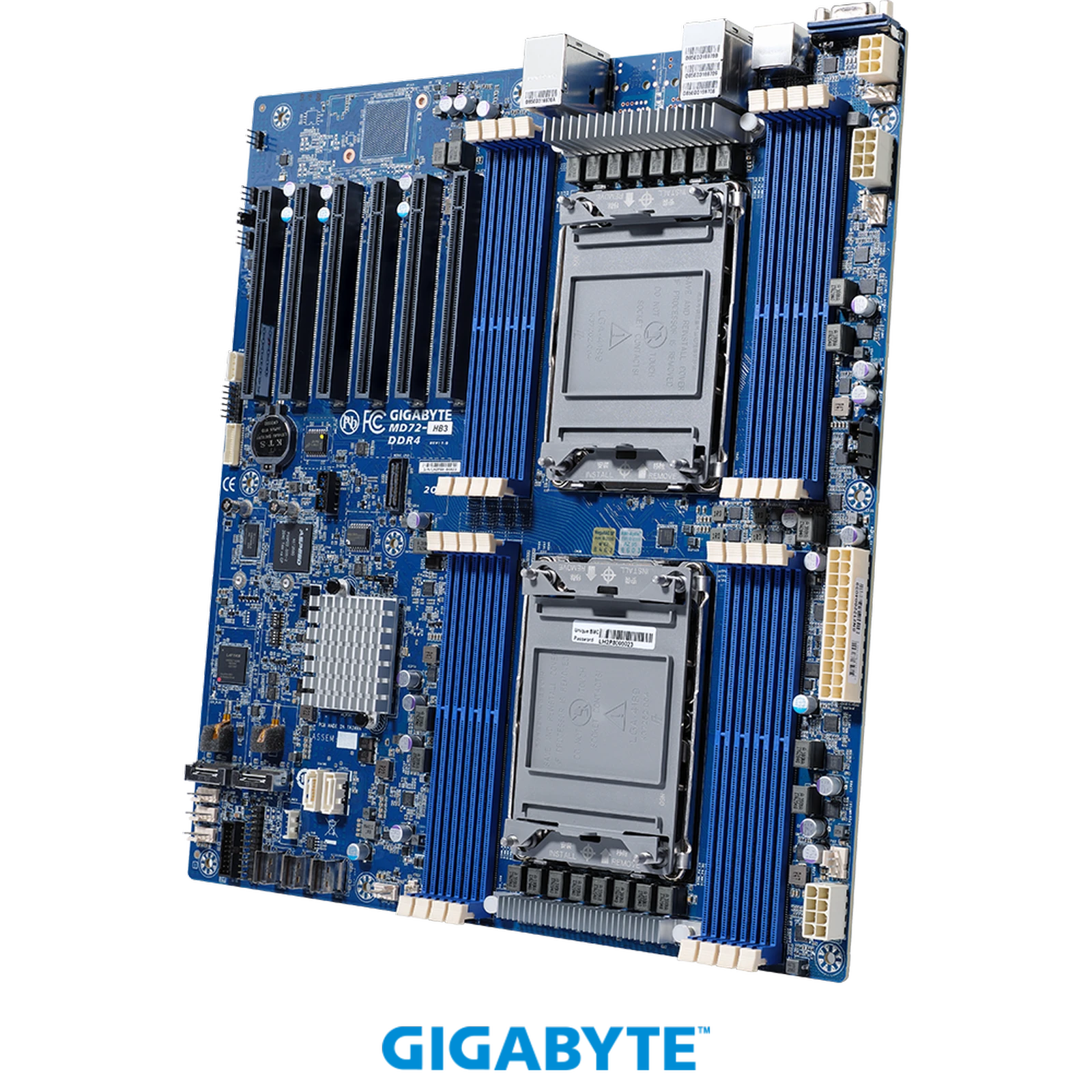

The Gigabyte MD72-HB3 (Rev. 1.x) is a high‑end E‑ATX dual‑processor server motherboard purpose‑built for compute‑intensive enterprise workloads, including data center virtualization, high‑performance computing (HPC), artificial intelligence (AI) inference, cloud infrastructure, and storage servers. Engineered around the Intel C621A chipset and dual LGA 4189 sockets, it fully supports 3rd Gen Intel Xeon Scalable processors (Ice Lake), delivering exceptional CPU performance, high‑bandwidth I/O, large memory capacity, and hardware‑level security. Designed for 24/7 reliability, this board combines dense expansion, flexible configuration, and robust server management to meet the demands of modern IT environments.

Powerful 3rd Gen Intel Xeon Scalable Platform

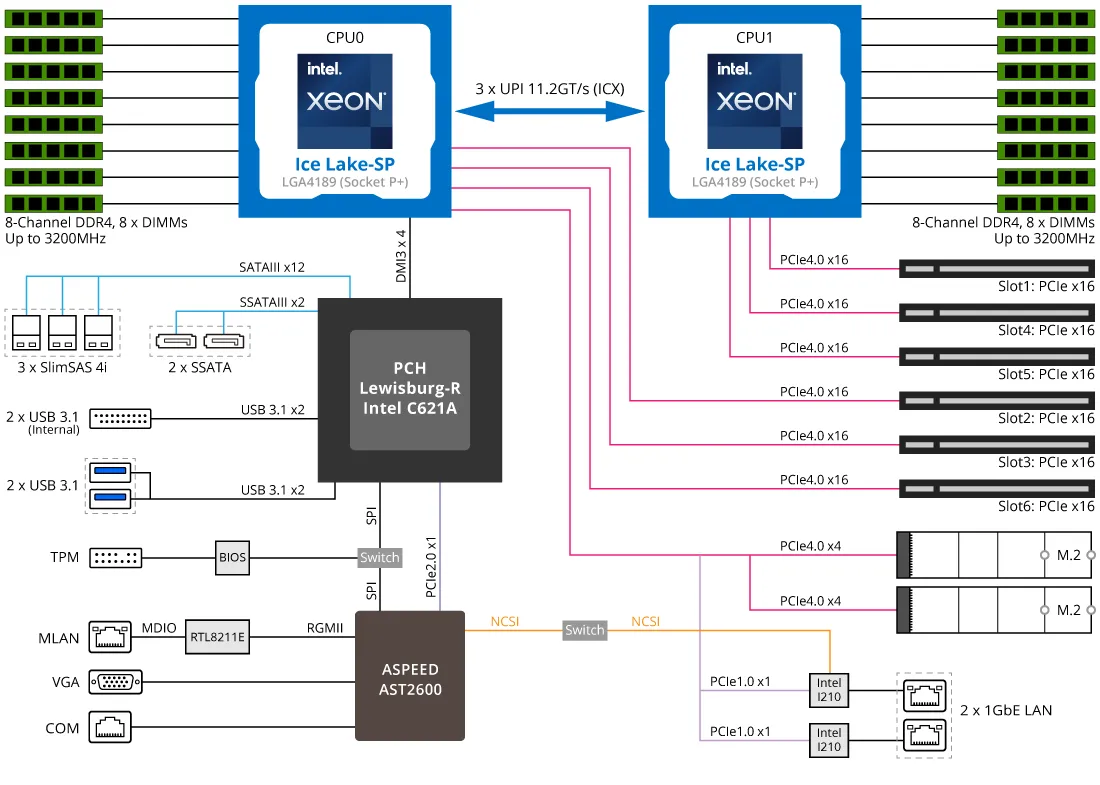

At its core, the MD72-HB3 leverages dual 3rd Gen Intel Xeon Scalable processors built on Intel 10nm architecture, supporting up to 40 cores per socket with a TDP range of 105–270W. These CPUs deliver strong IPC gains, enhanced multi‑thread performance, and improved power efficiency. Three UPI links provide inter‑socket communication at up to 11.2GT/s, ensuring low latency and high throughput in dual‑CPU configurations. The platform supports both single‑socket and dual‑socket operation, allowing users to deploy one CPU during testing or entry‑level deployment while retaining full GPU and storage functionality. This flexibility makes the board suitable for both lab validation and production deployment.

High‑Capacity Memory Architecture

Memory bandwidth and capacity are critical for virtualization, databases, and in‑memory computing. The MD72-HB3 implements an 8‑channel memory architecture with 16 DIMM slots, supporting RDIMM, LRDIMM, and 3DS RDIMM/LRDIMM modules. It supports speeds up to DDR4‑3200 MT/s, with maximum capacities of 128GB per slot for standard RDIMMs/LRDIMMs and up to 256GB per slot for 3DS modules, providing a large memory footprint for memory‑hungry workloads. The board also supports Intel Optane Persistent Memory 200 series in two operating modes—App Direct Mode for persistent storage and Memory Mode for expanded volatile capacity—enabling faster processing of large datasets and improved data persistence.

PCIe Gen4 Expansion & Accelerator Support

To meet high I/O requirements for GPUs, NVMe storage, and accelerators, the MD72-HB3 features six PCIe Gen4 x16 full‑length slots, all running at full x16 bandwidth for a total throughput of up to 64GB/s per device. This design supports up to three dual‑slot GPUs or accelerators, making the board ideal for AI training, inference, media transcoding, and GPU‑accelerated computing. All expansion slots support full‑length, full‑height cards, ensuring compatibility with the latest enterprise‑grade add‑in cards. The PCIe 4.0 infrastructure doubles the throughput of PCIe 3.0, significantly speeding up data transfers between CPUs, GPUs, and storage.

Rich Storage & Connectivity

Storage flexibility is a highlight of the MD72‑HB3. The Intel C621A chipset provides extensive storage options: three SlimSAS connectors supporting 12×SATA 6Gb/s ports plus two native SATA 6Gb/s ports, totaling 14 SATA ports for high‑density storage deployments. RAID levels 0/1/10/5 are supported via Intel RSTe for data protection and disk performance optimization. Two M.2 slots (M‑key, PCIe Gen4 x4) support 2280/22110 form factors for fast boot drives, NVMe SSD caching, or embedded operating systems, reducing reliance on SATA drives and simplifying cable management. For networking, the board includes two Intel I210‑AT 1GbE LAN ports plus a dedicated 1GbE management LAN (MLAN) supporting NCSI, separating data traffic from management traffic for stability and security.

Enterprise I/O, Security & Management

The rear I/O panel offers two USB 3.2 Gen1 ports, VGA, RJ45 serial, dual RJ45 data LAN, and a dedicated management LAN. Internal connectors include a 24‑pin ATX power connector, dual 8‑pin 12V CPU power, a 6‑pin 12V connector for PCIe stability, multiple fan headers, USB 3.2 headers, SlimSAS, SATA, TPM, PMBus, and IPMB headers. Hardware security is enhanced via an optional TPM 2.0 module (SPI interface) that securely stores encryption keys, passwords, and certificates to prevent unauthorized access. For server management, the board uses an Aspeed AST2600 BMC controller with Gigabyte Management Console (AMI MegaRAC SP‑X), supporting HTML5 KVM, sensor monitoring, event logging, power control, LDAP/AD/RADIUS, and remote firmware updates. Gigabyte Server Management (GSM) suite supports remote cluster management via GUI, CLI, mobile app, and vCenter integration.

Wide OS Compatibility & Deployment Flexibility

The MD72‑HB3 supports major enterprise operating systems, including Windows Server 2016–2022, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu LTS, VMware ESXi, and Citrix Hypervisor. This broad compatibility ensures seamless integration into existing virtualized and cloud environments. With its E‑ATX form factor (305×330mm), the board fits standard server chassis while providing dense expansion. It supports single‑socket operation for cost‑effective staging and dual‑socket performance for production, balancing flexibility and scalability.

Ideal Use Cases

This motherboard is optimized for: enterprise data centers and virtualization platforms; HPC clusters for scientific computing and simulation; AI inference and training servers; high‑density storage and database servers; cloud computing and edge application servers; media processing, rendering, and video transcoding.

Conclusion

The Gigabyte MD72‑HB3 server motherboard delivers a powerful, reliable, and flexible foundation for modern enterprise computing. By combining dual 3rd Gen Intel Xeon Scalable processors, 8‑channel DDR4, PCIe Gen4 expansion, rich I/O, hardware security, and comprehensive server management, it addresses the most demanding workloads in data centers, HPC, AI, and virtualization. With enterprise‑grade durability and scalable design, the MD72‑HB3 is a strategic choice for businesses building high‑performance, future‑ready server infrastructure.
