Gigabyte MA34‑CP0 Server Motherboard | Intel Xeon 6 | E‑ATX UP | PCIe 5.0

Gigabyte MA34‑CP0 Server Motherboard | Intel Xeon 6 | E‑ATX UP | PCIe 5.0

• Single Intel^® Xeon^® 6900-Series Processors
• 12-Channel DDR5 RDIMM / MRDIMM, 12 x DIMMs
• 2 x 1Gb/s LAN ports via Intel^® I210-AT
• 2 x MCIO 8i connectors with PCIe Gen5 x8 interface
• 3 x SlimSAS 4i connectors with SATA interface
• 2 x M.2 slots with PCIe Gen5 x2 interface
• 4 x PCIe Gen5 x16 and x8 expansion slots
• 1 x OCP NIC 3.0 PCIe Gen5 x16 slot

Introduction

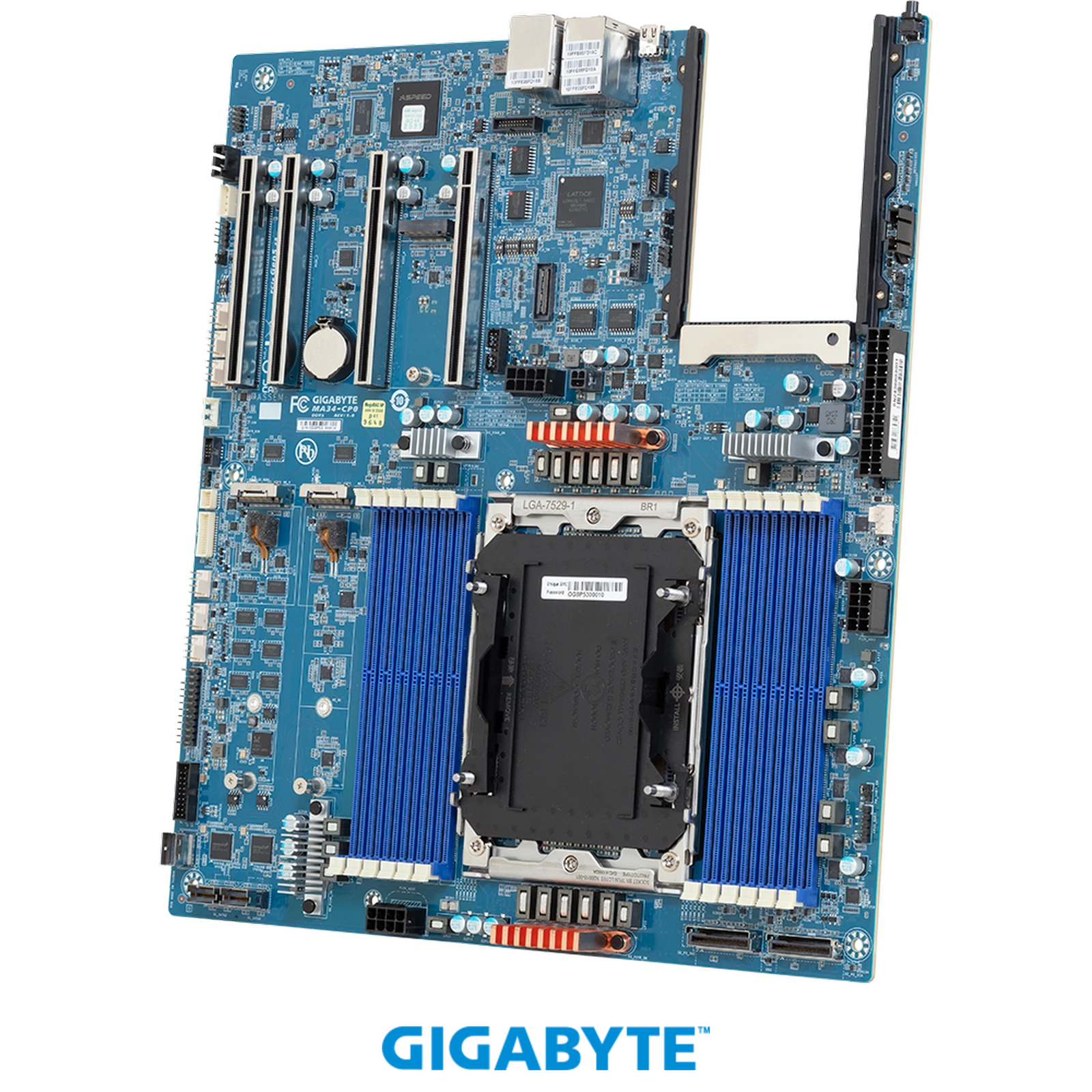

The Gigabyte MA34‑CP0 Rev. 1.x is a high‑end E‑ATX single‑processor (UP) server motherboard engineered to unlock the full potential of Intel Xeon 6 processors, targeting modern data center, cloud computing, AI inference, HPC, analytics, and edge IoT workloads. Designed for performance density, power efficiency, and expandability, this platform combines cutting‑edge CPU support, ultra‑fast memory, PCIe 5.0 connectivity, robust security, and enterprise‑grade remote management to meet the demands of mission‑critical infrastructure.

Intel Xeon 6 Platform Performance

At its core, the MA34‑CP0 supports single Intel Xeon 6 6900‑Series processors with LGA 7529 socket, delivering exceptional compute density with up to 128 Performance‑cores (P‑cores) and 288 Efficient‑cores (E‑cores) per CPU. This hybrid core architecture balances strong single‑threaded performance for AI/HPC and high‑throughput multi‑threaded performance for cloud‑native and hyperscale workloads. With TDP support up to 500W, the board provides robust power delivery and thermal design to sustain peak performance under heavy loads. Integrated on‑chip accelerators (SKU‑dependent) further boost efficiency for encryption, compression, and data processing tasks, reducing CPU overhead and lowering total cost of ownership (TCO).

12‑Channel DDR5 Memory Architecture

Memory bandwidth and capacity are critical for memory‑intensive applications, and the MA34‑CP0 excels with 12 DIMM slots implementing a 12‑channel DDR5 memory subsystem. It supports both RDIMM and MRDIMM modules: RDIMMs run at speeds up to 6400 MT/s, while MRDIMMs reach up to 8800 MT/s when paired with P‑core enabled Intel Xeon 6 CPUs. This high‑speed memory subsystem drastically improves throughput for virtualization, databases, big data analytics, and real‑time processing. The board also supports CXL 2.0, unifying DDR5 and CXL memory into a single address space for flexible, high‑capacity memory expansion.

PCIe Gen5 & High‑Speed I/O Expansion

The MA34‑CP0 offers extensive I/O and expansion capabilities built around PCIe Gen5, providing up to 136 PCIe 5.0 lanes for single‑socket systems. Key expansion includes 4 x PCIe Gen5 x16/x8 slots for GPUs, FPGAs, high‑speed NVMe storage, and accelerators; 1 x OCP NIC 3.0 slot (PCIe Gen5 x16) supporting flexible network adapter upgrades; 2 x MCIO 8i connectors (PCIe Gen5 x8) for high‑speed NVMe storage arrays; 3 x SlimSAS 4i connectors supporting 12 x SATA 6Gb/s drives; 2 x M.2 slots (2280/22110) with PCIe Gen5 x2 for fast boot drives and caching. This I/O configuration makes the board ideal for software‑defined storage, hyper‑converged infrastructure, and high‑I/O applications requiring massive throughput and low latency.

Network, Management & Stability

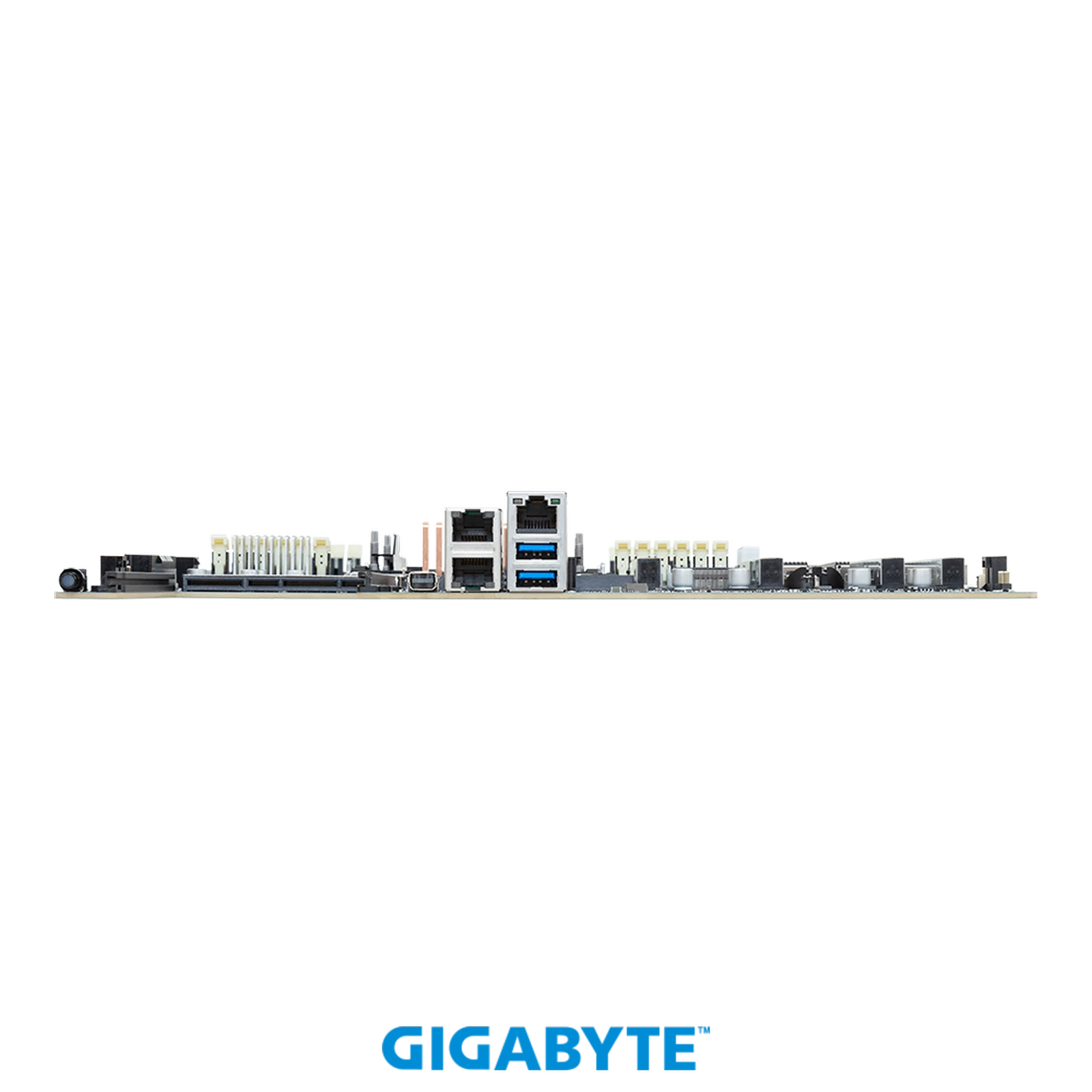

Networking is handled by dual Intel I210‑AT 1Gb/s LAN ports supporting NCSI, plus a dedicated 10/100/1000 Mbps management LAN for out‑of‑band control. The board features ASPEED AST2600 BMC with Gigabyte Management Console, a browser‑based interface for real‑time health monitoring, sensor tracking, HTML5 KVM, remote firmware updates, user management, and power control. Gigabyte Server Management (GSM) suite supports cluster‑wide administration via GUI, CLI, mobile app, and vCenter integration. Dual ROM architecture enhances high availability: if the primary BMC/BIOS ROM fails, the backup automatically takes over, ensuring uninterrupted operation. Rigorous testing ensures continuous 24/7 reliability for enterprise environments.

Security & Environmental Reliability

Hardware security is reinforced with an optional TPM 2.0 module (SPI interface) to securely store encryption keys, passwords, and certificates, protecting against unauthorized access. A dedicated PRoT connector (RoT SKU only) adds root‑of‑trust capabilities for advanced security compliance. The board operates reliably in temperatures from 10°C to 40°C and humidity 8%–80% non‑condensing, with non‑operating ranges of ‑40°C to 60°C and 20%–95% humidity, making it suitable for data centers and edge deployments alike.

Use Cases & Deployment Value

The MA34‑CP0 is optimized for a wide range of enterprise workloads: cloud computing nodes, AI inference servers, virtualization hosts, big data analytics, HPC clusters, software‑defined storage, and edge IoT gateways. Its balanced compute, memory, I/O, and power efficiency deliver optimal performance without unnecessary overhead, lowering capital and operational expenses. Backed by Gigabyte’s server engineering expertise, the board ensures long‑term support, stability, and ease of maintenance for IT teams.

Conclusion

The Gigabyte MA34‑CP0 Rev. 1.x server motherboard is a robust, future‑ready platform for Intel Xeon 6 processors, combining industry‑leading performance, expandability, security, and manageability. With PCIe 5.0, 12‑channel DDR5, high‑availability design, and enterprise management tools, it provides a solid foundation for modern data centers and demanding workloads, enabling businesses to deploy scalable, efficient, and reliable server infrastructure.
