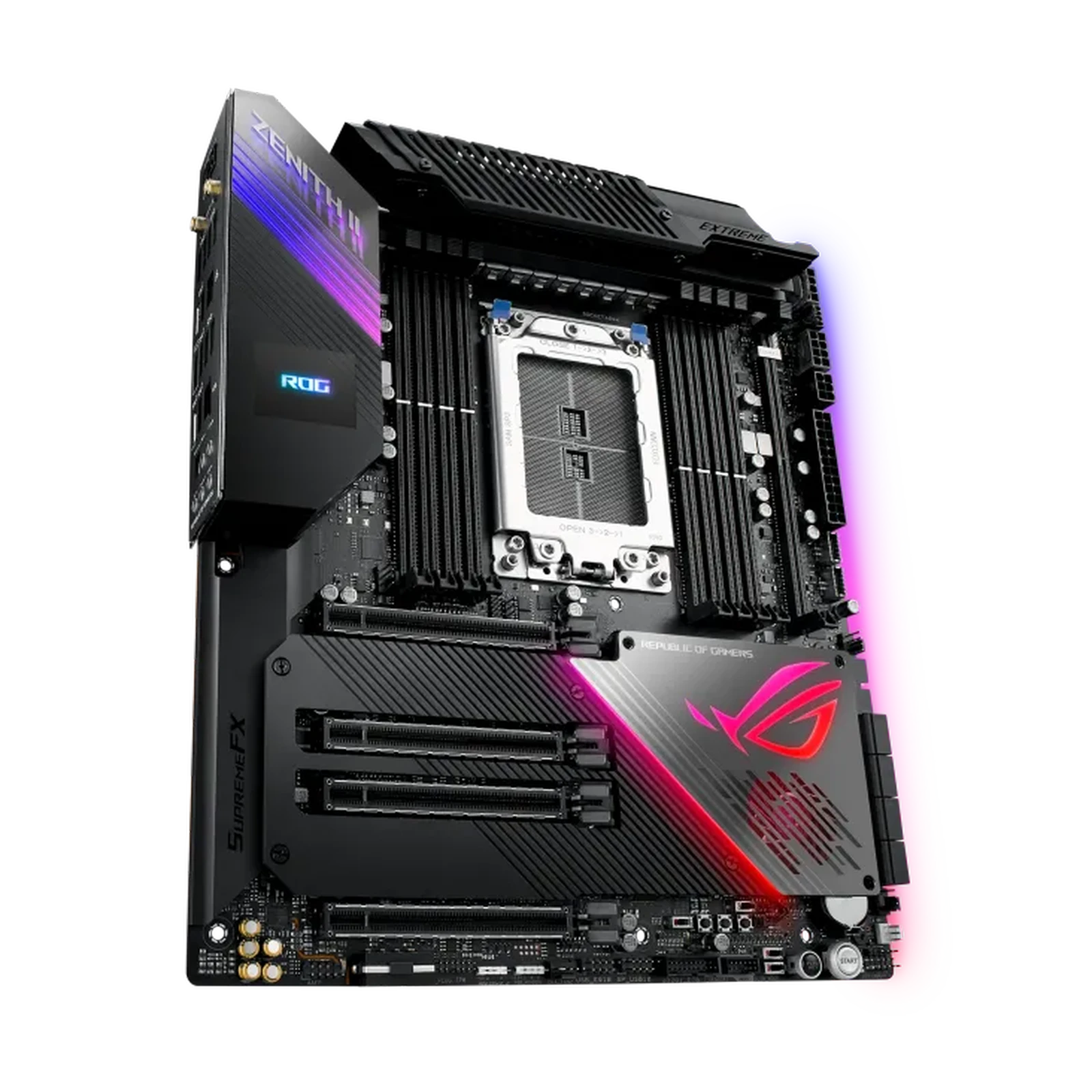

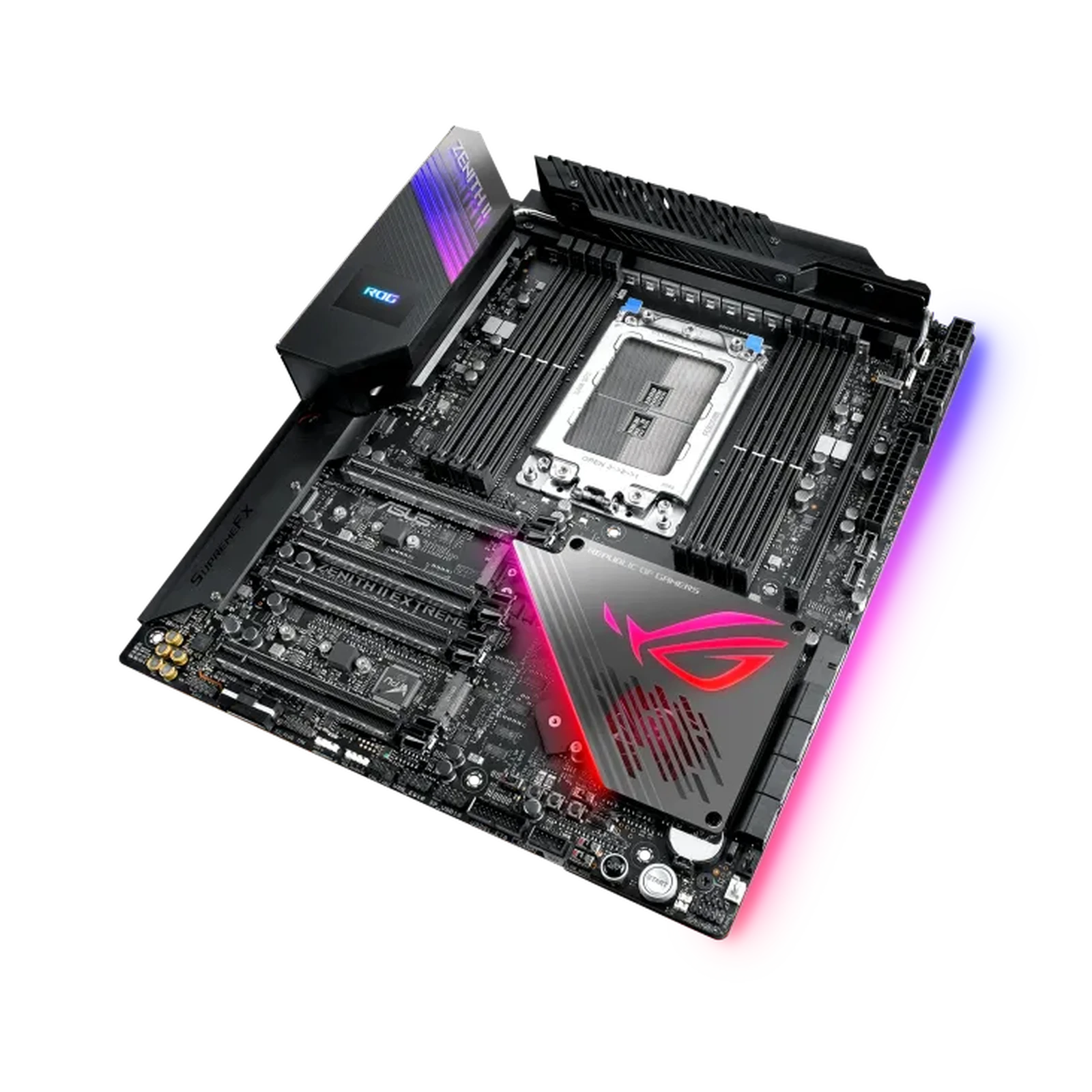

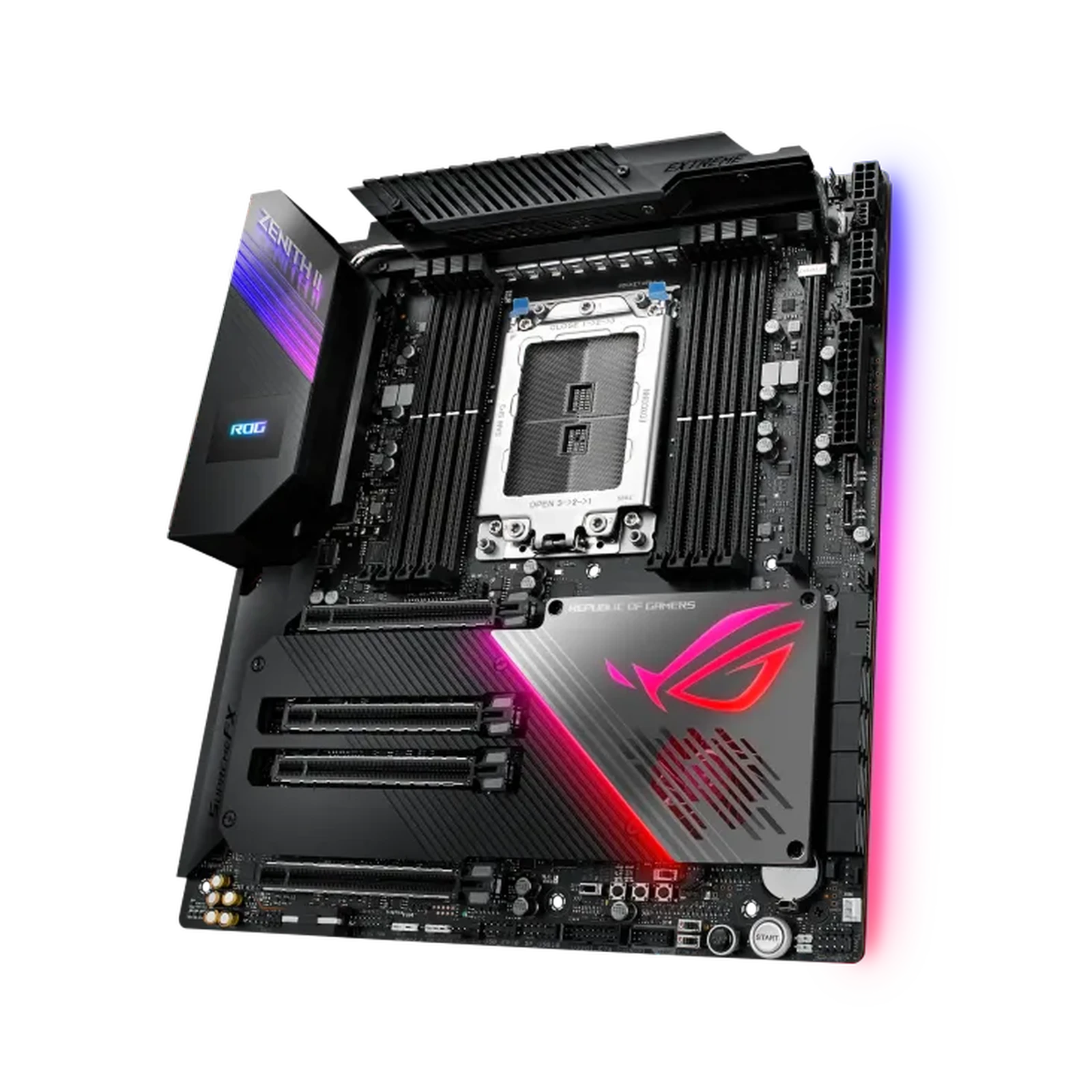

ASUS ROG Zenith II Extreme TRX40 E-ATX Motherboard for 3rd Gen Threadripper

AMD TRX40 E-ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper, with 16 power stages, PCIe 4.0, Wi-Fi 6 (802.11ax), 10 Gbps Ethernet, USB3.2 Gen2x2, dual USB 3.2 front panel connector, five M.2, SATA and Aura Sync RGB

• Ready for AMD 3rd Gen Ryzen™ Threadripper™ Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI
• Robust power delivery: Optimized power solution with 16 Infineon TDA21472 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors
• Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone
• High-performance networking: Onboard Aquantia 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology
• Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers
• Industry-leading ROG audio: SupremeFX S1220 and ESS SABRE9018Q2C for enthusiast-grade audio performance, featuring Japanese capacitors
• DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack and FlexKey

Unleash Ultimate HEDT Performance: ASUS ROG Zenith II Extreme

The ASUS ROG Zenith II Extreme stands as the flagship E-ATX motherboard built exclusively for the AMD TRX40 platform and 3rd Generation Ryzen Threadripper processors. Crafted for professional creators, overclocking enthusiasts, workstations, and extreme gaming rigs, this board delivers uncompromising power delivery, massive expandability, ultra-fast connectivity, premium audio, intelligent cooling, and full customization. Whether you are rendering 8K video, running machine learning models, multi-GPU computing, or building a flagship show PC, the Zenith II Extreme is engineered to dominate every heavy‑lifting task.

Engineered for 3rd Gen AMD Ryzen Threadripper

At its core, the ROG Zenith II Extreme is optimized for AMD’s most powerful desktop CPUs—the 3rd Gen Ryzen Threadripper series with sTRX4 socket. Supporting full 64‑lane PCIe 4.0 bandwidth, quad‑channel DDR4 memory, and up to 64 cores, this motherboard unlocks the full potential of Threadripper 3960X, 3970X, 3980X, and 3990X processors. The TRX40 chipset brings native PCIe 4.0 support, expanded storage, and modern I/O to create a no‑compromise HEDT platform. Every component is selected to sustain extreme workloads, overclocking, and 24/7 stability.

Robust 16‑Phase Power Delivery System

Stable power is the foundation of extreme performance. The Zenith II Extreme uses a 16 Infineon TDA21472 power stage design rated for 70A per stage, paired with ProCool II power connectors, microfine alloy chokes, and durable 10K Japanese capacitors. This teamed power architecture eliminates phase‑doubler lag, improves transient response, and supports sustained power draw over 500W—ideal for heavy overclocking and multi‑core workloads. Dual 8‑pin plus one 6‑pin ProCool II connectors ensure tight, reliable EPS power delivery with reduced resistance and better thermal efficiency.

Comprehensive Thermal Design for Extreme Cooling

To maintain low temperatures under full load, the board features an advanced multi‑layer cooling system:

• Active VRM heatsink with dual Delta Superflo fans that activate above 60°C
• Aluminum M.2 heatsinks covering multiple PCIe 4.0 SSDs
• Integrated chipset active cooling fan

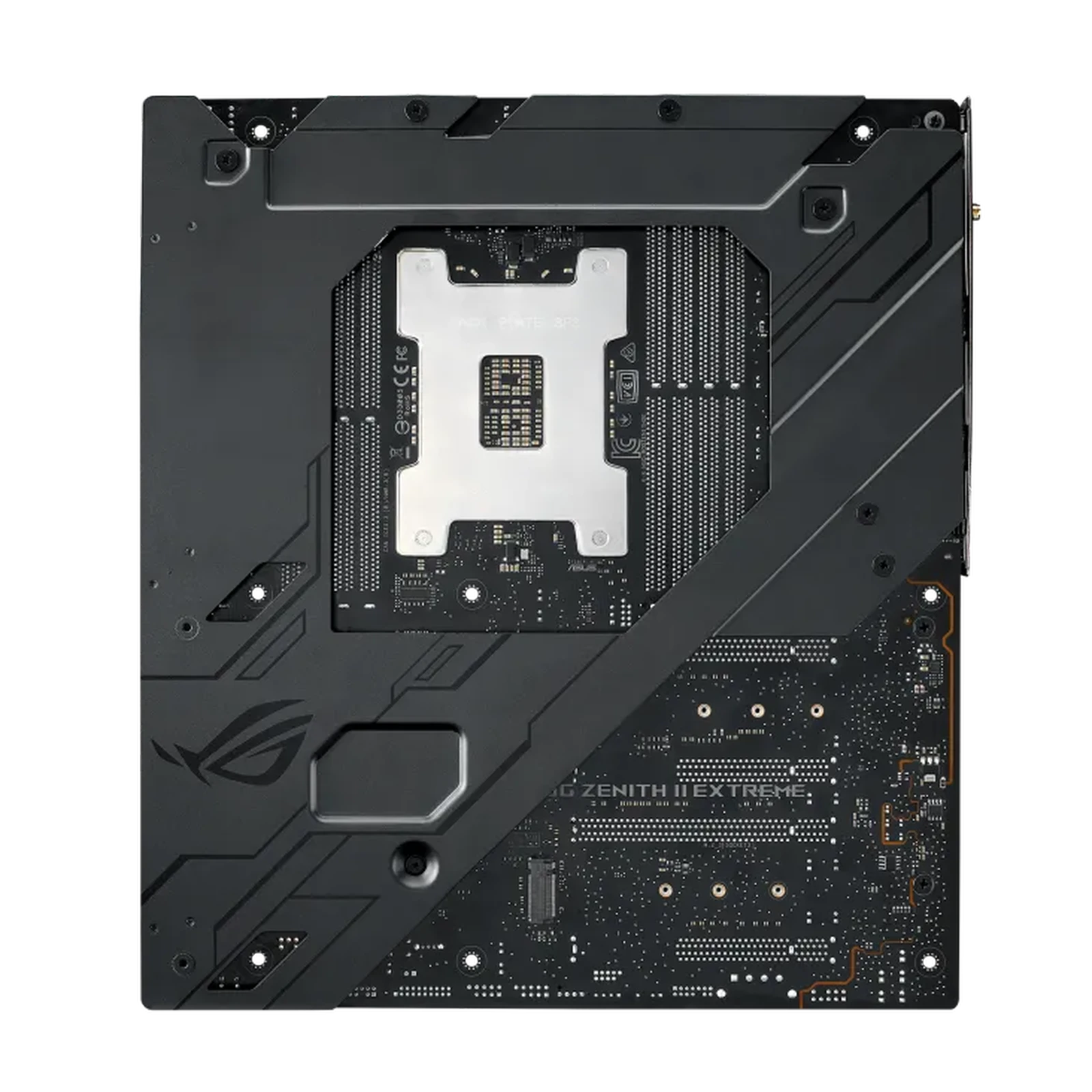

• Steel backplate to reinforce the PCB and improve heat dissipation
• Dedicated water‑cooling zone with temperature, flow rate, and W_IN/W_OUT headers
• Fan Extension Card II with six extra fan headers and three thermal probes

This cooling setup keeps VRM, chipset, M.2 drives, and SoC temperatures in check even during prolonged full‑load usage.

Massive Expandability: PCIe 4.0 & Five M.2 Slots

The Zenith II Extreme maximizes connectivity with full PCIe 4.0 capability:

• Four PCIe 4.0 x16 SafeSlots supporting multi‑GPU configurations
• Up to five M.2 slots, all PCIe 4.0 x4
• Two M.2 on DIMM.2 module (up to 22110)
• Three M.2 slots on the main PCB
• Eight SATA 6Gbps ports
• AMD StoreMI technology to accelerate HDD/SSD performance

With support for up to 33 devices simultaneously, this board is perfect for users requiring massive storage and multiple high‑bandwidth cards.

Ultra‑Fast Networking: 10Gbps Ethernet + Wi‑Fi 6

Connectivity reaches enterprise‑class speeds:

• Aquantia AQC‑107 10Gbps Ethernet
• Intel I211‑AT Gigabit Ethernet
• Intel Wi‑Fi 6 AX200 (802.11ax) with MU‑MIMO
• GameFirst V network optimization
• LANGuard surge protection

10Gbps Ethernet delivers 10x the speed of standard gigabit LAN for ultra‑fast file transfers, 4K/8K streaming, and large backups. Wi‑Fi 6 provides improved speed, capacity, and stability in crowded wireless environments.

Industry‑Leading SupremeFX Audio

ROG Zenith II Extreme delivers audiophile‑grade sound using:

• SupremeFX S1220 codec
• ESS SABRE9018Q2C DAC/amp
• 120dB SNR playback, 108dB SNR recording
• Nichicon Japanese audio capacitors
• DTS Sound Unbound for 3D spatial audio
• Sonic Studio III and Sonic Radar III

Whether you’re gaming, producing music, or editing videos, the audio system provides crystal‑clear clarity, deep bass, and precise sound staging.

Intelligent I/O & DIY‑Friendly Features

The board simplifies building and troubleshooting with premium convenience features:

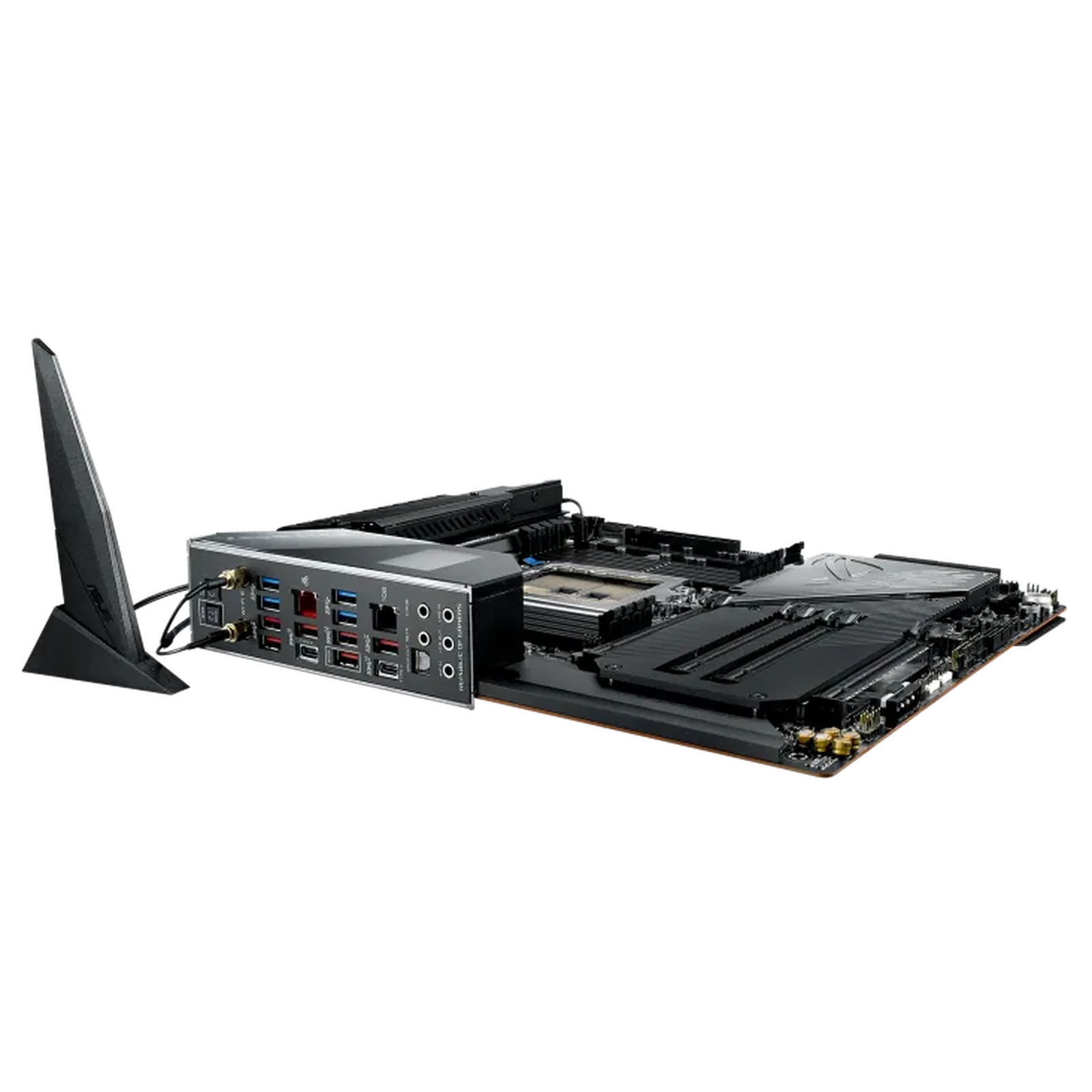

• Pre‑mounted I/O shield
• 1.77‑inch LiveDash color OLED for monitoring temps, speeds, and POST status
• FlexKey configurable button (Reset, Safe Boot, BIOS, Aura On/Off)
• BIOS FlashBack without CPU
• Clr CMOS button
• Q‑DIMM, Q‑Connector, SafeSlot
• ESD protection and TrueVolt USB stable power

These features reduce build time, improve durability, and speed up system diagnosis.

Aura Sync RGB & Full Customization

Personalize your rig with:

• Aura Sync RGB lighting
• Two addressable Gen 2 RGB headers
• Two standard 4‑pin RGB headers
• Customizable OLED display GIFs
• Armoury Crate software for unified control

Sync lighting across all ROG components for a cohesive, professional‑looking build.

Ultimate Software Tuning Suite

The motherboard includes powerful tools to maximize performance:

• Advanced ROG UEFI BIOS (EZ Mode + Advanced Mode)
• 5‑Way Optimization for auto overclocking
• AI Overclocking that profiles CPU and cooling
• Fan Xpert 4 for precise fan control
• Digital+ Power Controls
• Turbo Core App for per‑core application assignment

Beginners and experts alike can tune the system safely for maximum speed and stability.

Conclusion

The ASUS ROG Zenith II Extreme is the definitive TRX40 motherboard for 3rd Gen Ryzen Threadripper. It combines extreme power, robust cooling, PCIe 4.0 expandability, 10G networking, Wi‑Fi 6, studio‑grade audio, and smart customization into a premium E‑ATX package. For professional workstations, extreme overclocking, 8K content creation, and flagship gaming, this motherboard stands at the peak of HEDT performance.
