• AMD Socket AM5: Ready for AMD Ryzen^™ 7000 Series desktop processors
• Robust Power Solution:10 + 2 power stages with an 8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
• Optimized VRM Thermals:Thick heatsinks bolster a quiet cooling system that is bonded to the power stages with high conductivity thermal pads
• Next-Gen M.2 Support: PCIe^® 5.0 M.2 slot cooled by a large heatsink to maximize performance and an additional PCIe 4.0 M.2 slot for more storage
• Abundant Connectivity:USB 3.2 Gen 2×2 Type-C^® port and seven additional USB ports, PCIe 5.0 x16 SafeSlot, and HDMI^® 2.1
• High-Performance Networking:On-board WiFi 6E (802.11ax), Bluetooth^® 5.2, and Intel^® 2.5G Ethernet with ASUS LANGuard
• Intelligent Control:ASUS-exclusive, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve performance
• Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^®  Sound Unbound and Sonic Studio III
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 header
• DIY Friendly Design:2 Q-Latch, Pre-mounted I/O shield and BIOS FlashBack^™ button, and FlexKey button
• Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate to manage all ASUS devices from one place, and bundled 60-day AIDA64 Extreme trial subscription

Overview — Compact Size, Flagship Performance

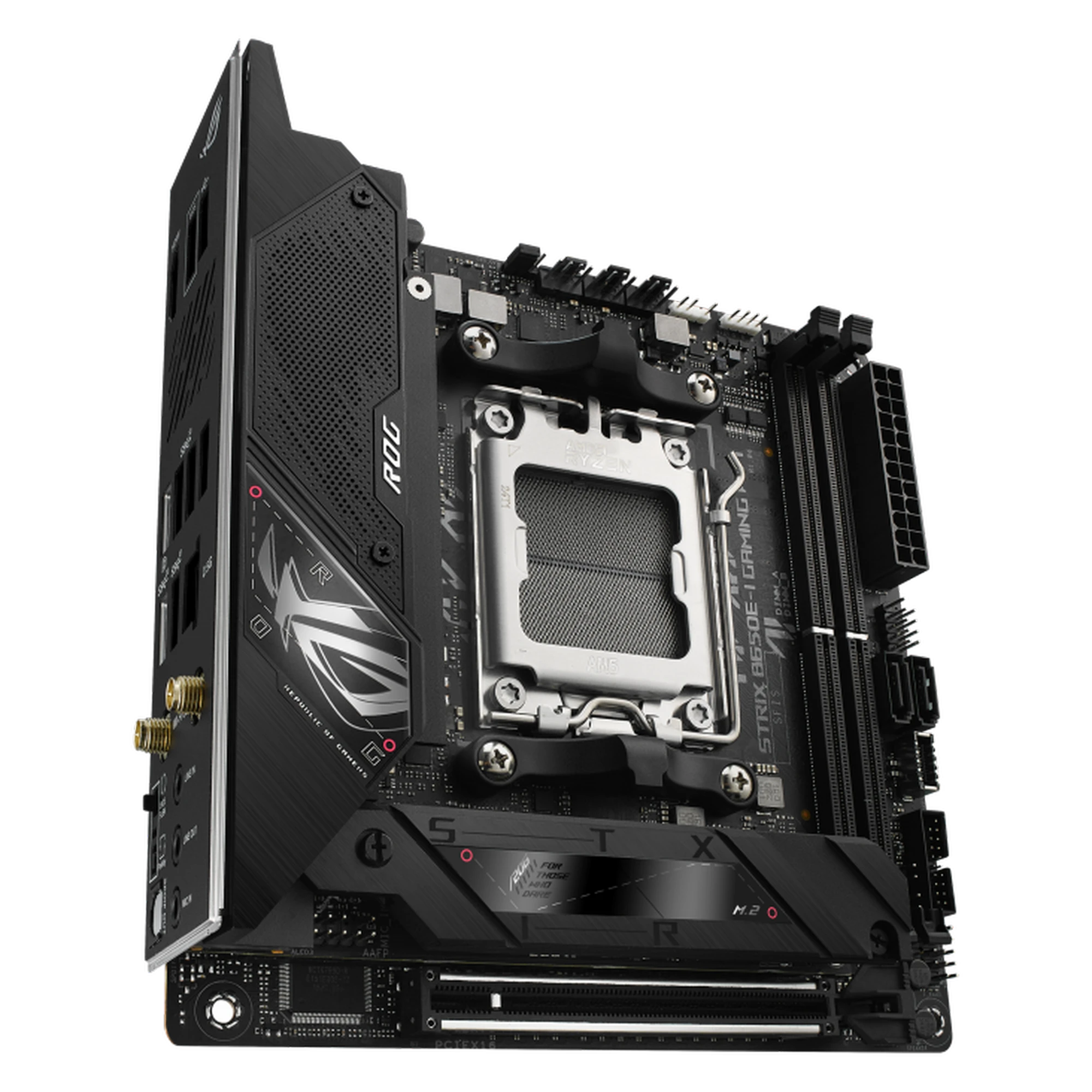

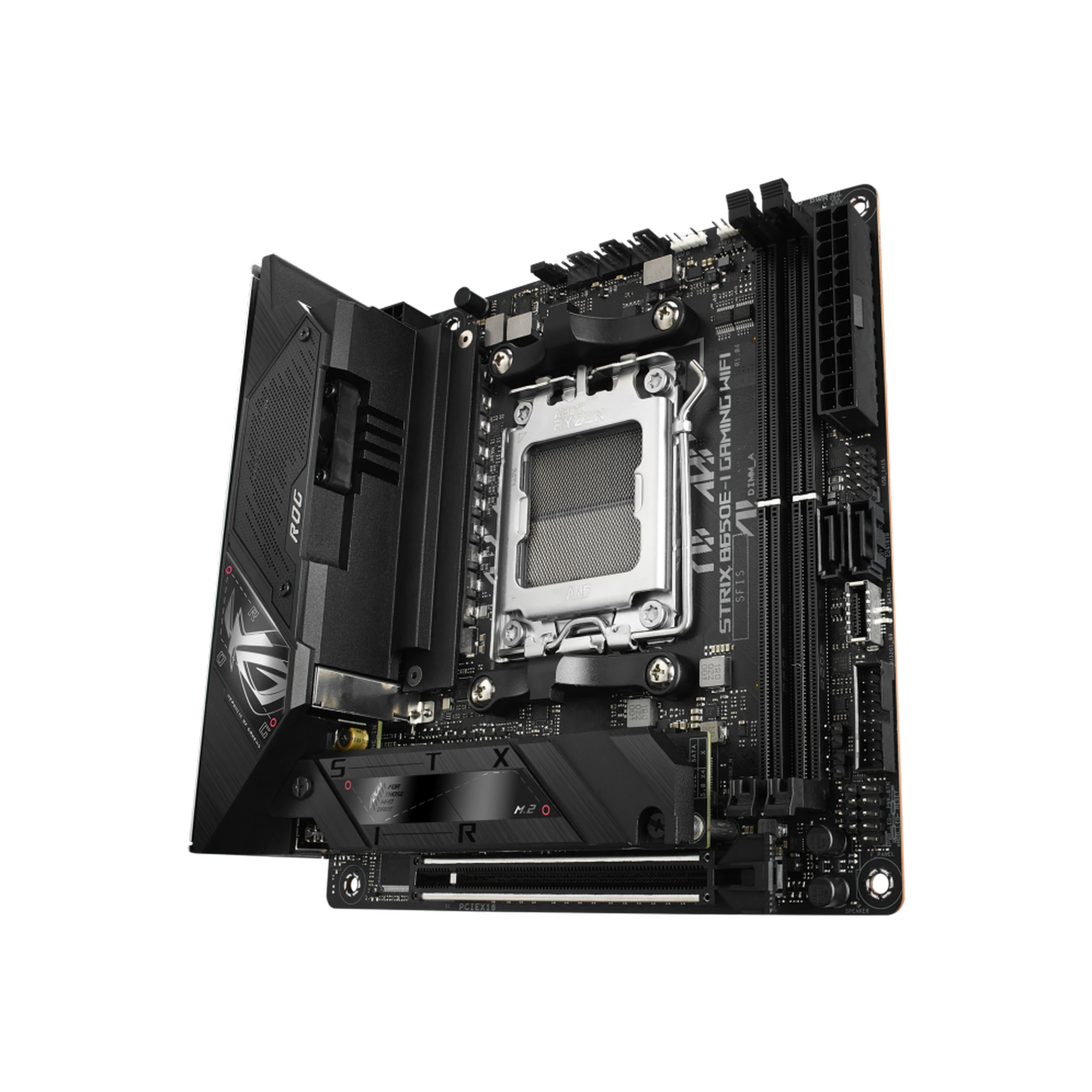

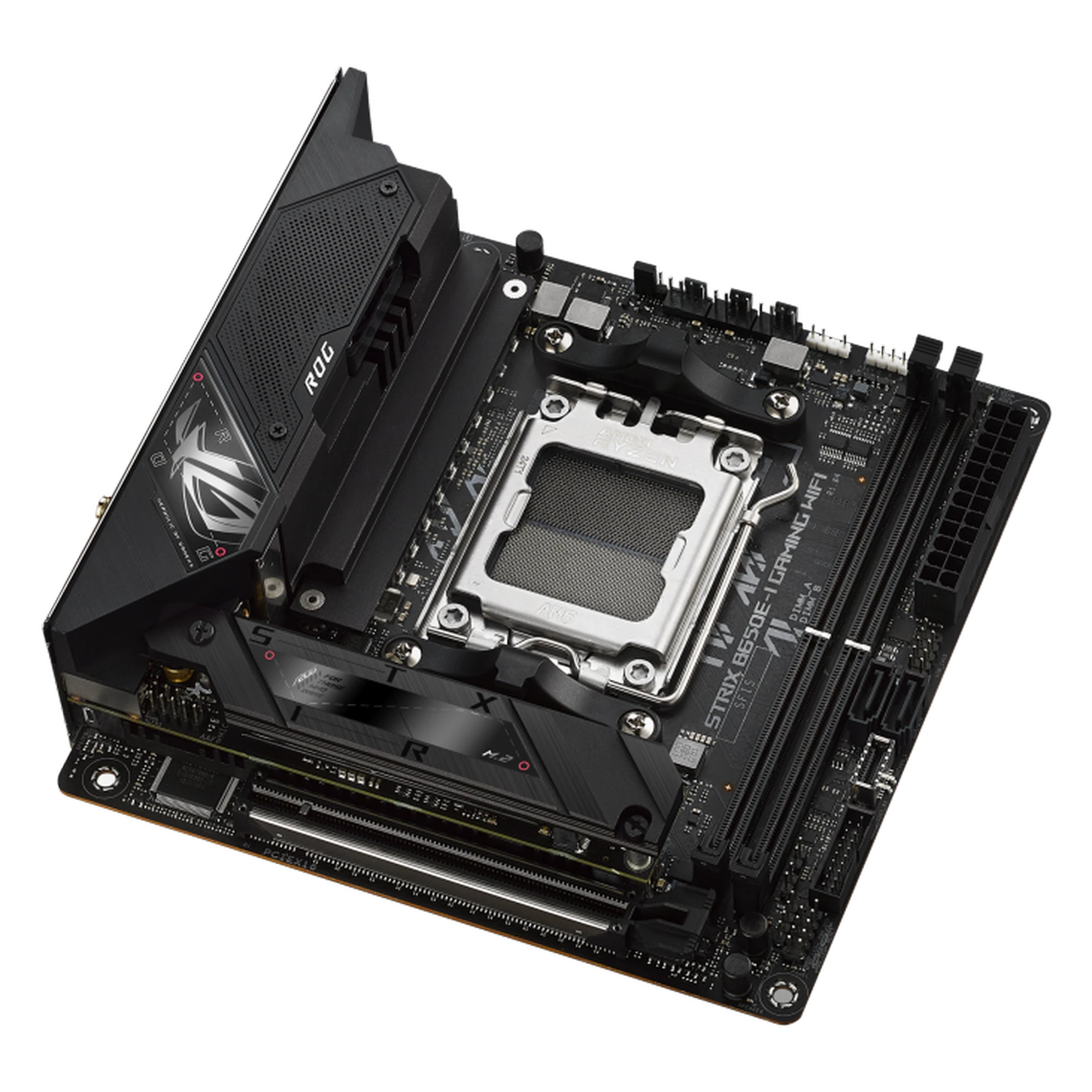

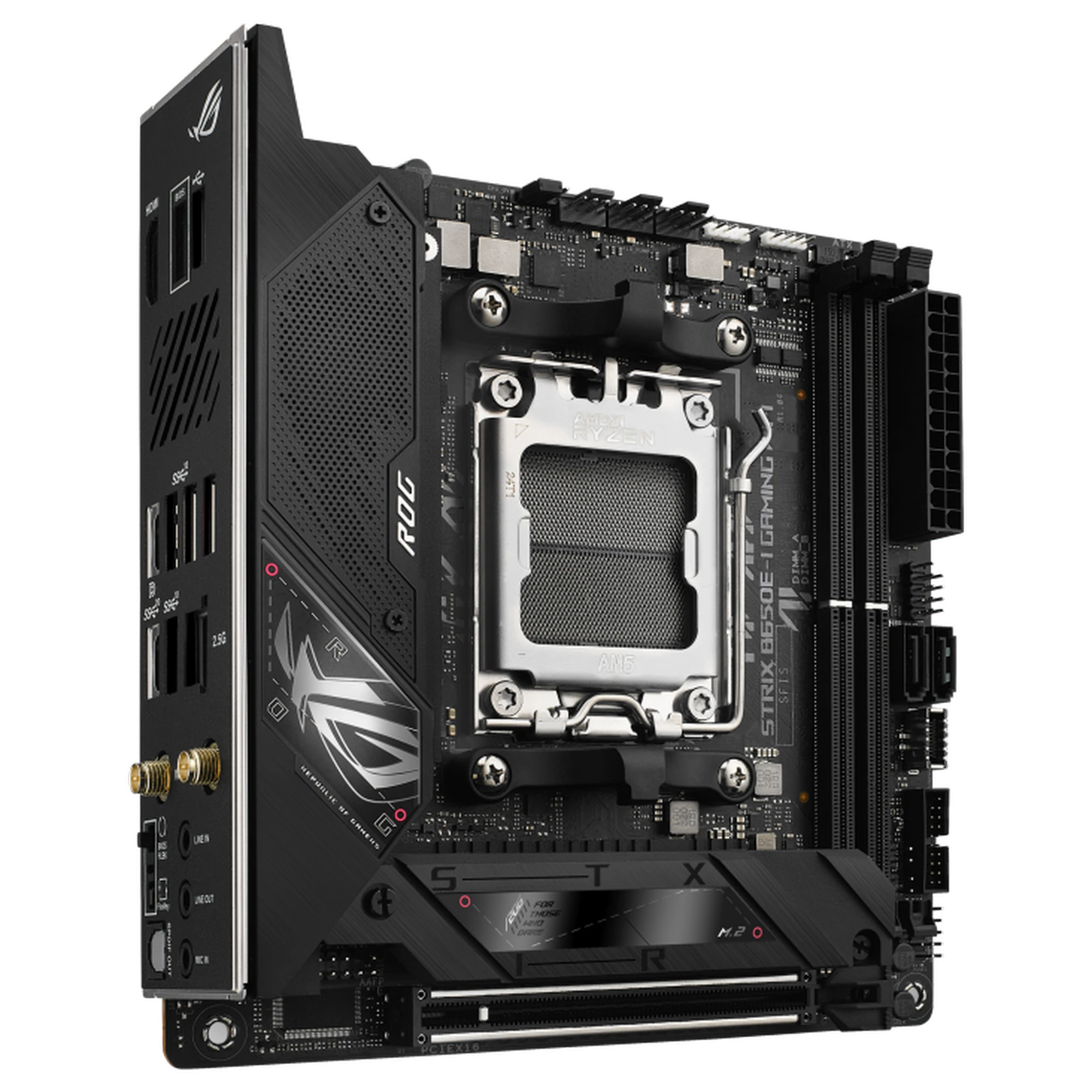

The ASUS ROG STRIX B650E-I GAMING WIFI is a premium Mini-ITX motherboard designed to deliver exceptional performance in compact PC builds. Built on the AMD B650E chipset and supporting AMD Ryzen™ 9000, 8000, and 7000 series processors, this motherboard provides a future-ready foundation for gaming, content creation, and high-performance computing.

Despite its small footprint, the board integrates advanced features such as PCIe 5.0 support, DDR5 memory, WiFi 6E networking, and robust power delivery — making it ideal for small-form-factor (SFF) enthusiasts who demand uncompromised performance.

Powerful VRM Design for Stable Performance

The motherboard features a 10+2+1 power stage design, with each stage rated up to 70A, ensuring stable and efficient power delivery to modern Ryzen CPUs.

This robust power architecture supports:

• High-core-count CPUs
• Stable overclocking performance
• Reliable operation under heavy workloads

Paired with ASUS Digi+ VRM control and premium components, the board ensures consistent performance across gaming and productivity scenarios.

DDR5 Memory Support for High-Speed Computing

The ASUS ROG STRIX B650E-I GAMING WIFI supports DDR5 memory up to 8000+ MT/s (overclocked), with a maximum capacity of up to 96GB depending on configuration.

Key memory features include:

• Dual-channel DDR5 architecture
• AMD EXPO™ memory profile support
• ASUS OptiMem II signal optimization

These features allow users to achieve faster data transfer speeds, improved responsiveness, and enhanced performance in demanding applications such as gaming, rendering, and multitasking.

PCIe 5.0 Expansion and Future Compatibility

This Mini-ITX motherboard is equipped with PCIe 5.0 support, providing next-generation bandwidth for GPUs and storage devices:

• 1 × PCIe 5.0 x16 SafeSlot for graphics cards

PCIe 5.0 doubles the bandwidth compared to PCIe 4.0, ensuring compatibility with upcoming high-performance GPUs and expansion devices.

High-Speed Storage with Dual M.2 Slots

Storage flexibility is provided through:

• 2 × M.2 slots
  • 1 × PCIe 5.0 x4
  • 1 × PCIe 4.0 x4
• 2 × SATA 6Gb/s ports

This configuration enables ultra-fast NVMe SSD performance, reducing load times and improving system responsiveness. RAID support (RAID 0/1) allows for advanced storage setups tailored to performance or redundancy.

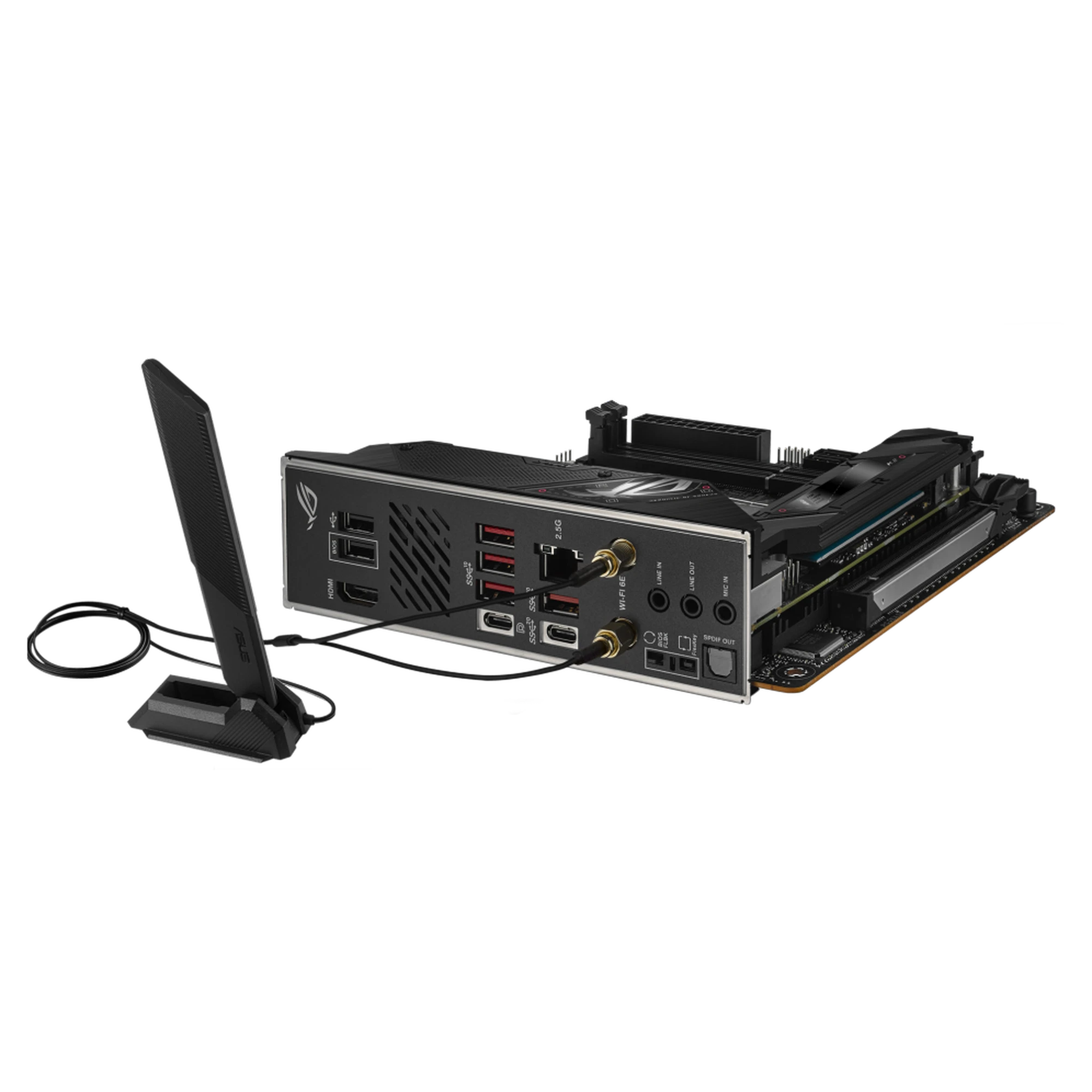

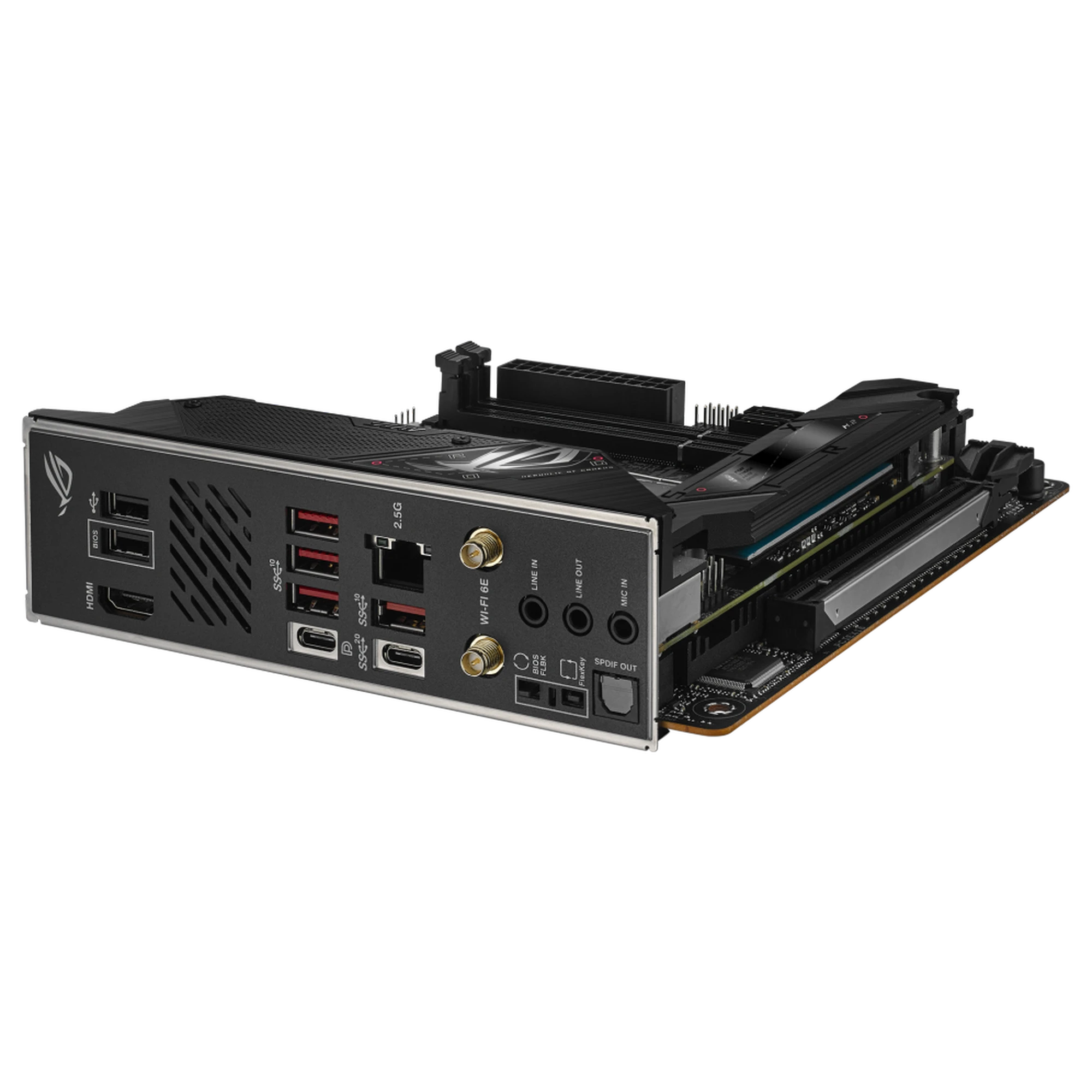

Advanced Connectivity and USB Options

Despite its compact size, the motherboard offers a wide range of connectivity options:

• USB 3.2 Gen 2×2 Type-C (20Gbps)
• Multiple USB 10Gbps and USB 2.0 ports
• USB Type-C with DisplayPort Alt Mode
• HDMI 2.1 output supporting 4K/8K resolutions

These features ensure compatibility with modern peripherals, displays, and external storage devices.

Fast Networking with WiFi 6E and 2.5Gb LAN

Networking capabilities include:

• WiFi 6E (802.11ax) with tri-band support
• Bluetooth 5.2
• Intel 2.5Gb Ethernet with ASUS LANGuard

WiFi 6E leverages the 6GHz band to provide faster speeds, lower latency, and improved performance in crowded wireless environments.

SupremeFX Audio for Immersive Sound

Audio is powered by ROG SupremeFX with ALC4080 codec and Savitech amplifier, delivering:

• 120 dB SNR playback and 113 dB recording
• High-resolution 32-bit/384 kHz audio
• Optical S/PDIF output
• Premium audio capacitors and shielding

This ensures high-quality sound for gaming, music, and multimedia experiences.

Efficient Cooling and Thermal Design

The motherboard features a comprehensive thermal solution to maintain optimal performance:

• VRM heatsinks
• M.2 heatsinks with backplate
• Chipset cooling design
• Multiple fan headers and AIO pump support

These cooling features help prevent thermal throttling and ensure system stability under load.

DIY-Friendly Features for Easy Building

ASUS enhances the user experience with builder-friendly features:

• BIOS FlashBack™ for easy BIOS updates
• Q-LED diagnostic indicators
• M.2 Q-Latch for tool-free SSD installation
• Pre-mounted I/O shield for simplified assembly

These features make building and upgrading systems easier for both beginners and experienced users.

Compact Design with ROG Aesthetics

The Mini-ITX form factor makes this motherboard ideal for compact builds without sacrificing performance. Its sleek black design with subtle ROG branding ensures compatibility with a wide range of PC cases and themes.

Conclusion — The Ultimate Mini-ITX AM5 Gaming Solution

The ASUS ROG STRIX B650E-I GAMING WIFI delivers exceptional performance, advanced connectivity, and future-ready features in a compact Mini-ITX design. With PCIe 5.0, DDR5 support, WiFi 6E, and premium audio, it is a powerful solution for gamers and creators building small but high-performance systems.

✅ Specifications
