Intel® W790 (LGA 4677) CEB workstation motherboard, PCIe 5.0 x16, M.2, 10G and 2.5G LAN, Server-grade Remote Management, 12+1+1 power stages, front and Rear USB 3.2 Gen 2×2 Type-C®

• Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
• CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC)
• Ultrafast connectivity: 5 PCIe 5.0 x16 slots, 10G & 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2×2 Type-C® and 3 SlimSAS
• Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software – ASUS Control Center Express
• Robust power and thermal design: 12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
• Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility

Introduction: Professional Workstation Platform for Demanding Workloads

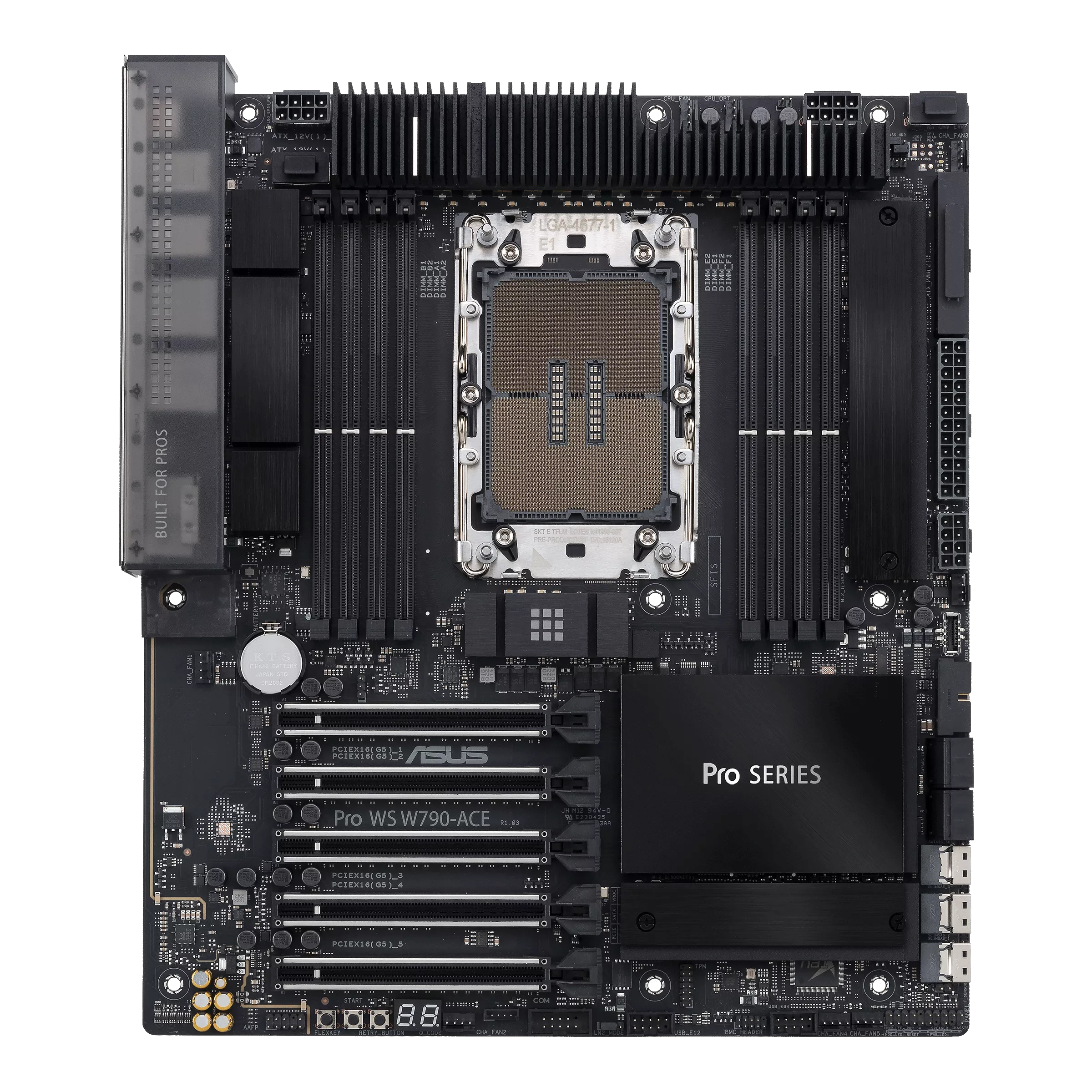

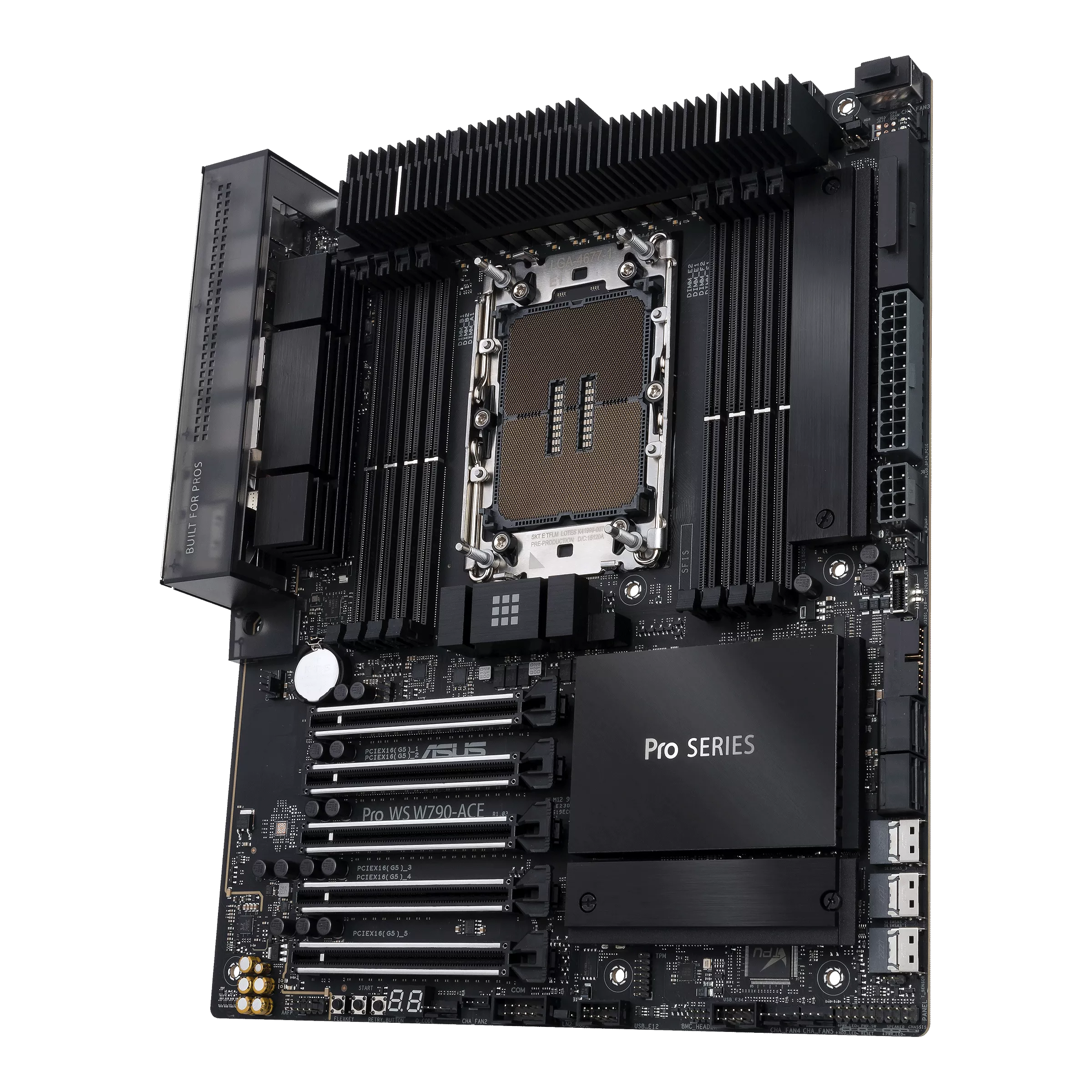

The ASUS Pro WS W790-ACE is a premium CEB‑form‑factor workstation motherboard engineered to unlock the full potential of Intel Xeon W‑3400 and W‑2400 series processors using the LGA 4677 socket. Built for creative professionals, 3D artists, engineers, developers, and data analysts, this board combines server‑grade stability, extreme performance, ultra‑fast connectivity, and enterprise‑level remote management to handle 24/7 heavy workloads such as 3D rendering, video editing, CAD/CAM design, scientific simulation, virtualization, and large‑scale data processing. Every component is rigorously tested for compatibility and reliability, making the Pro WS W790-ACE a trusted foundation for professional workstations that demand zero downtime and consistent high performance.

Intel LGA 4677 Platform & Xeon W Compatibility

At its core, the Pro WS W790-ACE features the Intel LGA 4677 socket, fully optimized for Intel Xeon W‑3400 and W‑2400 workstation processors. These CPUs deliver exceptional multi‑threaded performance, advanced security features, and enterprise‑class reliability for professional applications. The motherboard supports CPU and memory overclocking to push performance beyond stock limits, ideal for users who need maximum throughput for intensive tasks. Combined with the Intel W790 chipset, the platform provides high bandwidth, low latency, and extensive I/O capabilities to support professional workflows without bottlenecks.

High‑Capacity DDR5 ECC Memory Architecture

Memory performance and stability are critical in workstations, and the Pro WS W790-ACE delivers with 8×DIMM slots supporting 4‑channel DDR5 ECC R‑DIMM memory at 2 DIMMs per channel (2DPC). It supports up to 2TB of ECC memory, which automatically detects and corrects data corruption in real time, drastically reducing system crashes and data errors in long‑duration workloads. ASUS has optimized the memory trace layout for signal integrity and overclocking headroom, allowing users to run DDR5 at higher frequencies while maintaining rock‑solid stability. Whether you are working with massive datasets, high‑resolution media assets, or virtual machines, this memory subsystem ensures fast access and smooth multitasking.

Robust 12+1+1 Power Stage Design

Stable power delivery is essential for Xeon processors and multi‑GPU configurations. The Pro WS W790-ACE uses a 12+1+1 phase VRM design with high‑quality power stages to provide clean, efficient power under full load. An additional 8‑pin PCIe power connector improves stability when using multiple high‑power graphics cards, preventing voltage drops and system instability during intense rendering or simulation. Massive VRM heatsinks with dense fins and high surface area keep power components cool, maintaining consistent performance even during extended 100% load scenarios. This power solution ensures the motherboard can sustain maximum performance for hours without throttling.

Ultra‑Fast Connectivity: PCIe 5.0, Networking, USB & Storage

PCIe 5.0 Expansion

The board comes with 5×PCIe 5.0 x16 SafeSlot slots, reinforced with ASUS SafeSlot technology for enhanced strength and shear resistance. These slots support multiple high‑performance GPUs for parallel computing, 3D rendering, AI acceleration, and video production. PCIe 5.0 doubles the bandwidth of PCIe 4.0, ensuring future‑proofing for next‑generation workstation graphics cards, RAID cards, and accelerator cards.

High‑Speed Networking

For fast data transfer and network integration, the Pro WS W790-ACE includes dual high‑speed Ethernet ports:
– 1×Marvell AQC113CS 10G LAN for NAS, high‑speed file sharing, and server connectivity
– 1×Intel I226‑LM 2.5G LAN for daily networking, streaming, and uploads
This dual LAN configuration improves workflow efficiency by separating high‑speed storage traffic from general network usage.

USB 3.2 Gen 2×2 Type‑C

The motherboard features front and rear USB 3.2 Gen 2×2 Type‑C ports delivering up to 20Gbps bandwidth—twice the speed of standard USB 3.2 Gen 2. These ports offer fast transfers for external SSDs, high‑resolution cameras, and portable work devices, with reversible connectivity for convenience.

Flexible Storage Options

Storage flexibility meets high performance:
– 2×M.2 slots (22110 + 2280) supporting PCIe 4.0 x4 NVMe SSDs with dedicated heatsinks to prevent thermal throttling
– 3×SlimSAS ports for enterprise SSDs and server‑grade storage via PCIe 4.0/3.0
– 4×SATA 6Gb/s ports for traditional HDDs and SSDs
Users can configure RAID arrays for massive bandwidth, high reliability, or both, perfect for video editors and data professionals working with huge files.

Server‑Grade IPMI Remote Management

The Pro WS W790-ACE supports server‑grade IPMI remote management via an optional ASUS IPMI expansion card. This feature allows IT administrators to monitor, troubleshoot, and control the system remotely—even when the OS is offline. Functions include remote power on/off, system reset, hardware monitoring, and real‑time diagnostics. Combined with ASUS Control Center Express software, users get centralized IT management, improved security, and protection against unauthorized access and data leaks. This enterprise‑level toolset is ideal for business environments, server rooms, and remote workstations.

Advanced Thermal Design for 24/7 Operation

Workstations often run continuously, so cooling is critical. The Pro WS W790-ACE features a multi‑layer thermal solution:
– Massive VRM heatsinks with high‑density fins for superior heat dissipation
– Dedicated chipset heatsink to maintain optimal temperatures
– Custom M.2 heatsinks and backplates to keep SSDs cool under heavy loads
These cooling components ensure stable performance in high‑temperature and high‑humidity environments, with the board validated to operate reliably 24/7.

DIY‑Friendly & Professional Aesthetics

Despite its server‑grade performance, the Pro WS W790-ACE is user‑friendly:

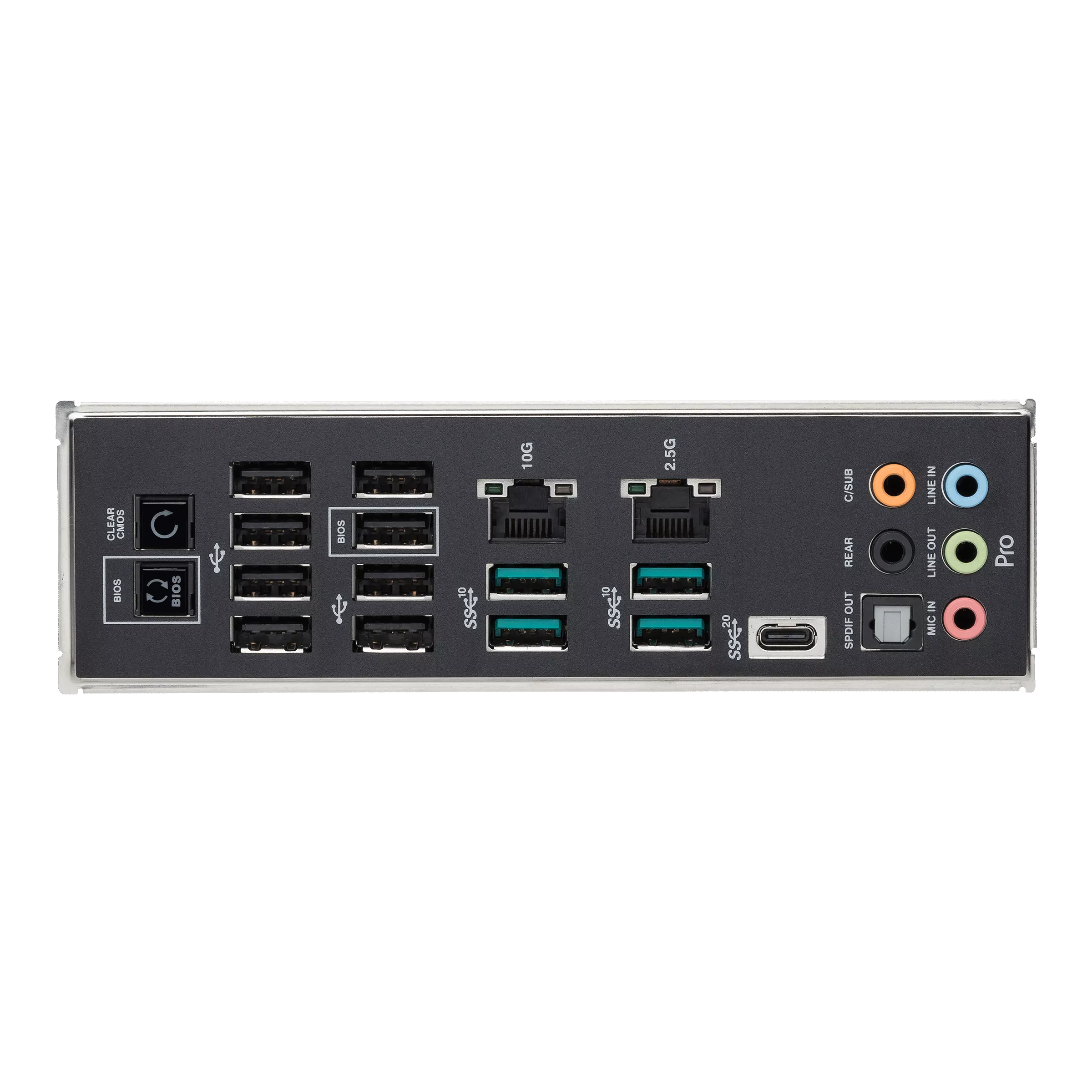

– Pre‑mounted I/O shield for quick, easy installation
– BIOS FlashBack™ for safe UEFI updates without a CPU or RAM installed
– Q‑Latch M.2 design for tool‑free SSD installation and removal
Visually, the board features a low‑profile professional look with metallic black aluminum, stainless steel black mesh, and a smoky gray transparent I/O cover—blending performance with understated style for workstation builds.

Premium Audio for Content Creation

The motherboard uses the Realtek S1220A 7.1 Surround HD Audio codec with 120dB SNR stereo playback and 113dB SNR recording input. Professional audio features include EMI shielding, separate PCB layers for left/right channels, integrated amplifiers for high‑impedance headphones, de‑pop circuits, and premium audio capacitors. This delivers pristine sound for video editing, content creation, and multimedia work.

Trusted Stability & Enterprise Compatibility

ASUS validates every Pro WS W790-ACE motherboard with extensive compatibility testing across CPUs, memory, GPUs, and storage devices. The board undergoes stress tests under high temperatures and humidity to ensure 24/7 reliability. With a qualified vendor list (QVL) for components and strict quality controls, users can build a high‑performance workstation with confidence, knowing the system will remain stable under extreme workloads.

Conclusion: The Ultimate Workstation Foundation

The ASUS Pro WS W790-ACE is more than a motherboard—it is a complete professional platform designed for users who demand uncompromising performance, stability, and connectivity. With support for Intel Xeon W processors, massive ECC DDR5 memory, PCIe 5.0 expansion, 10G networking, IPMI remote management, and industrial‑grade cooling, it excels in professional environments. Whether you are a 3D artist, video editor, engineer, or data scientist, the Pro WS W790-ACE provides the power, reliability, and flexibility to turn complex workflows into efficient, consistent results.
