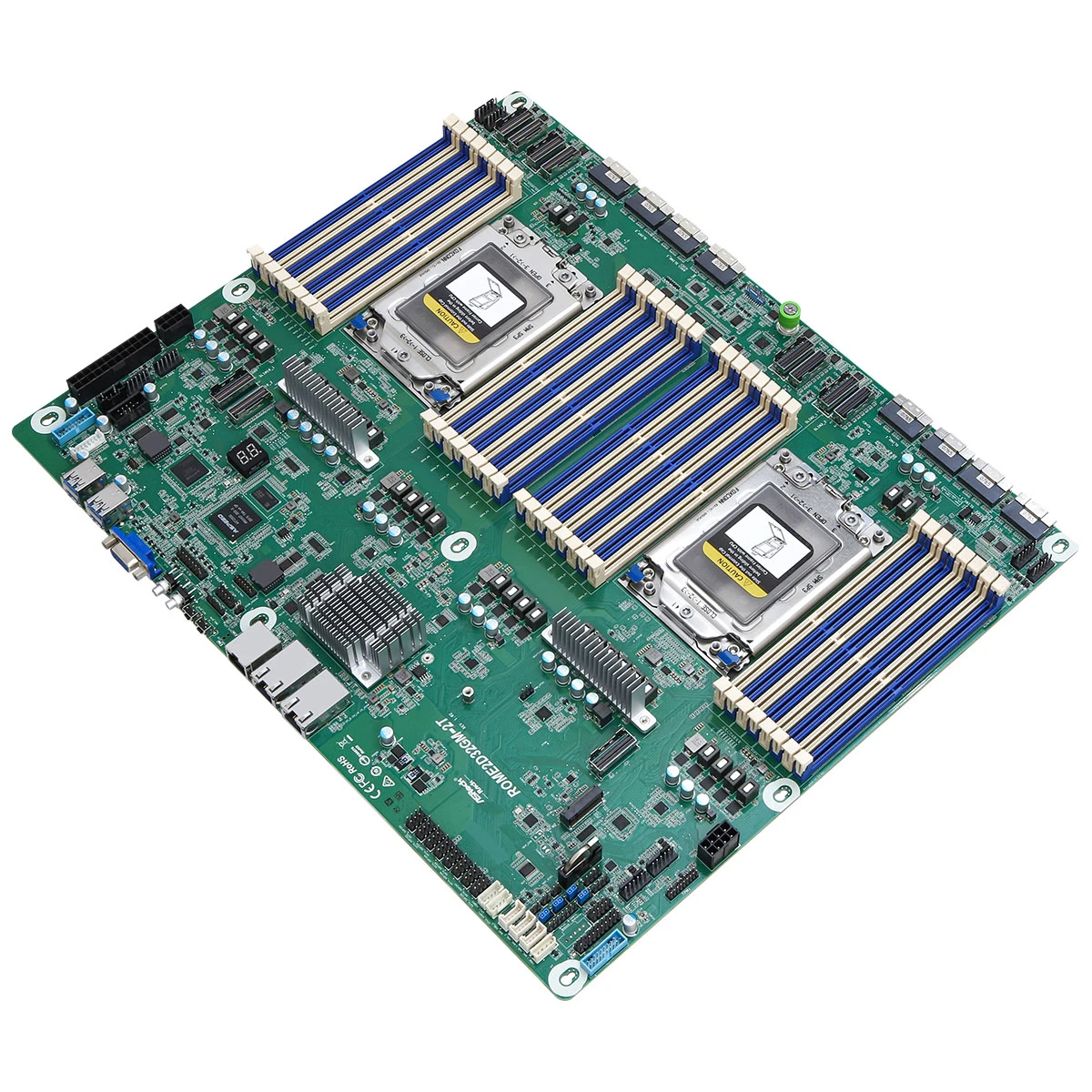

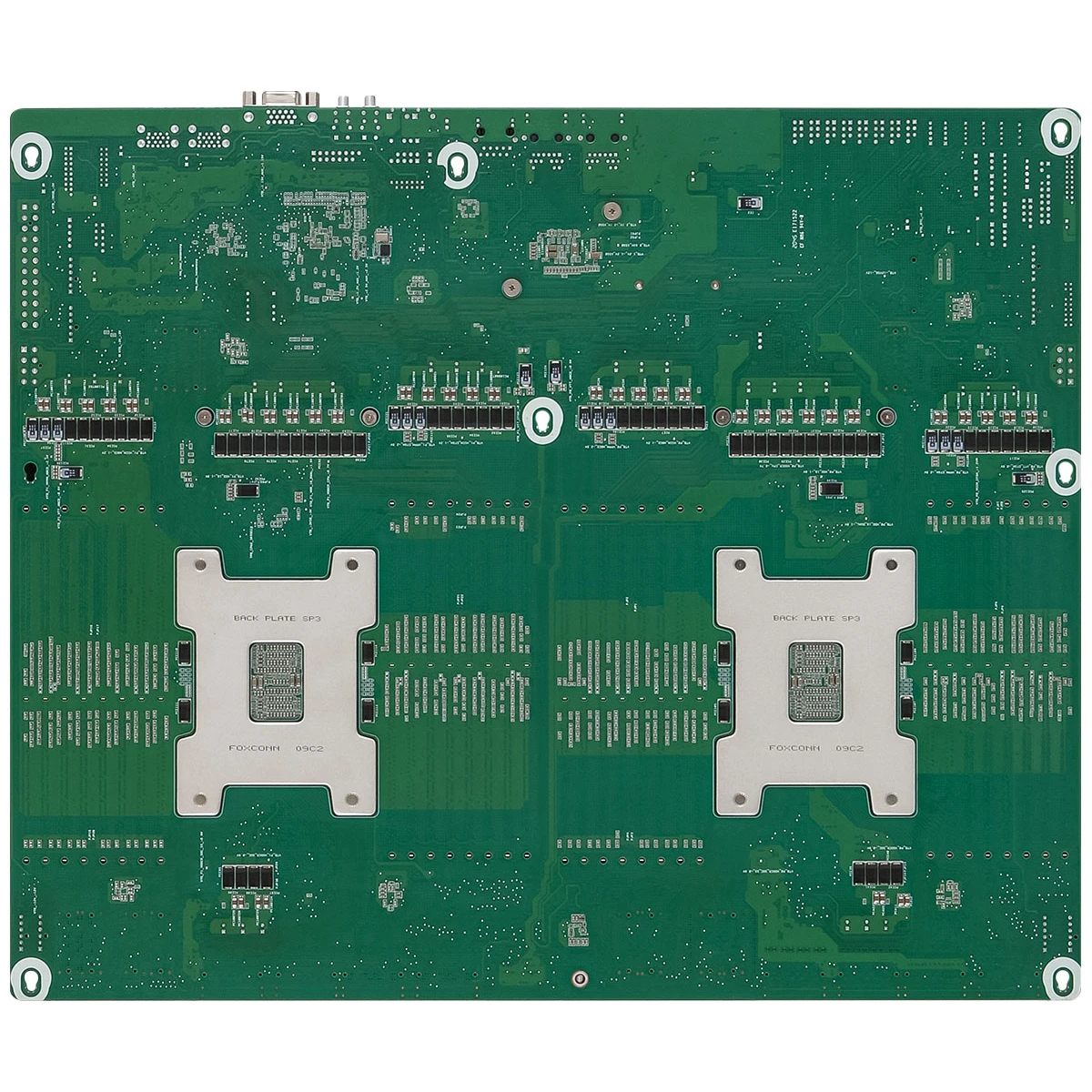

ASRock Rack ROME2D32GM-2T Dual SP3 Server Motherboard | AMD EPYC 7003/7002 Support

ASRock Rack ROME2D32GM-2T Dual SP3 Server Motherboard | AMD EPYC 7003/7002 Support

• Proprietary (16.53″ x 14.56″)
• Dual Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
• 16+16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
• 6 Low profile SlimSAS (PCIe4.0x8), 5 Low profile SlimSAS (PCIe4.0x8 or 8SATA 6Gb/s), 8 SlimSAS (PCIe4.0x8)
• Supports 1 M.2 (PCIe4.0 x4)
• 32 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote Management (IPMI)

Overview

The ASRock Rack ROME2D32GM-2T is a robust, enterprise‑grade server motherboard engineered to power mission‑critical data center, virtualization, cloud computing, and high‑performance computing (HPC) environments. Built around dual AMD SP3 (LGA 4094) sockets, this platform fully supports AMD EPYC 7002 and 7003 series processors—including models with AMD 3D V‑Cache Technology—to deliver exceptional multi‑threaded performance, massive memory bandwidth, and strong I/O expansion. Designed with stability, scalability, and remote management in mind, the ROME2D32GM-2T meets strict 24/7 operational demands while simplifying deployment and maintenance for IT administrators.

Processor & Platform Architecture

At its core, the ROME2D32GM-2T features dual SP3 sockets that support AMD EPYC 7002 (Rome) and 7003 (Milan) processors, offering up to 64 cores per socket and high memory bandwidth for compute‑intensive tasks. This dual‑CPU design enables exceptional parallel processing, making the board ideal for virtualization clusters, database servers, AI inference nodes, and hybrid cloud infrastructure. The motherboard uses a robust power delivery subsystem to maintain stable voltage under full load, ensuring consistent performance even during prolonged high‑utilization periods. Compatibility with AMD 3D V‑Cache technology further boosts cache‑sensitive workload performance, enhancing throughput for applications such as in‑memory databases and big data analytics.

Memory Subsystem & Scalability

Memory capacity and speed are critical for modern server deployments, and the ROME2D32GM-2T excels with 32 DDR4 DIMM slots (16 per CPU, 2DPC). Supporting RDIMM, LRDIMM, and 3DS RDIMM types at speeds up to 3200 MT/s, the board can scale up to 8TB of ECC memory, delivering exceptional memory bandwidth and capacity for memory‑hungry workloads. ECC (Error Correcting Code) support enhances system reliability by detecting and fixing single‑bit and multi‑bit memory errors, reducing crashes and data corruption in long‑running server environments. This high‑capacity memory design makes the motherboard well‑suited for large‑scale virtualization, hyper‑converged infrastructure (HCI), and in‑memory computing applications.

Storage & Expansion Capabilities

The ROME2D32GM-2T provides extensive storage and expansion options to support diverse enterprise storage configurations. It includes 32 SATA 6Gb/s ports for high‑capacity HDD and SSD deployments, along with dual M.2 slots (PCIe 4.0 x4) for fast boot drives or caching SSDs. Multiple SlimSAS connectors enable flexible connectivity to SAS/SATA storage backplanes, supporting scalable storage arrays for NAS, SAN, and object storage systems. For expansion, the board offers multiple PCIe 4.0 slots to support add‑in cards such as GPUs, NVMe storage adapters, RAID controllers, and network interface cards. PCIe 4.0 doubles the bandwidth of PCIe 3.0, reducing bottlenecks for high‑speed I/O devices and improving overall system responsiveness.

Networking & Management

Network performance and remote administration are central to enterprise server functionality. The ROME2D32GM-2T integrates dual Intel X550‑AT2 10GbE RJ45 ports, delivering high‑speed, low‑latency networking for data center traffic, virtual machine migrations, and inter‑server communication. These ports support enterprise features such as VLAN tagging, jumbo frames, and RSS (Receive Side Scaling) to optimize network throughput and CPU utilization. For out‑of‑band management, the motherboard includes a dedicated IPMI 2.0 controller with a dedicated LAN port, allowing administrators to monitor hardware sensors, control power, flash BIOS, and access the console remotely—even when the main OS is offline. This robust management feature reduces on‑site maintenance needs and improves system uptime.

I/O, Stability & Enterprise Features

The motherboard includes comprehensive rear and onboard I/O, including USB 3.2 Gen1 ports, VGA for local console access, and dedicated management ports. Built with industrial‑grade components, the board offers enhanced durability and thermal efficiency for extended server lifecycles. Features such as watchdog timers, hardware monitoring, and stable BIOS firmware further strengthen system reliability. The proprietary form factor (16.53” × 14.56”) is optimized for server chassis compatibility, supporting efficient airflow and component layout. These features make the ROME2D32GM-2T a trusted choice for enterprise IT, cloud providers, and HPC environments requiring rock‑solid stability.

Use Cases & Target Applications

The ASRock Rack ROME2D32GM-2T is designed for a wide range of enterprise and high‑performance applications:
– Virtualization & Hyper‑Converged Infrastructure: High core counts and large memory capacity support dense virtual machine deployments.
– Cloud Computing & Web Hosting: Scalable performance and strong I/O meet the demands of public, private, and hybrid cloud platforms.
– Database & Big Data Servers: High memory bandwidth and storage scalability optimize data processing and analytics.
– AI & HPC Workloads: PCIe 4.0 expansion supports GPU and accelerator cards for training and inference.
– Enterprise Storage & SAN Systems: Abundant SATA/SAS ports enable reliable, high‑capacity storage solutions.

Conclusion

The ASRock Rack ROME2D32GM-2T stands out as a premium dual‑socket server motherboard that combines strong processing power, massive memory scalability, fast I/O, and robust management capabilities. With full support for AMD EPYC 7003/7002 processors, PCIe 4.0, dual 10GbE, and IPMI, it delivers the performance, reliability, and flexibility required by modern data centers and IT infrastructures. Whether deployed for virtualization, cloud services, databases, or HPC, the ROME2D32GM-2T provides a future‑ready, stable foundation for mission‑critical server applications.
